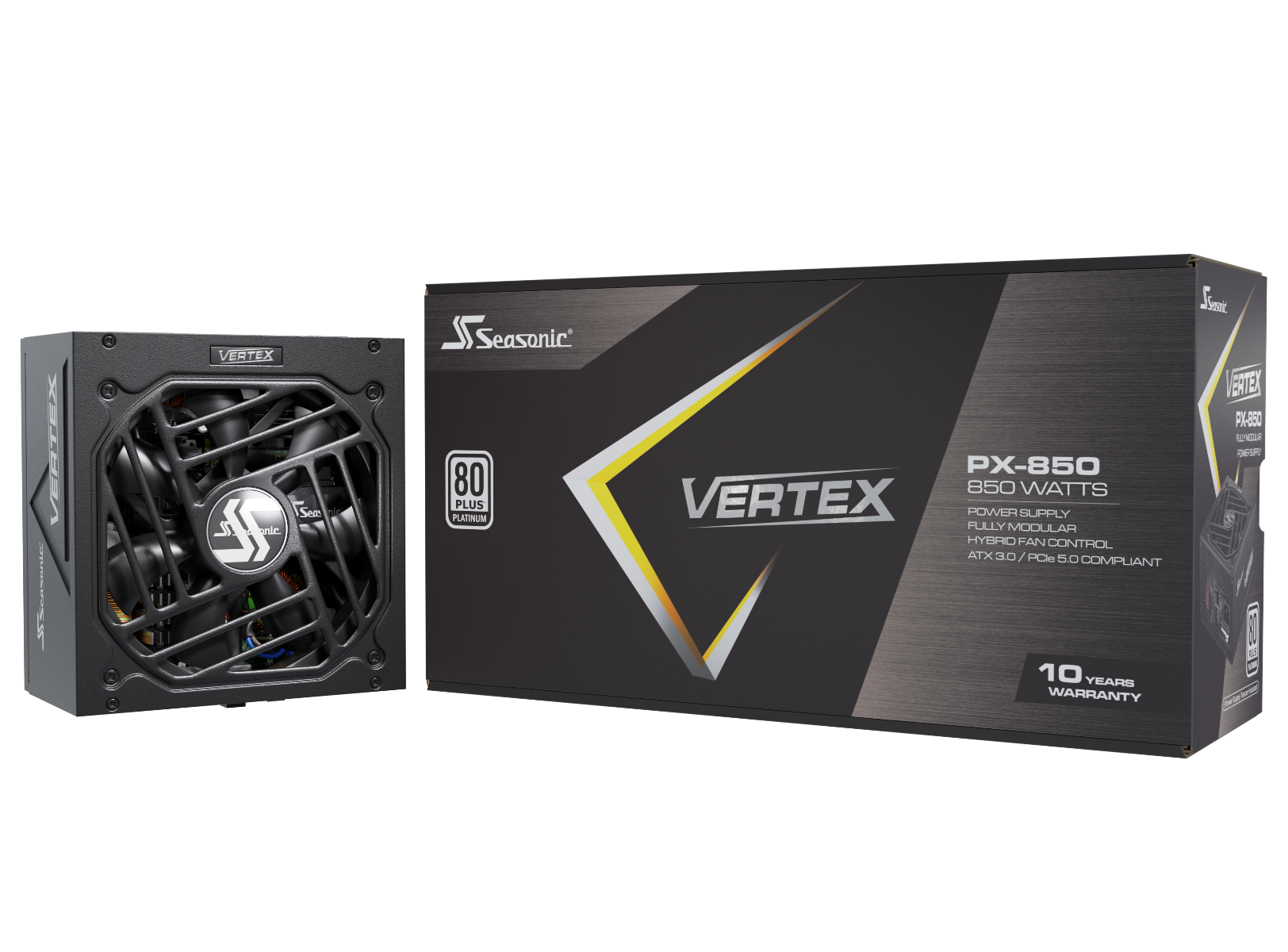

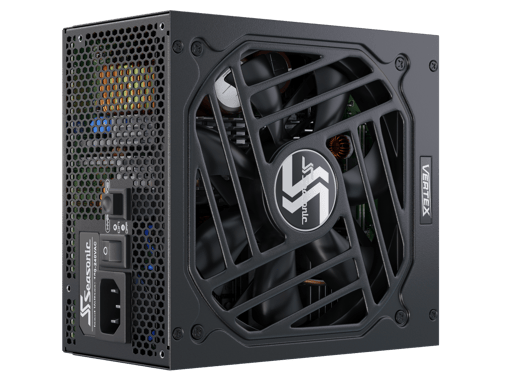

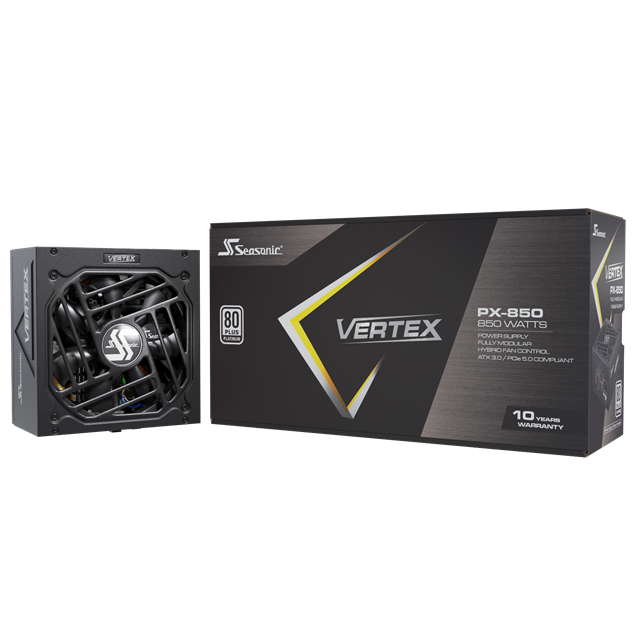

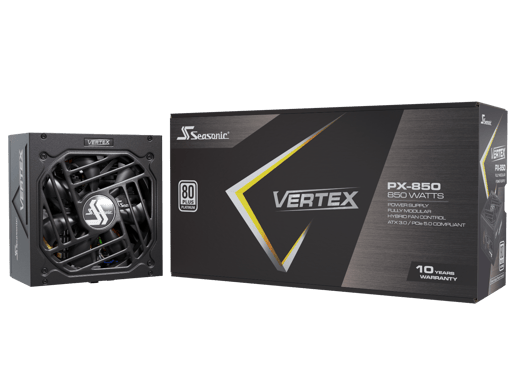

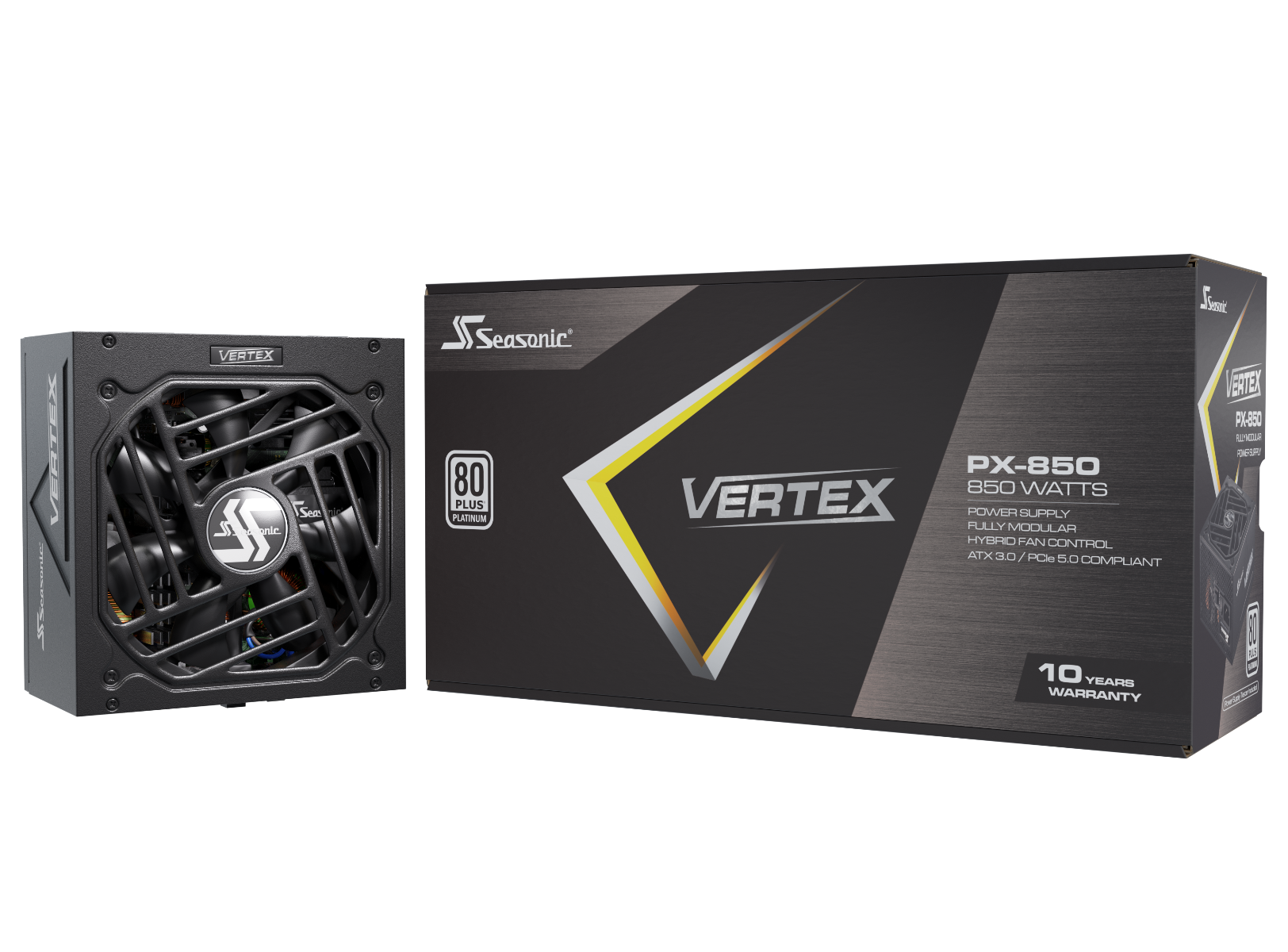

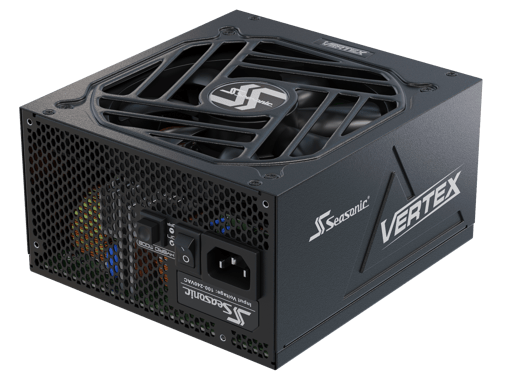

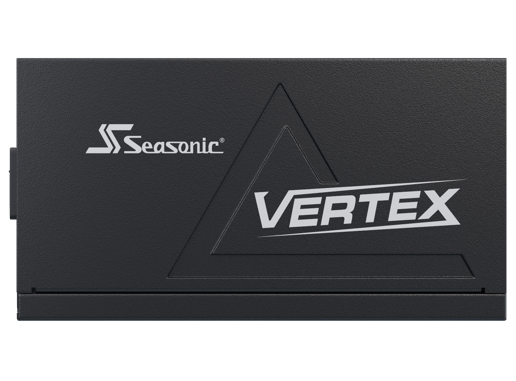

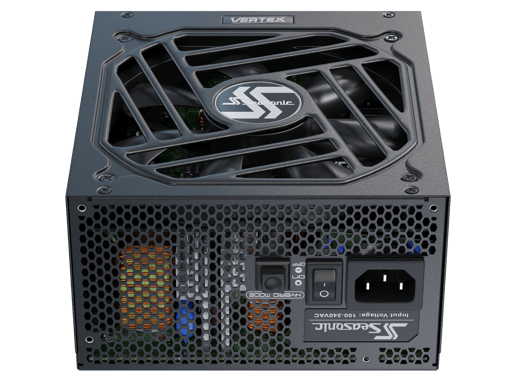

850W Seasonic VERTEX PX Modular 80 Plus Platinum PSU
The new VERTEX Series units will provide 1200 W / 1000 W / 850 W and 750 Watts of true power in both Platinum and Gold levels of efficiency, with all the best features you can expect from a Seasonic power supply.
80 PLUS® PLATINUM
The Vertex PX Series achieves 80 PLUS® Platinum certification with its 92 % efficiency at 50 % system load.
ATX 3.0 AND 16-PIN PCIE GEN 5 CABLE (12VHPWR)
Seasonic’s latest Vertex Series is designed and built to power new PC components requiring the new ATX 3.0 and PCIe 5.0 standards.
PREMIUM HYBRID FAN CONTROL
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art fan control that enables users to keep the overall fan noise at the lowest possible level.

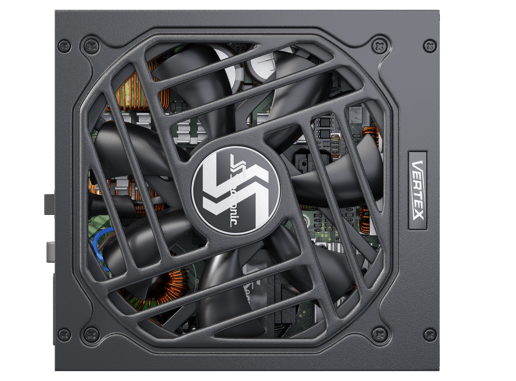

FLUID DYNAMIC FAN BEARING
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
HOW IT WORKS
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces. As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

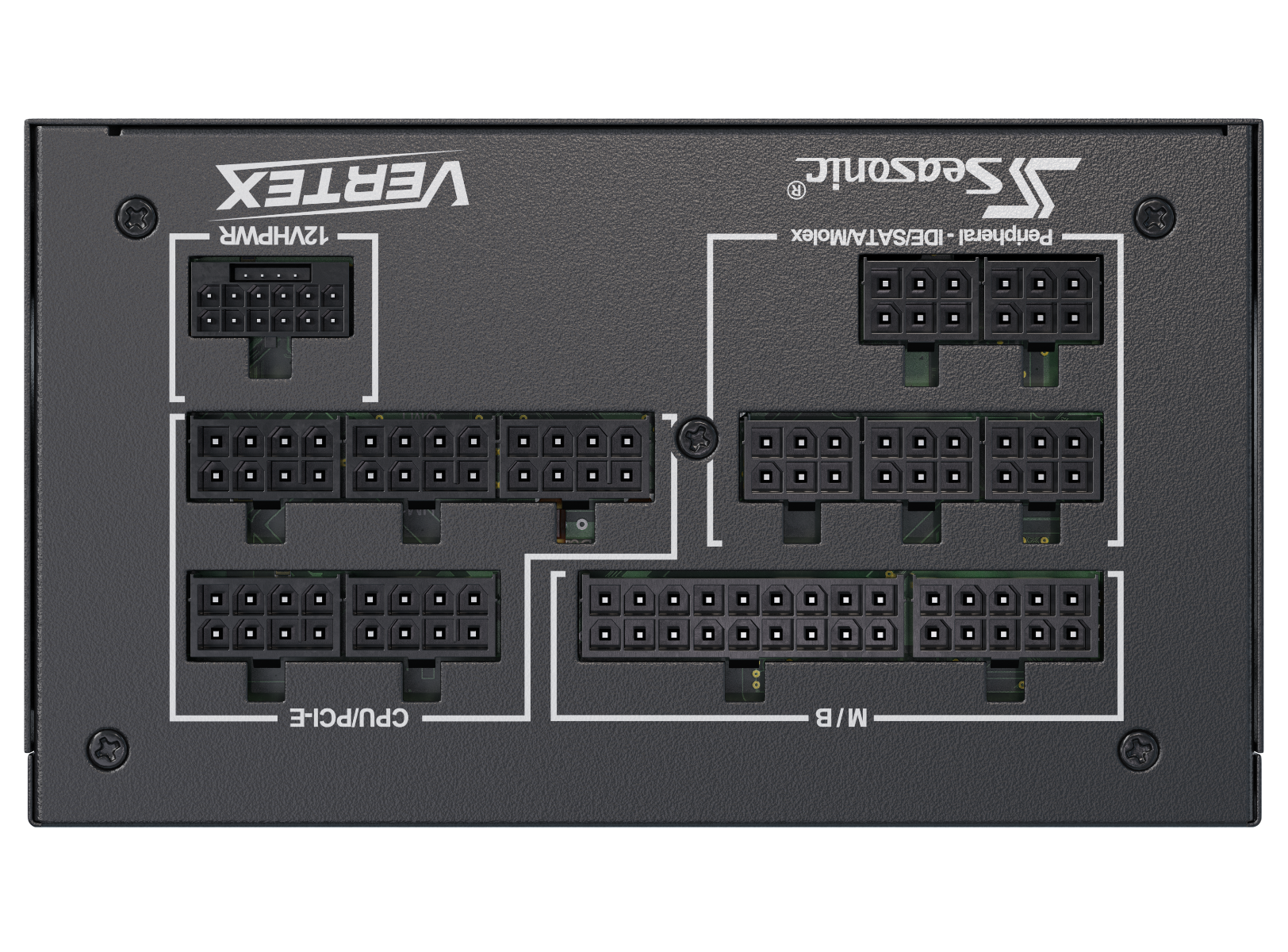

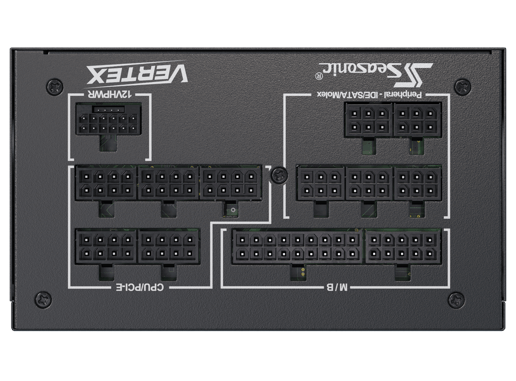

Interfaces/Ports
- SATA Connectors: 18 x SATA
- CPU Connectors: 2 x 4+4-pin EPS
- PCI Connectors: 3 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 3 x Molex
- Other Connectors: 1 x 12VHPWR
Compliance
- Standards: 80 PLUS Platinum Certified
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE
- Energy Star, RoHS, WEEE, ErP Lot 6, REACH
- Safety: OPP, OVP, UVP, OCP, OTP, SCP
Electrical
- Voltage: 100 ~ 240 V AC
- Power: 850 W
- Frequency Range: 50 ~ 60 Hz
- Power Cord: Yes
Environmental
- Operating Temperature: 0 ~ 50 °C
Physical
- Form Factor: ATX Power Supply
- Case Colour: Black
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
Warranty
- Warranty: 12 Years
Identifiers
- Stock Code: PSU2252
- Mfg Code: VERTEX PX-850
Warranty
- Warranty: 12 Years
