GPU

• Chipset Manufacturer: NVIDIA

Physical

• Form Factor: Dual Slot; Full Height

GPU

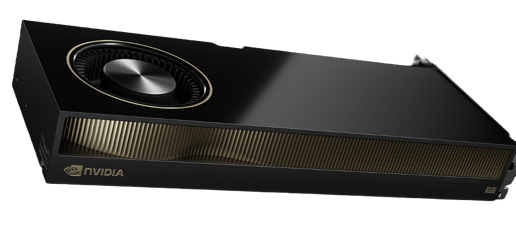

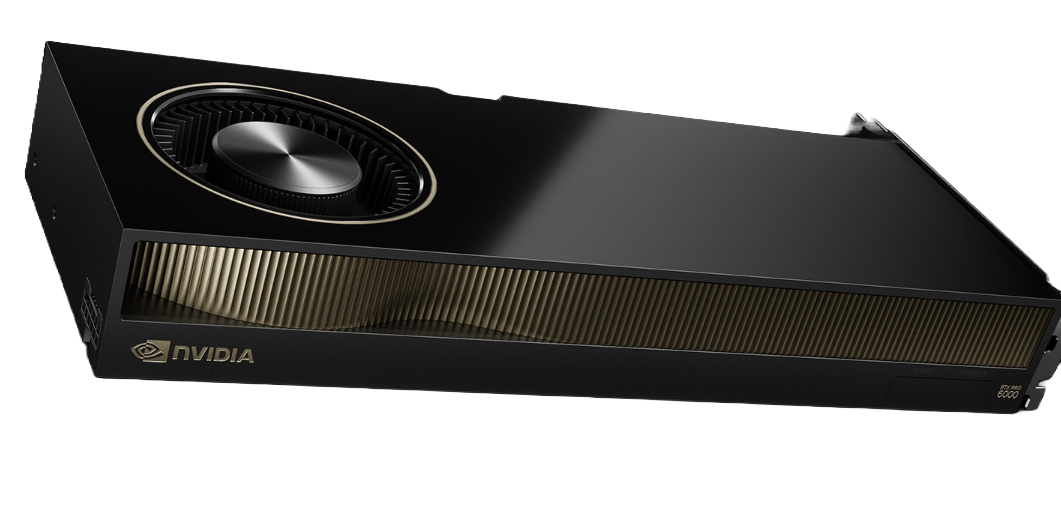

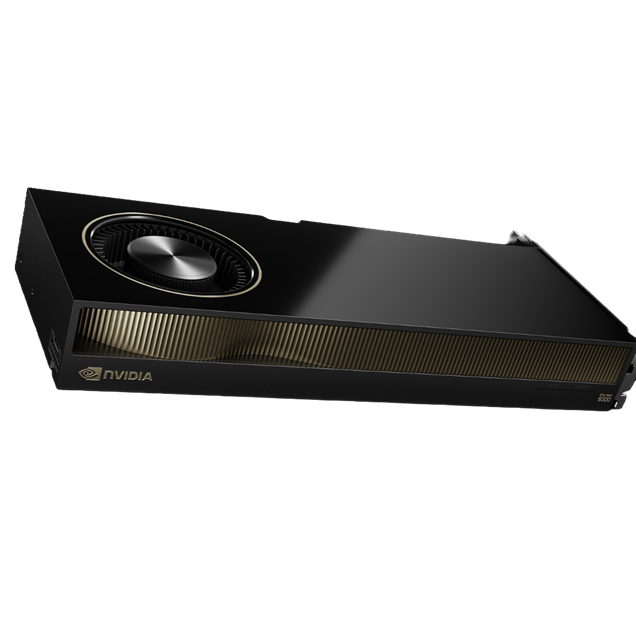

• Chipset Model Number: RTX PRO 6000 Blackwell Max-Q Workstation Edition
• Chipset Additional Information: MIG Instance Types:
• Up to 4x 24 GB
• Up to 2x 48 GB
• Up to 1x 96 GB
• Chip Clock: 3511 AI TOPS
• Graphics Core: CUDA: 24,064
• Tensor: 5th Gen
• Ray Tracing: 4th Gen
• Cooling System: Active

Memory

• Memory Size: 96 GB
• Memory Type: GDDR7 with ECC
• Memory Width: 512-bit
• Memory Bandwidth: 1792 GB/s

Interfaces/Ports

• Video In Ports: PCIe 5.0 x16
• DisplayPort: 4x DisplayPort 2.1b

Performance

• Floating Point Operations (Single): 110 TFLOPS
• Floating Point Operations (Double): 333 TFLOPS

Resolution

• Multiple Monitor Support (Max): >4x 4096 x 2160 @ 120 Hz
• >4x 5120 x 2880 @ 60 Hz
• >2x 7680 x 4320 @ 60 Hz

System

• Software Included: Graphics APIs:
• DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.3
• Compute APIs:
• CUDA 12.8, OpenCL 3.0, DirectComputeraphics APIs:
• DirectX 12, Shader Model 6.6, OpenGL 4.63, Vulkan 1.3
• Compute APIs:
• CUDA 12.8, OpenCL 3.0, DirectCompute
• Video Standards: 4x NVENC (9th Gen)
• 4x NVDEC (6th Gen)

Electrical

• Power Connector: 1x PCIe CEM5 16-pin
• Power Consumption: 300 W

Physical

• Width: 267 mm
• Depth: 112 mm
• Height: Dual Slot

Identifiers

• Stock Code: VGA7564
• Mfg Code: VCNRTXPRO6000MQ-PB
