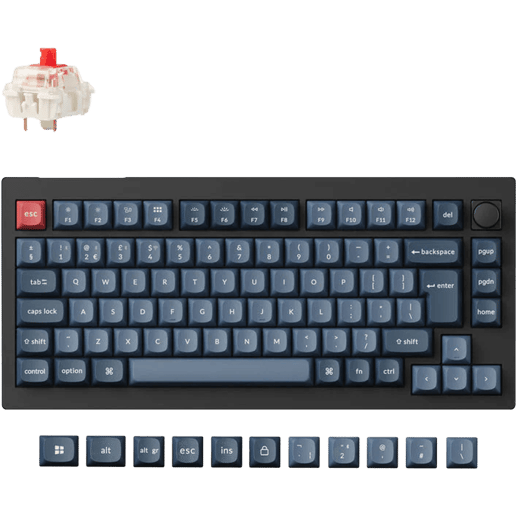

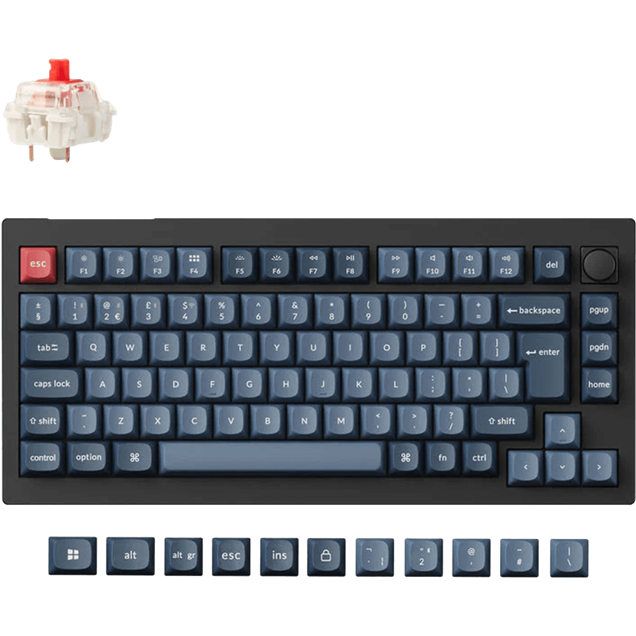

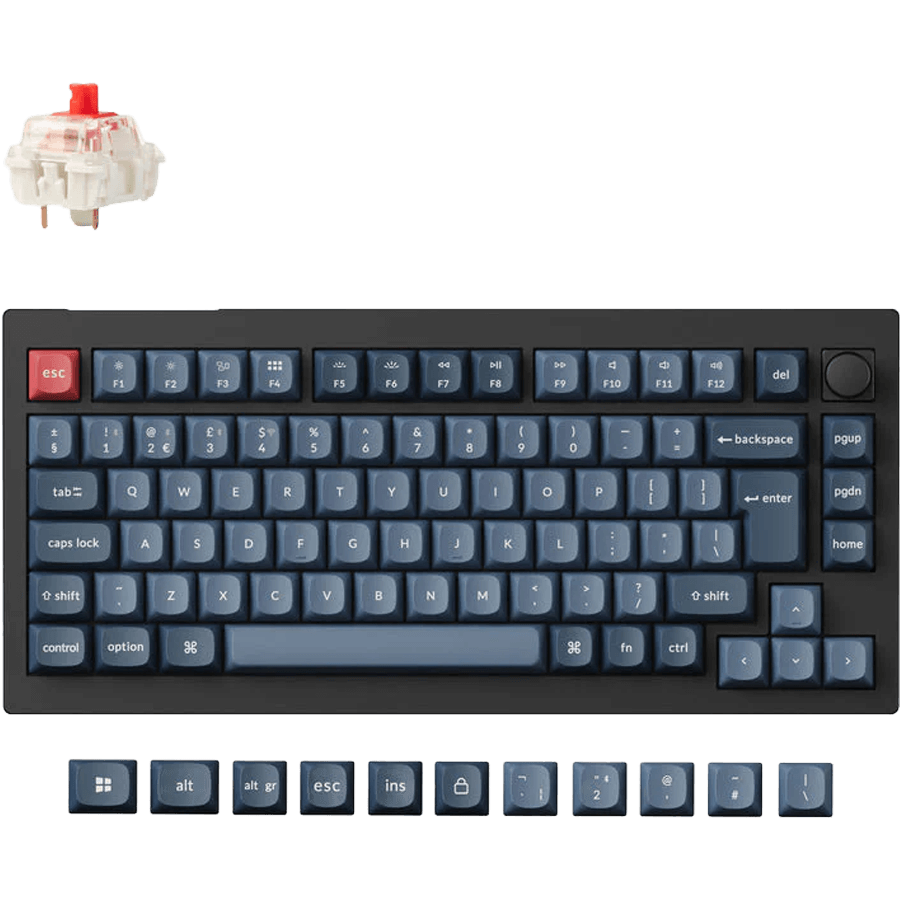

Keychron V1 Max UK 75 Percent Wireless Mechanical Keyboard
The Keychron V1 Max is a compact mechanical keyboard designed to save desk space while keeping the keys you use most. It uses a 75 percent UK layout with 84 keys, giving you function keys, arrow keys, and shortcuts in a smaller design.
This keyboard comes fully assembled in a carbon black finish and includes a built in control knob. The knob can be used for volume control or set to other actions using the keyboard software.
The V1 Max uses Gateron Jupiter Red switches. These switches are smooth and light to press, making them ideal for fast typing and gaming. The keyboard also supports hot swap, so you can change switches easily without soldering.
You can connect the keyboard in three ways. Use Bluetooth to connect to laptops, tablets, or phones, use the 2.4GHz wireless mode for a fast and stable connection, or plug it in with a USB cable for wired use.
The keyboard features bright RGB lighting with many effects and adjustable brightness. It has a built in rechargeable battery that lasts for long typing sessions. With QMK custom support, you can remap keys, create shortcuts, and adjust the keyboard layout to suit your needs.
The Keychron V1 Max works with Windows, macOS, and Linux and includes keycaps for both Windows and Mac layouts.
Keyboard
- Number of Keys: 84
- Wireless Type: 1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
- Compatibility: Hotswappable - Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
- Backlit: South-facing RGB LED
System
- Processor: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
System Requirements
- Compatible Systems: Windows/macOS/Linux
Electrical
- Battery: 4000 mAh Rechargeable li-polymer battery
- Power Consumption: Up to 225 hours / 100 hours with lowest brightness (Backlit off / RGB)
Environmental
- Operating Temperature: -10 - 50'C
Physical
- Width: 328.5 mm
- Depth: 148.7 mm
- Height: 21.5 mm / 29.4 mm (Front / Rear without keycaps)
- Weight: ~770 g
Identifiers
- Stock Code: KBD2833
- Mfg Code: V1M-D1-UK
