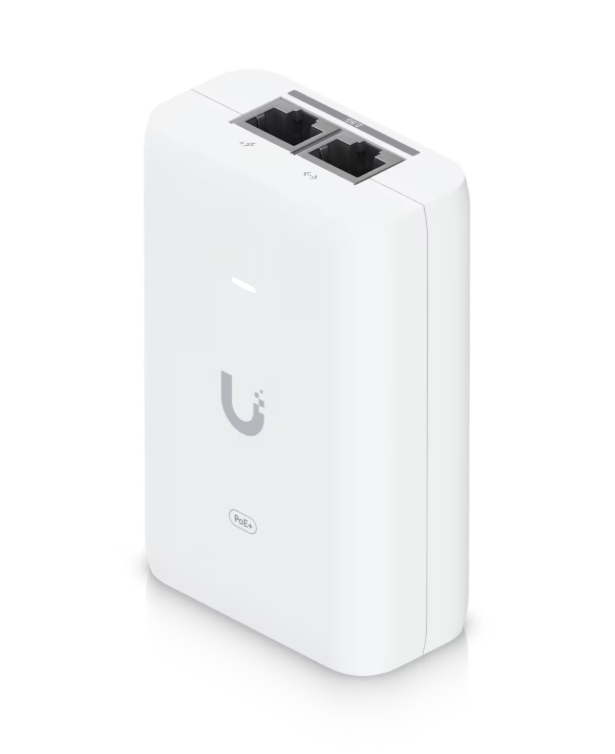

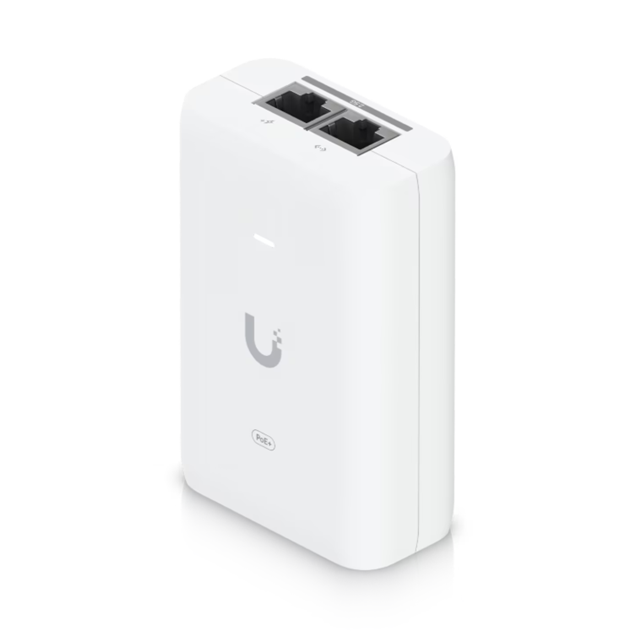

Ubiquiti UACC-POE+-2.5G Universal 802.3at 2.5G 30W Power POE+ Injector
£18.99
UACC-POE+-2.5G
Ubiquiti UACC-POE+-2.5G Universal 802.3at 2.5G 30W Power POE+ Injector
£18.99 INC VAT
Available for delivery from Tomorrow
Click & Collect from Wednesday 14th October
Order within
You have 0 of these in your basket
QTY
1
Need Help?
CCL Code: NET4825
Dimensions
93 x 62 x 35 mm (3.7 x 2.4 x 1.4")
Weight
156 g (5.5 oz)
Output Voltage
48V DC @ 0.65A
Rated Voltage
100–240V AC at 50/60Hz
LAN Activity Indicator
—
Gigabit LAN Port
?
Remote Reset Capability
—
Reset Button
—
2-pair Powering
Pins 4, 5 (+) and 7, 8 (-)
Clamping Protection
11V Data, 60V power
Data In / PoE
RJ45 Shielded Socket
Input Current
0.75A Max.
Inrush Current
<150A peak @ 230V AC
Efficiency
>87%
Switching Frequency
65 kHz Max.
Output Ripple
1% Max.
Line Regulation
≤ 1%
Load Regulation
≤ 3%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
Identifiers
- Stock Code: NET4825
- Mfg Code: UACC-POE+-2.5G
