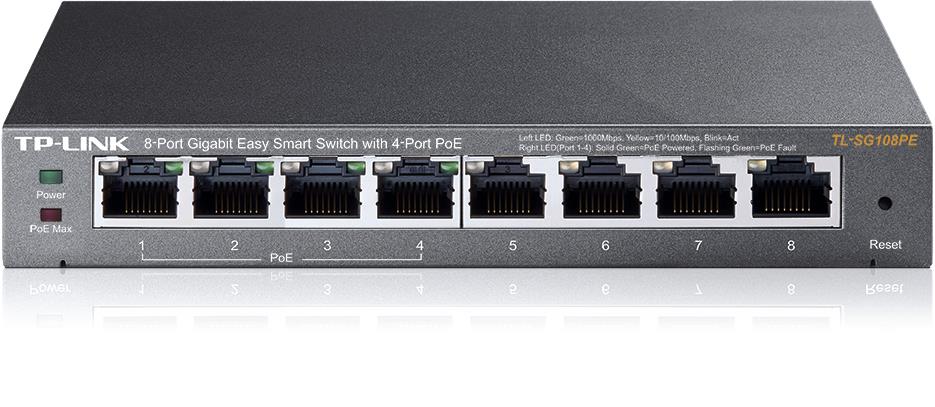

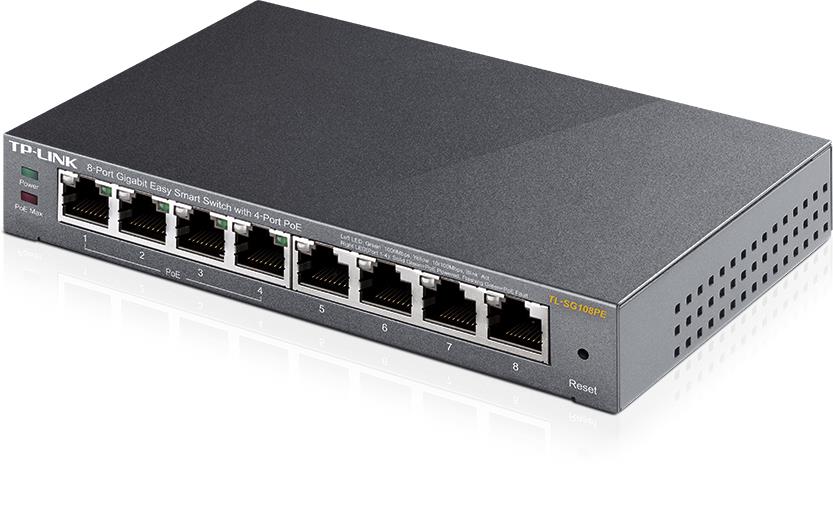

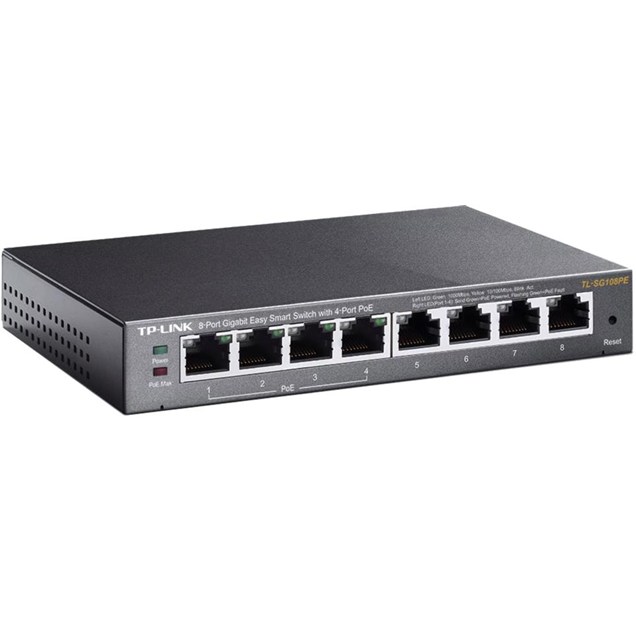

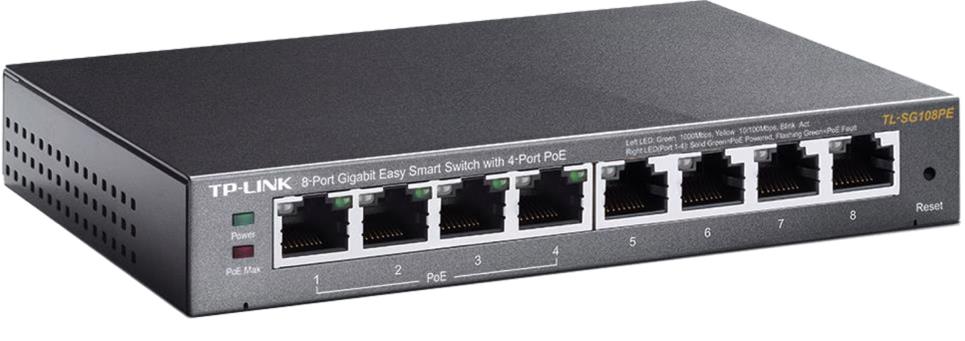

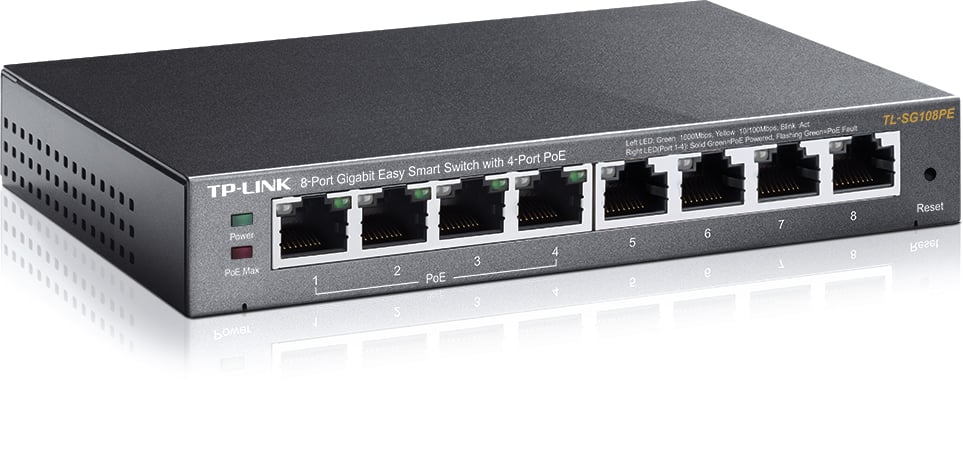

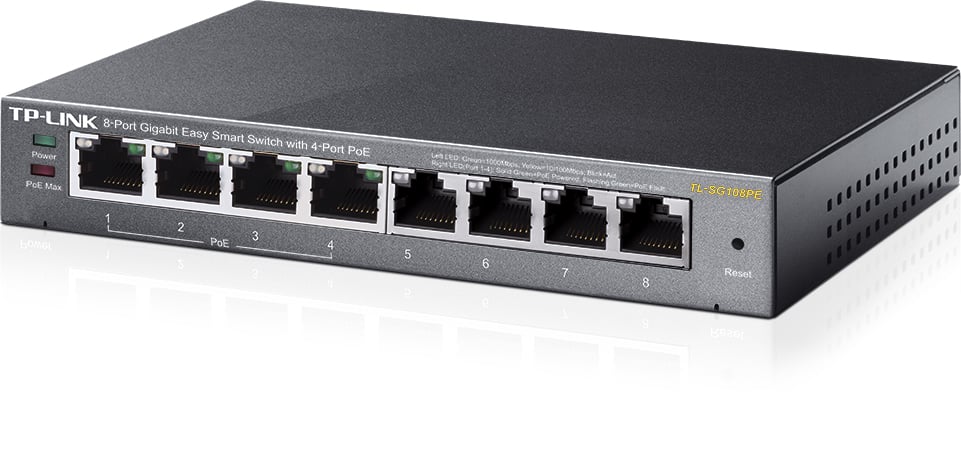

TP-Link TL-SG108PE 8-Port Gigabit Desktop Switch

TP-Link TL-SG108PE 8-Port Gigabit Desktop Switch

CCL Code: NET2487

£66.71 inc VAT

TP-Link TL-SG108PE 8-Port Gigabit Desktop Switch

TL-SG108PE

£66.71 inc VAT

Available for delivery from Tuesday 31st January

Buying in bulk? Contact our business team.

Key Features:

  • 8 x Gigabit Ports
  • Switch Type: Unmanaged
  • Form Factor: Desktop
  • 4 x PoE Ports
CCL Code: NET2487
Overview

The TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed speci?cally for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traf?c prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.

Power Over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

Effective Management

TL-SG108PE offers network monitoring for users to observe traf?c behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, traf?c prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traf?c based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.

Easy to Use

The TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables and uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adapts to promote compatibility and optimize performance. The convenient, compact size makes it ideal for desktops with limited space. Active LED indicators provide real-time status feedback and basic error diagnostics.

Main Features

  • 8 10/100/1000Mbps RJ45 ports
  • With 4 PoE ports, data and power can be transferred on one single cable
  • Provides network monitoring, traffic prioritization and VLAN features
  • Simple network set-up on top of plug-and-play connectivity
  • Web-based user interface and Easy Smart Configuration Utility simplify configuration
Specifications

Routing

Layer 2 Services IGMP Snooping V1/V2/V3 • Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention

Performance

Backplane 16 Gbps
MAC Addresses 4,000
Network Latency 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100O STP (maximum 100m)
Packet Forwarding Rate 11.9M pps
Port Bandwidth 10/100/1000 Mbps

Interfaces/Ports

Number of Fixed Ports 8 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100/1000 Mbps
Fixed Ports/Connectors Auto-MDI/MDIX

Wireless

VLANs Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN

Compliance

Standards Compliance IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
Safety FCC, CE, RoHS

Warranty

Warranty Limited Lifetime (Product warranty ends five years after TP-Link UK Ltd discontinues sales of that product).

System

Management Capabilities Web-based GUI • Easy Smart Configuration Utility

System Requirements

System Requirements Microsoft Windows for running Utility

Electrical

AC Voltage Range 100 to 240 V AC
Power Consumption 65.2 W
Electrical Frequency 50 to 60 Hz

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Network Switch
Case Colour Black
LED Status Indicators Power, PoE Max, Speed/Link/Act, PoE Status (Port 1~Port 4)
In The Box TL-SG108PE • Power Adapter • Installation Guide • Resource CD • Rubber Feet
Width 15.8 cm
Depth 10.1 cm
Height 2.5 cm

Identifiers

ISPC Code 40201

Key Features

PoE Supported Yes
Main Colour Black
Switch Type Unmanaged
Switch Form Factor Desktop
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 8
Number of PoE Ports 4
PoE+ Supported No

Item Details

Manufacturer TP-Link
Manufacturer Code TL-SG108PE
EAN 6935364094751
Condition New
Warranty

Warranty Information

Warranty Limited Lifetime (Product warranty ends five years after TP-Link UK Ltd discontinues sales of that product).

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TL-SG108PE
