TP-Link TL-SG108E 8-Port Gigabit Desktop Switch
Available for delivery from Thursday 2nd July
Click & Collect from Friday 3rd July
Order within
You have 0 of these in your basket

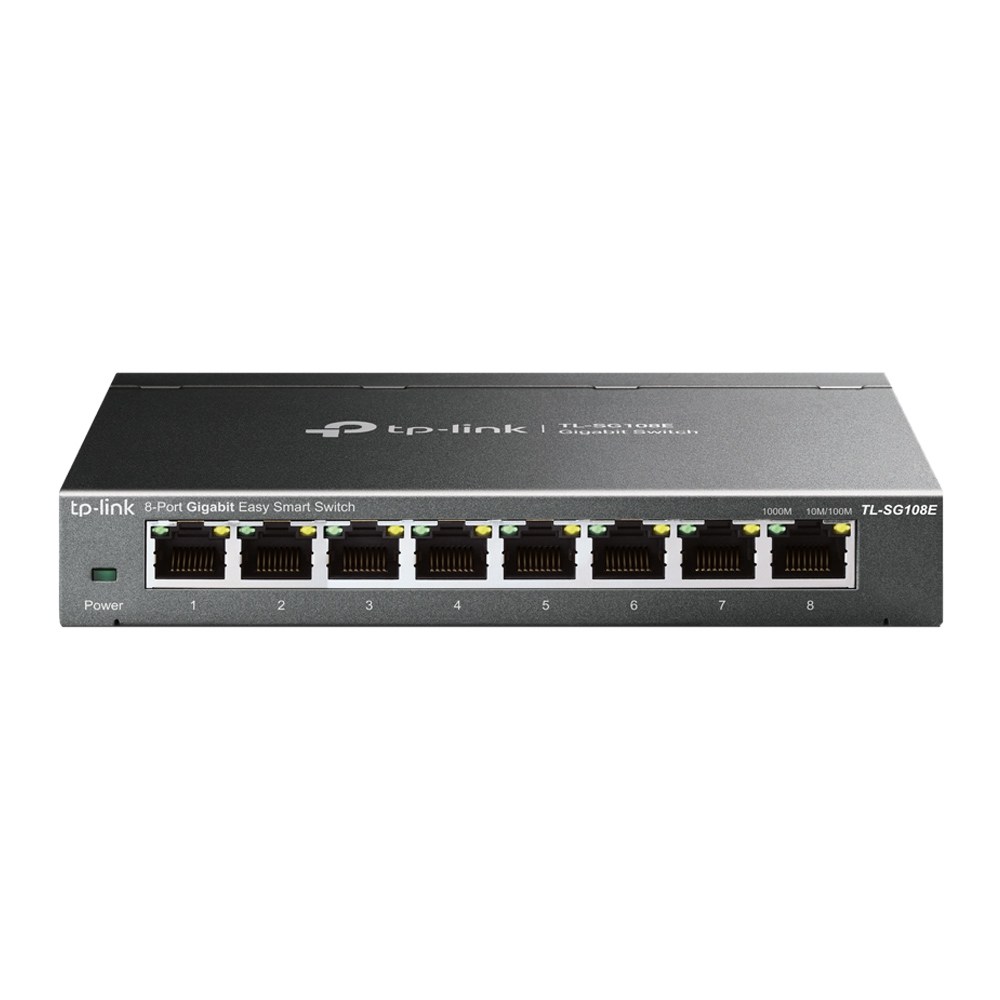

8-Port Gigabit Easy Smart Switch - TL-SG108E
The TL-SG108E 8-Port Gigabit Easy Smart switch is designed specifically for small and medium business networks that require simple network management and basic features.
- Effectively monitor traffic via Port Mirroring, Loop Prevention, and Cable Diagnostics
- Keep latency-sensitive traffic moving smoothly and jitter-free with port and tag based QoS
- Increase network segmentation and security with port-based, tag-based, and MTU
- Save up to 80% of power consumption with innovative energy-efficient technology
Simple & Effective Management
With the TL-SG108E, you can observe traffic behavior with Port Mirroring, Loop Prevention, and Cable Diagnostics, helping you identify and locate connection problems on your network. Moreover, you can ensure voice and video are always clear, smooth, and lag-free by administrators designating the priority of traffic based on Port Priority and 802.1P Priority. Also, the TL-SG108E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions to improve security and network performance.
Go Green With Your Ethernet
The TL-SG108E features energy-efficient technology to expand your network’s capacity with much less power by automatically powering down idle ports and adjusting power consumption according to cable length. Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG108E analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly.
Ease of Use
The TL-SG108E is easy to use and manage:
- Auto MDI/MDI-X crossover on all ports eliminates the need for crossover cables or uplink ports.
- Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance
- Rack-mountable but also compact place on desktops with limited space
- Dynamic LED lights provide real-time work status and fault diagnosis
Features
- 8 10/100/1000Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 80%
- IEEE 802.3x flow control provides reliable data transfers
- 16K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility
Warranty
Need assistance setting up your TP-LINK device? Our team is here 24/7 to provide toll-free technical support. Whether you bought a TP-LINK product yesterday or years ago, we can help with product setup and configuration at no extra charge. Plus, our 5-year warranty grants you worry-free service for peace of mind.

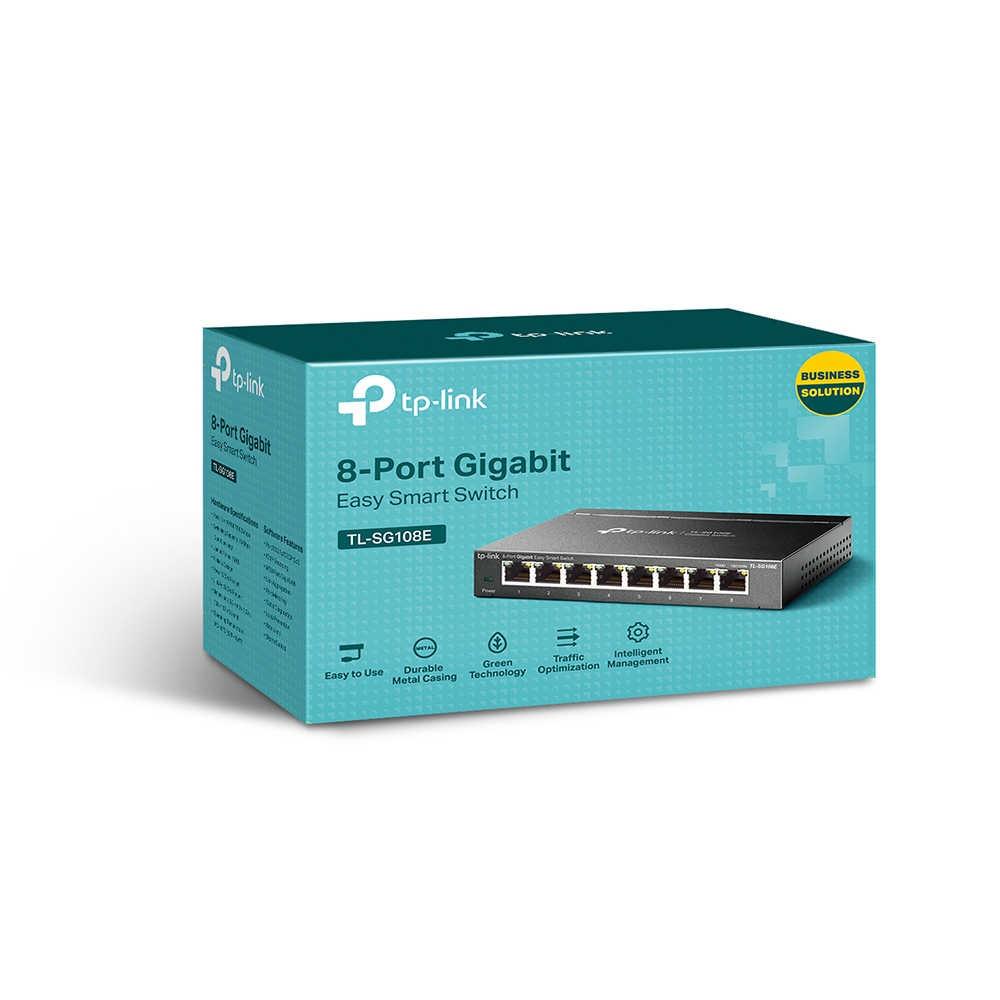

Package Contents
- TL-SG108E
- Power Cord
- Installation Guide
- Resource CD
- Rubber Feet
Memory
- Buffer Memory: 0.25 MB
Routing
- Layer 2 Services: IGMP Snooping • Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention
Performance
- Backplane: 16 Gbps
- MAC Addresses: 8,000
- Network Latency: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m)
- Packet Forwarding Rate: 11.9M pps
- Port Bandwidth: 10/100/1000 Mbps
Interfaces/Ports
- Number of Fixed Ports: 8 port(s)
- Fixed Port Connector: RJ-45
- Fixed Port Speed: 10/100/1000 Mbps
- Fixed Ports/Connectors: Auto-MDI/MDIX
Wireless
- VLANs: Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) MTU/Port/Tag VLAN
Compliance
- Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Safety: FCC, CE, RoHS
System
- Management Capabilities: Support Port Based/802.1p Based priority • Support 4 priority queues • Rate Limit • Storm Control
Warranty
- Warranty: Five years.
System Requirements
- System Requirements: Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux
Electrical
- AC Voltage Range: 100 to 240 V AC
- Electrical Frequency: 50 to 60 Hz
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 10 to 90 %
Physical
- Form Factor: Network Switch
- Case Colour: Black
- In The Box: TL-SG108E switch, Power Cord, Installation Guide, Resource CD, Rubber Feet
- Width: 15.8 cm
- Depth: 10.1 cm
- Height: 2.5 cm
Identifiers
- Stock Code: NET1922
- Mfg Code: TL-SG108E
Warranty
- Warranty: Five years.
