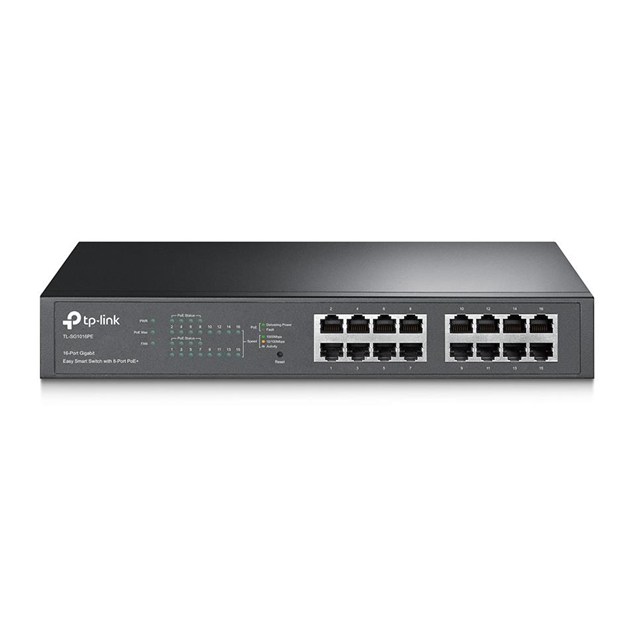

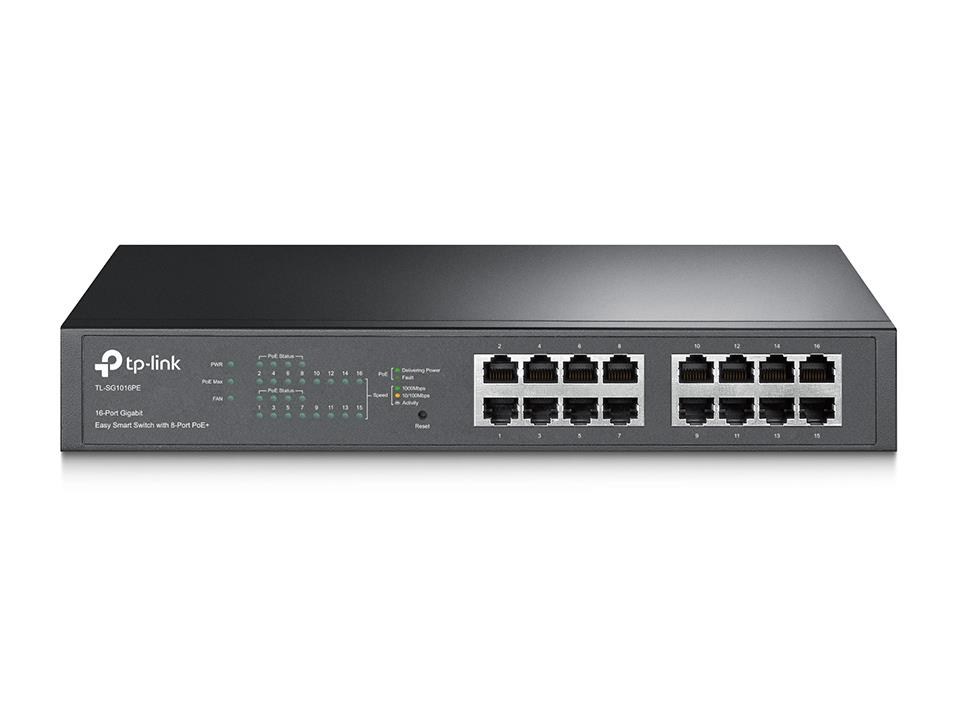

TP-Link TL-SG1016PE 16-Port Gigabit Rackmount Switch
SAVE £10
Available for delivery from Thursday 25th June
Click & Collect from Friday 26th June
Order within
You have 0 of these in your basket
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 110W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network. 8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones. TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port. Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use. TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Routing
- Layer 2 Services: IGMP Snooping V1/V2/V3 • Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention
Performance
- Backplane: 32 Gbps
- MAC Addresses: 8,000
- Network Latency: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100 Ohms STP (maximum 100m)
- Packet Forwarding Rate: 23.8M pps
- Port Bandwidth: 10/100/1000 Mbps
Interfaces/Ports
- PoE Supported: Yes
- Power over Ethernet (PoE) Standards: IEEE 802.3at
- Number of Fixed Ports: 16 port(s)
- Fixed Port Connector: RJ-45
- Fixed Port Speed: 10/100/1000 Mbps
- Fixed Ports/Connectors: Auto-MDI/MDIX
Wireless
- VLANs: Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN
Compliance
- Standards Compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Safety: FCC, CE, RoHS
System
- Management Capabilities: Web-based GUI • Easy Smart Configuration Utility
Warranty
- Warranty: Five years.
System Requirements
- System Requirements: Microsoft Windows for running Utility
Electrical
- AC Voltage Range: 100 to 240 V AC
- Power Consumption: 124.4 W
- Electrical Frequency: 50 to 60 Hz
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 10 to 90 %
Physical
- Form Factor: Network Switch
- Case Colour: Black
- In The Box: TL-SG1016PE • Power Cord • Installation Guide • Resource CD • Rackmount Kit • Rubber Feet
- Width: 29.4 cm
- Depth: 18.0 cm
- Height: 4.4 cm
Identifiers
- Stock Code: NET3345
- Mfg Code: TL-SG1016PE
Warranty
- Warranty: Five years.
