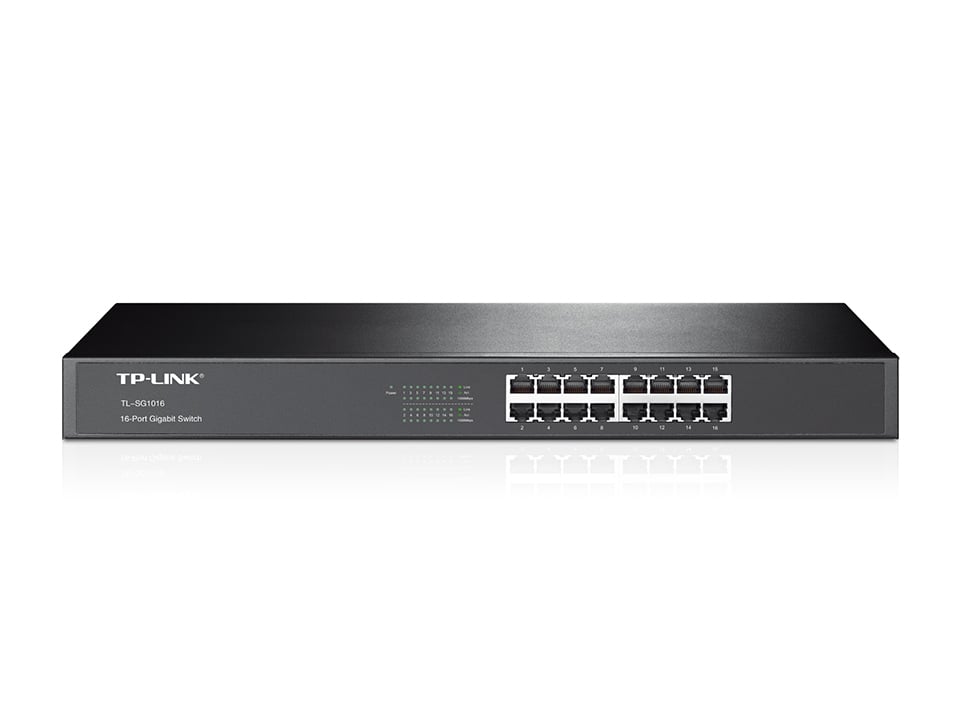

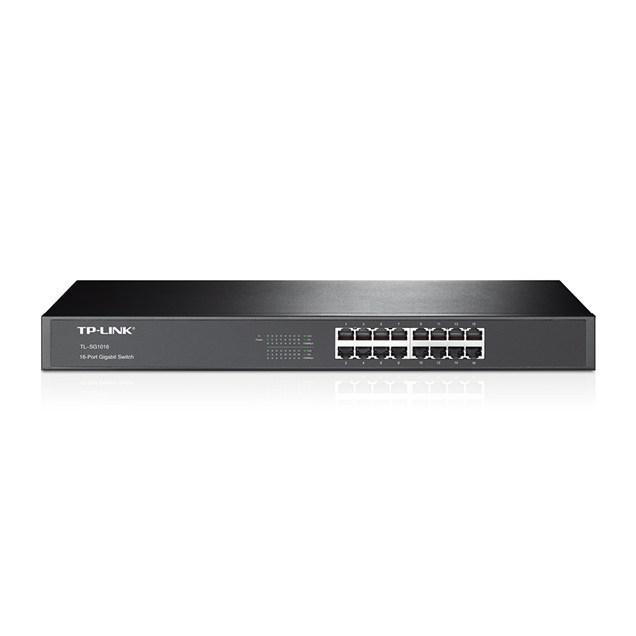

TP-Link TL-SG1016 V12 16-Port Gigabit Rackmount Switch

TP-Link TL-SG1016 V12 16-Port Gigabit Rackmount Switch

CCL Code: NET2903

Discontinued

TP-Link TL-SG1016 V12 16-Port Gigabit Rackmount Switch

TL-SG1016 V12

Key Features:

  • 16 x Gigabit Ports
  • Switch Type: Unmanaged
  • Form Factor: Rackmount
CCL Code: NET2903

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology

This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance

All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Main Features

  • Innovative energy-efficient technology saves power consumption
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 32Gbps Switching Capacity
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward
  • Compact size design for desktops, Rackmountable
  • Plug and Play design simplifies installation
Specifications

Interfaces/Ports

Network Speeds Supported 10/100/1000 Mbps
PoE Supported No
Number of Fixed Ports 16
Fixed Port Connector RJ-45

System

Certifications FCC / CE / RoHS

Electrical

AC Voltage Range 100 ~ 240 VAC
Power Consumption Max 9.26 W
Electrical Frequency 50 ~ 60 Hz

Environmental

Operating Temperature 0 ~ 40 °C
Operating Humidity 10 ~ 90 %

Physical

Form Factor Switch
Case Colour Grey
In The Box 16-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Width 440 mm
Depth 180 mm
Height 44 mm
Weight 1.85 kg

Key Features

Main Colour Black
Switch Type Unmanaged
Switch Form Factor Rackmount
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 16
PoE+ Supported No

Warranty

Warranty 1 Year

Item Details

Manufacturer TP-Link
Manufacturer Code TL-SG1016 V12
EAN 6935364081263
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TL-SG1016 V12
Q&A

Do you have you a question about the TP-Link TL-SG1016 16-Port Unmanaged Gigabit Rackmount Switch (Black) - V12?

Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf
Installation Guide pdf
