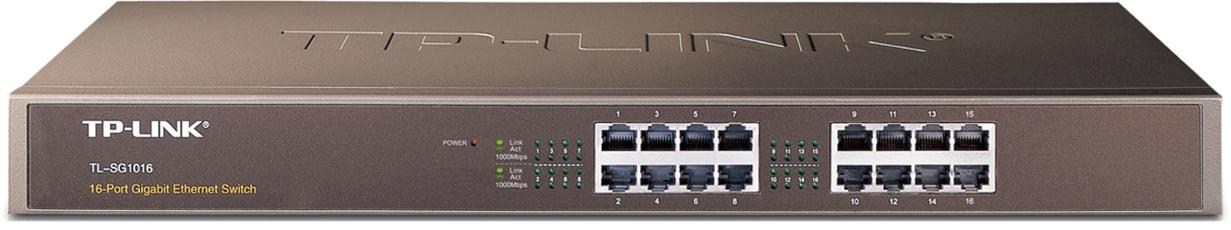

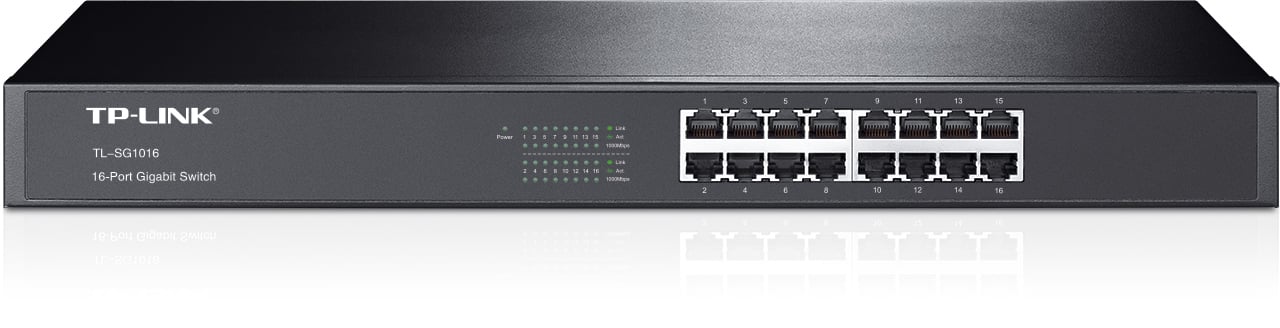

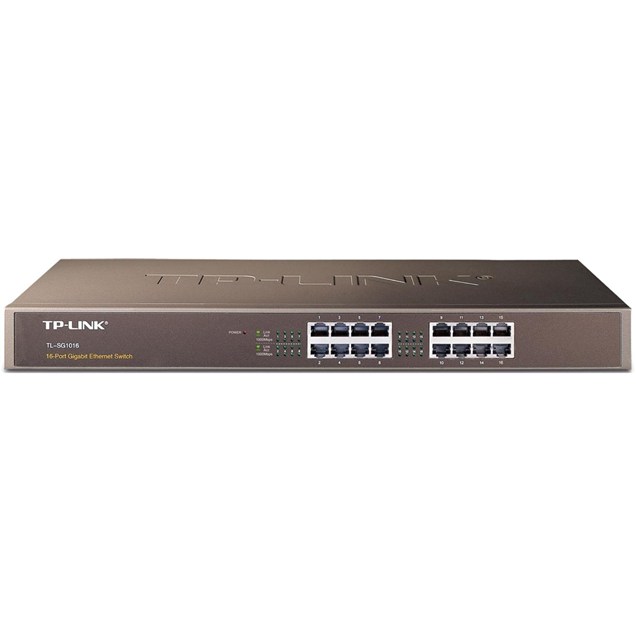

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch

CCL Code: NET0431

£63.40 inc VAT

TP-Link TL-SG1016 16-Port Gigabit Rackmount Switch

TL-SG1016

£63.40 inc VAT

Available for delivery from Friday 10th February

Buying in bulk? Contact our business team.

Key Features:

  • 16 x Gigabit Ports
  • Switch Type: Unmanaged
  • Form Factor: Rackmount
CCL Code: NET0431
Overview

The TL-SG1016 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and Workgroups networks.

Main Features

  • All ports support Full/half duplex transfer mode for 10Mbps/100Mbps and Full duplex transfer mode for 1000Mbps
  • Supports Auto-MDI/MDIX function
  • Supports IEEE 8023X flow control for full-duplex mode and back pressure flow control for half-duplex mode
  • Store and forward Switching scheme
Specifications

Performance

Backplane 32 Gbps
MAC Addresses 8,000
Network Latency 10Base-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) • 100Base-Tx: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m) • 1000Base-T: UTP category 5, 5e cable (maximum 100m)
Packet Forwarding Rate 148,800 pps
Port Bandwidth 10/100/1000 Mbps

Interfaces/Ports

Network Speeds Supported 10/100/1000 MBps
Number of Fixed Ports 16 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100/1000 Mbps
Fixed Ports/Connectors Auto-MDI/MDIX

Compliance

Standards Compliance IEEE802.3, 802.3u, 802.3ab, 802.3x
Emissions CE
Safety FCC, CE

Warranty

Warranty Five years.

System

Ethernet Switching Features Wire-speed Performance • MAC Address Auto-Learning and Auto-aging • IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
Protocols Supported CSMA/CD, TCP/IP

Electrical

AC Voltage Range 100 to 240 V AC
Electrical Frequency 50 to 60 Hz
Power Adaptor Type AC

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Rackmount
LED Status Indicators Power, Link/Act
Width 44.0 cm
Depth 18.0 cm
Height 4.4 cm

Key Features

PoE Supported No
Switch Type Unmanaged
Switch Form Factor Rackmount
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 16

Item Details

Manufacturer TP-Link
Manufacturer Code TL-SG1016
EAN 6935364020095
Condition New
Warranty

Warranty Information

Warranty Five years.

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TL-SG1016
Q&A

Do you have you a question about the TP-Link TL-SG1016 16-Port Unmanaged Gigabit Rackmount Switch?

Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.33MB
Manual pdf 1.16MB
