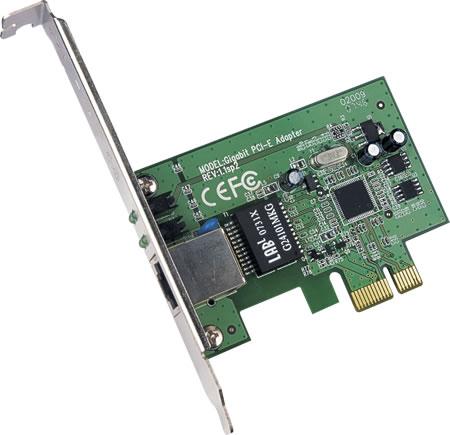

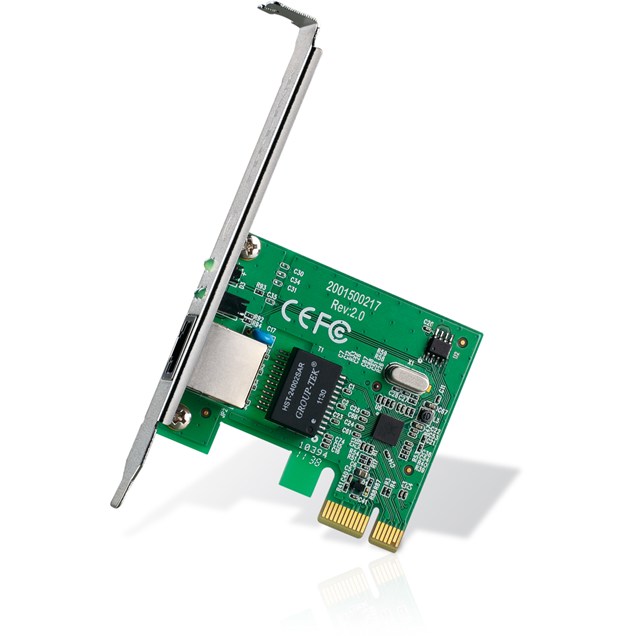

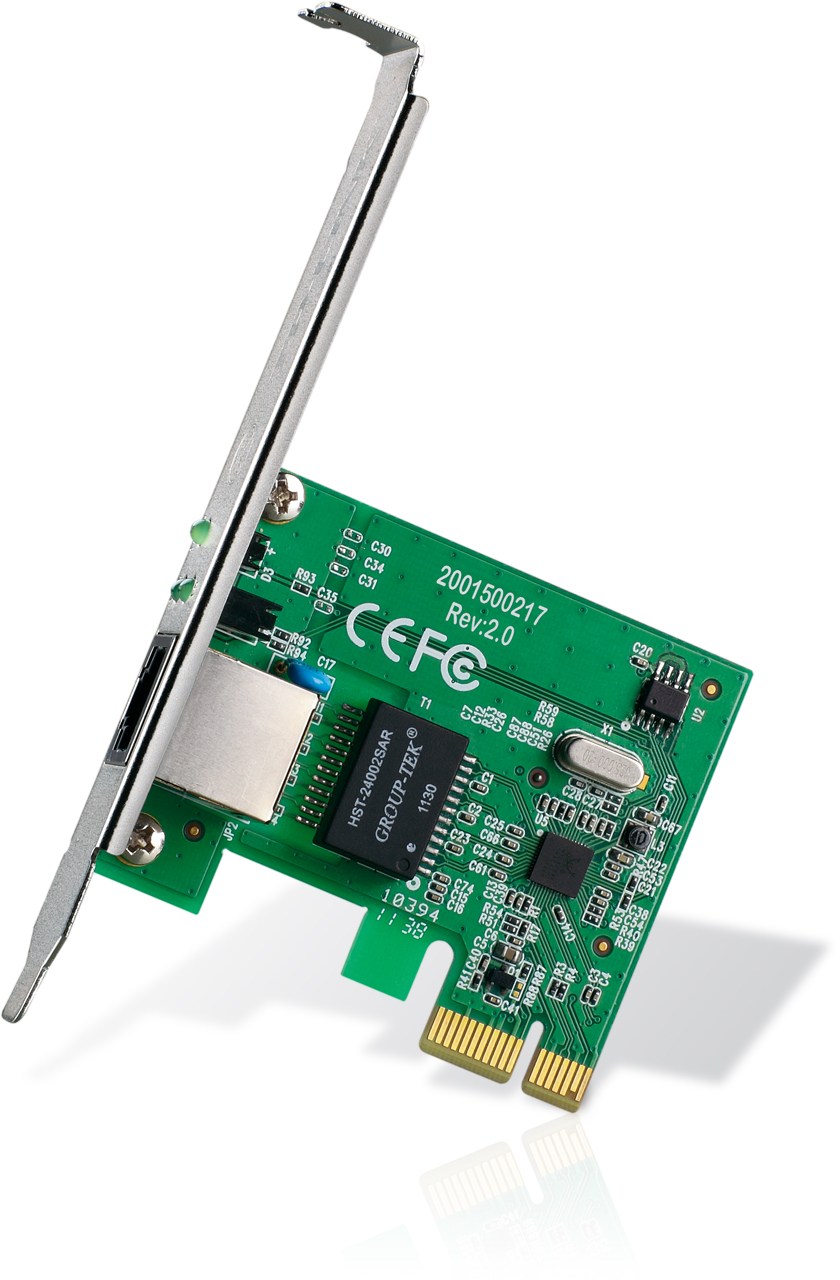

TP-Link TG-3468 PCI Express Ethernet Adapter

TP-Link TG-3468 PCI Express Ethernet Adapter

CCL Code: NET1465

£9.99 inc VAT

TP-Link TG-3468 PCI Express Ethernet Adapter

TG-3468

£9.99 inc VAT

Available for delivery from Thursday 20th June

or Click & Collect from Friday 21st June

Buying in bulk? Contact our business team.

Key Features:

  • PCI Express Interface
  • 1 Network Port
  • Speed: 1000Mbps
CCL Code: NET1465
Overview

TG-3468 10/100/1000Mbps Gigabit PCIe Network Adaptor is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adaptor which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adaptor TG-3468 is a high performance Adaptor designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adaptor is a highly integrated and cost-effective Gigabit Ethernet Adaptor which is a good selection to upgrade your network.

Main Features

  • 32-bit PCIe interface, saving the finite chassis space
  • 10/100/1000Mbps PCIe Adapter
  • Wake-on-LAN supporting
  • Auto-Negotiation and Auto MDI/MDIX
  • Supports IEEE 802.3x flow control for Full-Duplex mode and back pressure for Half-Duplex mode
  • Supports IEEE 802.1p Layer 2 Priority Encoding and IEEE802.1q VLAN tagging
  • Supports power down/link down power saving
  • Supports Windows XP 32/64bit, Windows Vista 32/64bit, Windows7 32/64bit
  • DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
Specifications

Network

Network Speeds Supported 10/100/1000 Mbps
Data Link Protocol Gigabit Ethernet
Protocols Supported CSMA/CD, TCP/IP
Connectivity Technology Wired

Interfaces/Ports

Number of Ports 1 port(s)
Port Connector RJ-45
Network Card Bus PCI Express

System Requirements

Operating Systems Supported Windows 7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)

Compliance

Ethernet Standards IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p
Safety FCC, CE

Environmental

Operating Temperature 0 to 40 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Network Interface Card
Status Indicators 1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex

Key Features

LAN Port Connector RJ-45
LAN Port Speed 1000 Mbps
Number of LAN Ports 1 port(s)
Interface Type PCI Express
Low Profile No
Interface Type PCIe 3.0 x4 NVMe
Card Width 1
PCIe Physical Slot required 1

Warranty

Warranty 1 Year

Item Details

Manufacturer TP-Link
Manufacturer Code TG-3468
EAN 6935364001049
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TG-3468
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Datasheet pdf 0.35MB
