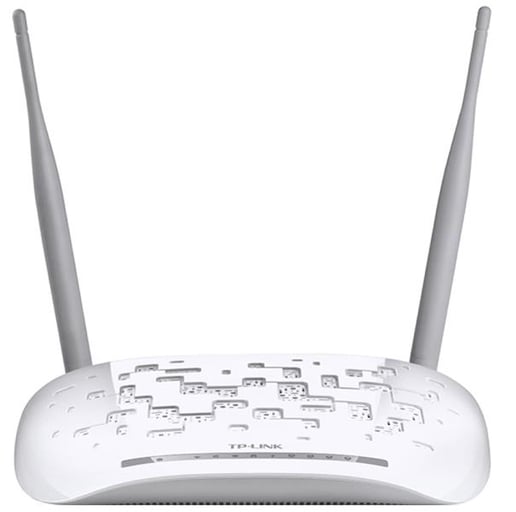

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router (White) - V1

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router (White) - V1

CCL Code: NET2226

Sold out

Notify Me

TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router (White) - V1


Key Features:

  • Wireless Type: 802.11n
  • Number of LAN Ports: 4
  • Port Speed: 10/100Mbps
  • USB Port(s): Yes
  • WPS Support: Yes
CCL Code: NET2226

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Using the TD-W9970's multi-functional USB 2.0 port, users can share printers, files and media either throughout the network at home with several different computers or even away, using the device's FTP server functions so that you never have to part with your files. The ability to support up to 10 IPsec VPN tunnels simultaneously gives TD-W9970 users the flexibility to setup a virtual private network, to guarantee network security and take advantage of network access whether at home or away, for work or simply to access files from their local networks. The TD-W9970 supports VDSL2 and backward compatible with ADSL2+/ADSL2/ADSL, featuring high broadband speeds of up to 100Mbps. It is designed to support the wide deployment of triple play services such as voice, video, data, high-definition television (HDTV) and interactive gaming. TP-Link's TD-W9970, comes with the latest ITU-T G.993.2 VDSL2 standard, providing up to 100Mbps speed downstream and up stream, compatible with ADSL, fiber and cable services. With 300Mbps wireless speed over 2.4GHz band, the TD-W9970 is a perfect choice for users in search of seamless HD video streaming, online gaming and other bandwidth-intensive tasks. The TD-W9970 supports VDSL/ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections. Featuring an interchangeable LAN/WAN port, it is compatible with Fiber/Cable service. This unique feature makes it easier when users need to change to fiber or cable services when necessary.

Main Features

  • Featuring dual WAN ports, compatible with VDSL/ADSL/Fiber/Cable services
  • Providing broadband speeds up to 100Mbps over VDSL2 and backward compatible with ADSL
  • Share files, media and printers with your friends or family using the multi-functional USB port


Router Type VDSL2/ADSL2+

Wireless LAN

Antenna Type 2 x 5dBi Omni directional, Fixed
Transmit Power 20 dB
Data Transfer Rates Up to 300 Mbps
Encryption 64/128-bit WEP
Frequency Band 2.4 to 2.4835 GHz
IEEE 802.11 IEEE 802.11
b b
g g
n n


IP Packet Routing IPv6 and IPv4 dual stack • Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 • Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6


VPN Pass Through/Multi-Sessions PPTP • L2TP • IPSec
Security Wireless Security: 64/128-bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK • Wireless MAC Filtering
Firewall Filtering NAT Firewall, • SPI Firewall, • MAC / IP / URL Filtering
VPN IPSec VPN: 10 IPSec VPN Tunnels • LAN-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • MD5, SHA1 Authentication Algorithm • Manual, IKE Key Management Mode • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS)


Protocols Supported ATM Forum UNI3.1/4.0 • PPP over ATM (RFC 2364) • PPP over Ethernet (RFC2516) • IPoA (RFC1577/2225) • PVC - Up to 8 PVCs
Ethernet Standards VDSL2 Standards: ITU-T G.993.2, ITU-T G.993.5 (G.vector) • ADSL Standards: Full-rate ANSI T1.413 Issue 2, ITU-T G.992.1(G.DMT), ITU-T G.994.1 (G.hs), ITU-T G.995.1 • ADSL2 Standards: ITU-T G.992.3 (G.dmt.bis) • ADSL2+ Standards: ITU-T G.992.5


Number of LAN Ports 4 port(s)
LAN Port Connector RJ-45
LAN Port Speed 10/100 Mbps
USB Ports 1 x USB 2.0
Modem Port 1 x RJ-11


Safety CE, FCC, RoHS
Standards IEEE 802.3, 802.3u


Management Web Based Configuration(HTTP), • Remote management, • Telnet management, • Command Line Interface, • SSL for TR-069, • SNMP V1/V2C, • Web Based Firmware Upgrade, • CWMP(TR-069), • Diagnostic Tools

System Requirements

System Requirements Windows 8.1/8/7/Vista/XP or Mac OS or Linux-based operating system


Power Adaptor Type External
Power Adaptor Output 12 V DC
AC Input Current 1.0 Amps


Operating Humidity 10 to 90 %
Operating Temperature 0 to 40 °C


Form Factor Wireless Router
Case Colour White
In The Box TD-W9970 • External Splitter • RJ-11 Telephone Line • RJ-45 Ethernet Cable • Quick Installation Guide • Resource CD • Power Adapter
Width 19.5 cm
Depth 13.0 cm
Height 3.6 cm


Warranty 3 Years.

Key Features

RF Network Standard 802.11b/g/n
Wireless Network Yes
Main Colour White
Includes Microfilter Yes
WPS Support Yes
USB Peripheral Connection Yes

Wireless Communications

WiFi Type Wi-Fi 4

Item Details

Manufacturer TP-Link
Manufacturer Code TD-W9970
EAN 6935364092542
Condition New

Warranty Information

Warranty 3 Years.

Manufacturer Information

Manufacturer TP-Link
Manufacturer Code TD-W9970

Do you have you a question about the TP-Link TD-W9970 300Mbps Wireless N USB VDSL2 Modem Router (White) - V1?

Q: Will this work on sky fibre superfast fttc 80/20 service, does it have the options for skys MER and client id option 61 for username password
Answer by Matt on 18th May 2020
You would be better asking this question to TP-Link Technical Support at
0 customers found this answer helpful.
Post Answer
Q: Does this router do L2TP VPN tunnel
Answer by Website User on 24th May 2018
From what we can find, this model only supports IP-Sec VPN.
0 customers found this answer helpful.
Post Answer
Q: can this replace my current sky router
Answer by Website User on 27th February 2018
It can do, yes.
0 customers found this answer helpful.
Post Answer
3.7 / 5 3 reviews

Malcolm Grahamslaw

June 2020

TD-Link TD-W9970 (EU) V4 This product does not seem to exist yet on the TP-Link UK website ... only V1 through V3. And this is NOT the TD-W9970 reviewed on! The V4 does NOT use a Broadcom chipset. The modem/router worked fine for a week (good real world speed and uptime) but then conked out ... the ADSL connection started dropping out and in the end the router was rebooting every minute or so. Not a line problem as an old Netgear DGN2200 has now been up for 48 hours. Voiding a Warranty There are just 2 screws to be undone. Then with a thumbnail unfasten the 7 clips (2 at each side, 2 at the front, one at the back) which hold the cover in place. It comes off quite easily so no need to force it ... just push your thumbnail into the gap and slide it along until the clips unpop. Here is what I found: Econet EN7512U Mediatek MT7592N Econet EN7556N Winbond 25Q128JVSQ 128 M-bit Flash memory 2 x JWD D20702 10/100 Base-TX Plus 2 yumcha electrolytics: 1 Aishi 105C 470nF 16v 1 JWCO 105C 220nF 16v both of which I replaced with Rubycons. The unit is now in the spares box. 3 stars because it worked for a week and you may have better luck.

Quentin Webb

October 2019

I was having problems with my broadband, and suspected the talk talk router. The talk talk router could never tell me what devices were connected, so I was happy to try changing it out. It actually figured out most of it's config doing a learn, including my fairly obscure DHCP setup. I only had to tell it one parameter, before it sprang to life. Now it operates reliably at a decent bit rate, and tells me who is connected to the network. I'm a happy bunny.


April 2019

It's ok but the signal is a bit weak - bought this to replace a cheap old technicolor router with an internal little antenna and this is no stronger...
