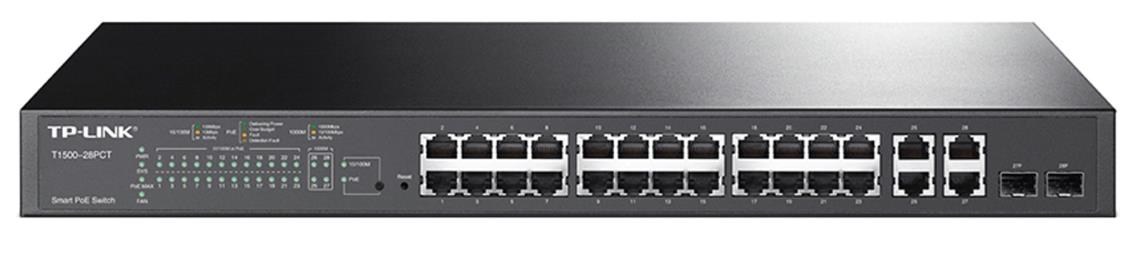

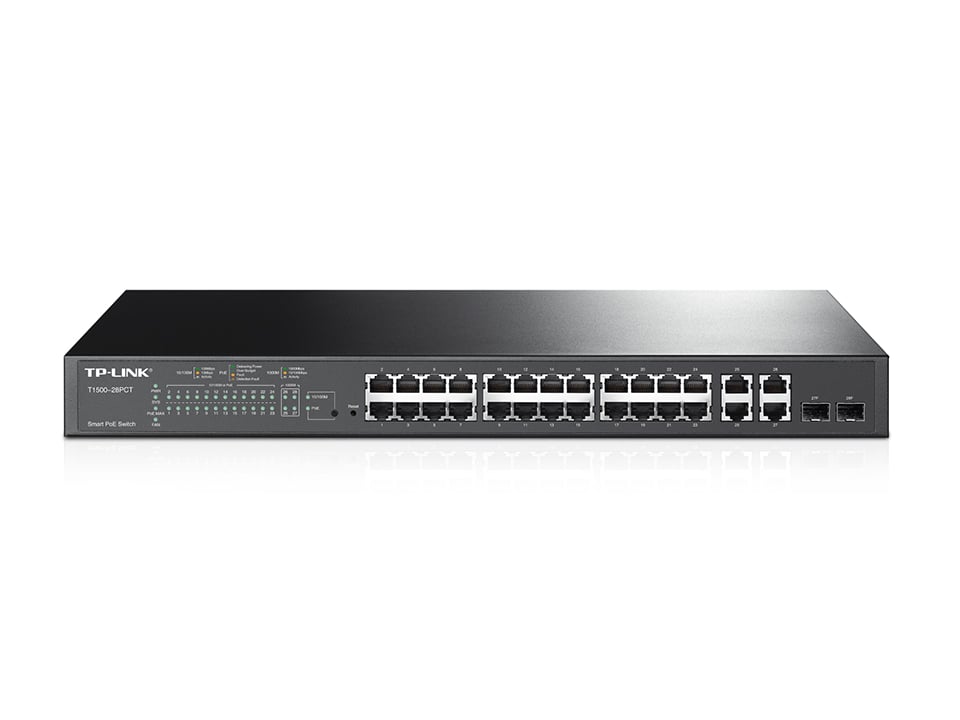

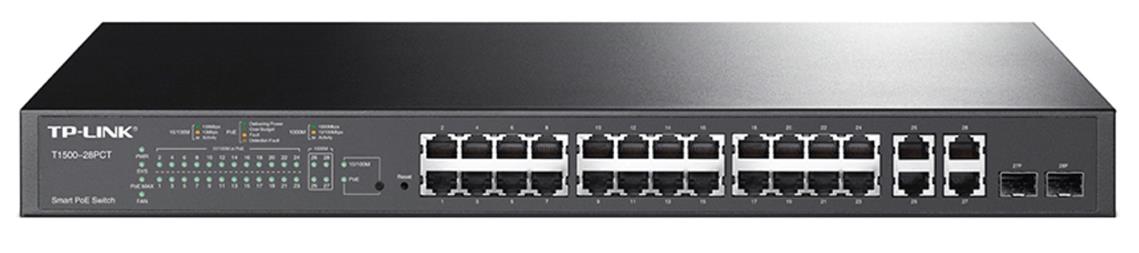

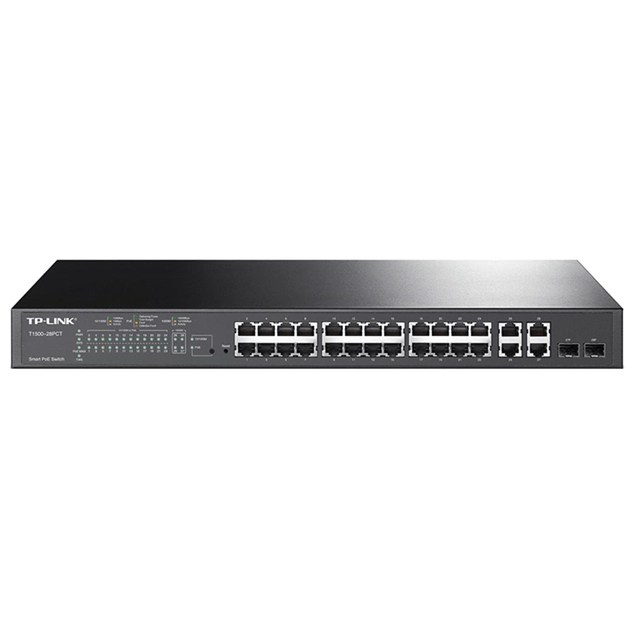

TP-Link T1500-28PCT (TL-SL2428P) 24-Port 100 Mbps Desktop Switch
Available for delivery from Thursday 2nd July
Click & Collect from Friday 3rd July
Order within
You have 0 of these in your basket
The T1500-28PCT provides 24 10/100Mbps ports that supports 802.3at/af-compliant PoE, with a total PoE power supply up to 180W, powerful and flexible enough for users to deploy wireless access points or IP-based network surveillance cameras. The switch also comes equipped with 4 10/100/1000Mbps RJ45 ports and 2 combo SFP slots, expanding your network flexibly. In addition, it provides high performance, enterprise-level QoS, useful security strategies and rich layer 2 management features.
TP-LINK Smart PoE Switch T1500-28PCT is a cost-effective product solution for the small and medium business. T1500-28PCT has useful security features. The Storm Control feature protects against Broadcast, Multicast and Unknown unicast Storm. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. Anymore, the easy-to-use web management interfaces, along with SNMP and RMON, mean faster setup and configuration with less downtime. For workgroup and departments requiring cost-sensitive layer 2 switch, TP-LINK smart PoE switch T1500-28PCT provides you the ideal access-edge solution.
IEEE 802.3at/af-compliant Power over Ethernet
The T1500-28PCT supports 24 ports of IEEE 802.3at/af-compliant PoE and has a total power supply of 180W to power any 802.3at or 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the T1500-28PCT is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Advanced QoS features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 features
For more application of layer 2 switches, T1500-28PCT supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
T1500-28PCT is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
Warranty
Need assistance setting up your TP-LINK device? Our team is here 24/7 to provide toll-free technical support. Whether you bought a TP-LINK product yesterday or years ago, we can help with product setup and configuration at no extra charge. Plus, our 5-year warranty grants you worry-free service for peace of mind.
Routing
- Layer 2 Services: IGMP Snooping V1/V2/V3 • 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) • Spanning Tree STP/RSTP/MSTP • LLDP, LLDP-MED • BPDU Filtering/Guard • TC/Root Protect • Loop back detection • 802.3x Flow Control
Performance
- Backplane: 12.8 Gbps
- MAC Addresses: 8,000
- Network Latency: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) • 1000BASE-X: MMF, SMF
- Packet Forwarding Rate: 9.5M pps
- Port Bandwidth: 10/100/1000 Mbps
Interfaces/Ports
- Number of Fixed Ports: 24 port(s)
- Fixed Port Connector: RJ-45
- Fixed Port Speed: 10/100 Mbps
- Fixed Ports/Connectors: Auto-MDI/MDIX
- Number of Uplink Ports: 4 port(s)
- Uplink Port Connector: RJ-45
- Uplink Port Speed: 10/100/1000 Mbps
- Number of Slots: 2 slot(s)
- Slot Type: SFP
Wireless
- VLANs: Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs)
Compliance
- Standards Compliance: IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p
- Safety: CE, FCC, RoHS
System
- Management Capabilities: Web-based GUI and CLI management • SNMP v1/v2c/v3, compatible with public MIBs and TP-Link private MIBs • RMON (1, 2, 3, 9 groups) • CPU Monitoring • Port Mirroring • Time Setting: SNTP • Firmware Upgrade: TFTP & Web • System Diagnose: VCT • SYSLOG & Public MIBS
Warranty
- Warranty: 5 Years.
System
- Security: SSH v1/v2 • SSL v2/v3/TLSv1 • Port Security • Broadcast/Multicast/Unknown-unicast Storm Control
System Requirements
- System Requirements: Microsoft Windows XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux
Electrical
- AC Voltage Range: 100 to 240 V AC
- Power Consumption: 222.15 W
- Electrical Frequency: 50 to 60 Hz
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 10 to 90 %
Physical
- Form Factor: Network Switch
- Case Colour: Black
- In The Box: T1500-28PCT • Power Cord • Installation Guide • Resource CD • Rackmount Kit • Rubber Feet
- Width: 44.0 cm
- Depth: 22.0 cm
- Height: 4.4 cm
Identifiers
- Stock Code: NET2349
- Mfg Code: T1500-28PCT (TL-SL2428P)
Warranty
- Warranty: 5 Years.
