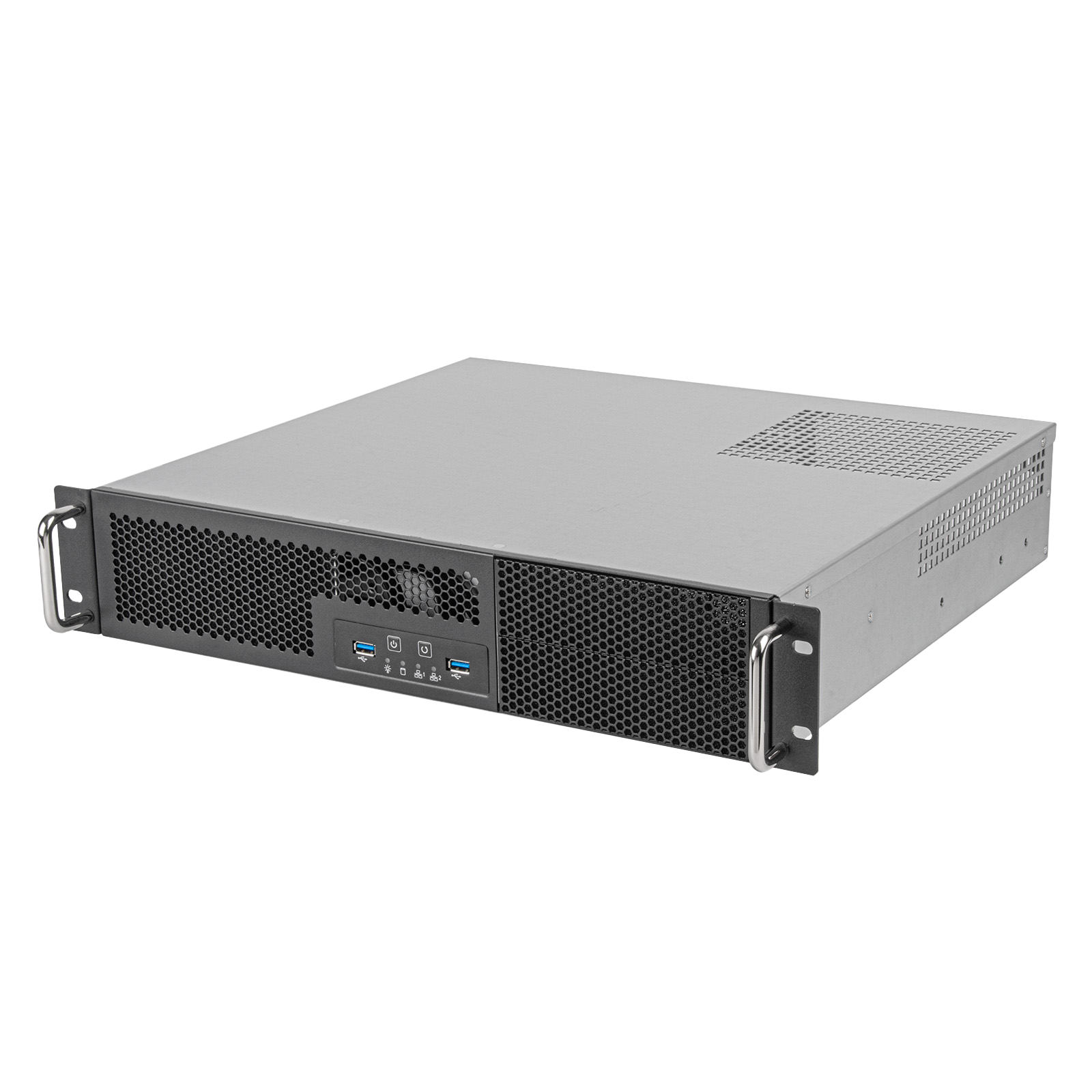

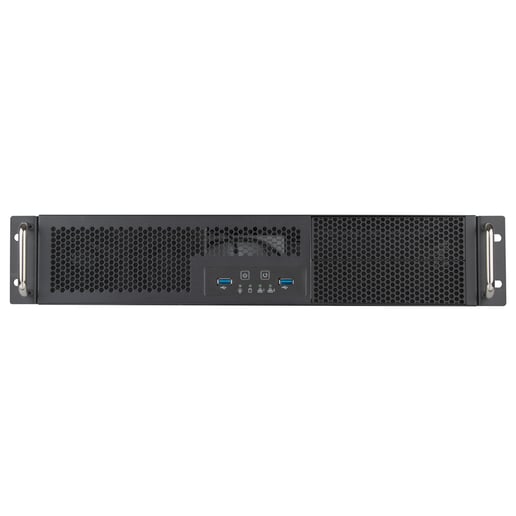

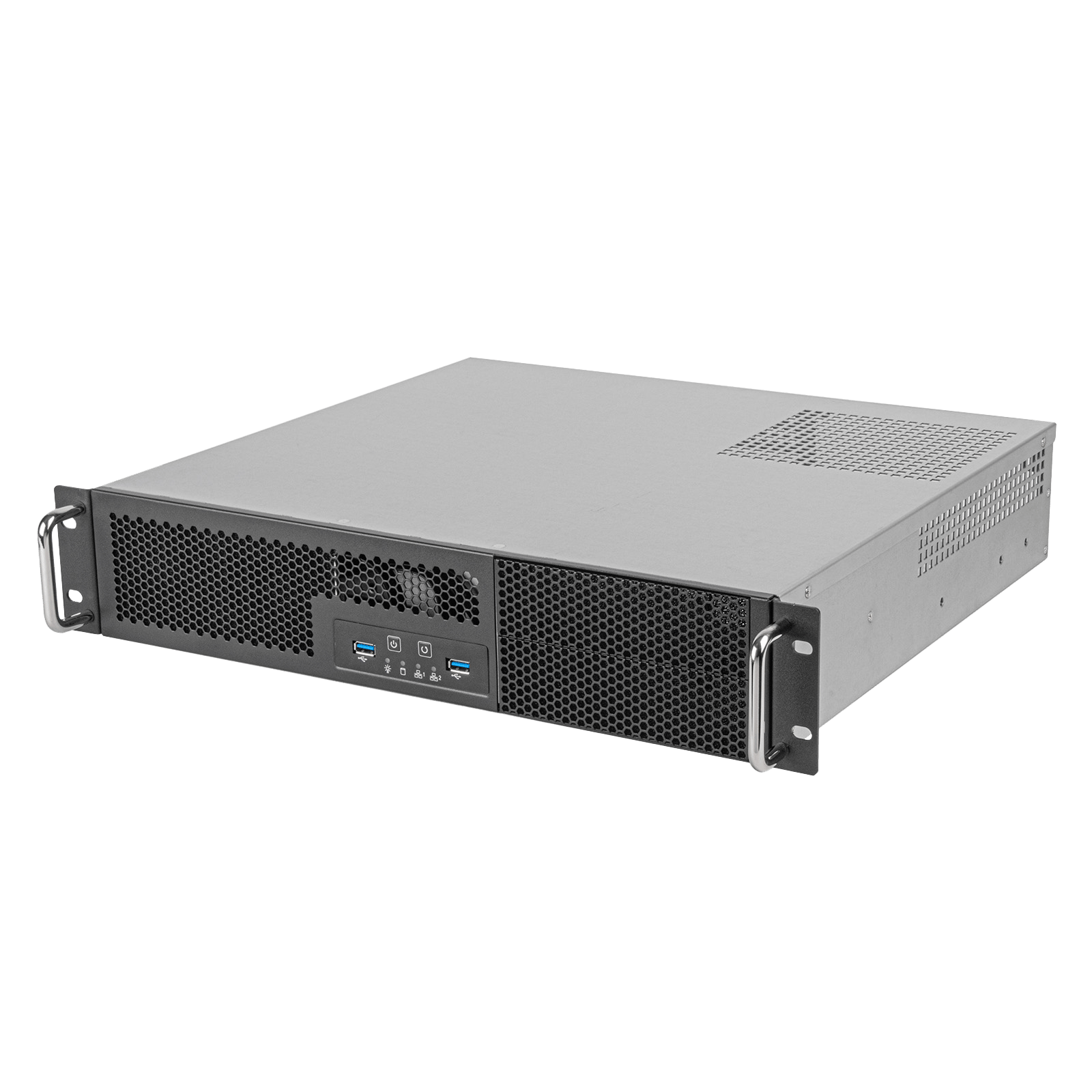

Silverstone RM23-502-MINI Rackmount Server Case - Black
Available for delivery from Wednesday 22nd July
Click & Collect from Wednesday 22nd July
Order within
You have 0 of these in your basket
Well-equipped drive bays
Supports up to 2 x 5.25" drives externally, and up to 2 x 3.5" HHDs & 1 x 2.5" SSD internally.
Outstanding cooling capabilities
A built-in fan bracket at the front supports 2 x 8025mm fans which supplies plentiful airflow for a 2U form factor system.
Numerous PSU form factor compatibility
As a miniature sizing of the RM23-502, compatible PSU selection has greater flexibility than the original with support for ATX (PS2), 2U Single or 2U Redundant*
*We recommend that the combined length of the power supply and 5.25" device does not exceed 350mm, allowing 40mm of space for the power cables.
**RM23-502-MINI’s USB internal cable is 600mm long, so if you are connecting an external enclosure to the USB3.1 port, we recommend using it with shorter cables to prevent performance loss.
Storage
- External Expansion Bays: 2 x 5.25"
- Internal Expansion Bays: 1 x 2.5"
- 2 x 3.5"
Expansion

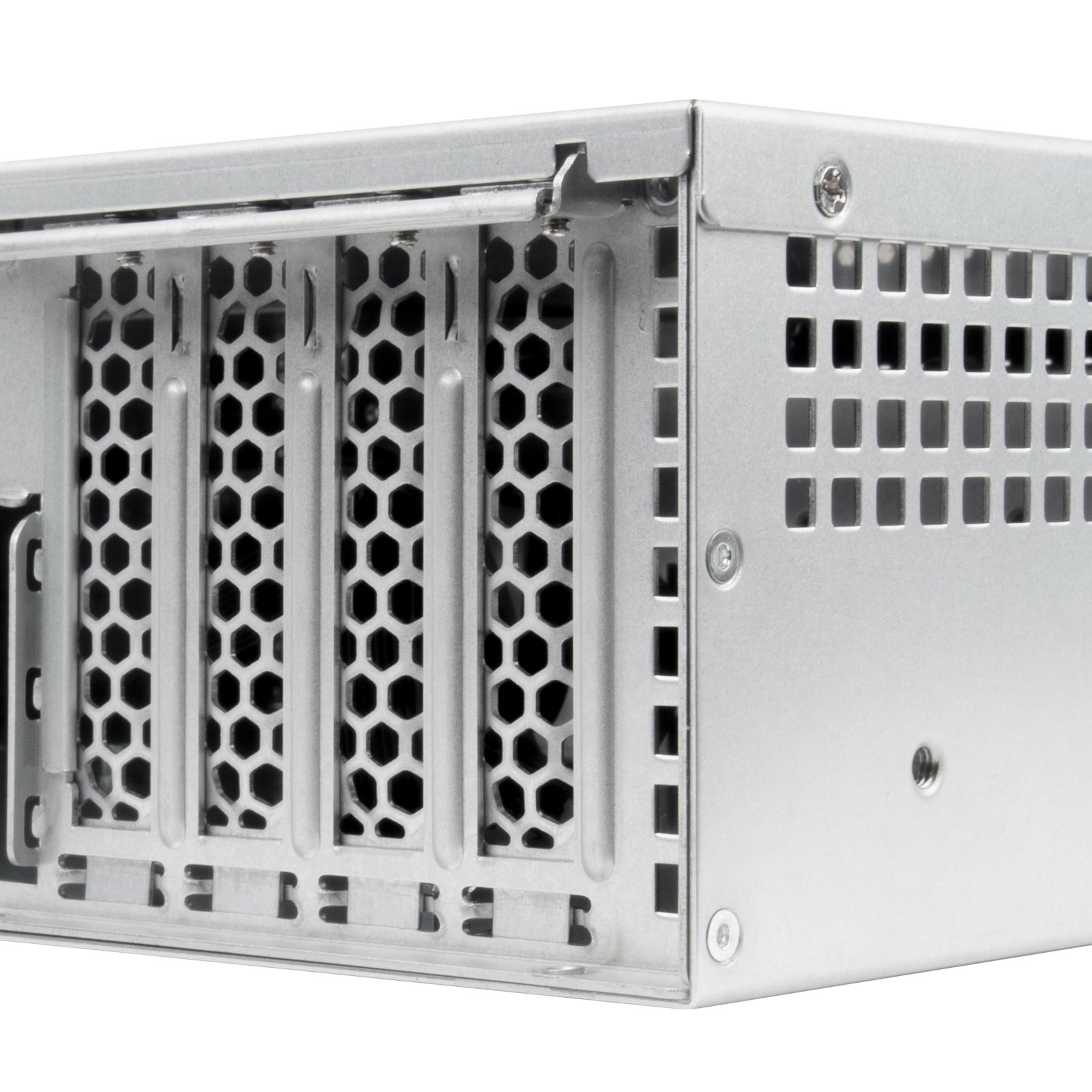

- Expansion Slots: 4 x Low Profile
Interfaces/Ports
- USB Ports: 2 x USB 3.0
Electrical
- Cooling System: Front: Supports 2 x 80mm fans
- Power Supply: ATX, 2U or 2U Redudnant supported
Physical
- Form Factor: 2U Rackmount Chassis
Warranty
- Warranty: 2 Years
Physical
- Case Colour: Black
- Material: 1mm Steel
- Motherboard Compatibility: mATX
- Mini-ITX
- Width: 430 mm
- Depth: 400 mm
- Height: 88.5 mm
- Weight: 4.8 kg
Identifiers
- Stock Code: CAS5669
- Mfg Code: SST-RM23-502-MINI
Warranty
- Warranty: 2 Years
