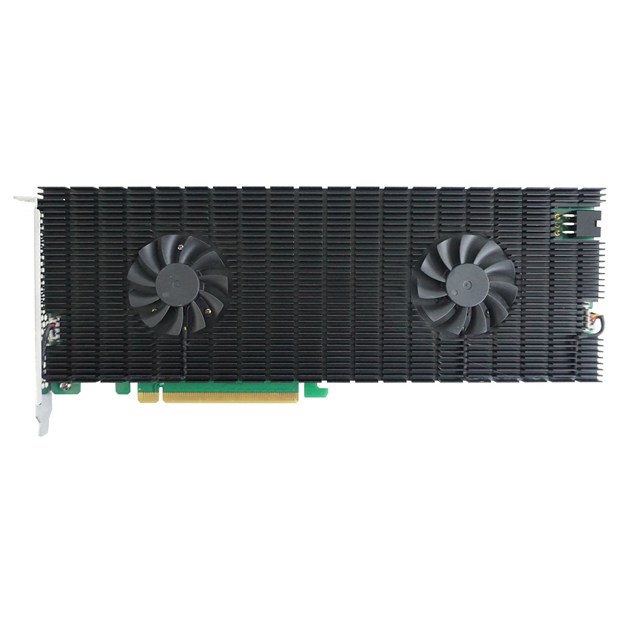

HighPoint SSD7540 PCIe RAID Controller for 8x PCIe Gen4 M.2 Slots

HighPoint SSD7540 PCIe RAID Controller for 8x PCIe Gen4 M.2 Slots

CCL Code: CNT0609

Sold out

Notify Me

HighPoint SSD7540 PCIe RAID Controller for 8x PCIe Gen4 M.2 Slots


Key Features:

The SSD7540 allows you to add up to 8x Gen4 NVMe SSD’s to any industry standard PCIe 4.0 capable motherboard using a single compact controller card.

CCL Code: CNT0609

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

The Best of Both Worlds: Massive Storage Capacity & Performance Potential

The SSD7540 delivers unprecedented levels of PCIe Gen4 transfer performance and capacity. The eight independent M.2 ports are powreed by state of the art PCIe shwitch technology and the latest iteration of HighPoint’s blazing fast NVMe RAID engine. This potent combination is capable of delivering an unbeatable 28,000MB/s of transfer performance while supporting up to 64TB of storage!

Performance Focused Hardware Architecture

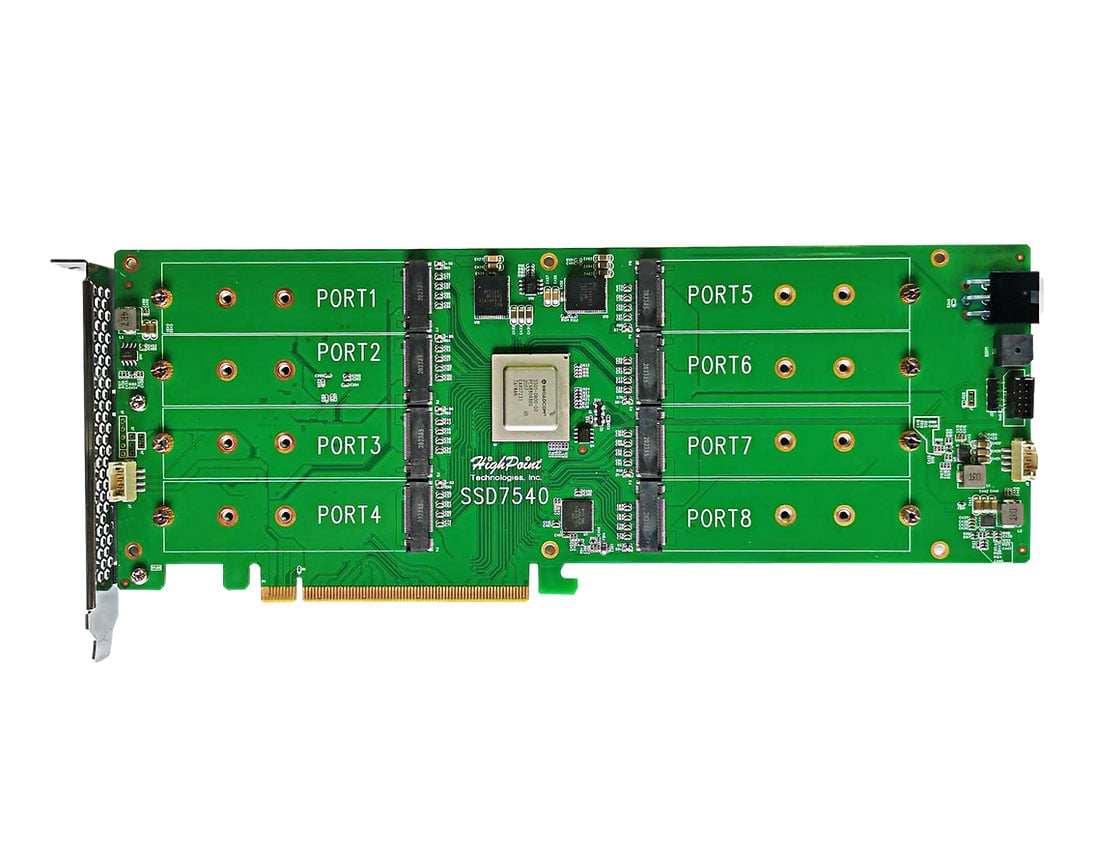

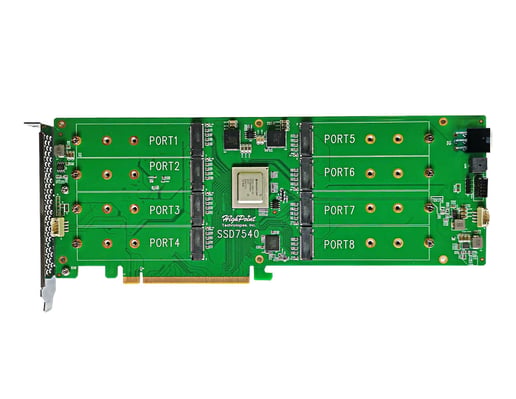

HighPoint’s unique performance-focused NVMe architecture utilizes intelligent switch technology to allocate up to x4 lanes of bandwidth to each NVMe device port. This enables the SSD7540 8-port M.2 RAID controller to fully saturate x16 lanes of host bandwidth using as little as four NVMe SSDs.

However, additional SSDs can be added to maximize storage capacity, or fine tune the configuration for a specific application by optimizing a RAID array for sequential or random I/O.

Stand-Alone PCIe Gen4 NVMe RAID Solutions

SSD7500 series controllers are truly independent NVMe RAID solutions; they do not require motherboard platforms with Bifurcation support, or any specialized software released by SSD manufactures. Any AMD or Intel based system with a dedicated PCIe 4.0 x16 slot can now take full advantage of the industry’s fastest storage media. In addition, SSD7500 series NVMe RAID controllers can be used to host bootable RAID or single NVMe SSD configurations for Windows and Linux platforms.

Advanced Gen4 Cooling System Eliminates Thermal Throttling

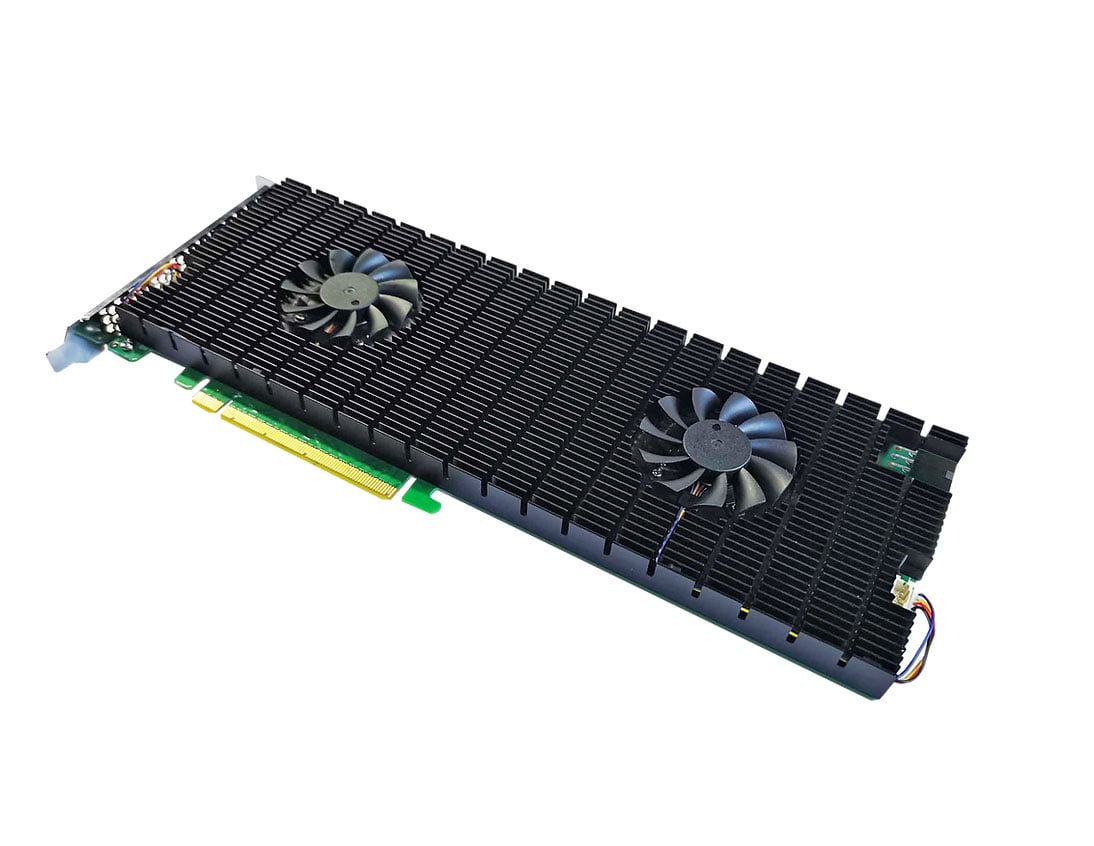

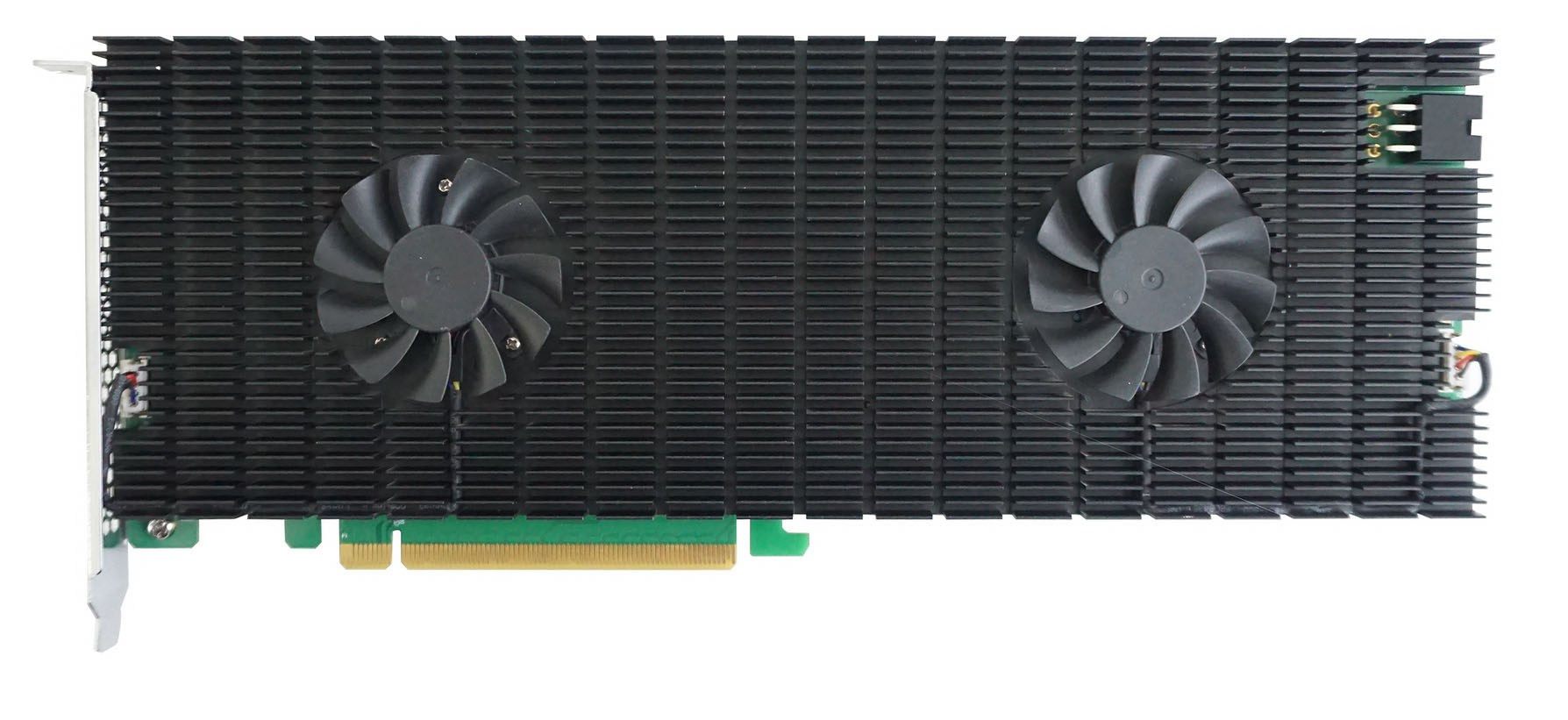

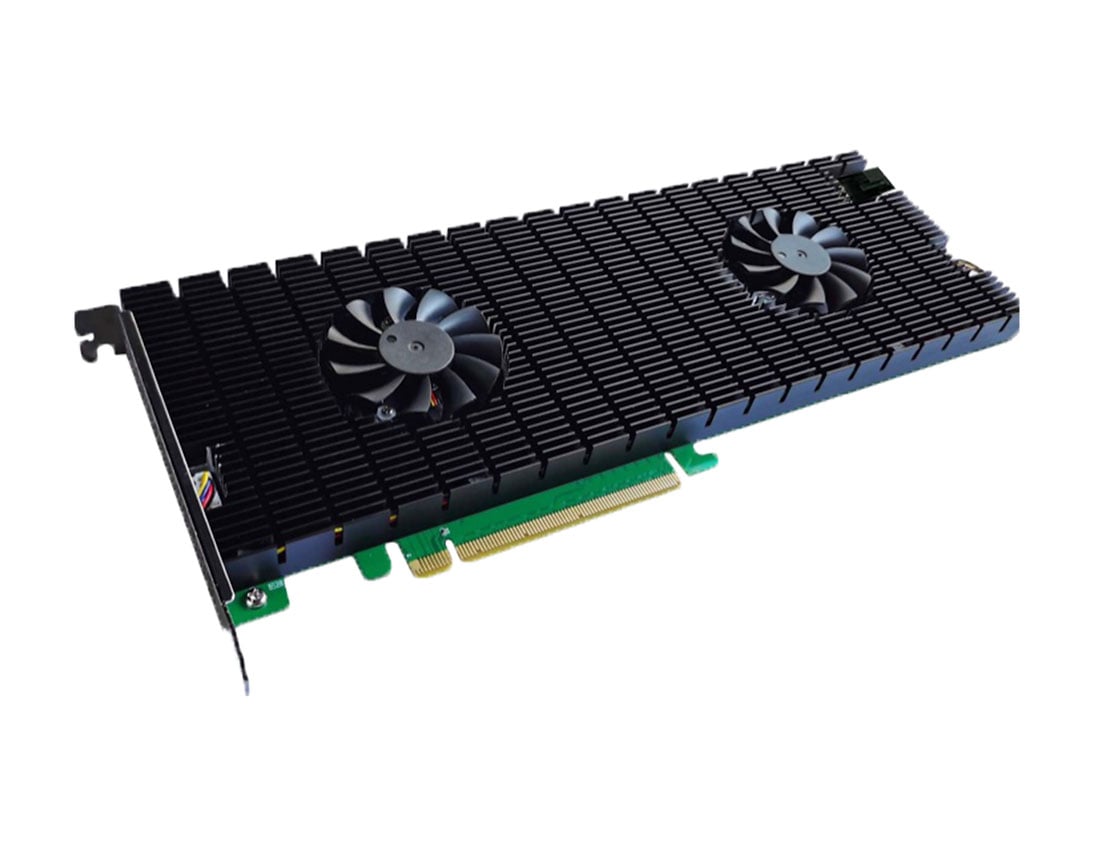

HighPoint’s Low-Noise Hyper-Cooling solution eliminates the risk of thermal throttling by ensuring PCIe Gen4 NVMe SSDs consistently operate within their recommended temperature thresholds, even under sustained heavy I/O. Each controller features a full length anodized aluminum heat sink that is equipped with one or more ultra-durable, low-decible fans and high-conductivity thermal pads. This innovative, ultra- efficient cooling system rapidly transfers waste heat away from critical NVMe and controller componentry, without introducing unwanted distraction into your work environment.

Main Features

  • Platform Independent
  • RAID 0, 1, 1/0 and single-disk
  • Supports 8 M.2 NVMe PCIe 4.0 SSD's
  • PCIe Gen 3 Compatible
  • Up to 64TB capacity per controller
  • Low-Noise Hyper-Cooling Solution
  • Integrated SSD TBW and temperature monitoring capability


Card Type M.2 RAID Controller


External Connectors 1 x PCI Express 4.0 x16
1 x 6-pin PCIe
Internal Connectors 8 x M.2 2242/2260/2280 PCIe Gen4 x4

System Requirements

Operating Systems Supported Windows 11 and 10; Windows Server 2022/Server 2019/Server 2016; Microsoft Hyper-V; Only supports 64 bit operating system.
RHEL/Debian/Ubuntu/Fedora/Proxmox/Rocky Linux(Linux kernel 3.10 and later) Only supports 64 bit operating system.
macOS 10.13 ~ macOS Ventura 13.x


Certifications CE, FCC, RoHS, REACH, WEEE


Warranty 2 Years


Power Consumption (Powersave) 17.28 W


Operating Temperature 5 ~ 55 °C


Form Factor RAID Controller
In The Box 1 x SSD7540
1 x Quick Installation Guide
Width 23.88 mm
Depth 283.97 mm
Height 112.01 mm
Weight 0.77 kg

Key Features

Port Connector M.2
PC Connection Type PCIe
Low Profile No
Card Width 1
Total M.2 Slots 8
PCIe Physical Slot required 16

Item Details

Manufacturer Generic
Manufacturer Code SSD7540
EAN 0643653754014
UPC 643653754014
Condition New

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer Generic
Manufacturer Code SSD7540
No reviews have been received for this product yet
