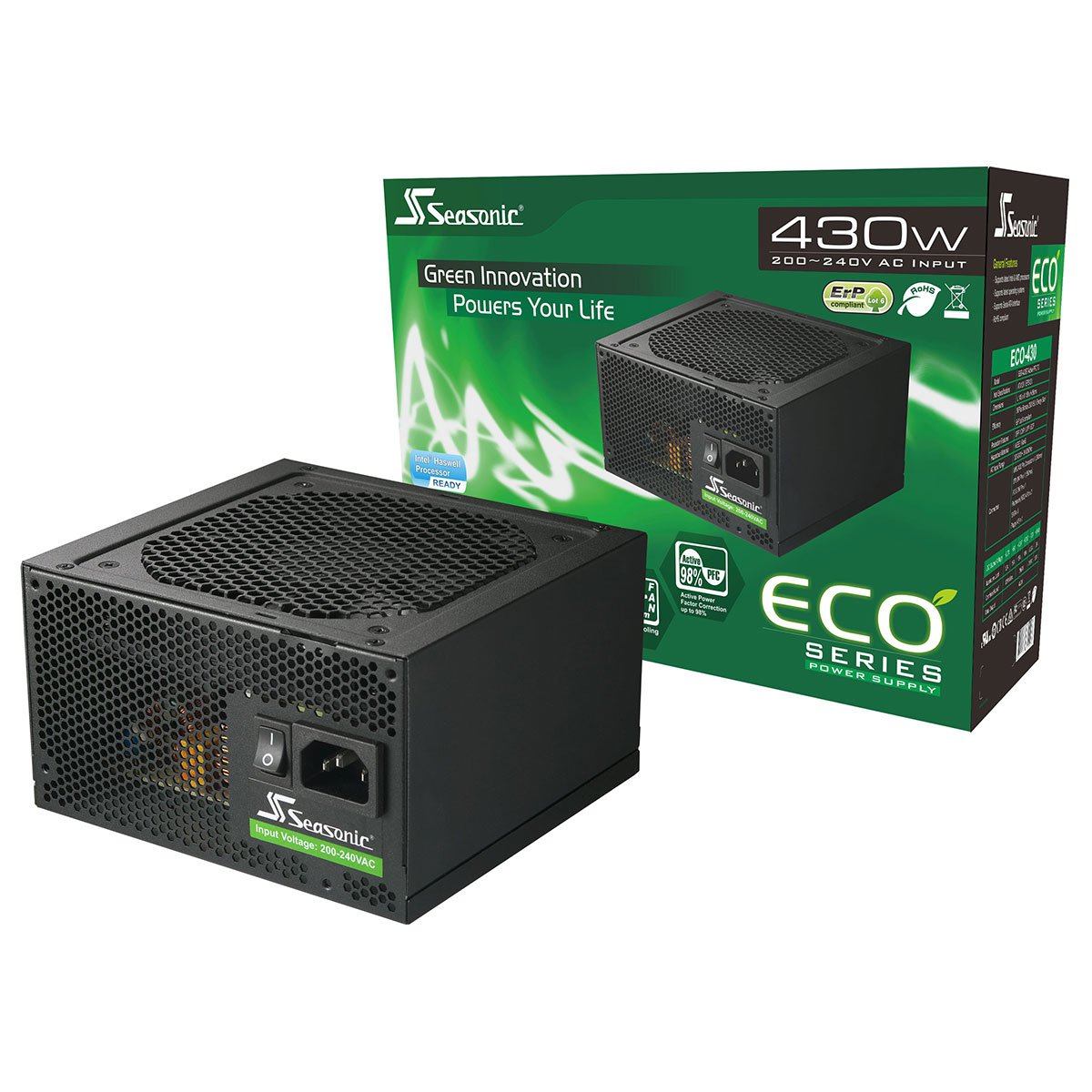

Seasonic 430W ECO is a new power supply for those looking for an economical system or upgrade.

The power supply boasts a 80+ bronze efficiency rating along with 12C FDB Fan for a quite operation.

Connectors

• 1x 20+4-pin Motherboard Connector
• 1x 4+4-pin 12V Connector
• 1x 6+2-pin PCI-e Connector
• 3x SATA Connectors
• 3x 4-Pin Molex Connectors

Detailed Specifications

• Dimensions: 150mm x 86mm x 140mm (W x H x D)

• Input Voltage: 200-240 VAC

• Input Current: 5A

• Input Frequency Range: 50-60Hz

• PFC: Active PFC (>.99)

• Power Good Signal: 100-500 ms

• Hold Up Time: >17ms

• Efficiency: > 81% (85% max)

• MTBF: 100,000 Hours

• Protection: OPP, OVP SCP, UVP

• Power: 430w

• Operation Temperature: 0-40°C

• Safety: TVU, CB, CE, CCC, FCC

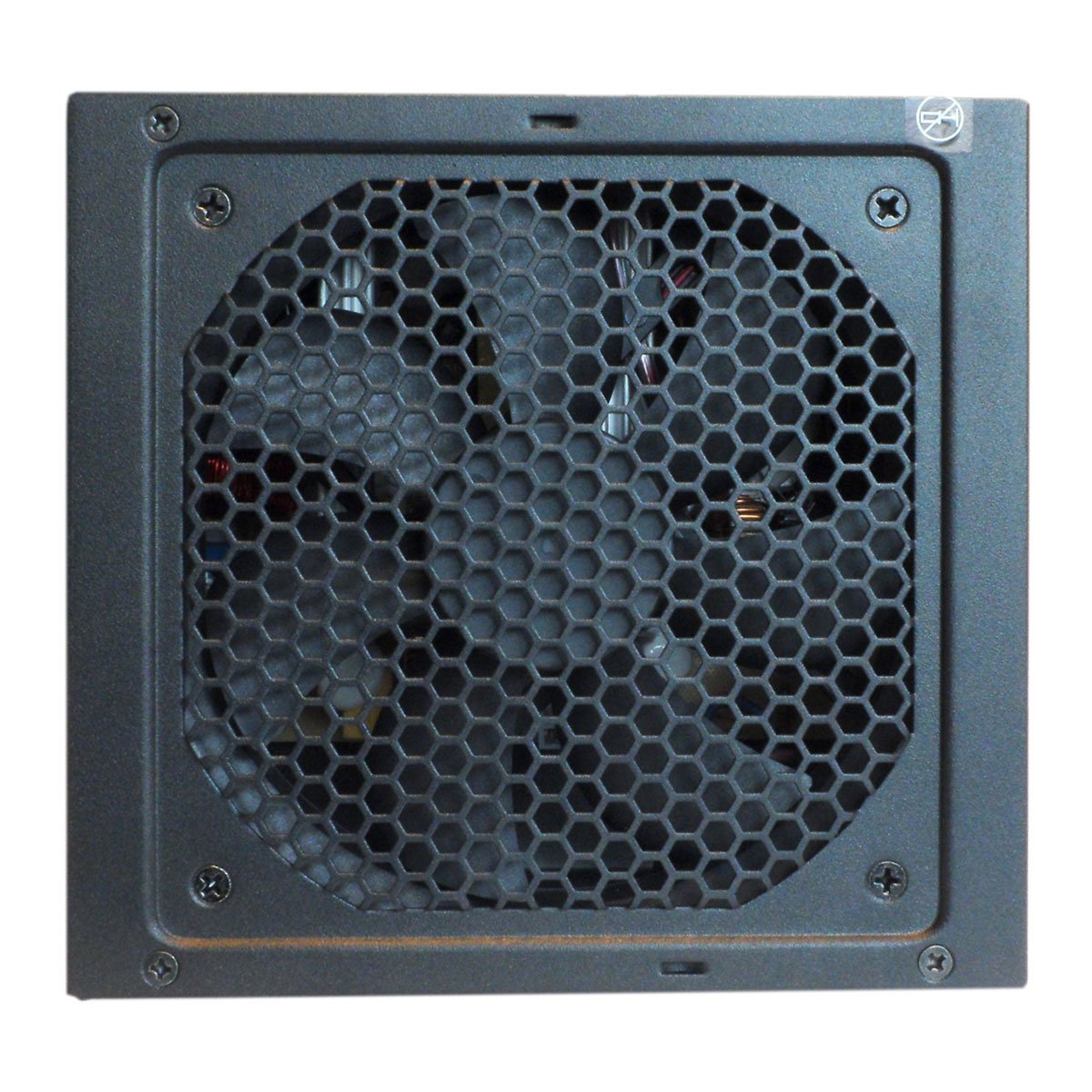

• Cooling: 12cm Fan

• Noise: < 21 dBA

• 80 Plus Certified: Yes - 80 Plus Bronze

General Specifications

• Manufacturer Part Number: SS-430ST

• EAN Number: 4711173872993

• Has Mains Plug: Yes

• Colour: Black

• What's In The Box: Power supply, UK power cord, Manual

• Unit (Product) Dimensions (mm): 150mm x 86mm x 140mm (W x H x D)

• Packaging Dimensions (mm): 240mm x 90mm x 210mm (W x H x D)
