Input

• Input Voltage Range: 230 V AC

Output

• Output Capacity: 3 kVA
• Output Wattage (Maximum): 2.7 kW
• Output Wattage: 2.7 kW
• Output Voltage: 230 V AC
• Max Configurable Capacity: 2.7 kVA
• Output Distortion: less than 5 %

Filtering

• Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
• Surge Energy: 645 Joules

Display/Warnings

• Audible Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

Battery

• Battery Type: Lead acid

Interfaces/Ports

• Input Connection type: British BS1363A IEC-320 C20 Schuko CEE 7/EU1-16P

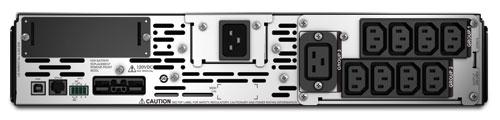

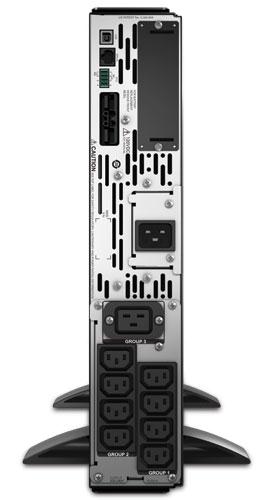

• Output Connections: (8) IEC 320 C13, (1) IEC 320 C19, (2) IEC Jumpers
• Interface Port: 8 x IEC 320 C13 • 1 x IEC 320 C19 • 2 x IEC Jumpers

Compliance

• Approvals: BSMI,C-tick,CE,CSA,EN 50091-1,EN 50091-2,EN 55022 Class A,EN 60950,EN 61000-3-2,GOST,JEON,UL 1778,VCCI,VDE

Environmental

• Operating Temperature: 0 to 40 °C
• Operating Humidity: 0 to 95 %
• Noise Level: 55 dbA

Physical

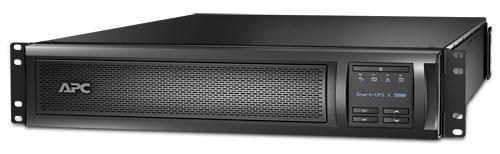

• Form Factor: 2U
• Case Colour: Black
• In The Box: Smart-UPS • CD with software • Documentation CD • Rack Mounting brackets • Smart UPS signalling RS-232 cable • USB cable • User Manual
• Width: 43.2 cm
• Depth: 66.7 cm
• Height: 8.5 cm
• Weight: 37.32 kg

Warranty

• Warranty: 3 years repair or replace (excluding battery) and 2 year for battery,optional on-site warranties available,optional extended warranties available

Identifiers

• Stock Code: UPS0216
• Mfg Code: SMX3000RMHV2U
