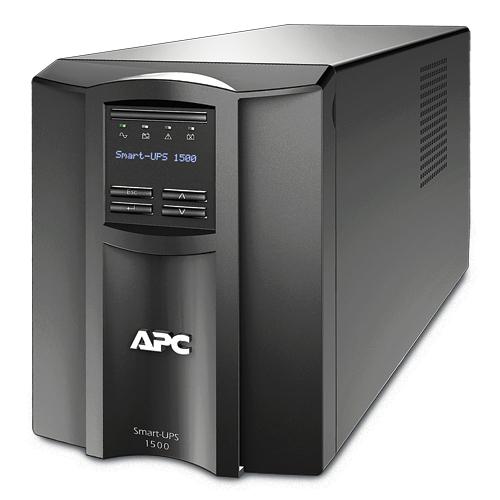

APC Smart-UPS LCD 1500VA 1000W 230V with SmartConnect
Available for delivery from Tuesday 14th July
Click & Collect from Wednesday 15th July
Order within
You have 0 of these in your basket
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and networks. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today’s multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS models have long been considered the benchmark for all network and server UPS's.
Input
- Input Voltage Range: 160 to 286 V AC
Output
- Waveform Type: Sinewave
- Output Capacity: 1.5 kVA
- Output Wattage (Maximum): 1.0 kW
- Output Voltage: 230 V AC
- Max Configurable Capacity: 1.5 kVA
- Output Distortion: less than 5 %
- Crest Factor: Up to 5:1
- Frequency Range (Output): 50 to 60 Hz
Filtering
- Filtering: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
- Surge Energy: 459 Joules
Display/Warnings
- Audible Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- Control Panel: Multi-function LCD status and control console
Battery
- Typical backup time at half load: 24 minutes
- Typical backup at full load: 7 minutes
- Typical Recharge Time: 3 Hours
- Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

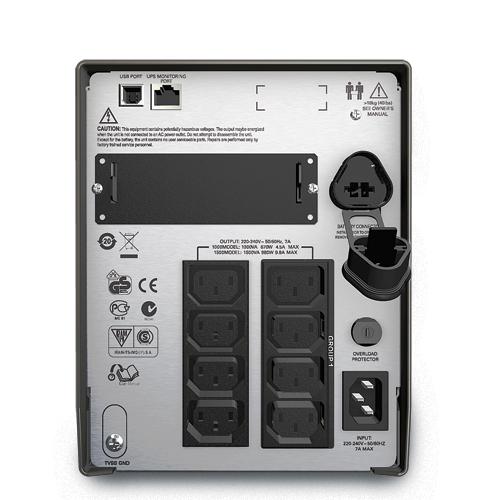

Interfaces/Ports
- Input Connection type: IEC-320-C14
- Output Connections: (8) IEC 320 C13, (2) IEC Jumpers
- Interface Port: DB-9 RS-232, Smart-Slot, USB
Compliance
- Safety: Regulatory Approvals: C-tick,CE,EN 50091-1,EN 50091-2,VDE •Environmental Compliance: RoHS 7b Exemption,China RoHS,REACH: Contains No SVHCs
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 0 to 95 %
- Noise Level: 45 dbA
Physical
- Form Factor: Uninterruptible Power Supply
- Case Colour: Black
- In The Box: APC Smart-UPS 1500VA, CD with software, Documentation CD, Installation guide, Smart UPS signalling RS-232 cable, USB cable
- Width: 17.1 cm
- Depth: 43.9 cm
- Height: 21.9 cm
- Weight: 24.09 kg
Warranty
- Warranty: Three years repair or replace (excluding battery) and 2 year for battery.
Identifiers
- Stock Code: UPS0297
- Mfg Code: SMT1500IC
Warranty
- Warranty: Three years repair or replace (excluding battery) and 2 year for battery.
