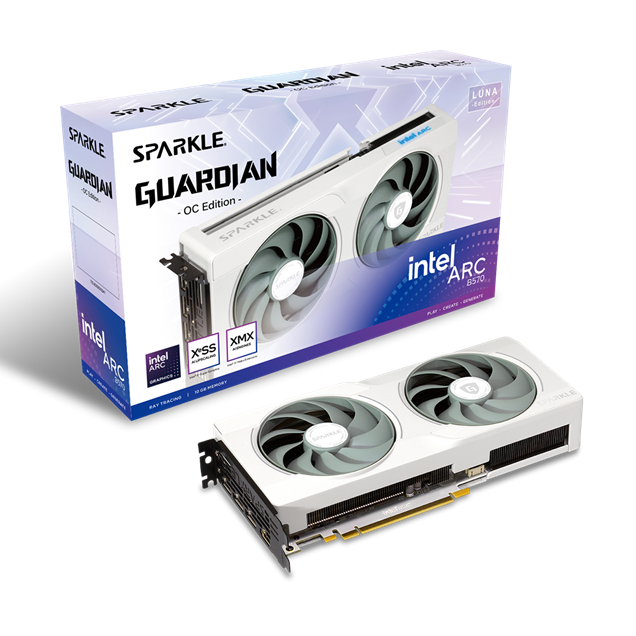

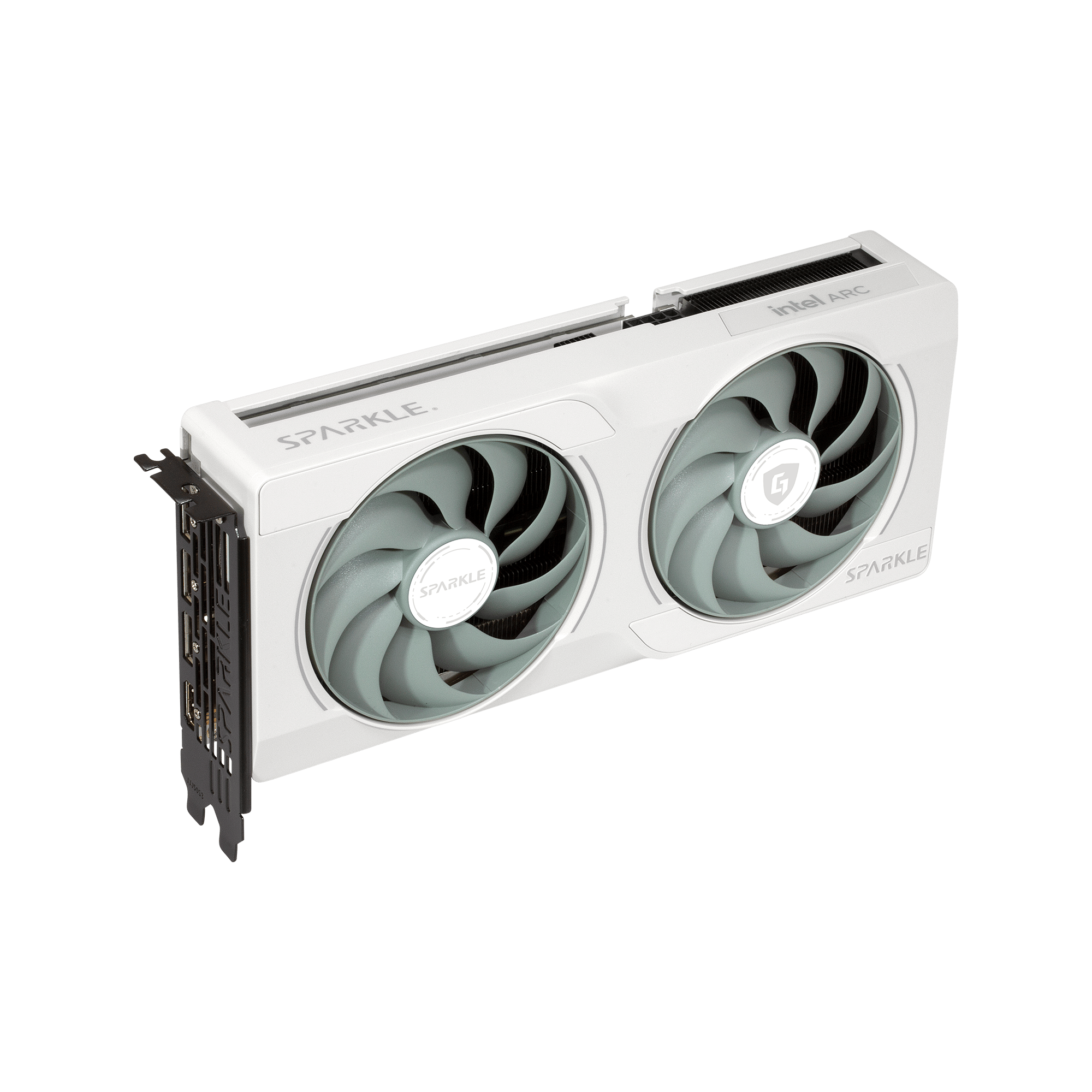

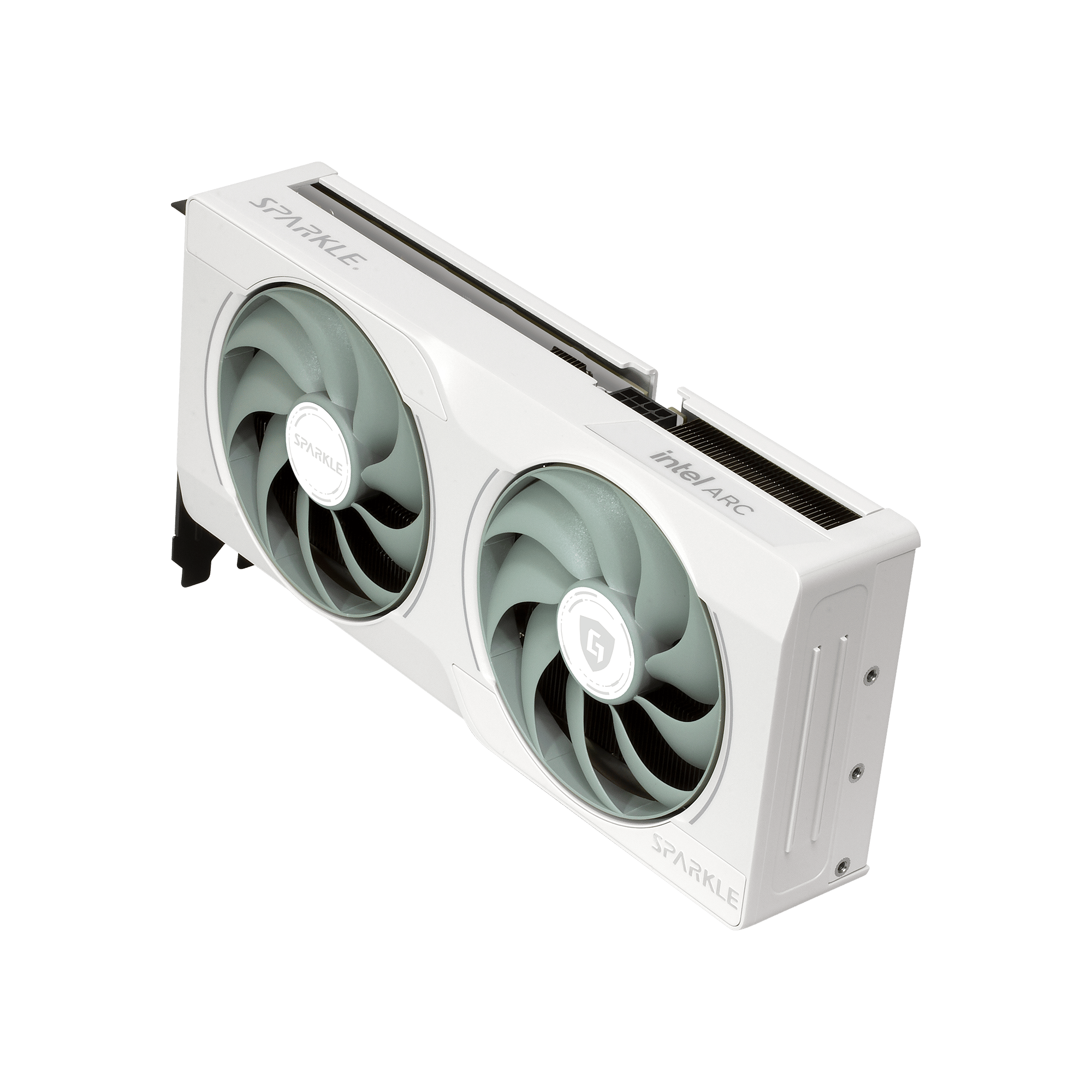

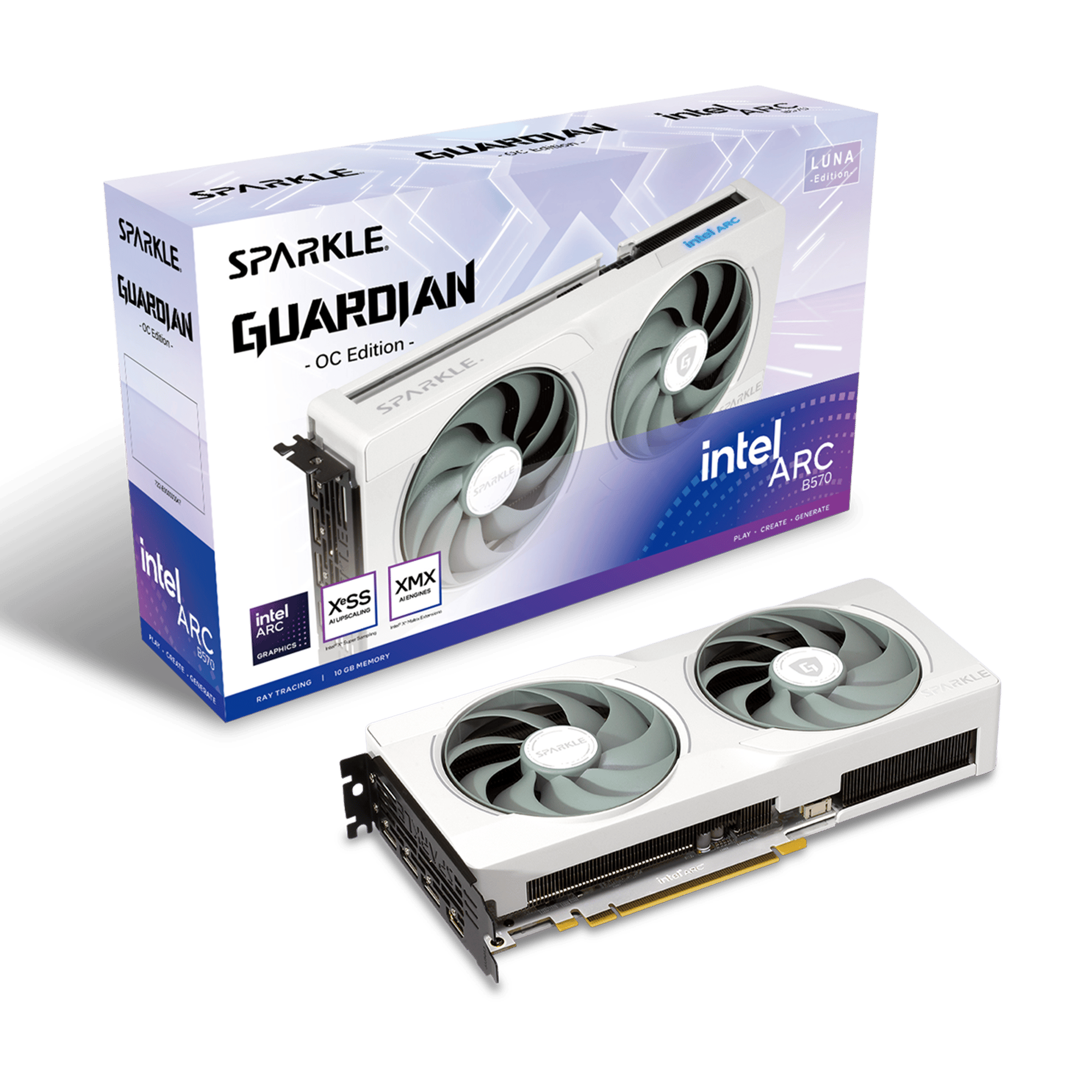

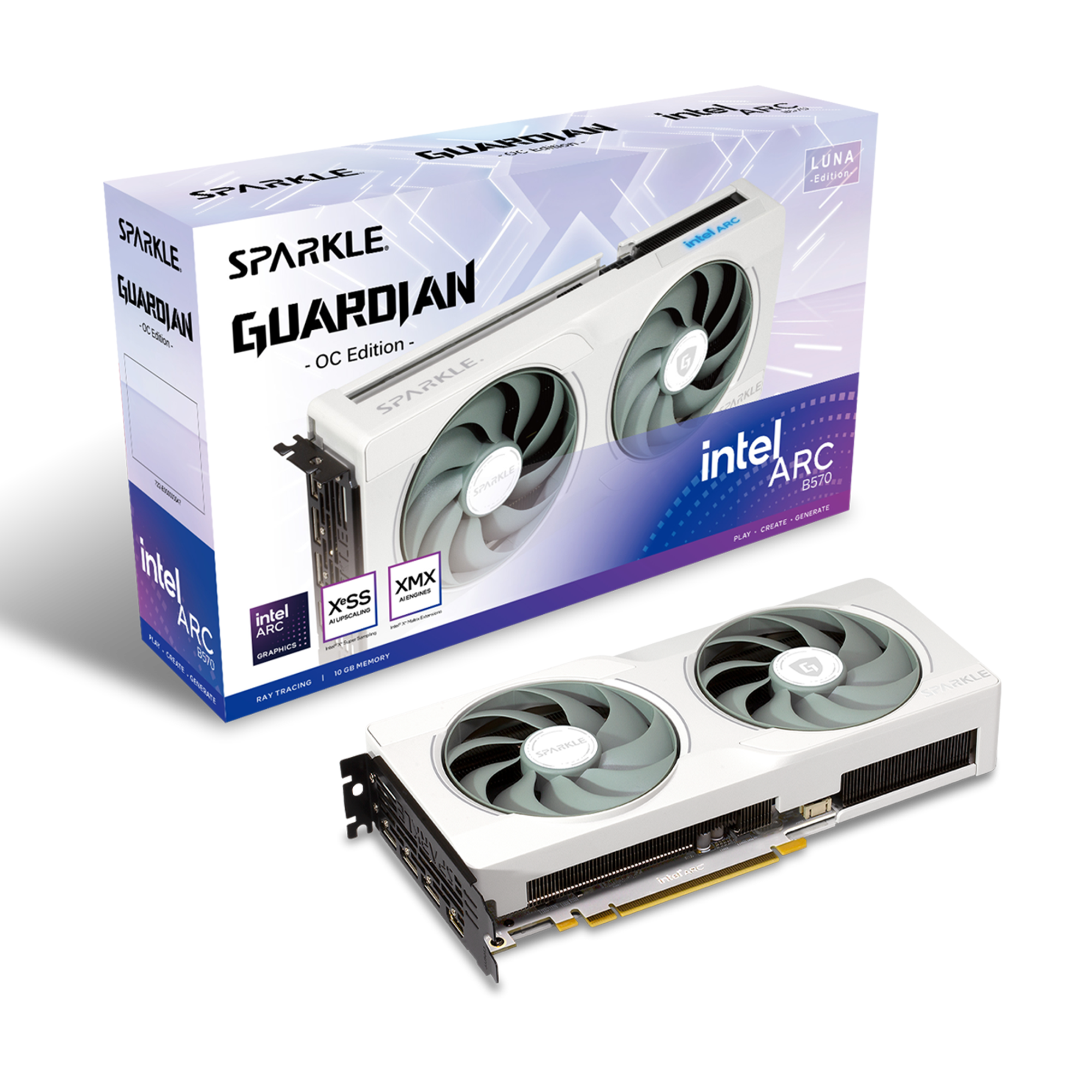

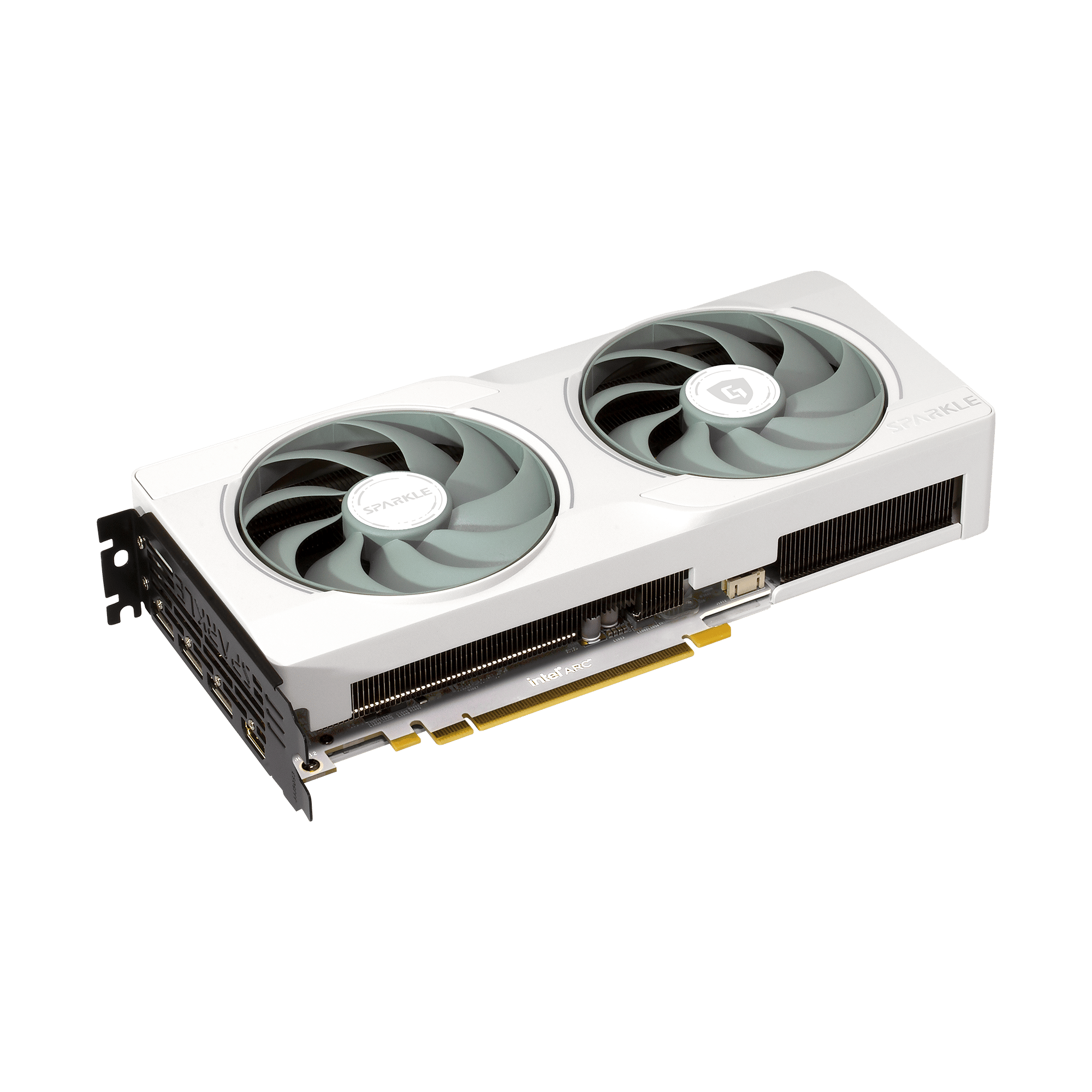

SPARKLE Intel Arc B570 GUARDIAN Luna OC 10GB GDDR6 Graphics Card
£240.99
Discontinued
SB570GW-10GOC
SPARKLE Intel Arc B570 GUARDIAN Luna OC 10GB GDDR6 Graphics Card
10GB GDDR6 GRAPHICS MEMORY
PCI EXPRESS 4.0 X8 INTERFACE
OVERCLOCKED EDITION
OUTPUTS - HDMI AND DISPLAY PORT
The SPARKLE Intel® Arc™ B570 GUARDIAN OC Graphics Card, offers high-resolution gaming with Intel XeSS AI upscaling, ray tracing, and 8K media support, plus accelerated AI features for enhanced creation and editing through Intel AI Playground.

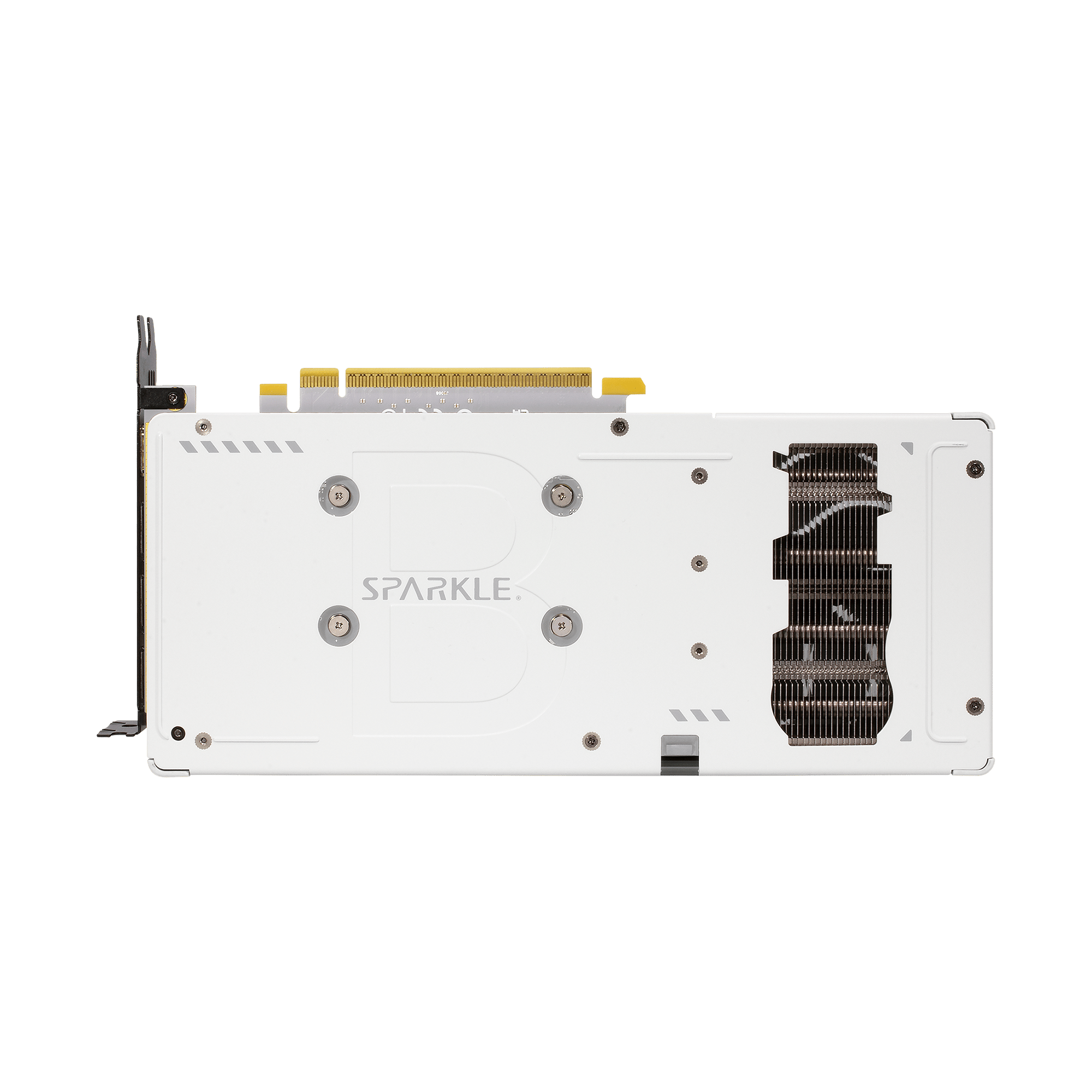

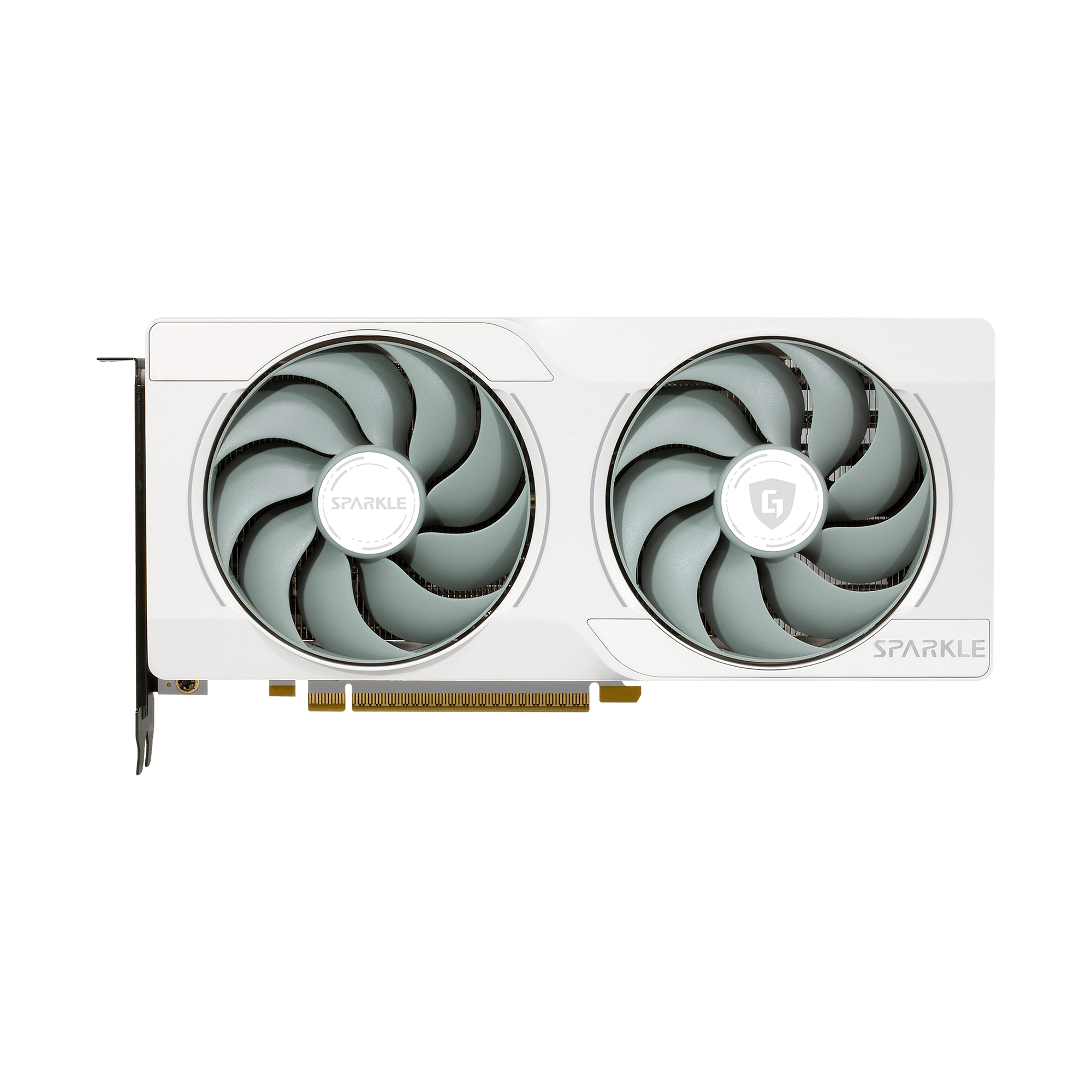

GUARDIAN series equipped TORN 2.0 Cooling with double customized AXL fans, 2.2-slot design and full-metal backplate. A blue breathing light effect has added a touch of elegance to your gaming setup.
GPU
- Chipset Manufacturer: Intel
- Chipset Model Name: Arc
- Chipset Model Number: B570
- Chipset Additional Information: GUARDIAN Luna
- Chip Clock: 2660 MHz
- Graphics Core: XMX
- Number of Cores: 144
Memory
- Memory Size: 10 GB
- Memory Type: GDDR6
- Memory Width: 160 bit
- Memory Bandwidth: 360 GB/s

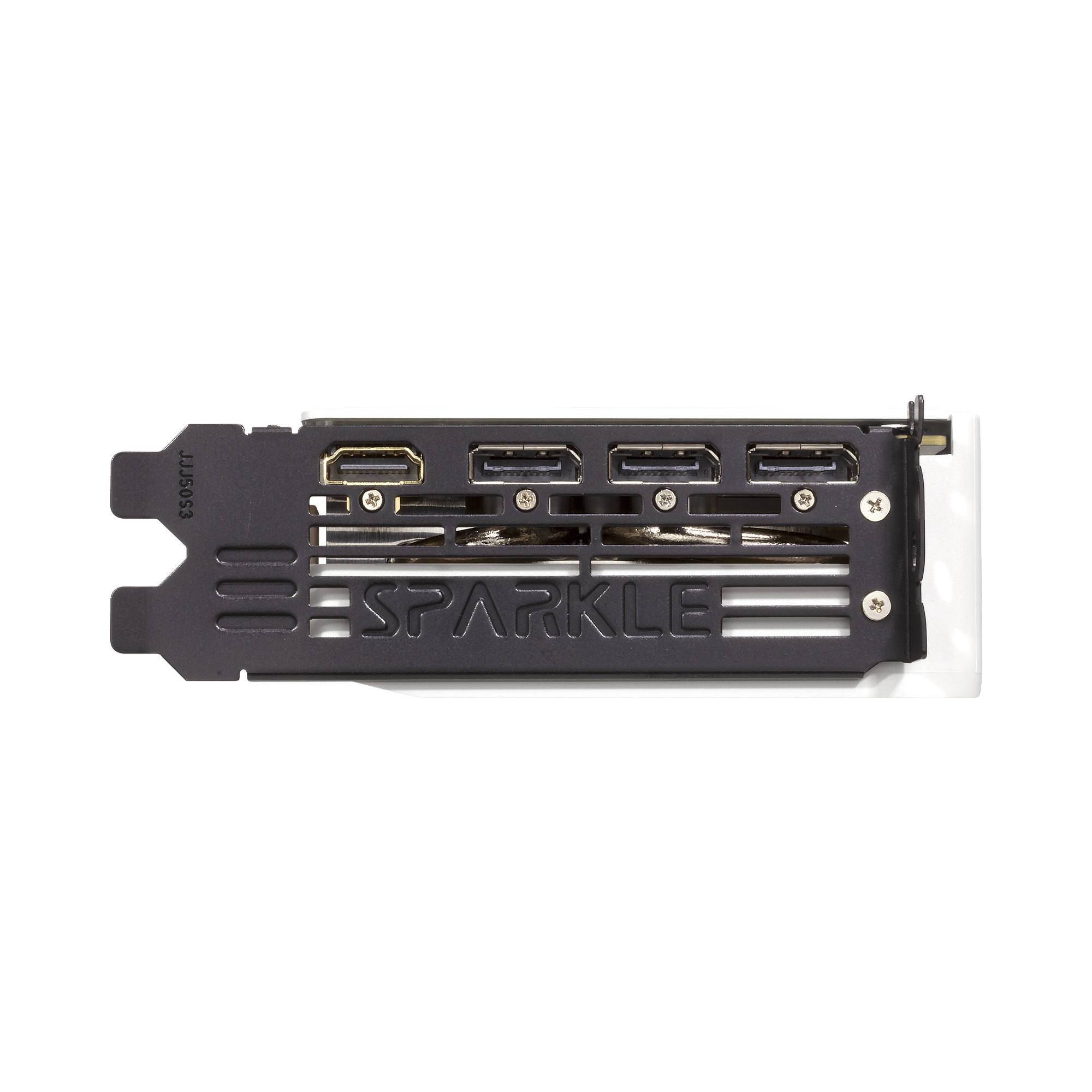

Interfaces/Ports
- Video Card Bus Type: PCI Express
- Video Card Bus Version: 4.0 x8
- HDMI Port: 1 x HDMI 2.1
- DisplayPort: 3 x DisplayPort 2.1
Resolution
- Multiple Monitor Support (Max): Yes (4)
- Maximum Resolution: 7680 x 4320
System Requirements
- System Requirements: 1 x PCI Express 4.0 x16 slot
Electrical
- Power Connector: 1 x 8-pin PCIe
- Power Consumption: 170 W
- Recomended Power Supply: 600 W
Physical
- Form Factor: Graphics Card
- In The Box: Graphics Card
- Width: 44 mm (2.2 slot)
- Depth: 242 mm
- Height: 105 mm
- Weight: 796 g
Warranty
- Warranty: 3 Years
Identifiers
- Stock Code: VGA7183
- Mfg Code: SB570GW-10GOC
Warranty
- Warranty: 3 Years
