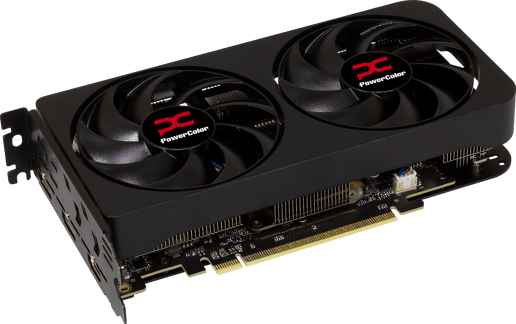

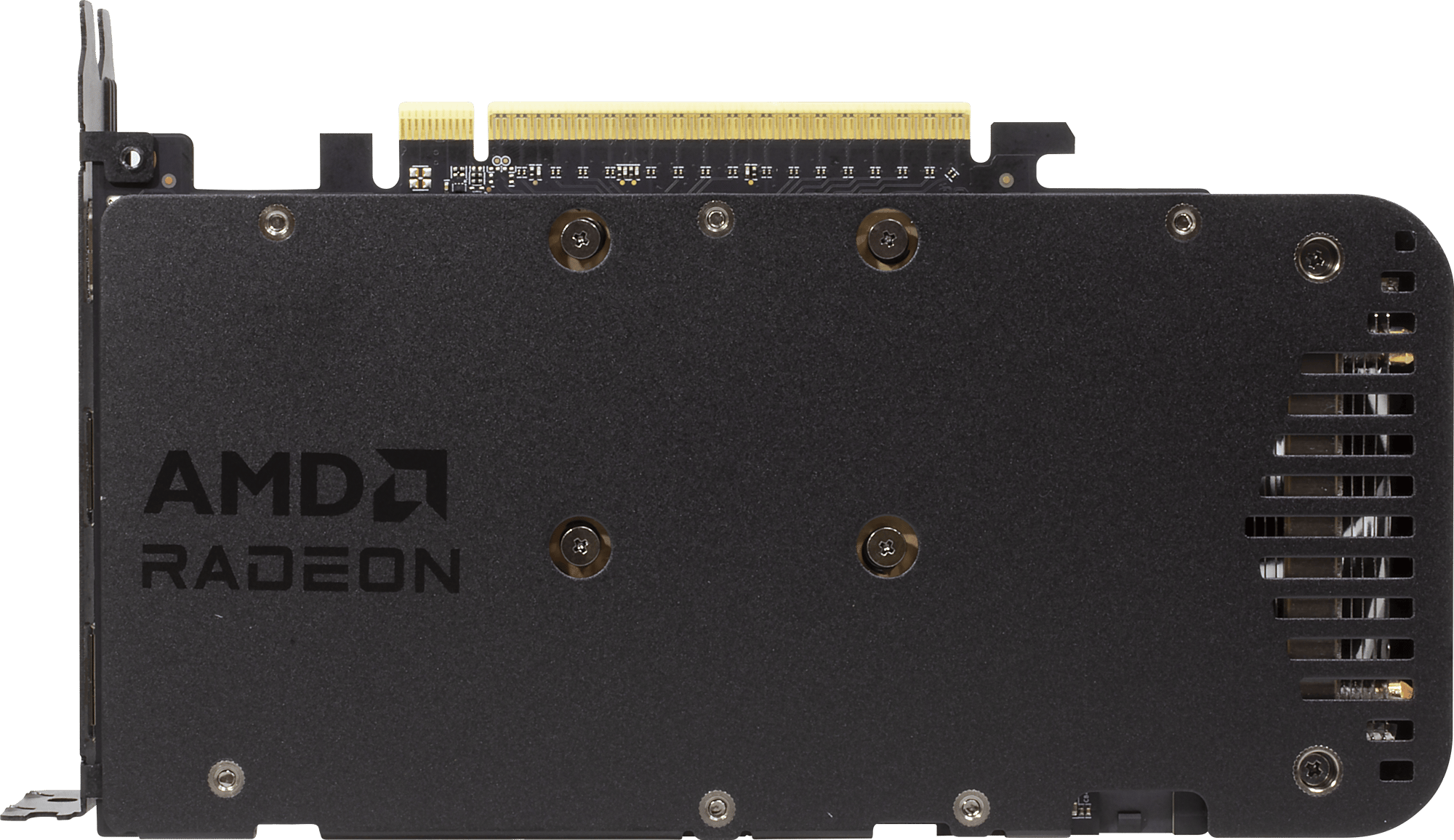

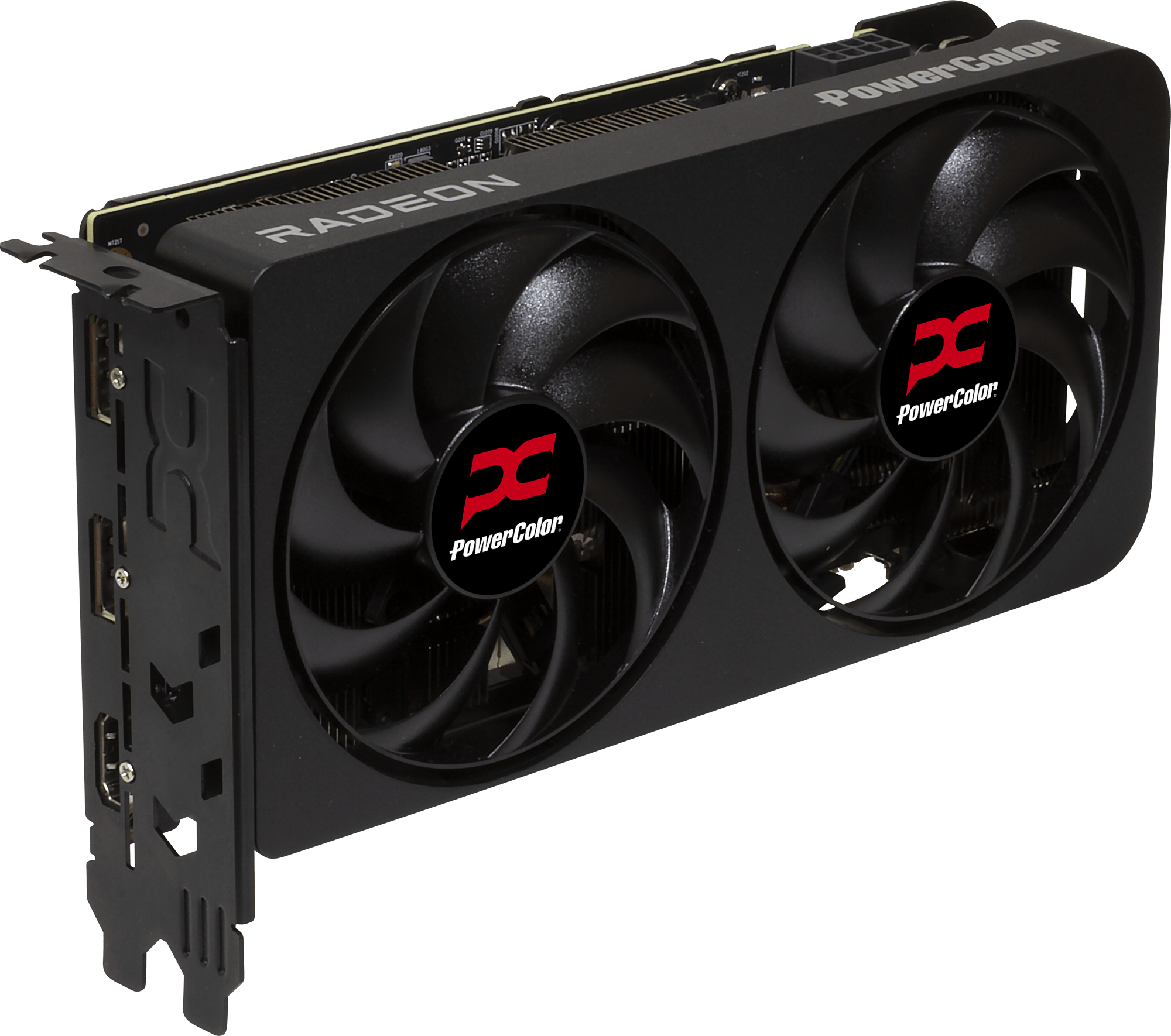

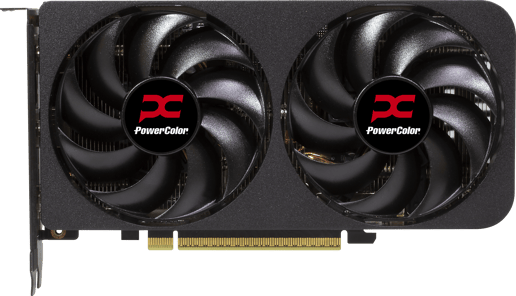

GPU

• Chipset Manufacturer: AMD
• Chipset Model Name: Radeon RX
• Chipset Model Number: 9060 XT
• Chipset Additional Information: Reaper
• Boost Chip Clock: 3230 MHz
• Number of Cores: 2048

Memory

• Memory Size: 16 GB
• Memory Clock: 20 Gbps
• Memory Type: GDDR6
• Memory Width: 128 bit

Interfaces/Ports

• Video Card Bus Type: PCI Express
• Video Card Bus Version: 5.0 x16

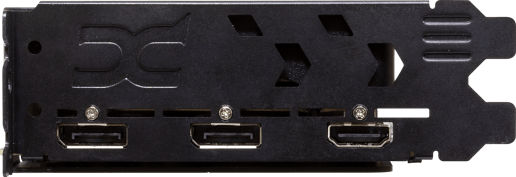

• HDMI Port: 1 x HDMI 2.1b
• DisplayPort: 2 x DisplayPort 2.1a

Resolution

• Multiple Monitor Support (Max): Yes (3)
• Maximum Resolution: 7680 x 4320

System Requirements

• System Requirements: 1 x PCI Express 5.0 x16 slot

Electrical

• Power Connector: 1 x 8-pin PCIe
• Power Consumption: 160 W
• Recomended Power Supply: 500 W

Physical

• Form Factor: Graphics Card

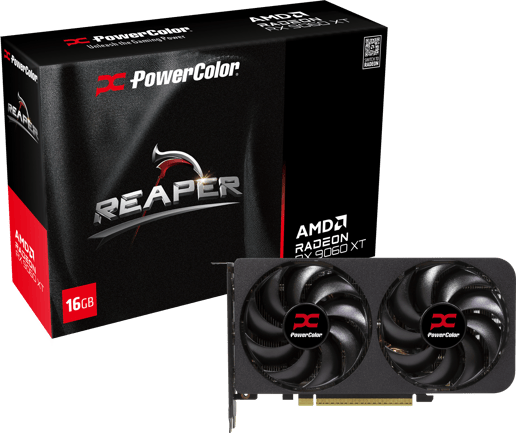

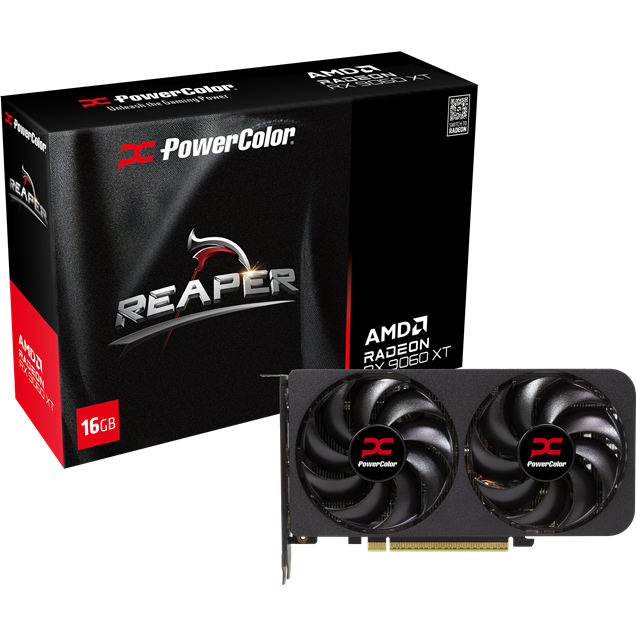

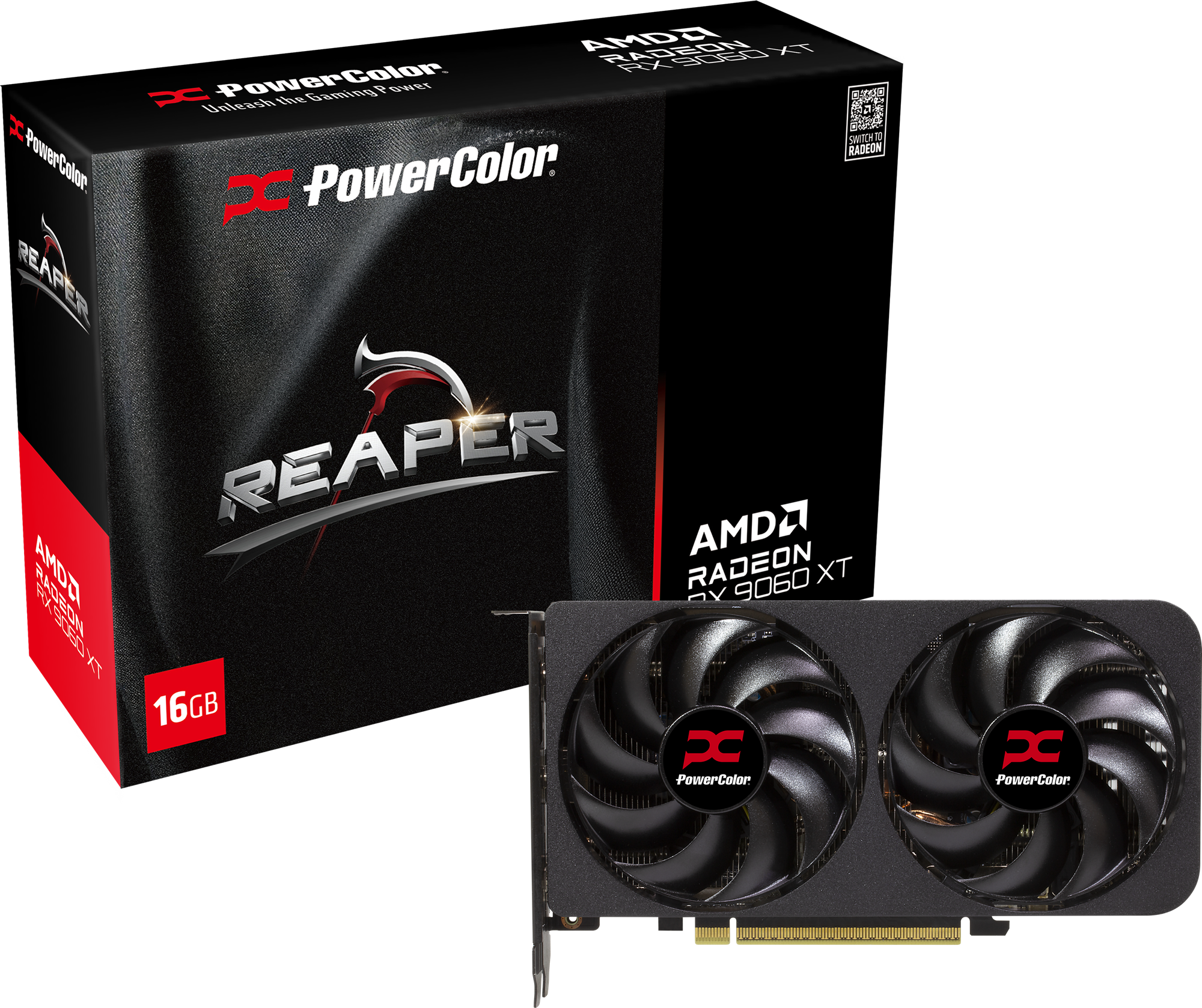

• In The Box: Graphics Card
• Gaming Gear Intro Cad
• Width: 40 mm (Dual Slot)
• Depth: 220 mm
• Height: 120 mm

Warranty

• Warranty: 3 Years

Identifiers

• Stock Code: VGA7480
• Mfg Code: RX9060 XT 16G-A
