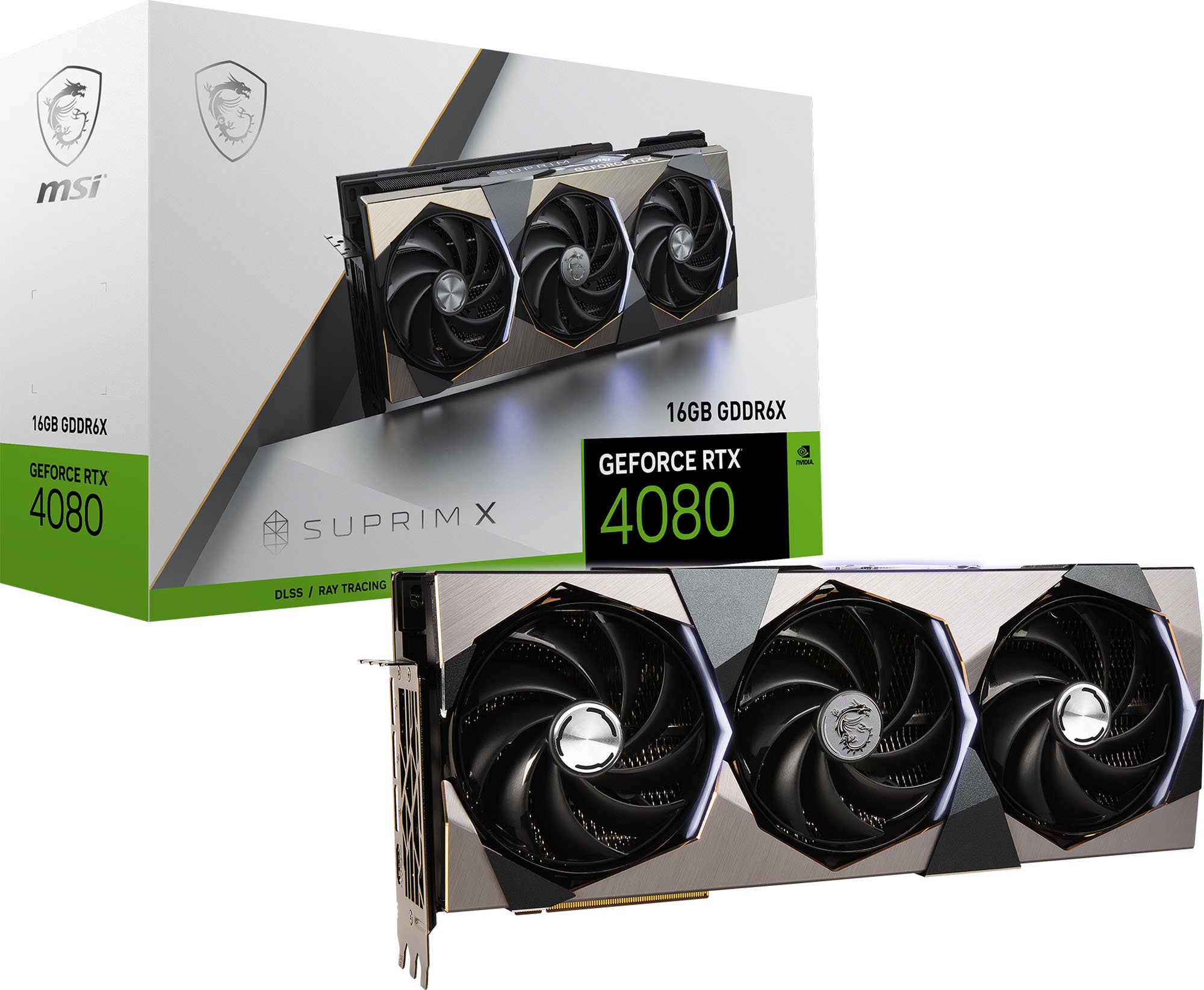

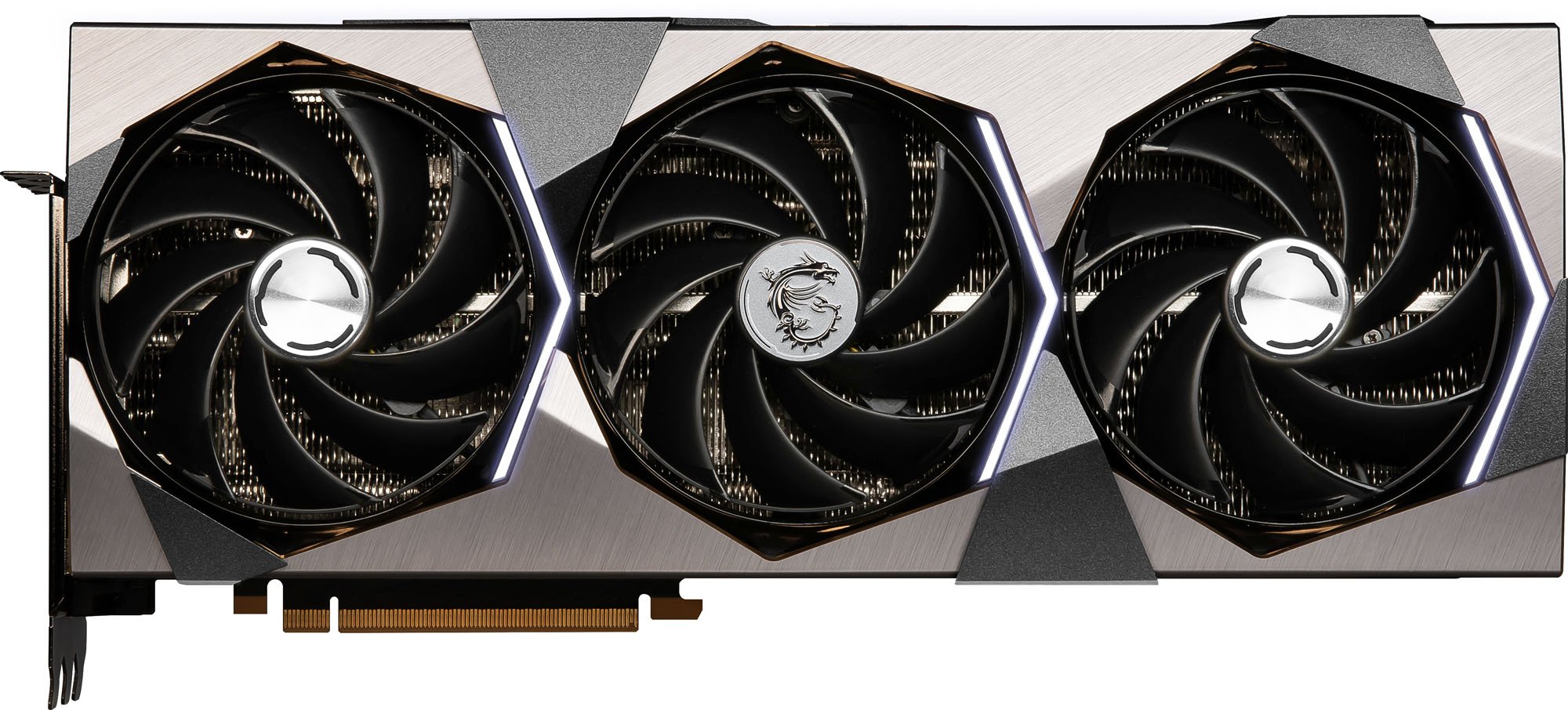

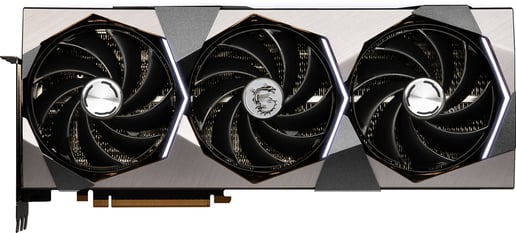

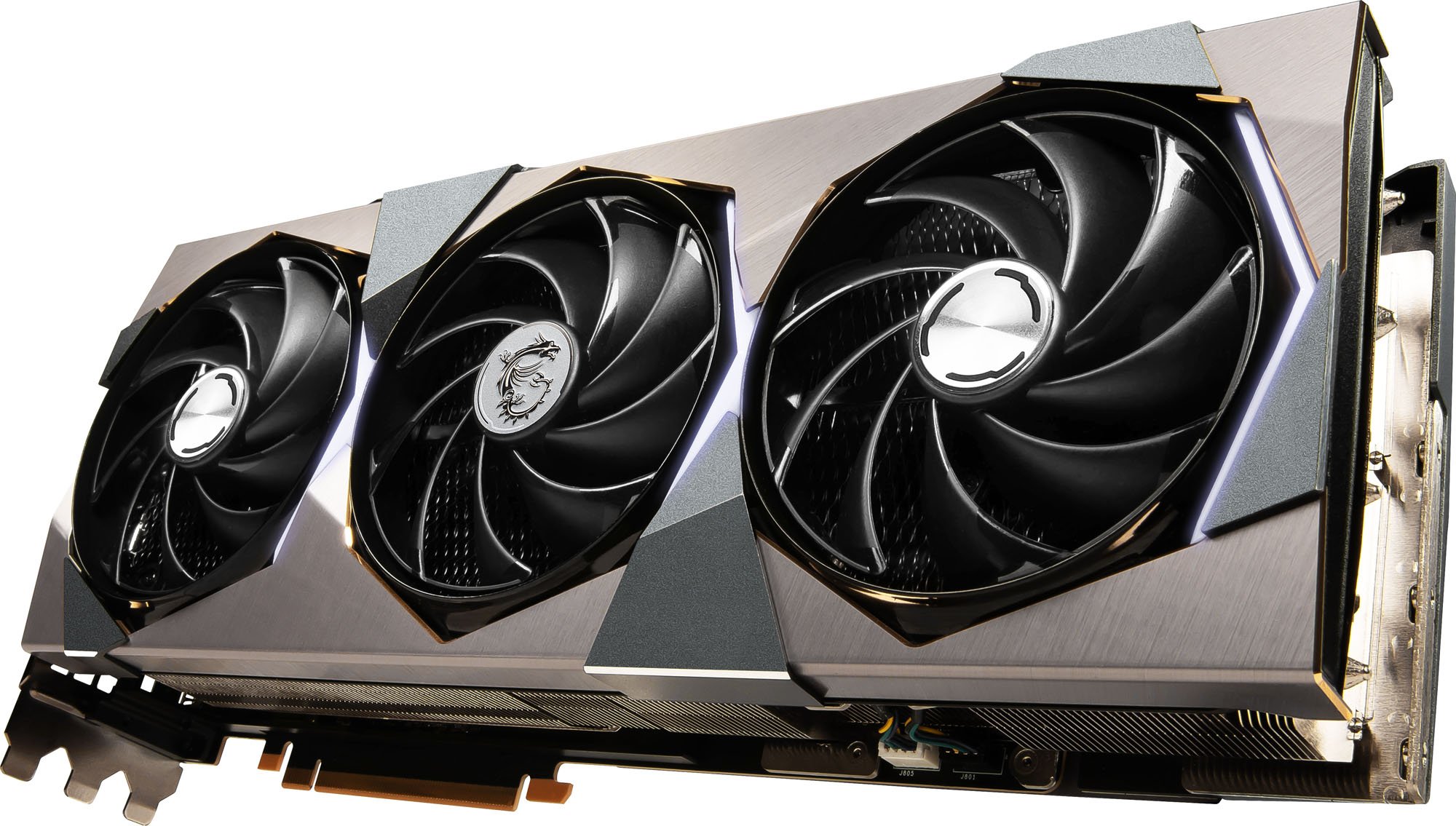

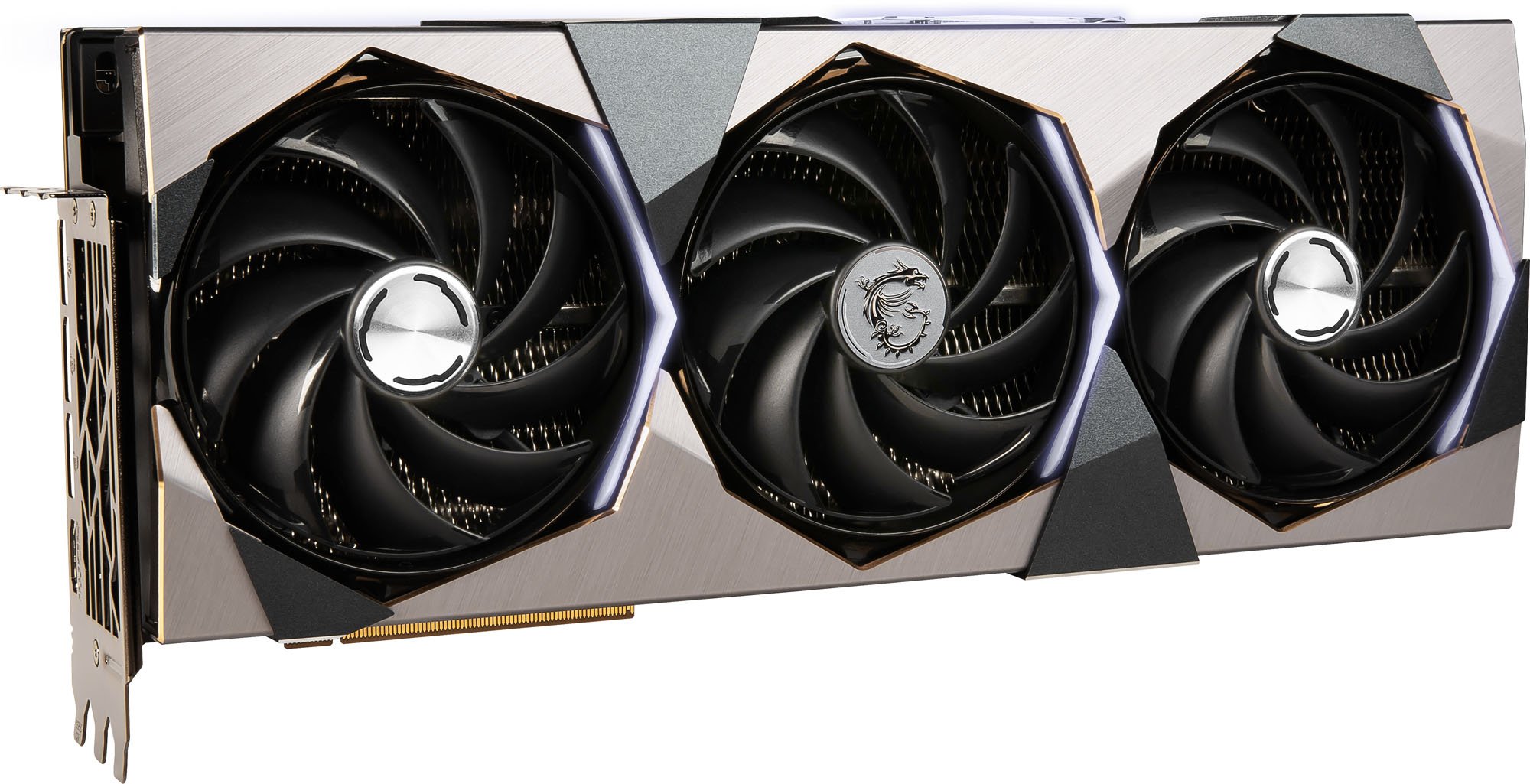

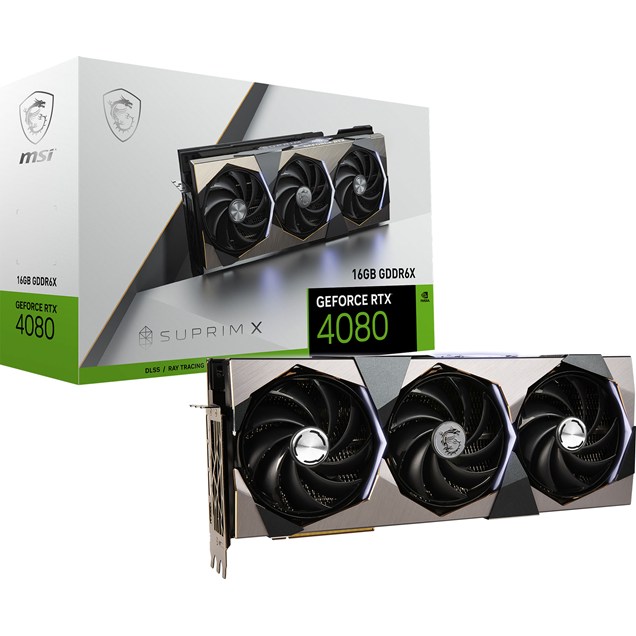

MSI GeForce RTX 4080 SUPRIM X OC 16GB Graphics Card

MSI GeForce RTX 4080 SUPRIM X OC 16GB Graphics Card

CCL Code: VGA6580

Discontinued

MSI GeForce RTX 4080 SUPRIM X OC 16GB Graphics Card

RTX 4080 16GB SUPRIM X

Key Features:

  • 16GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Nvidia GPU Boost Technology
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA6580

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

CHANGE THE GAME

Ascend to a superior experience with SUPRIM. See, hear, and feel a profoundly elevated graphics card built with high-quality materials and assembled with enthusiast features.

The Ultimate Platform for Gamers and Creators

Powered by GeForce RTX 40 Series

nvidia 4090 images
  • New Streaming Multiprocessors

    Up to 2x performance and power efficiency

  • Fourth-Gen Tensor Cores

    Up to 2x AI performance

  • Third-Gen RT Cores

    Up to 2x ray tracing performance

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

NVIDIA Broadcast app

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

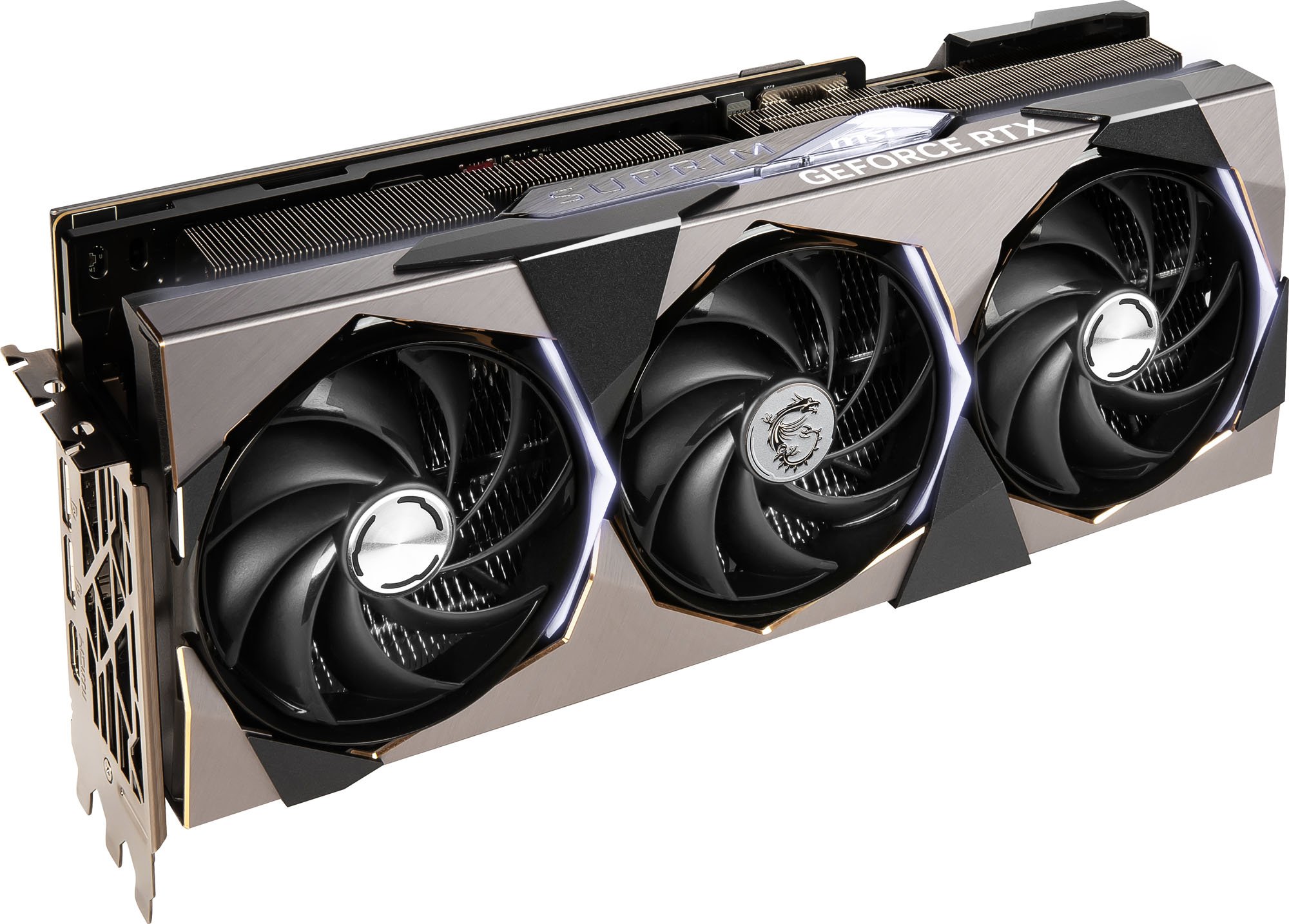

TRI-FROZR 3S THERMAL DESIGN

Upgraded fans, airflow control, and other thermal innovation make TRI-FROZR 3S the best air-cooling solution yet from MSI.

TORX FAN 5.0

Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

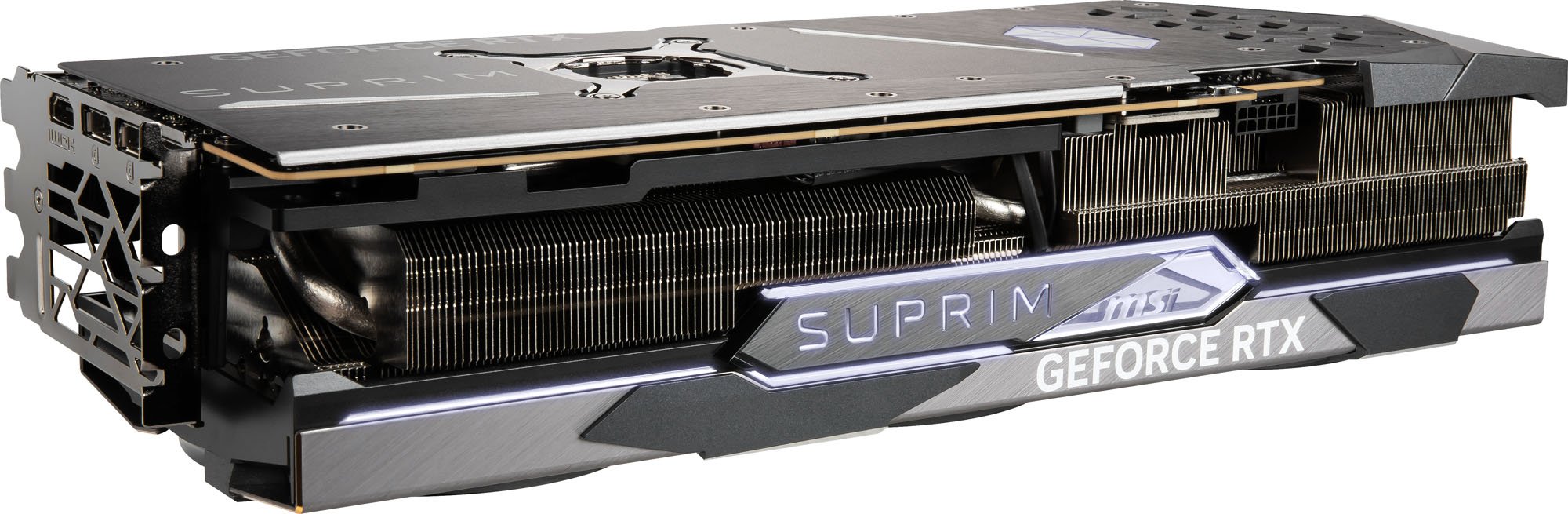

ADVANCED SOLUTION

A Vapor Chamber is excellent for rapidly stabilizing heat on a planar surface. The GPU and VRAM are covered with a Vapor Chamber which transfers heat to Core Pipes.

KEEPING THE CORE COOL

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink.

AIRFLOW CONTROL

Sections of different heatsink fins disrupt unwanted airflow harmonics and reduce noise.

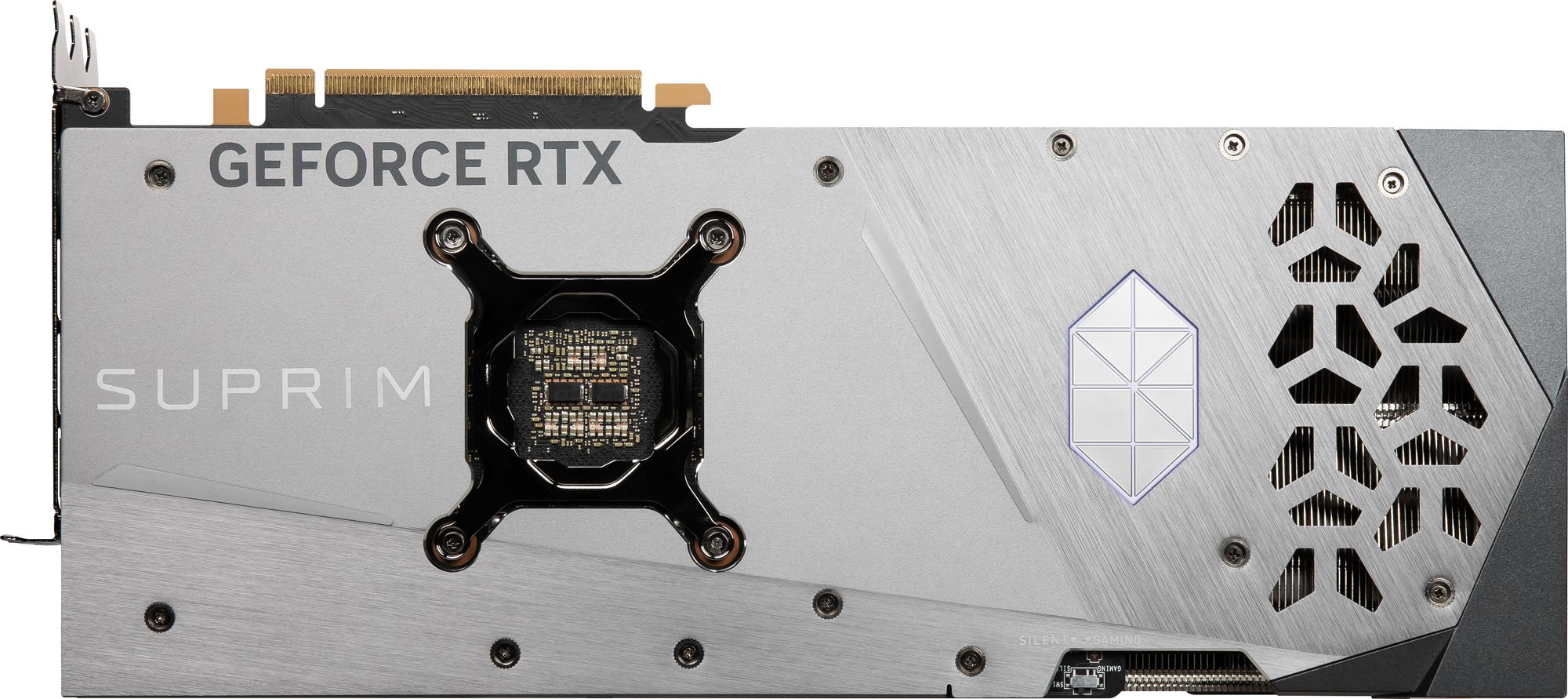

METAL BACKPLATE

Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.

Ray Tracing

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

NVIDIA Reflex

NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number
Chipset Additional Information SUPRIM X
Graphics Core CUDA
Number of Cores 9728 cores

Memory

Memory Size 16384 MB
Memory Clock 22.4 Gbps
Memory Type GDDR6X
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

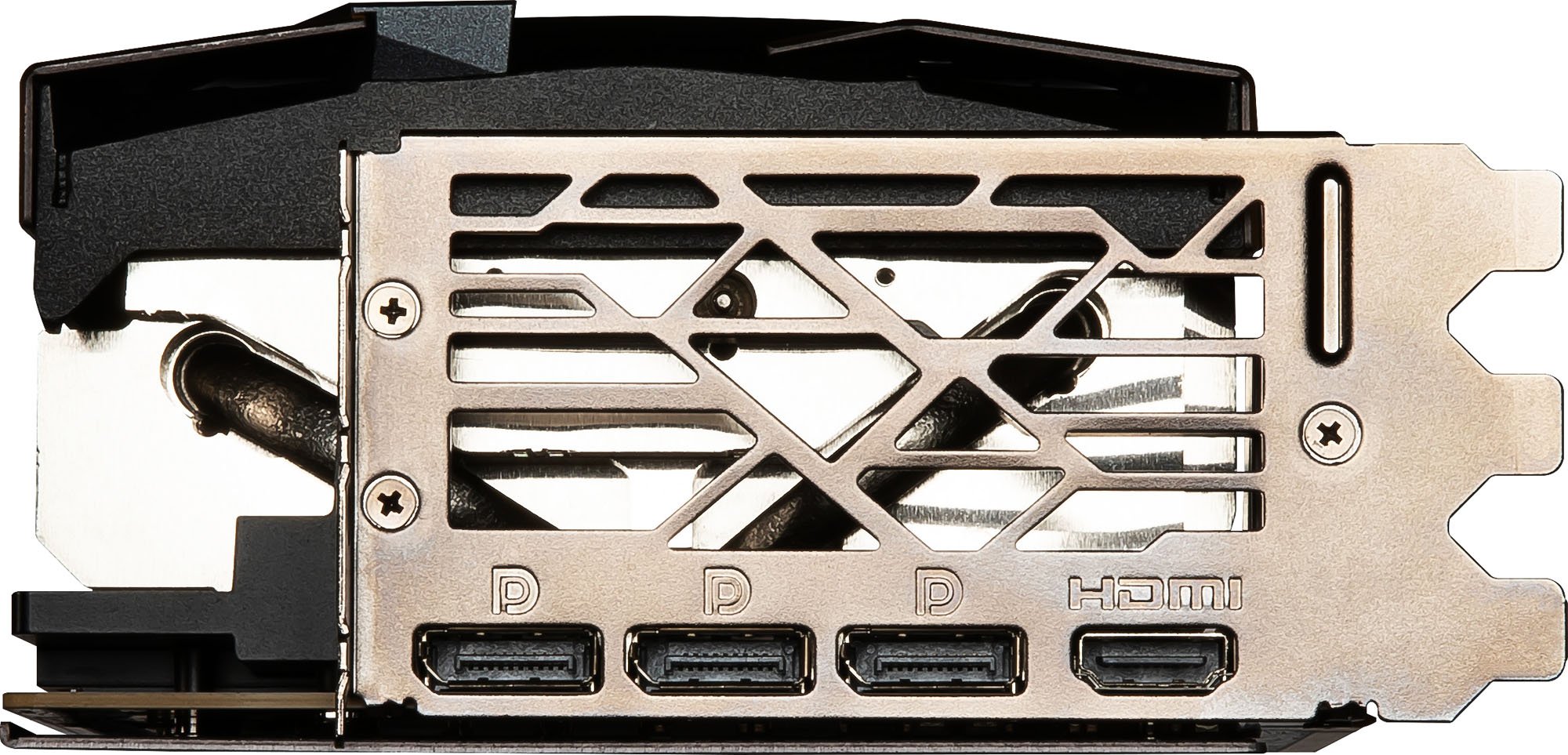

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot

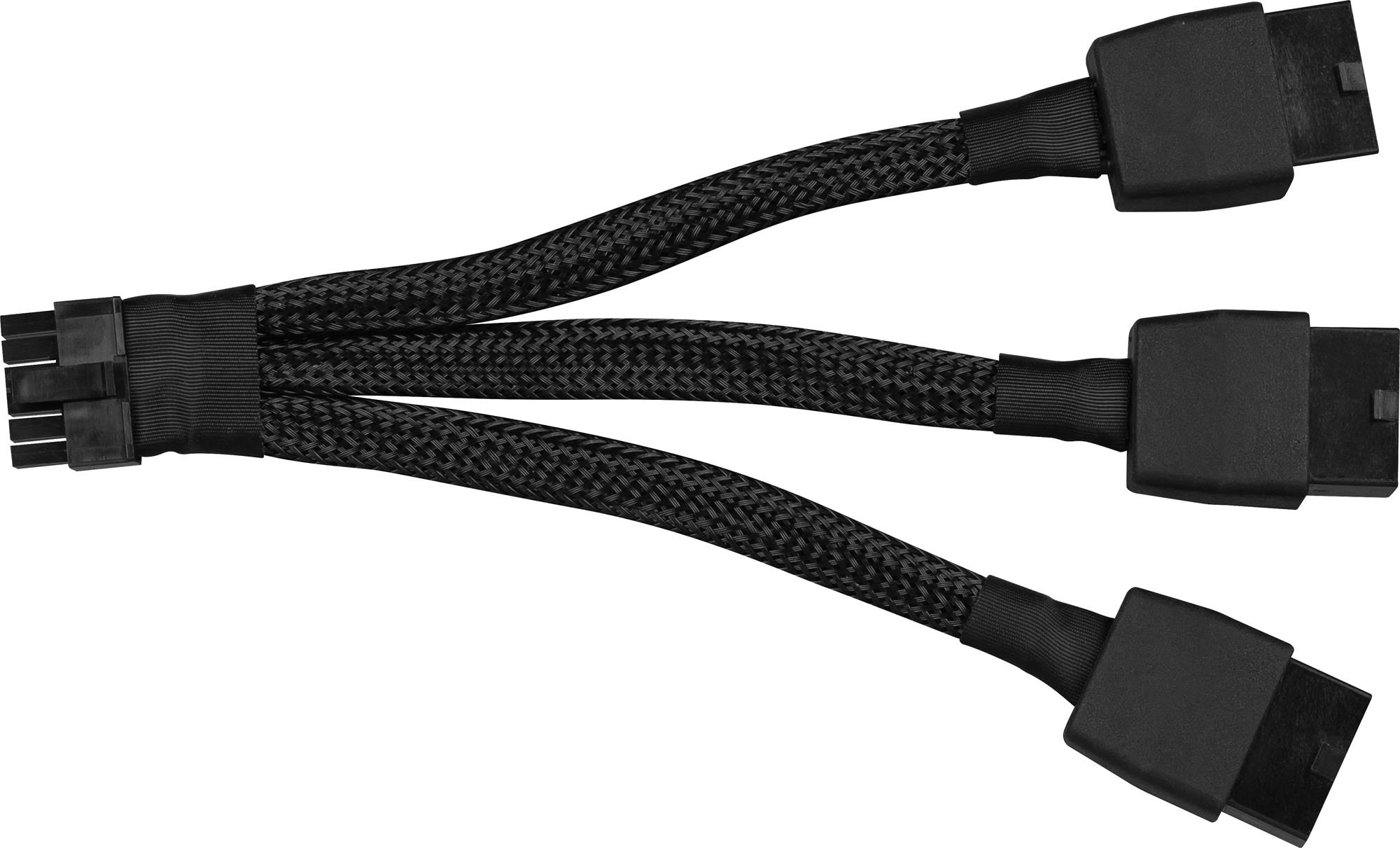

Recommended 850W or greater PSU with 1 x 16-pin or 4 x 8-pin PCIe connectors

Electrical

Power Connector 1 x 16-pin PCIe
Recomended Power Supply 850 W

Physical

Form Factor Graphics Card
Width 78 mm (Quad Slot)
Depth 336 mm
Height 142 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
Interface Type
NVIDIA GeForce RTX 4080
AMD Radeon
PCI-E Pin Type 12+4-Pin
Screen Type
FreeSync
Cooling Technology Dynamic Fan
VR Ready NVIDIA
VR Ready PC
GPU Length 336 mm
Card Width 4
GPU Power (TDP) W
Graphics card count 1
PCIe Physical Slot required 16
Config Gaming (CB) Yes
Config Professionals (CB) Yes
Config Lords of the Fallen (CB) Yes
Config GeForce (Box) Yes

Graphics

Graphics Chipset GeForce RTX 4080

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate

Item Details

Manufacturer MSI
Manufacturer Code RTX 4080 16GB SUPRIM X
EAN 4711377027205
UPC 824142306338
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 4080 16GB SUPRIM X
