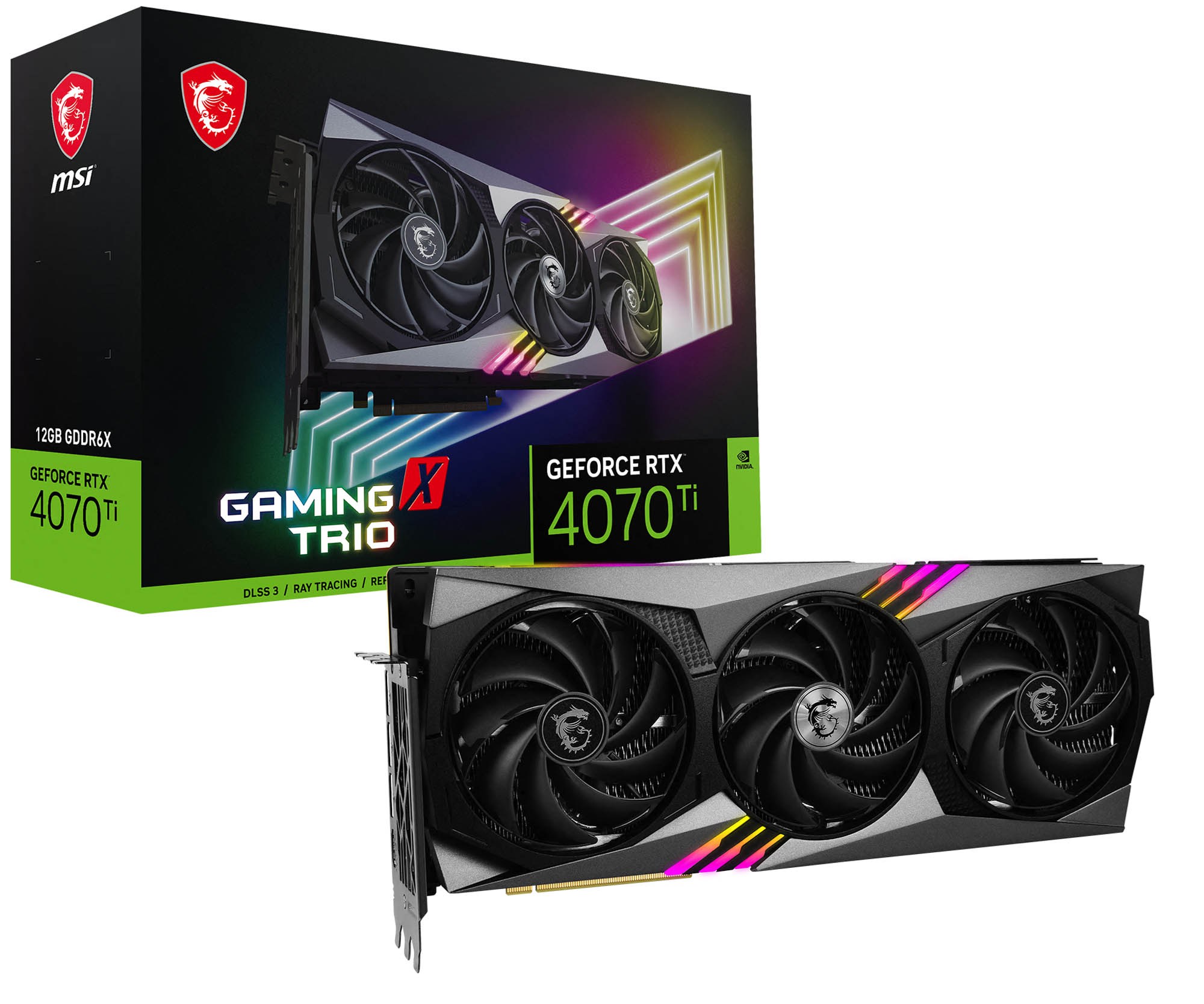

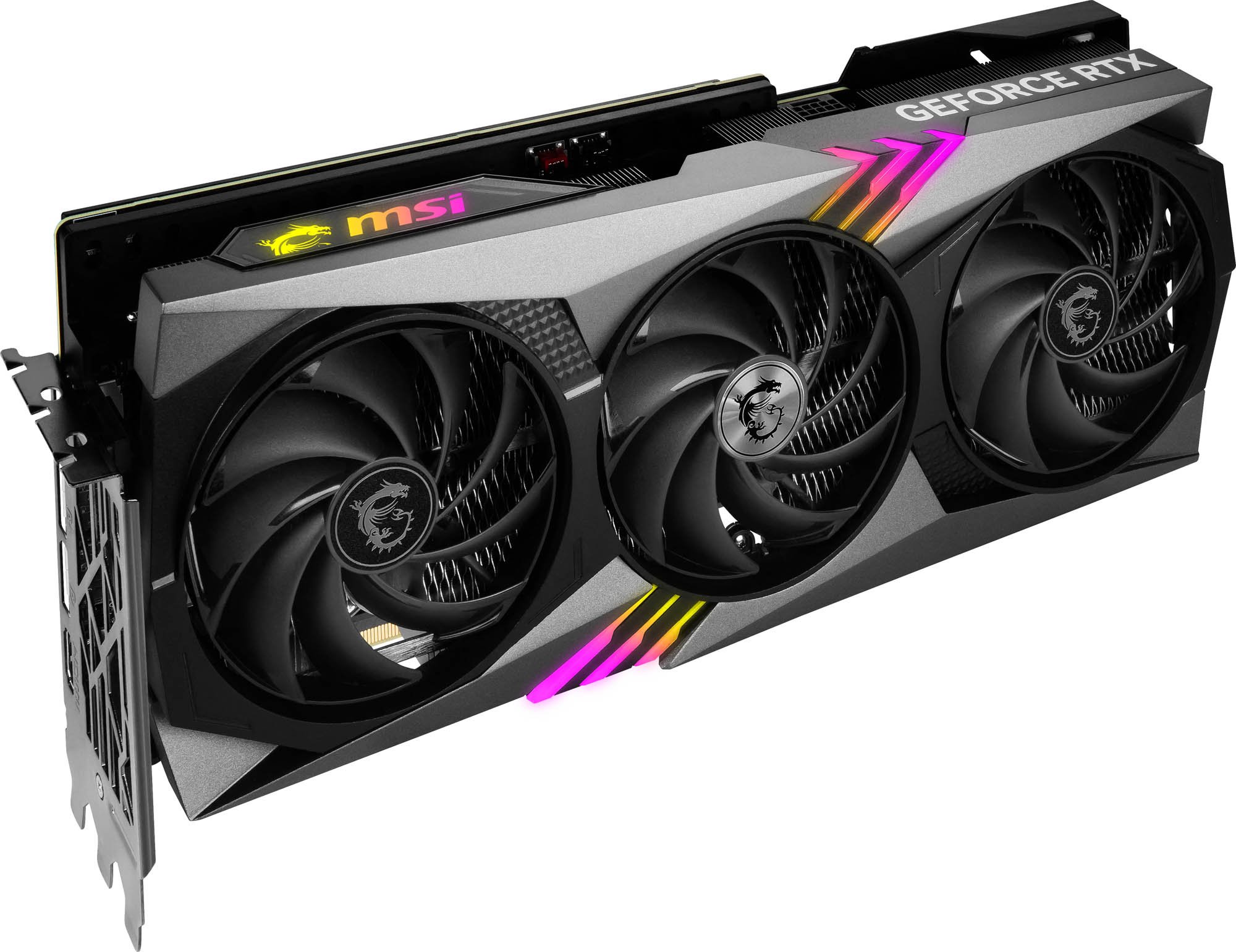

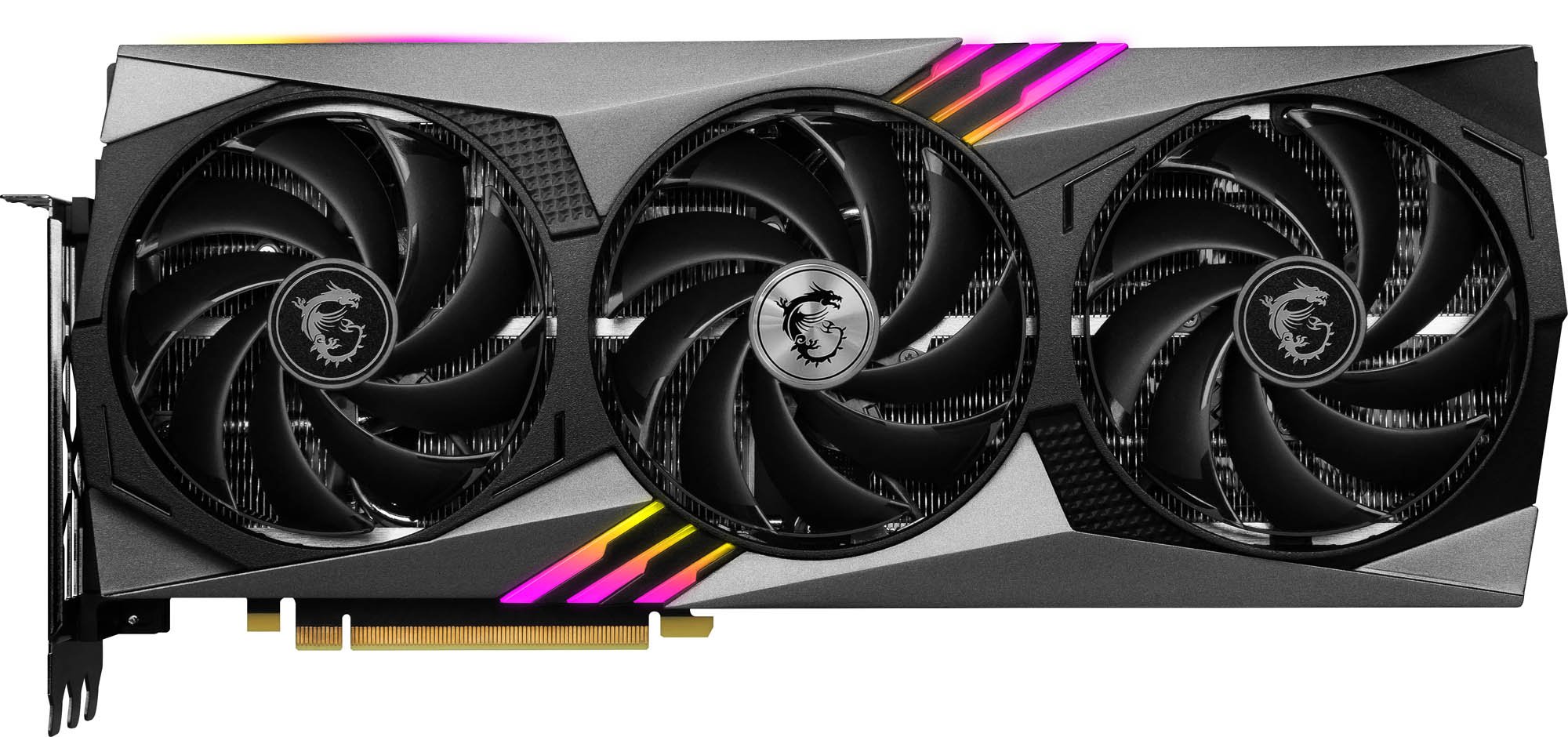

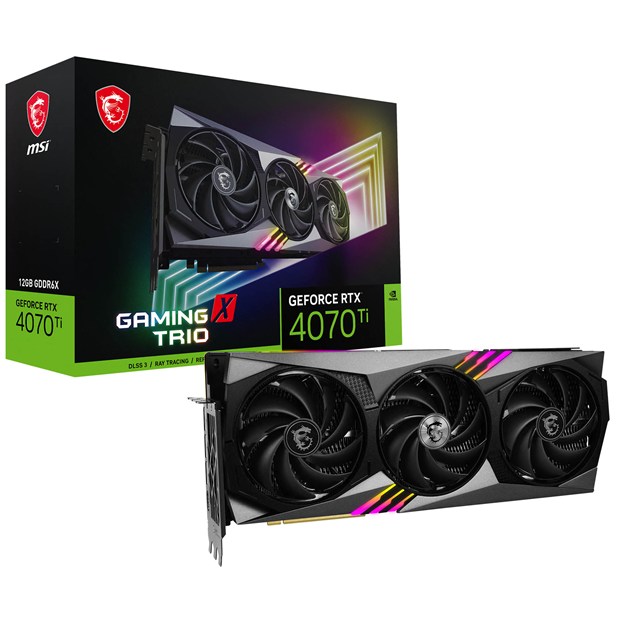

MSI GeForce RTX 4070 Ti GAMING X TRIO OC 12GB Graphics Card

MSI GeForce RTX 4070 Ti GAMING X TRIO OC 12GB Graphics Card

CCL Code: VGA6620

Discontinued

MSI GeForce RTX 4070 Ti GAMING X TRIO OC 12GB Graphics Card

RTX 4070 Ti GAMING X TRIO 12G

Key Features:

  • 12GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Nvidia GPU Boost Technology
  • Overclocked Edition
  • Outputs - HDMI and Display Port
CCL Code: VGA6620

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

PLAY HARD STAY SILENT

Play with style! GAMING is upgraded with TRI FROZR 3 to sustain intense performance during gaming and content creation. A high-speed style matches high-performance capabilities for gamers who want to go all out.

The Ultimate Platform for Gamers and Creators

Powered by GeForce RTX 40 Series and DLSS 3

nvidia 4090 images
  • New Streaming Multiprocessors

    Up to 2x performance and power efficiency

  • Fourth-Gen Tensor Cores

    Up to 4x performance with DLSS 3
    vs. brute-force rendering

  • Third-Gen RT Cores

    Up to 2x ray tracing performance

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

NVIDIA Broadcast app

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

TRI FROZR 3 THERMAL DESIGN

Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

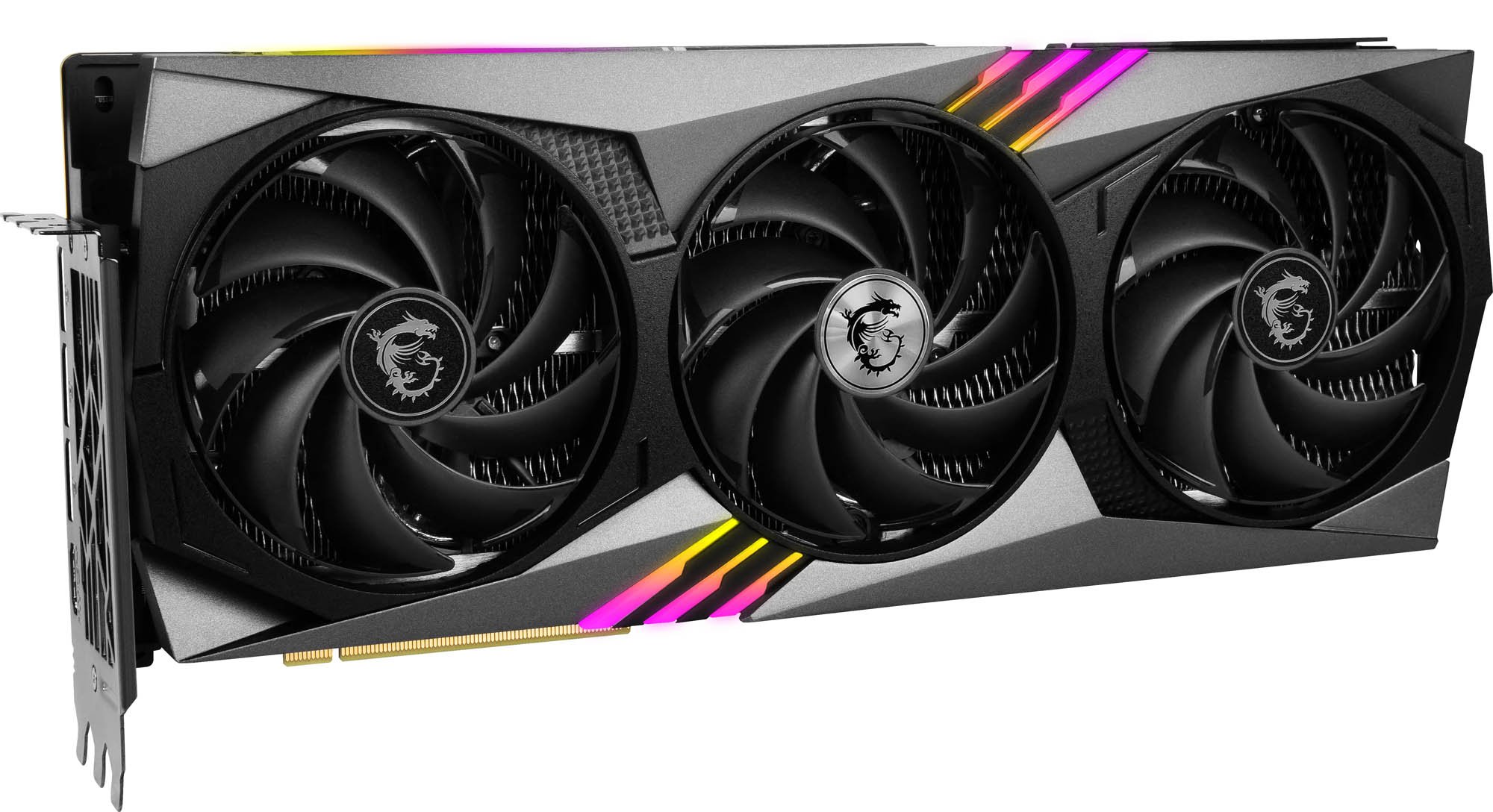

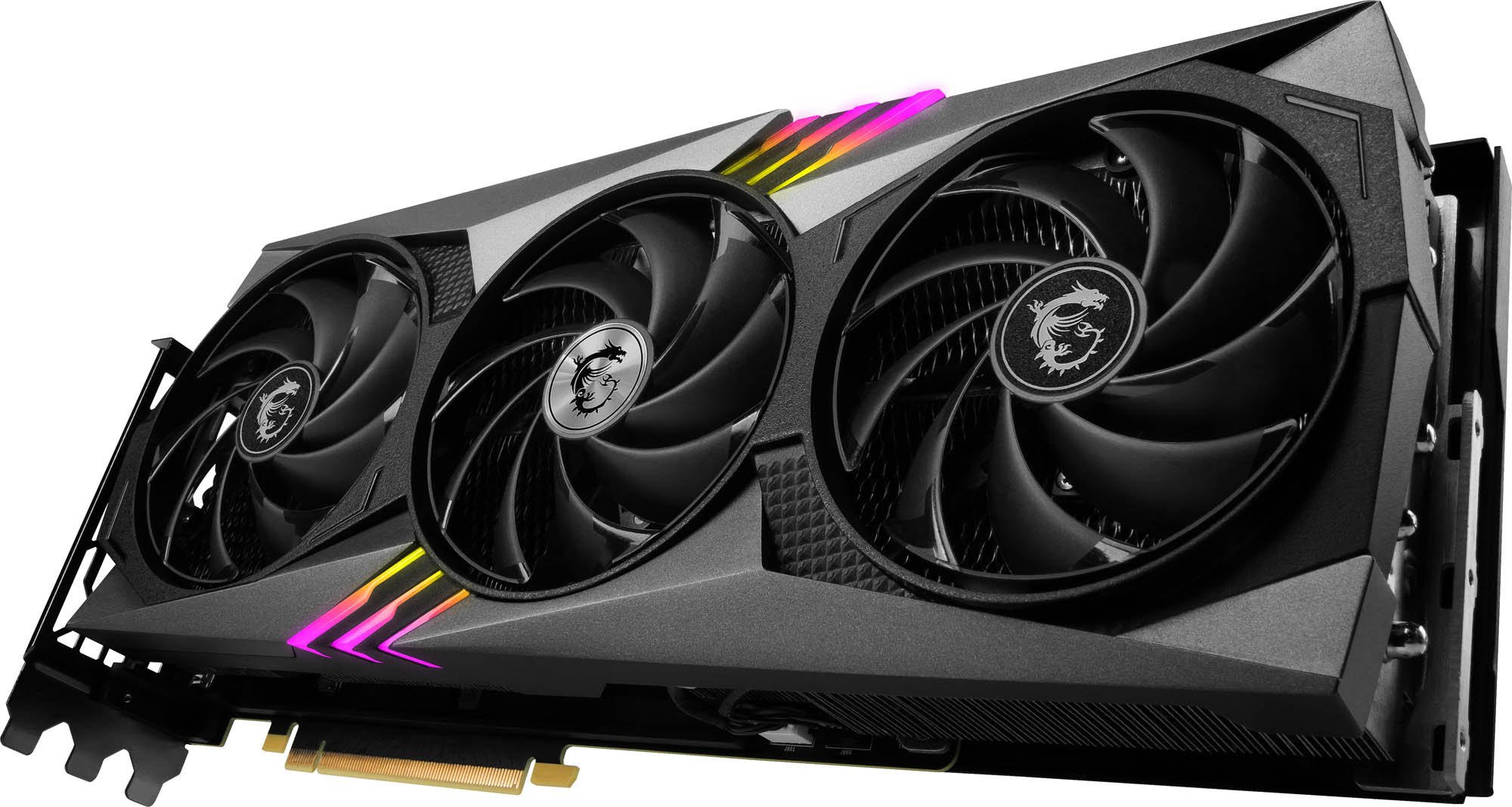

TORX FAN 5.0

Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.

COPPER BASEPLATE FACING THE HEAT HEAD-ON

The solid nickel-plated copper base is CNC machined from a single piece of metal. Precision cuts and no welds allows heat from the GPU and memory to be immediately captured by the copper baseplate and then rapidly transferred to the heatsink.

KEEPING THE CORE COOL

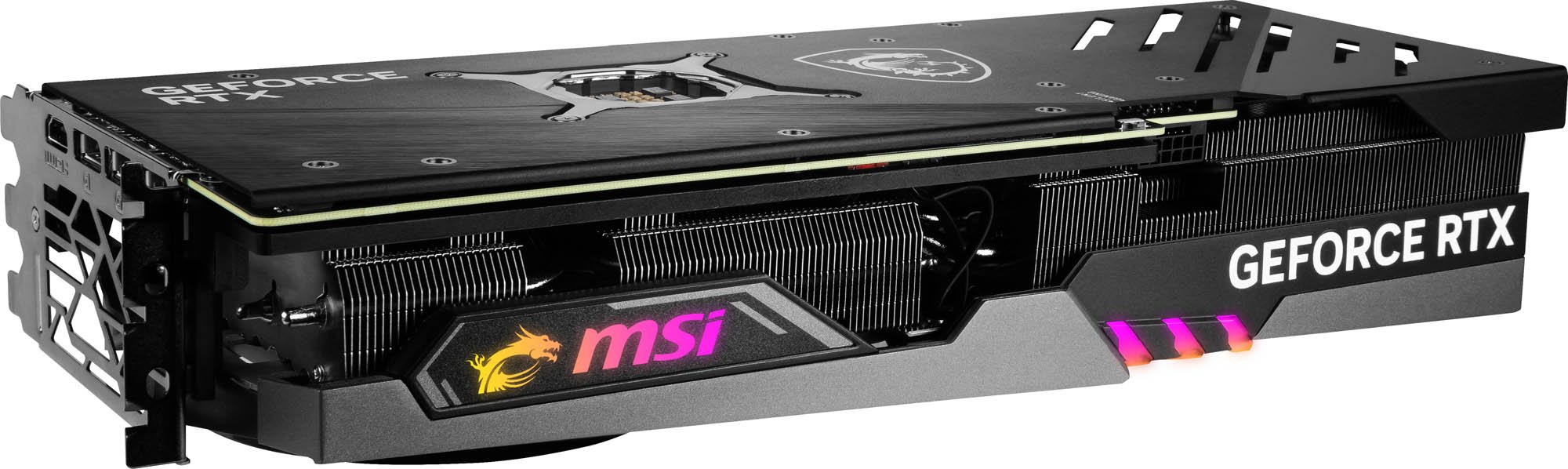

Core Pipes are precision-crafted to make maximum use of the available space. A squared section of heat pipes fully touch the vapor chamber to then spread heat along the full length of the heatsink.

AIRFLOW CONTROL

Airflow Control improves airflow dynamics through the Wave Curved 2.0, updated deflectors, and Air Antegrade fin design for optimizing the balance between cooling and quieter acoustics.

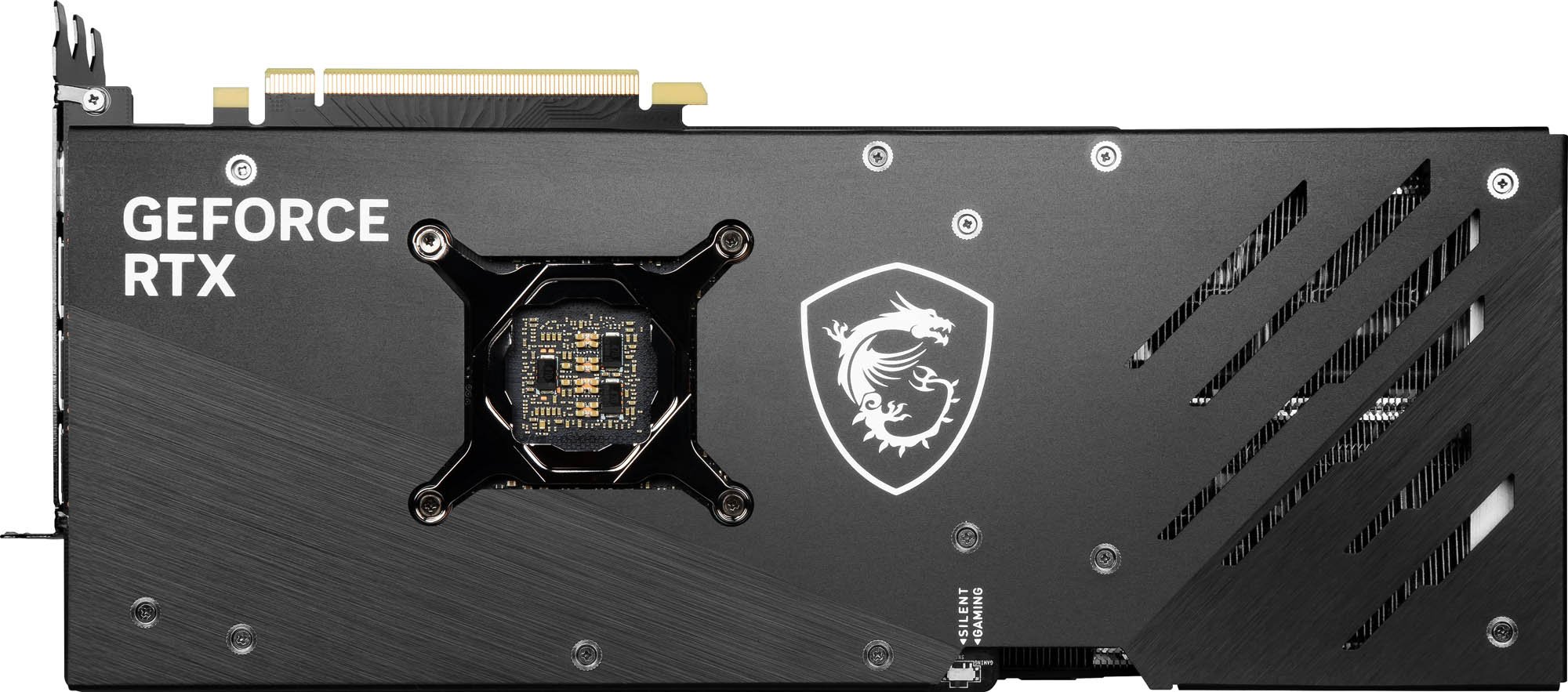

METAL BACKPLATE

Thermal pads under the sturdy metal backplate provide additional cooling while the flow-through ventilation reduces trapped heat.

Ray Tracing

The Ada architecture unleashes the full glory of ray tracing, which simulates how light behaves in the real world. With the power of RTX 40 Series and third-gen RT Cores, you can experience incredibly detailed virtual worlds like never before.

NVIDIA DLSS 3

DLSS is a revolutionary breakthrough in AI-powered graphics that massively boosts performance. Powered by the new fourth-gen Tensor Cores and Optical Flow Accelerator on GeForce RTX 40 Series GPUs, DLSS 3 uses AI to create additional high-quality frames.

NVIDIA Reflex

NVIDIA Reflex and GeForce RTX 40 Series GPUs deliver the lowest latency and best responsiveness for the ultimate competitive advantage. Built to optimize and measure system latency, Reflex provides faster target acquisition, quicker reaction times, and the best aim precision for competitive games.

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number
Chipset Additional Information GAMING X TRIO
Boost Chip Clock Up to 2745 MHz
Graphics Core CUDA
Number of Cores 7680 units

Memory

Memory Size 12288 MB
Memory Clock 21 Gbps
Memory Type GDDR6X
Memory Width 192 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

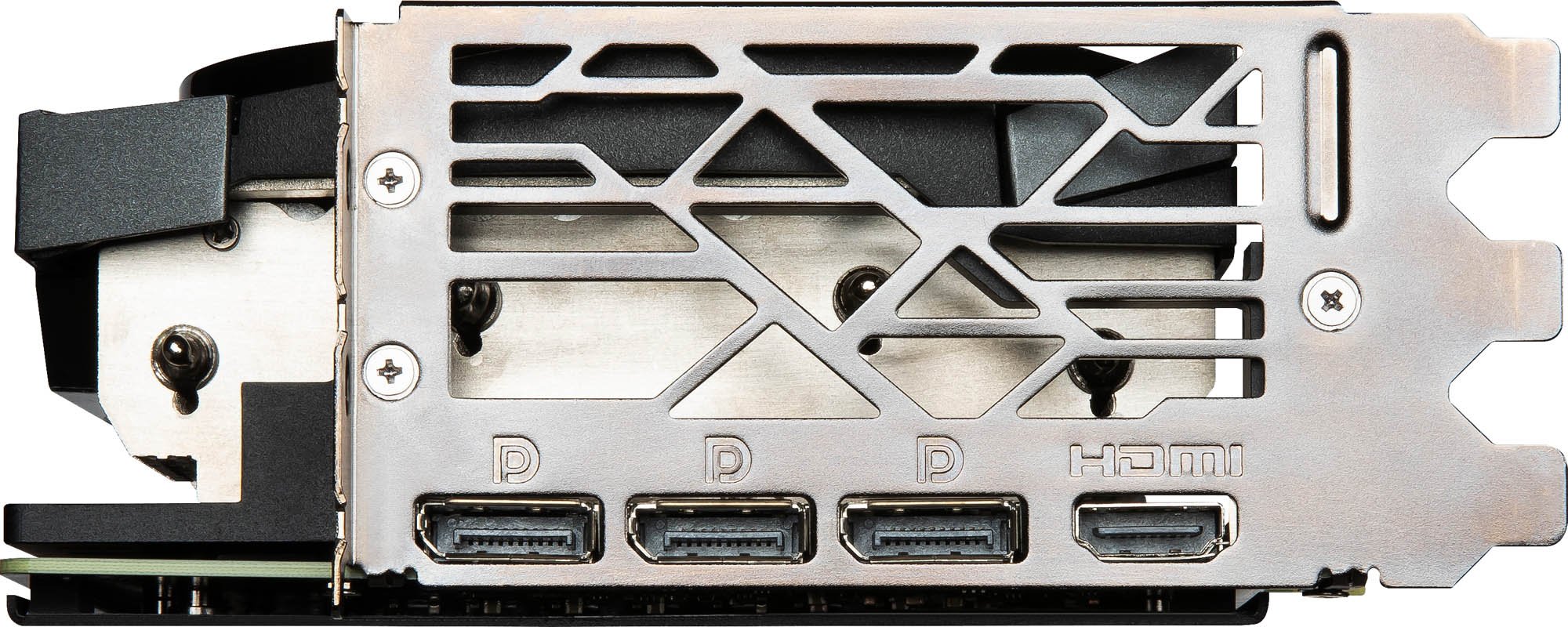

HDMI Port 1 x HDMI 2.1a
DisplayPort 3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot

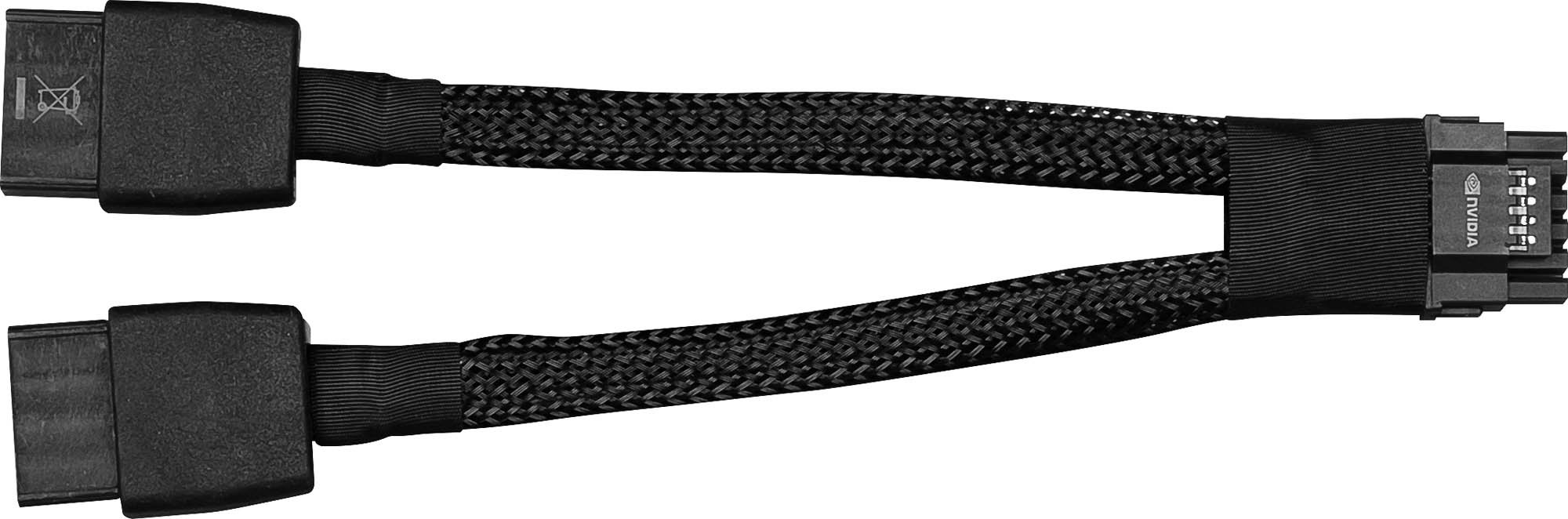

Recommended 700W or greater PSU with 1 x 16-pin or 2 x 8-pin PCIe connectors

Electrical

Power Connector 1 x 16-pin PCIe
Power Consumption 285 W
Recomended Power Supply 700 W

Physical

Form Factor Graphics Card
Width 62 mm (3.1 slot)
Depth 337 mm
Height 140 mm
Weight 1.613 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
Drive Interface Type
NVIDIA GeForce RTX 4070 Ti
AMD Radeon
PCIe Pin Type 12+4-Pin (16-Pin)
Screen Type
FreeSync
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
VR Ready PC
GPU Length 337 mm
Card Width 3
GPU Power (TDP) W
Graphics card count 1
PCI Express Power Pins (female) 16
PCIe Physical Slot required 16

Graphics

Graphics Chipset GeForce RTX 4070 Ti

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate

Item Details

Manufacturer MSI
Manufacturer Code RTX 4070 Ti GAMING X TRIO 12G
Alternative Part Number V513-004R
EAN 4711377027298
UPC 824142306451
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 4070 Ti GAMING X TRIO 12G
Reviews
4.8 / 5 5 reviews

Aaron

August 2023

Great graphics card no software issues Is slightly heavy so make sure to use the support rack

Stephen

February 2023

The card itself is excellent. Even if still a little on the expensive side. All my games run on max settings with out issues. Using 1000w PSU. Its a large card at about 33cm long also quite wide so potential issues with how the 12VHPWR cable goes in ( have a look at cablemod for adaptors ) It comes with a support bracket, however in my honest opinion its not that great so might be worth getting a different one.

Damian

February 2023

it's realy good card.

Mike

February 2023

Im so happy to see that youre enjoying it and that it was good

Malcolm

February 2023

Amazing bit of kit I'm very happy with my purchase and the service was top notch
