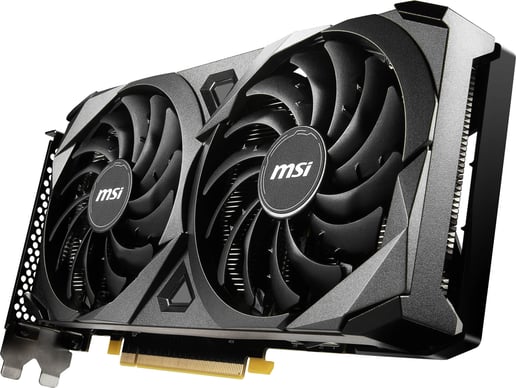

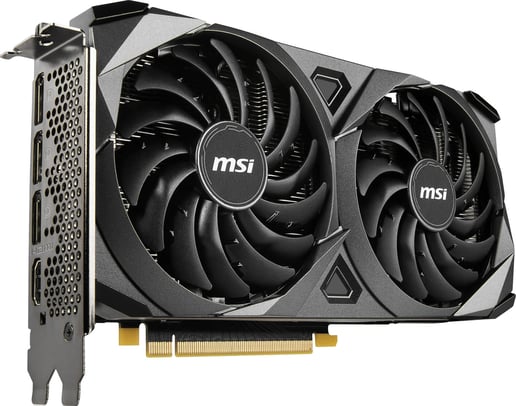

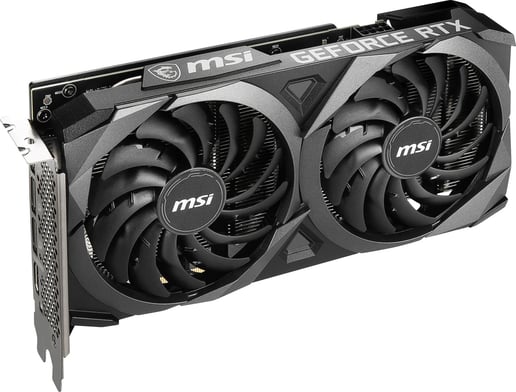

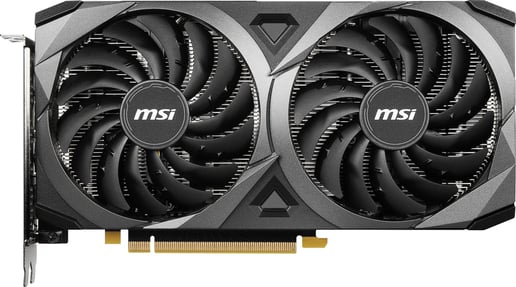

MSI GeForce RTX 3060 Ti Ventus 2X 8GB OC GPU

CCL Code: VGA6253
|
Manufacturer Code: RTX 3060 Ti VENTUS 2X 8G OCV1 LHR
| Manufacturer: MSI
|

Key Features:

  • 8GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Nvidia GPU Boost Technology
  • Pre Overclocked Edition
  • Outputs - HDMI and Display Port

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Customers who viewed this item also viewed...
Overview

Take The Essentials
Take The Essentials
VENTUS brings a performance-focused design that maintains the essentials to accomplish any task at hand. Rocking a trusted dual fan arrangement laid into a rigid industrial design lets this sharp looking graphics card fit into any build.
2ND GENERATION
RT CORES
2X THROUGHPUT
3RD GENERATION
TENSOR CORES
UP TO 2X THROUGHPUT
NEW
SM
2X FP32 THROUGHPUT
NVIDIA AMPERE ARCHITECTURE
NVIDIA AMPERE ARCHITECTURE

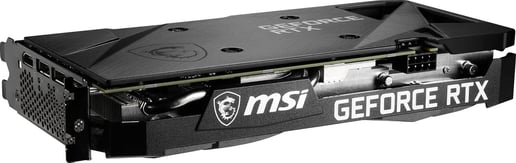

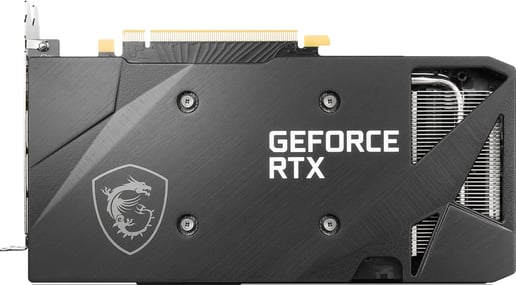

REINFORCING BACKPLATE
REINFORCING BACKPLATE
A clean-looking brushed-finish backplate reinforces the length of the card.
TORX FAN 3.0
traditional_FanBlade
Traditional Fan Blade
50%More air pressure
than normal fan
traditional_FanBlade
Dispersion Fan Blade
15%More air pressure
than TORX Fan 2.0
TORX FAN 3.0
The award-winning MSI TORX Fan 3.0 design keeps the limits of thermal performance turning. Fan blades alternate between traditional blades and dispersion blades that focus and accelerate airflow into the heatsink.
ZERO FROZR
ZERO FROZR
Zero Frozr is the calm before the storm. The fans completely stop when temperatures are relatively low, eliminating all noise when active cooling is unneeded. The fans will automatically start spinning again when the heat is on during gaming.
THERMAL PADDING
THERMAL PADDING
Ample amounts of thermal pads allow various board components to transfer heat directly to the heatsink for better cooling.
TAILORED PCB DESIGN
TAILORED PCB DESIGN
Not all circuit boards are created equal. A custom PCB Design provides greater reliability and beefed up power circuitry for pushing the card to its limits.
MSI CENTER
Bringing It All Together
The exclusive MSI Center software helps you get the most out of your MSI products. Monitor, tweak and optimize in real-time with just a few clicks.
Afterburner
MSI Afterburner is the most recognized and widely used graphics card overclocking software in the world. Take full control of the graphics card while monitoring key system metrics in real-time. It’s free to use and compatible with most other vendor graphics cards.
Afterburner
OC Scanner
OC Scanner
OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 3060 Ti
Chipset Additional Information VENTUS 2X OCV1 LHR
Boost Chip Clock 1695 MHz
Number of Cores 4864 units
Graphics Core CUDA

Memory

Memory Size 8192 MB
Memory Clock 14 Gbps
Memory Type GDDR6
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

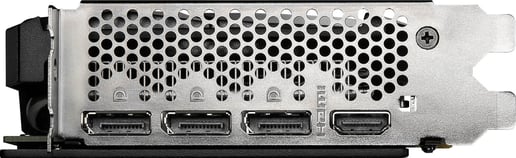

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 650W PSU with 1 x 8-pin PCIe connector

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 200 W
Recomended Power Supply 650 W

Physical

Form Factor Graphics Card

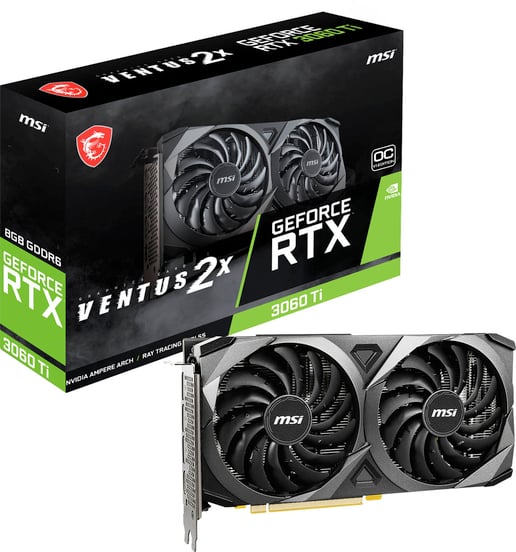

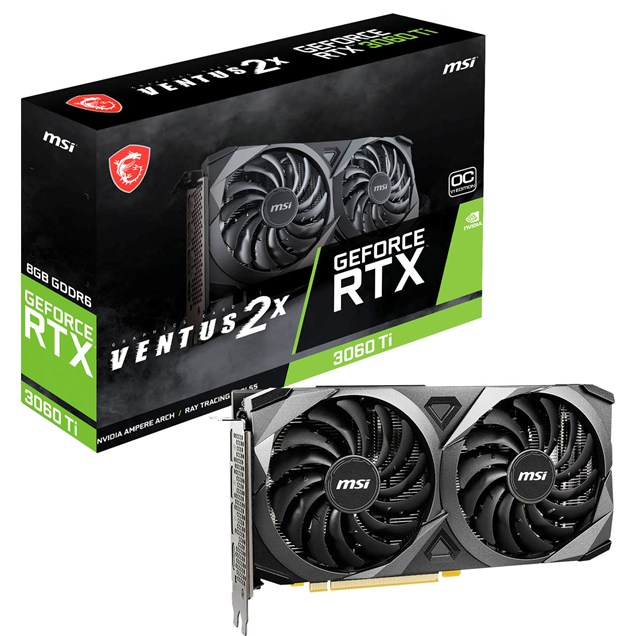

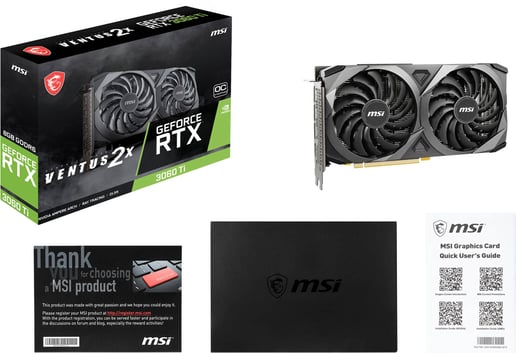

In The Box Graphics Card
Width 42 mm (Dual Slot)
Depth 235 mm
Height 124 mm
Weight 685 g

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
NVIDIA GeForce RTX 3060 Ti
PCI-E Pin Type 8-Pin
Cooling Technology Dynamic Fan
VR Ready NVIDIA
GPU Length 235 mm
Card Width Dual Slot

Graphics

Graphics Chipset GeForce RTX 3060 Ti

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate Yes

Item Details

Manufacturer MSI
Manufacturer Code RTX 3060 Ti VENTUS 2X 8G OCV1 LHR
EAN 4719072852061
UPC 824142259351
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 3060 Ti VENTUS 2X 8G OCV1 LHR
Questions and Answers

Do you have you a question about the MSI GeForce RTX 3060 Ti VENTUS 2X OCV1 LHR 8GB Overclocked Graphics Card?

Q: Will this card work with a 3.0 x16 PCI slot (i.e. 3.0 not 4.0). John
Answer by Kristian on 6th September 2021
It will work, however, you may lose a bit of performance. - Kristian N
1 customer found this answer helpful.
Post Answer
Reviews
4.9 / 5 7 reviews

Jacob

last week

Solid 3060ti great upgrade from my 4gb 580

customer

last month

Seems solid, worked out of the box well and did great in heaven benches.

Emily

last month

Brilliant product at a great price compared to other places. Delivery was extremely fast.

Josh

2 months ago

Great product

Dale2e1

2 months ago

good gpu but not amazing, I can't run much on max settings with constant 144fps (1440p) but normally I only need to reduce settings that are unnoticeable without a side by side comparison

Valentin

8 months ago

Its expensive af

Charles T

8 months ago

Great Gpu recommend
