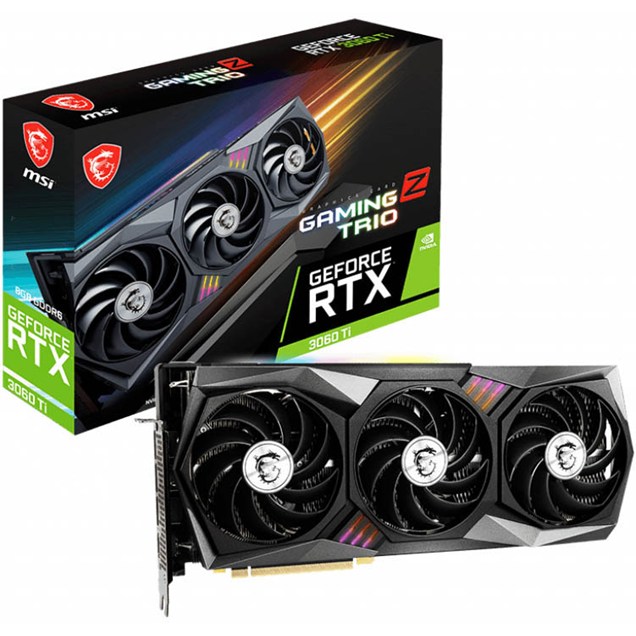

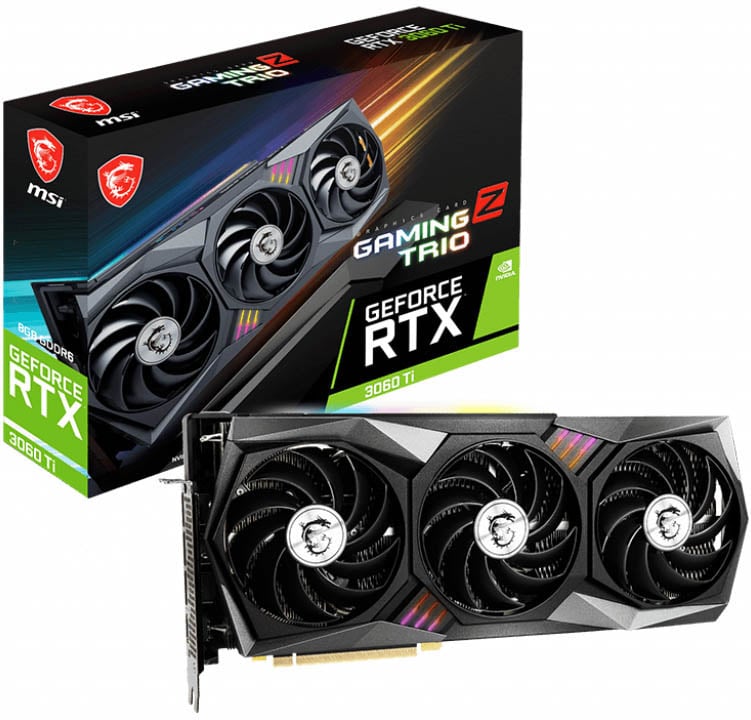

MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC

CCL Code: VGA6250
|
Manufacturer Code: RTX 3060 Ti GAMING Z TRIO 8G LHR
| Manufacturer: MSI
|
  • MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC
  • MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC
  • MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC
  • MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC
  • MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB OC

Key Features:

8GB Graphics Memory
Cooler Type - Dynamic Fan
Pre Overclocked Edition
PCI Express 4.0 x16 Interface
Nvidia GPU Boost Technology
Outputs - HDMI and Display Port

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Related Products

Overview

Conquer the Battlefield
The GAMING You Know & Trust
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
2ND GENERATION
RT CORES
2X THROUGHPUT
3RD GENERATION
TENSOR CORES
UP TO 2X THROUGHPUT
NEW
SM
2X FP32 THROUGHPUT
NVIDIA AMPERE ARCHITECTURE
NVIDIA AMPERE ARCHITECTURE

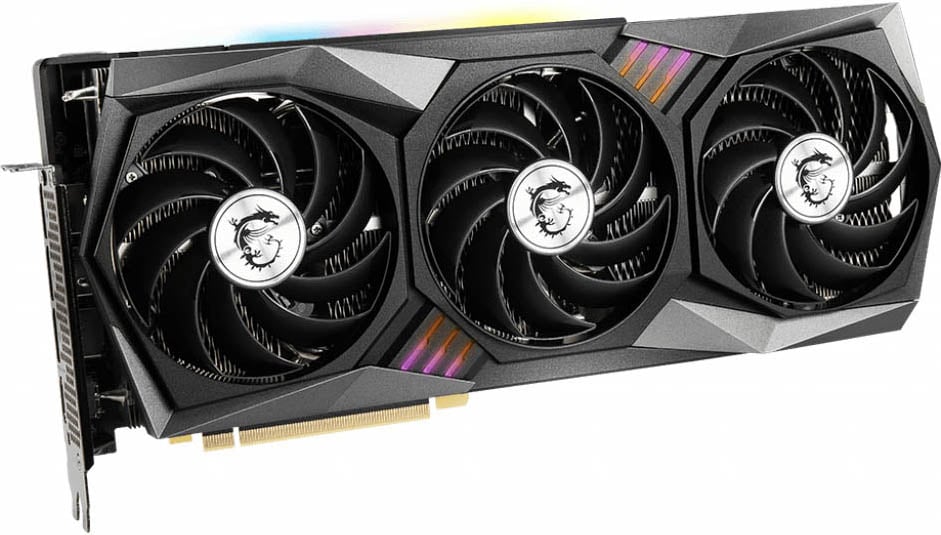

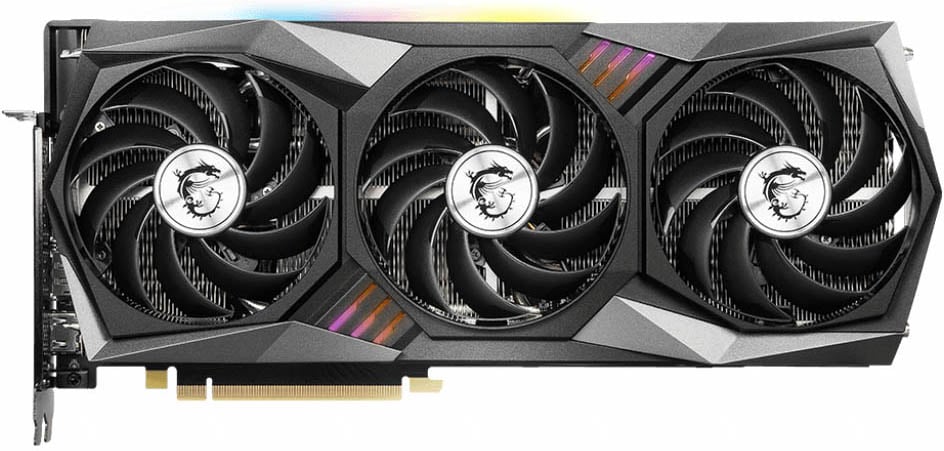

TRI FROZR 2
TORX FAN 4.0
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.
Core pipe
Core pipe
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
FIN+Airflow control
FIN+Airflow control
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Strong & Cool
STRONG & COOL

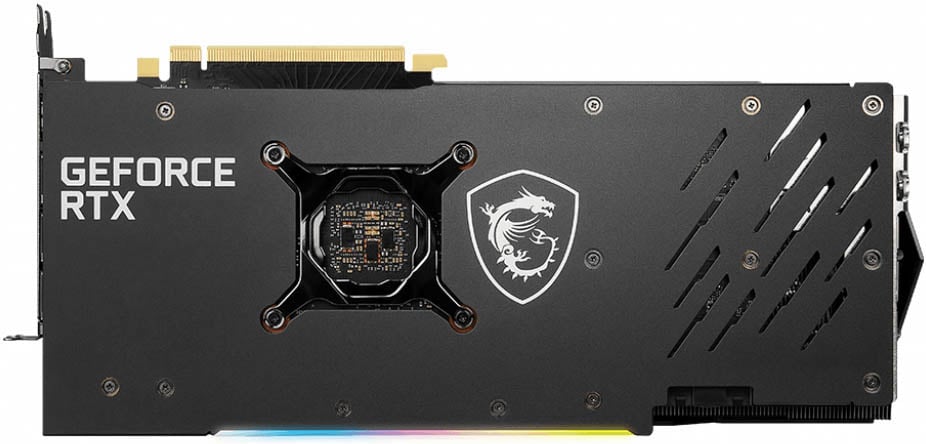

A sturdy brushed aluminum Backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Zero Frozr
Chillingly Silent
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
FIN+Airflow control
That’s How We Roll
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions with zero noise.
Set the Mood
Splash on Some Color
MSI Center - Mystic Light gives you complete control of the RGB lighting for both MSI devices and compatible third-party RGB products both inside and outside your system.
One-Click Overclocking
One-Click Overclocking
Afterburner - OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 3060 Ti
Chipset Additional Information GAMING Z TRIO LHR
Boost Chip Clock 1845 MHz
Number of Cores 4864 units
Graphics Core CUDA

Memory

Memory Size 8192 MB
Memory Clock 14 Gbps
Memory Type GDDR6
Memory Width 256 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

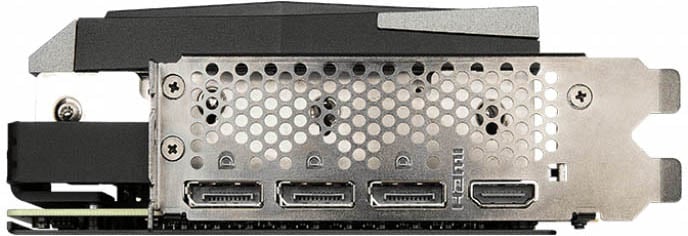

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4a

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 600W PSU with 2 x 8-pin PCIe connectors

Electrical

Power Connector 2 x 8-pin PCIe
Power Consumption Up to 240 W
Recomended Power Supply 600 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 56 mm (Triple Slot)
Depth 323 mm
Height 140 mm
Weight 1.466 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
NVIDIA GeForce RTX 3060 Ti
PCI-E Pin Type 8-Pin + 8-Pin
Cooling Technology Dynamic Fan
VR Ready NVIDIA
GPU Length 323 mm
Card Width 3
Power Requirement (auto) 240 W
GPU Power (TDP) 240 W
Graphics card count 1

Graphics

Graphics Chipset GeForce RTX 3060 Ti

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate Yes

Item Details

Manufacturer MSI
Manufacturer Code RTX 3060 Ti GAMING Z TRIO 8G LHR
EAN 4719072852054
UPC 824142259368
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 3060 Ti GAMING Z TRIO 8G LHR
Questions and Answers

Do you have you a question about the MSI GeForce RTX 3060 Ti GAMING Z TRIO LHR 8GB Overclocked Graphics Card?

Q: Hi Will this card works on MSI X99S gaming 7 motherboard?
Answer by Website User on 13th October 2021
This will work fine. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Is this card version 1 lhr or version 2
Answer by Website User on 21st September 2021
This is an LHR Model. - Kristian N
1 customer found this answer helpful.
Post Answer
Reviews
4.9 / 5 9 reviews

Ollie

5 months ago

good card

Eriks Skuja

6 months ago

Decent CPU good graphics and it keeps my room warm !!!

Winston

8 months ago

Very good item

Adam

9 months ago

Powerful piece of tech doing all I need it do do. Great temps/performance under load from what I've experienced

Rob standen

9 months ago

powerful, quiet , looks great , but pricey due to global semiconductor situation

M M RAHMAN

9 months ago

Its huge, like they stuck a 3080 cooling solution, very cool and of course quiet.

Mark J Little

10 months ago

Good mid range card, no issues once the fan curve is... keep nice and cool with heavy gaming - must have 2 x 4pin power connectors

pwdell

10 months ago

Its an LHR which is not good. Clearly not worth 650 but there are none available so you get what you can. It works well what more can i say

Stephen Paul Burdett

10 months ago

excellent gpu great value for money and plays everything i throw at it A1
