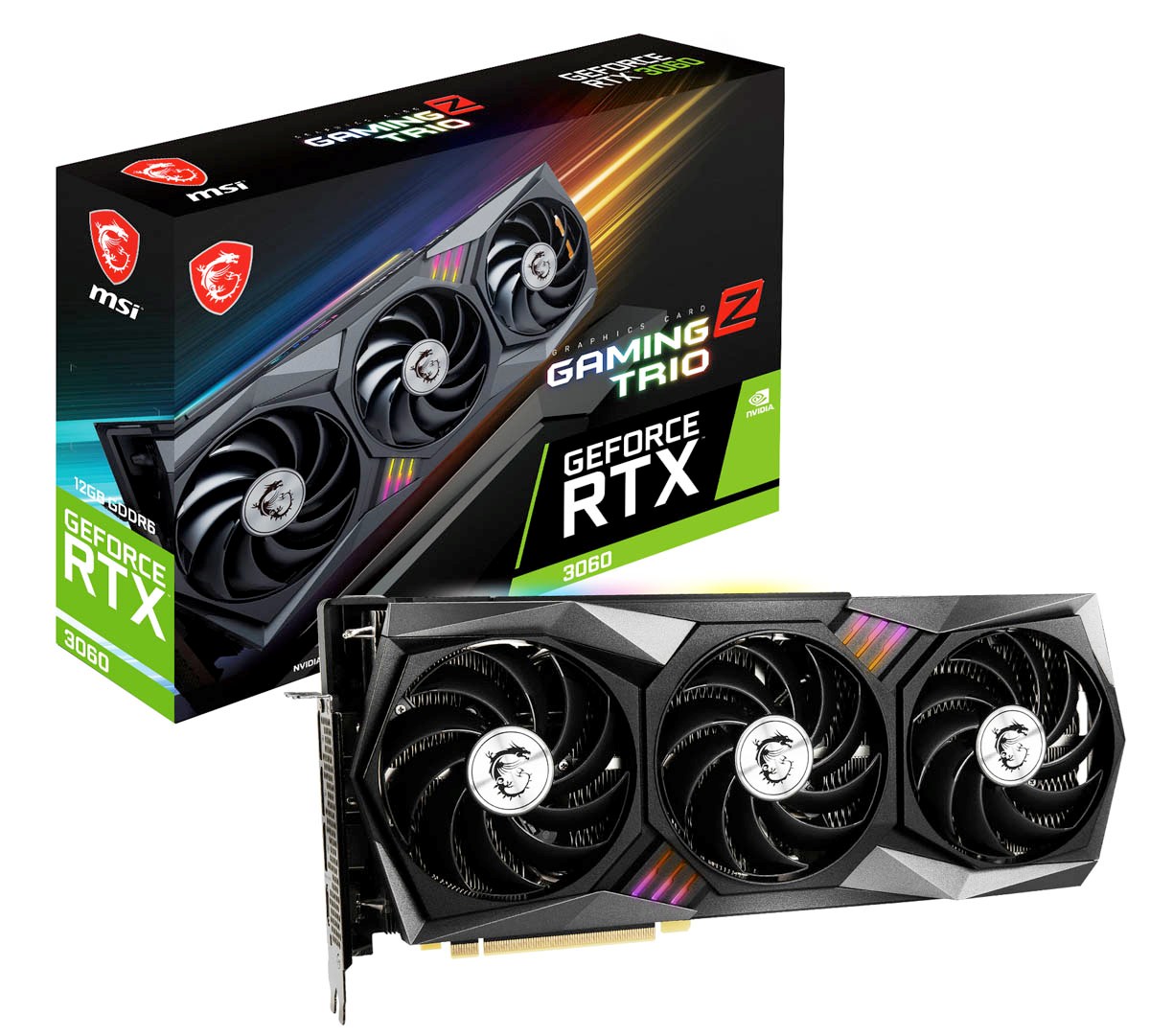

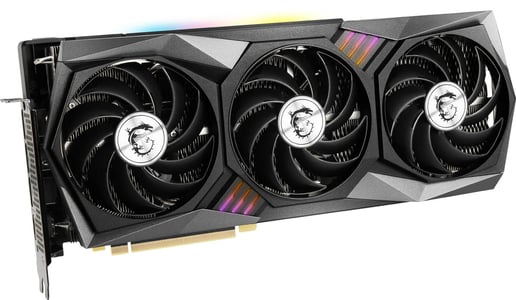

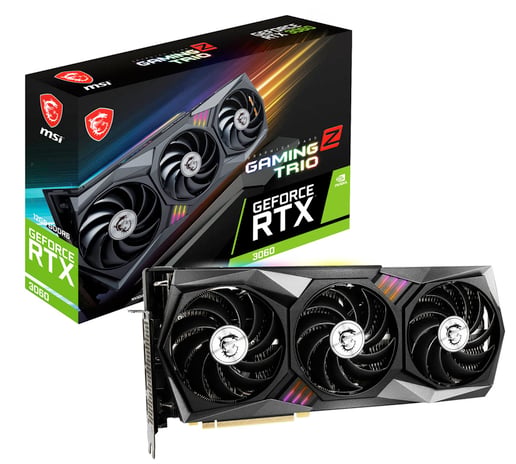

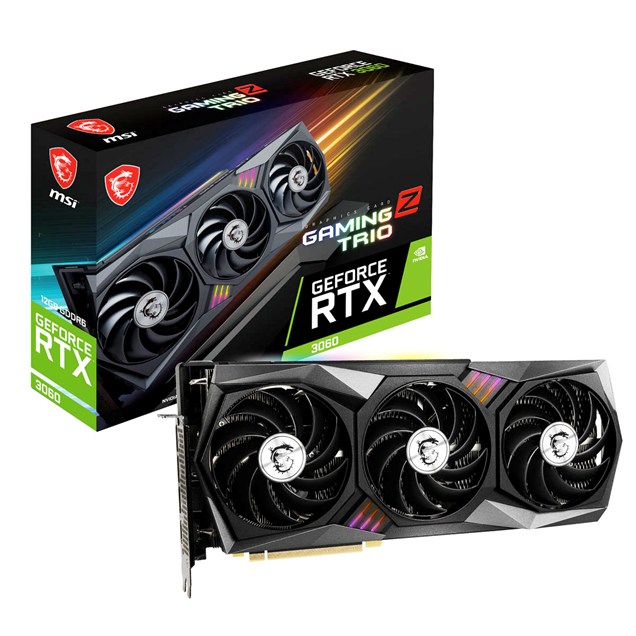

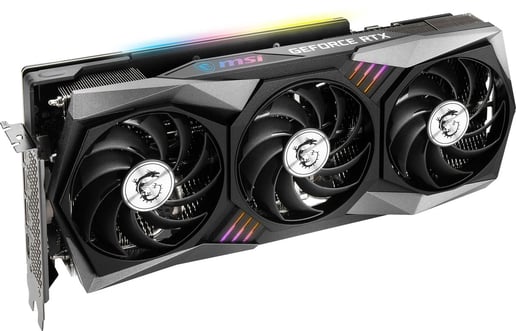

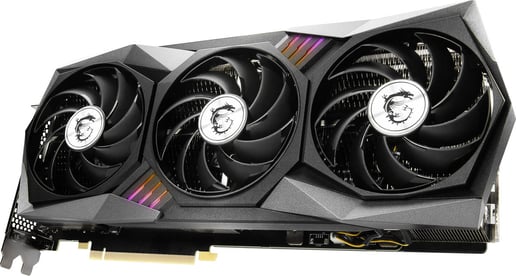

MSI GeForce RTX 3060 GAMING Z TRIO 12GB OC GPU

The GeForce RTX™ 3060 lets you take on the latest games using the power of Ampere—NVIDIA's 2nd generation RTX architecture. Get incredible performance with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory.

CCL Code: VGA6312
|
Manufacturer Code: RTX 3060 GAMING Z TRIO 12G
| Manufacturer: MSI
|

Key Features:

  • 12GB Graphics Memory
  • PCI Express 4.0 x16 Interface
  • Cooler Type - Dynamic Fan
  • Nvidia GPU Boost Technology
  • Pre Overclocked Edition
  • Outputs - HDMI and Display Port

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Customers who viewed this item also viewed...
Overview

Conquer the Battlefield
The GAMING You Know & Trust
The latest iteration of MSI’s iconic GAMING series once again brings performance, low-noise efficiency, and aesthetics that hardcore gamers have come to recognize and trust. Now you too can enjoy all your favorite games with a powerful graphics card that stays cool and silent. Just the way you like it.
LIGHT 'EM UP
LIGHT 'EM UP
It’s time to put on team colors. Synchronize lighting with other compatible devices to take the light show to another level. Going dark is as easy as turning the lights off.
2ND GENERATION
RT CORES
2X THROUGHPUT
3RD GENERATION
TENSOR CORES
UP TO 2X THROUGHPUT
NEW
SM
2X FP32 THROUGHPUT
NVIDIA AMPERE ARCHITECTURE
NVIDIA AMPERE ARCHITECTURE
TRI FROZR 2

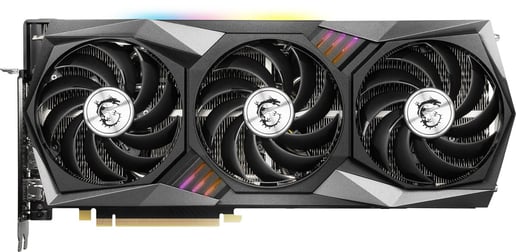

TORX FAN 4.0
TORX FAN 4.0
TORX FAN 4.0 is built on teamwork, with pairs of fan blades bound together with a linked outer ring design that focuses airflow into the updated TRI FROZR 2 cooling system.

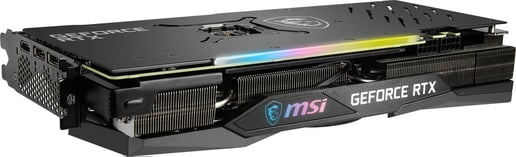

Core pipe
Core pipe
Core Pipes are precision-machined for maximum contact over the GPU and spread the heat along the full length of the heatsink for optimal cooling.
FIN+Airflow control
FIN+Airflow control
Stay stealthy with Airflow Control that improves airflow dynamics. Deflectors provide additional surface area and guide air to where it’s needed for maximum cooling. Wave-curved 2.0 fin edges disrupt unwanted airflow harmonics resulting in reduced noise.
Strong & Cool
STRONG & COOL

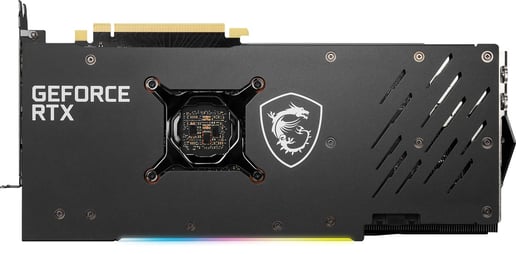

A sturdy brushed aluminum Backplate reinforces the full length of the graphics card while providing passive cooling by applying thermal pads.
Zero Frozr
Chillingly Silent
Zero Frozr is the calm before the storm, keeping fans still and maintaining silence until cooling is needed.
FIN+Airflow control
That’s How We Roll
Extremely durable double-ball bearings spin your TORX FANs for years of intense and lengthy gaming sessions with zero noise.
Set the Mood
Splash on Some Color
MSI Center - Mystic Light gives you complete control of the RGB lighting for both MSI devices and compatible third-party RGB products both inside and outside your system.
One-Click Overclocking
One-Click Overclocking
Afterburner - OC Scanner is the easiest and safest way to get more performance out of your GeForce® graphics card. Powered by an algorithm created by NVIDIA, maximum clock speeds are determined and safely applied for your graphics card.
Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 3060
Chipset Additional Information GAMING Z TRIO
Boost Chip Clock 1867 MHz
Number of Cores 3584 units
Graphics Core CUDA

Memory

Memory Size 12288 MB
Memory Clock 16 Gbps
Memory Type GDDR6
Memory Width 192 bit

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 4.0 x16

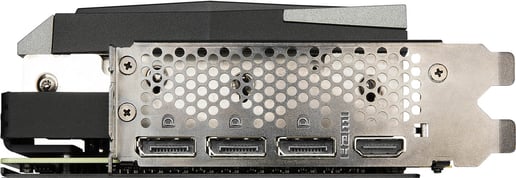

HDMI Port 1 x HDMI 2.1
DisplayPort 3 x DisplayPort 1.4

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320 pixels

System Requirements

System Requirements 1 x PCI Express 4.0 x16 slot
Recommended 550W PSU with 2 x 8-pin PCIe connectors

Electrical

Power Connector 2 x 8-pin PCIe
Power Consumption 170 W
Recomended Power Supply 550 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 57 mm (Triple Slot)
Depth 324 mm
Height 140 mm
Weight 1.46 kg

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 4.0 x16
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan
Low Profile No
NVIDIA GeForce RTX 3060
PCI-E Pin Type 8-Pin + 8-Pin
Cooling Technology Dynamic Fan
VR Ready NVIDIA
GPU Length 324 mm
Card Width Triple Slot

Graphics

Graphics Chipset GeForce RTX 3060

Graphics Device

G-Sync Yes

Compatibility

Lite Hash Rate Yes

Item Details

Manufacturer MSI
Manufacturer Code RTX 3060 GAMING Z TRIO 12G
EAN 4719072835019
UPC 824142253632
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code RTX 3060 GAMING Z TRIO 12G
Questions and Answers

Do you have you a question about the MSI GeForce RTX 3060 GAMING Z TRIO 12GB Overclocked Graphics Card?

Q: This graphic card is LHR?
Answer by Kristian on 14th September 2021
This is LHR. - Kristian N
0 customers found this answer helpful.
Answer by Kristian on 14th September 2021
This is an LHR Model. - Kristian N
0 customers found this answer helpful.
Post Answer
Q: Hi got MSI z390 game plus mother board running i9-9000k CPU, and 650wat gold power supply, would this card be compatible. Thanks .
Post Answer
Reviews
5.0 / 5 4 reviews

Mike Morley

last month

purchased this to upgrade from a gtx1050ti and so far extremely pleased with the performance, seeing i'm using an older motherboard with pci-e 3 and cpu (i5-7600k) and a 10 year old Iiyama Prolite E2773HDS. Tested using Horizon Zero Dawn and the benchmarks were good with the limitations of the system when running with settings on ultra with the cpu being the bottleneck. I have an antec 1200 case (again extremely old) and the card only just fitted with a bit of a struggle and removing the drive bay caddys. The card runs good at not gone over 52degrees on max load and not really heard the fans kicking in, but on average it runs around 26degrees. Yes, it is a bit pricy but was the same price as the two fan version (which was slightly lower clocked) and was hard to get, overall extremely happy with this card and would recommend as an upgrade from the earlier cards and as long as you have decent sized case and specced board/cpu/memory.

Clair Vaughan

4 months ago

Bought it for my partners PC as his other graphics card stopped working. Hes very happy with it had no problems. Lights up diffrent colours I suppose u could turn them off if needed too, very easy to install in to the motherboard.

Atomstew

6 months ago

Great product, upgraded Ryzen5 3600 B450F Pc from a 1050 2gb to this monster. Value for money score purely based on price paid (over the odds but then again always was going to be considering the current market/lack of cards available) Managed to negate price a little by selling my old gpu for alot more than expected - was going to score value for money lower but unfair to the retailer as delivery was free (DHL delivered/arrived within 2 days) Now plays all my games at ultra settings and a Massive difference. Like going from ps3 to ps5 graphics the RTX raytracing is awesome. The cards 3 fans dont even move when first turned on & Only fire up when needed. Only managed to max out the gpu once on DCS Combat simulator after id paused the game & gone for a drink otherwise its usually at 40-50% utilisation. Also runs my Aida64 Control panel as in the video. Great service and would use again.

Mr J R.

10 months ago

Very prompt delivery as described hassle free would definitely order from them again.
