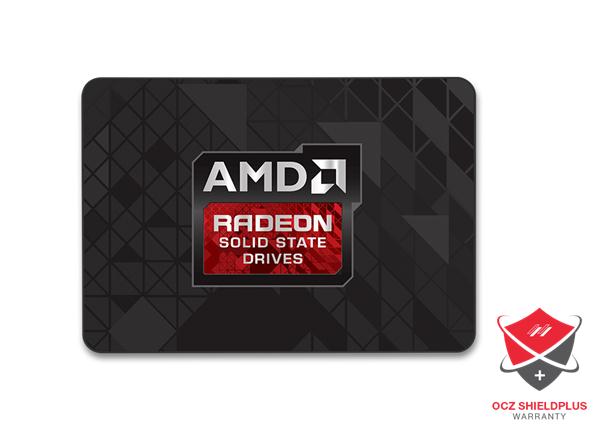

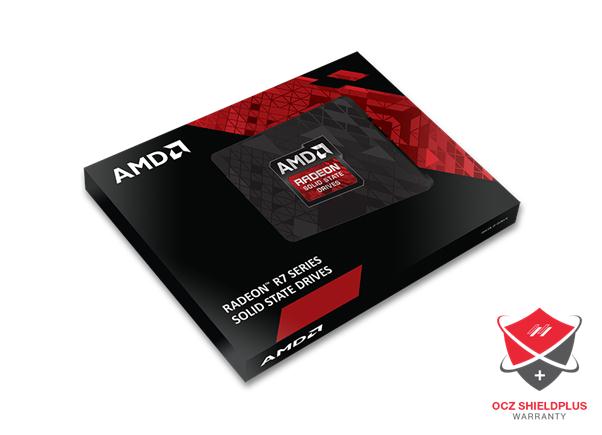

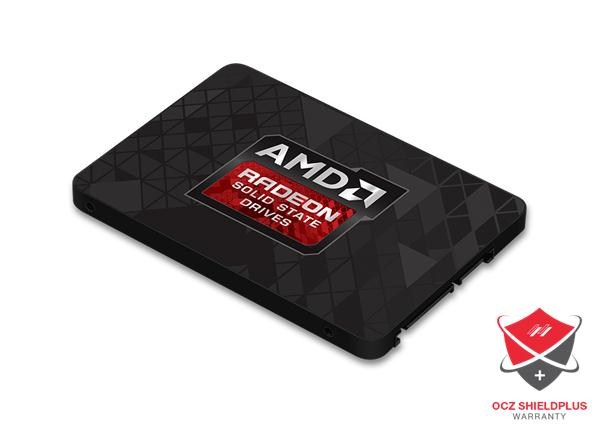

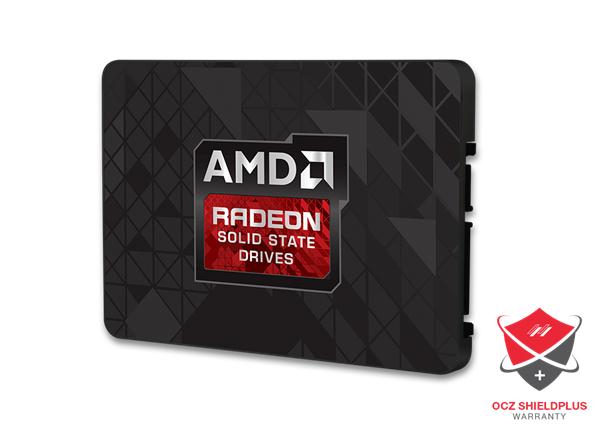

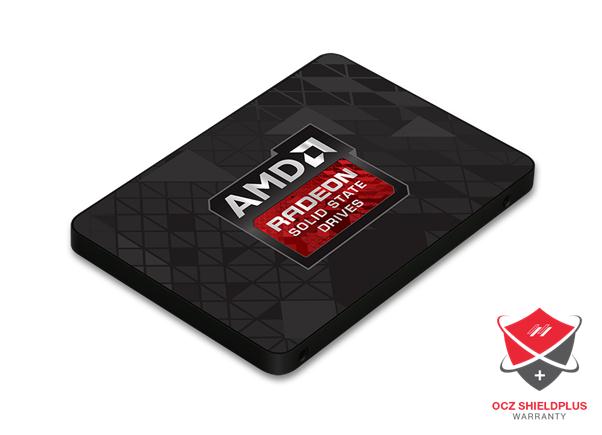

The Ultimate Storage for your Gaming Desktop or Notebook PC

Prepare yourself for a new level of performance and revel in a storage experience second to none with superior gaming, system responsiveness, and application performance. Using cutting-edge SSD technology designed with enthusiasts in mind, the Radeon™ R7 Series SSDs meets the demands of gamers and graphicshungry power users for fast system boot-ups, insane speeds, and scorching fast load times. Now there is finally a storage solution to match the rest of your high-end system components for an unmatched gaming and multimedia experience.

Performance

• Max Read (MB/sec)1 550
• Max Write (MB/sec)1 530
• FOB Random Read IOPS (4K QD32) 95,000
• FOB Random Write IOPS (4K QD32) 90,000
• Steady State Random Write IOPS (4K QD32) 20,00

Physcial

• Usable Capacities (IDEMA) 120GB - 480GB
• NAND Components Toshiba A19nm Multi-Level Cell (MLC)
• Interface Serial ATA (SATA) 6Gb/s (SATA III)
• Form Factor 2.5 inch, 7mm height
• NAND Controller Indilinx Barefoot 3 M00

• Dimensions 99.70 x 69.75 x 7.00 mm

• Drive Weight 115g

Reliability / Compatibility

• Data Path Protection BCH ECC corrects up to 44 random bits/1KB

• MTBF 2.3 million hours

• Encryption 256-bit AES-compliant

• Product Health Monitoring Self-Monitoring, Analysis and Reporting Technology (SMART) Support

• Endurance*

• Rated for 30GB/day of host writes for 4 years under typical client
  workloads

• Serial ATA

• Fully compliant with Serial ATA International Organization: Serial

• ATA Revision 3.2. Fully compliant with ATA/ATAPI-8 Standard Native

• Command Queuing (NCQ)

• Operating Systems Windows, Linux, Mac OSX

• Power Requirements Standard SATA Power Connector

• Targeted Applications Client workstations and laptops

Q. What is ShieldPlus?

A. All Radeon R7 SSDs are engineered and tested to ensure superior quality, reliability, and compatibility and also come backed with OCZ’s brand new “ShieldPlus Warranty”, an industry-leading approach to service that eliminates all the hassle surrounding support and warranty claims consumers often have to deal with.

• With no original proof of purchase required, end-users simply provide their Radeon R7 SSD serial number and a dedicated OCZ customer service representative will provide high-caliber troubleshooting and support.
• In the event that the product is determined to be defective, a brand-new Radeon R7 SSD of the same capacity will be advance shipped to the customer.
• When the replacement is received, end-users will find a pre-paid return label and need only to place their original drive in the box for a free return to OCZ.
