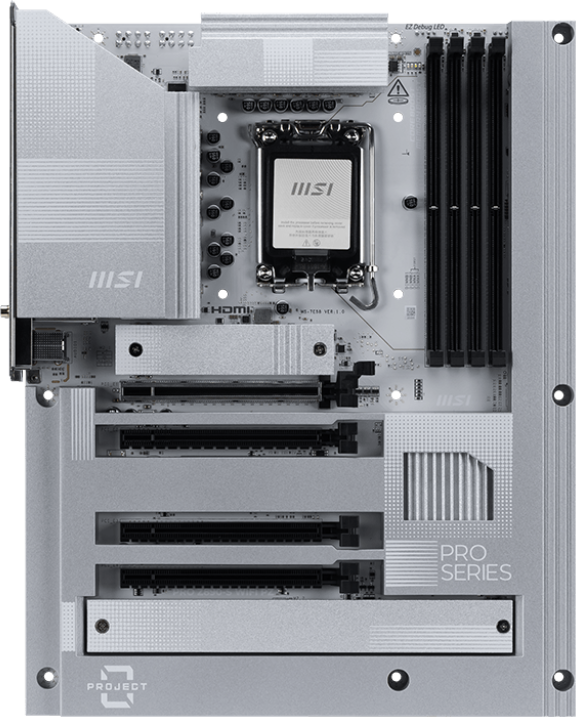

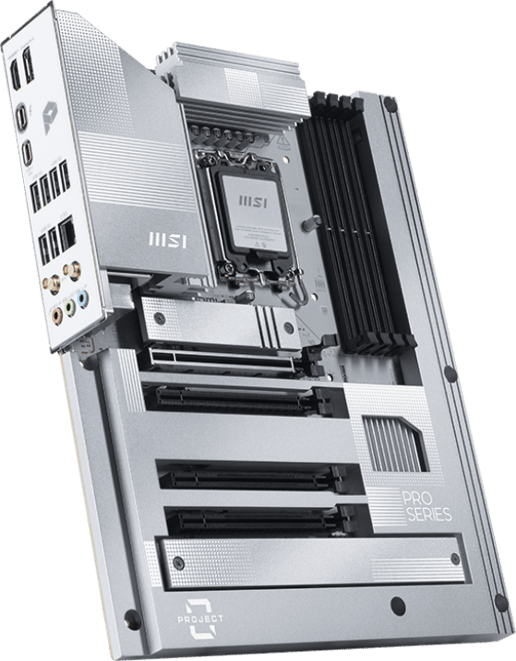

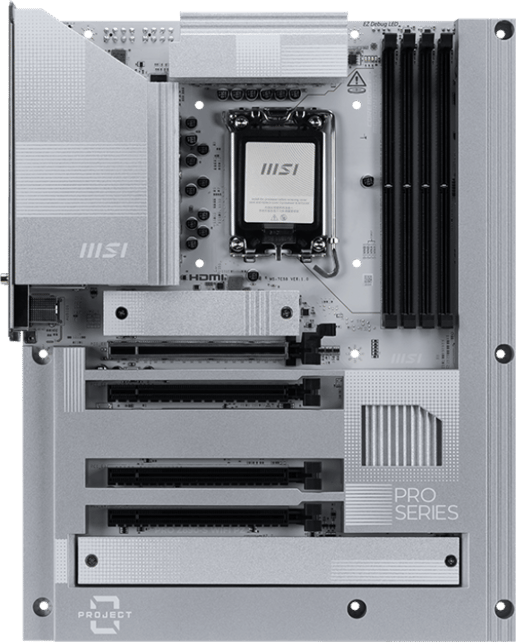

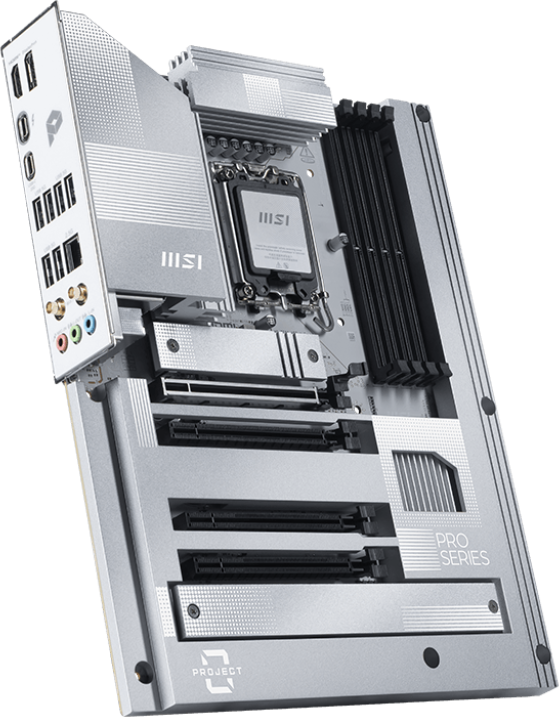

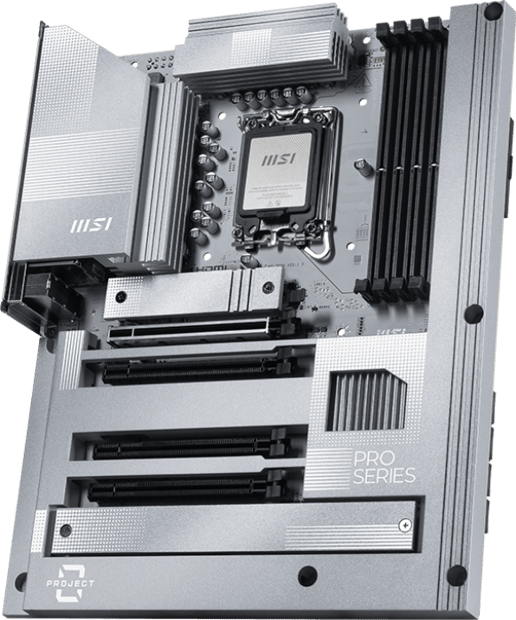

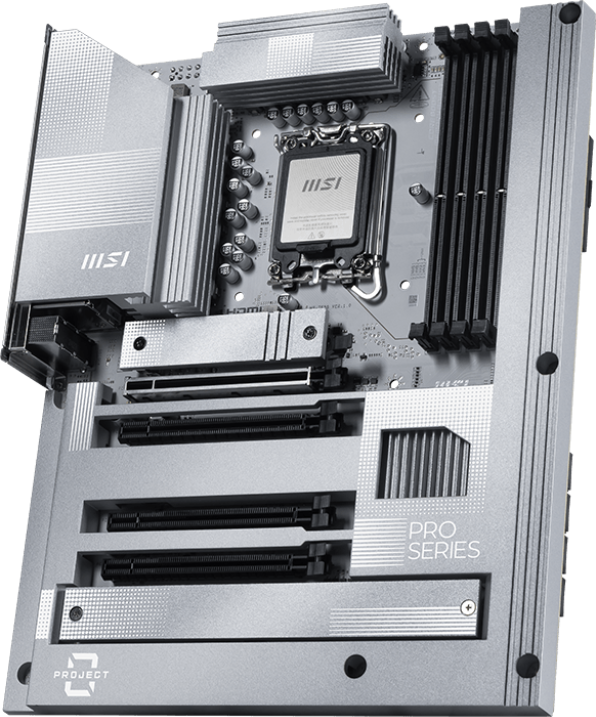

MSI PRO Z890-S WIFI PZ ATX Motherboard for Intel LGA1851 CPUs

Compare

MSI PRO Z890-S WIFI PZ ATX Motherboard for Intel LGA1851 CPUs

PRO Z890-S WIFI PZ

Key Features:

Form Factor: ATX
Socket: LGA1851
Memory: DDR5 (Max: 256GB)
Storage: 3 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 7 port(s)

PRO Z890-S WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel® Core™ Ultra processors.

MSI PRO Z890-S WIFI PZ ATX Motherboard for Intel LGA1851 CPUs

PRO Z890-S WIFI PZ

CCL Code: MBD3906

Form Factor: ATX
Socket: LGA1851
Memory: DDR5 (Max: 256GB)
Storage: 3 x M.2, 4 x SATA
Wi-Fi: Built-in
USB: 7 port(s)

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

ABSOLUTE SIMPLICITY

PRO Z890-S WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

BUSINESS ELEGANCE

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

READY FOR AI PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Main Features

Support Intel Core Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
Thunderbolt 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Specifications

CPU

CPU Socket	Socket 1851
CPU Brand	Intel
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	Intel
Supported Processors	Intel Core Ultra Processors (Series 2)
64-bit Support	Yes
Socket	LGA1851

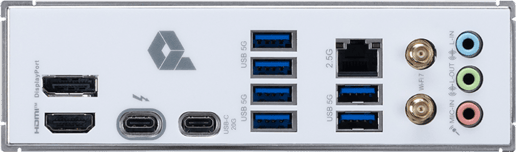

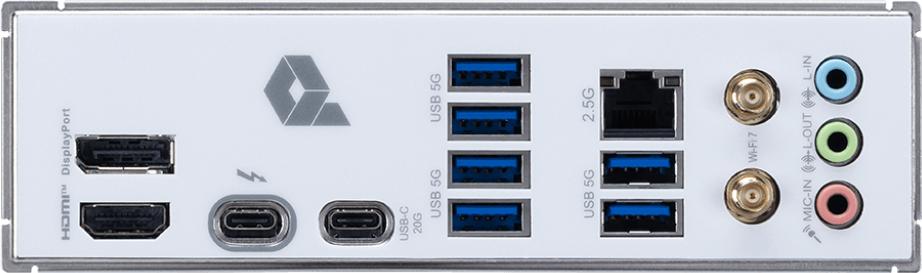

Rear Panel I/O Ports

USB Ports	1 x Thunderbolt 4 (USB-C) 1 x USB-C 3.2 6 x USB 3.0
DisplayPorts	1 x DisplayPort 1.4
HDMI Port	1 x HDMI 2.1
RJ-45 Ports	1 x RJ-45
Audio Line In Ports	1 x 3.5mm Jack
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x Combo fan header 4 x System fan headers
Thunderbolt Port(s)	1 x Thunderblt 5 card header (JTBT5, supports RTD3)
Chassis Intrusion Connector	1 x Chassis Intrusion header
TPM Header	1 x TPM header
Power Connector Port	1 x 24-pin ATX 2 x 8-pin EPS 1 x 8-pin PCIe
Other Connectors	1 x M.2 slot, Type 2280/2260/2242 (PCIe Gen5) 1 x M.2 slot, Type 2280/2260/2242 (PCIe Gen4) 1 x M.2 slot, Type 2280/2260/2242 (PCIe Gen4 or SATA) 3 x 3-pin ARGB header 1 x 4-pin RGB header 1 x EZ Conn-header 1 x Tuning Controller header

Memory

Memory Bus Speed	Up to 8800 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	Intel Z890
Input/Output Controller	Yes
RAID Supported	RAID 0, 1, 5, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 4.0 x16 slots (@ x4/x4)
1 x PCI Express 3.0 x16 slot (@ x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek ALC897

Network

Integrated Network	Realtek 8125D
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes - Wi-Fi 7
Wireless Network Speed	Up to 5.8 Gbps
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard

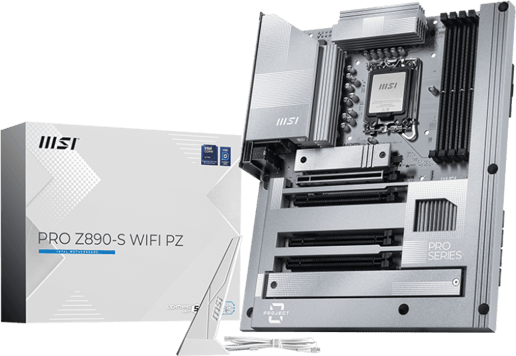

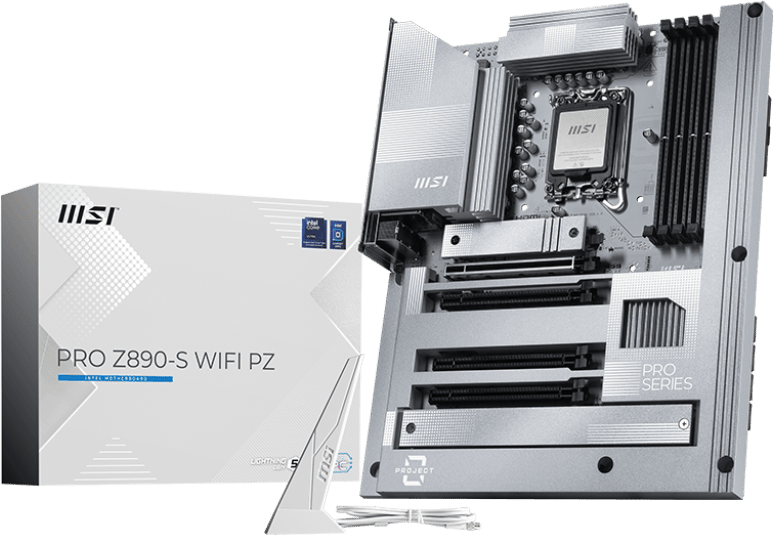

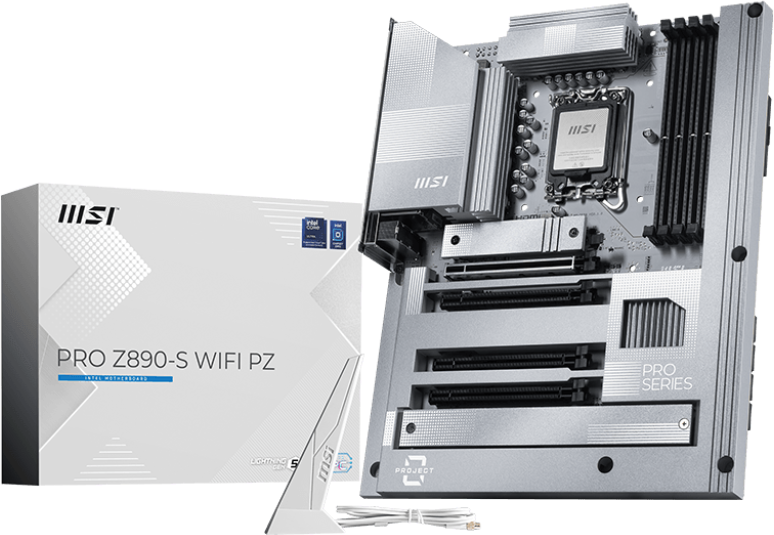

In The Box	Motherboard European Union Regulatory Notice Quick Installation Guide EZ M.2 Clip II Remover EZ M.2 Clip II EZ Wi-Fi Antenna 2 x SATA Cables 1 to 2 EZ Conn-Cable (V1)
Width	244 mm
Length	305 mm

Key Features

Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	White
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	7 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	2 x 8-Pin
Motherboard Chipset	Intel Z890
Thunderbolt	Yes
Motherboard Model	MSI PRO Z890-S WIFI PZ
WiFi Speed	5800 Mbps
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	MSI Mystic Sync
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	6400 MT/s
Max Memory Speed Supported (overclocked)	8800 MT/s
CPU Power Pins (female)	16
PCI Express Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
Maximum SATA M.2 ports	1
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
