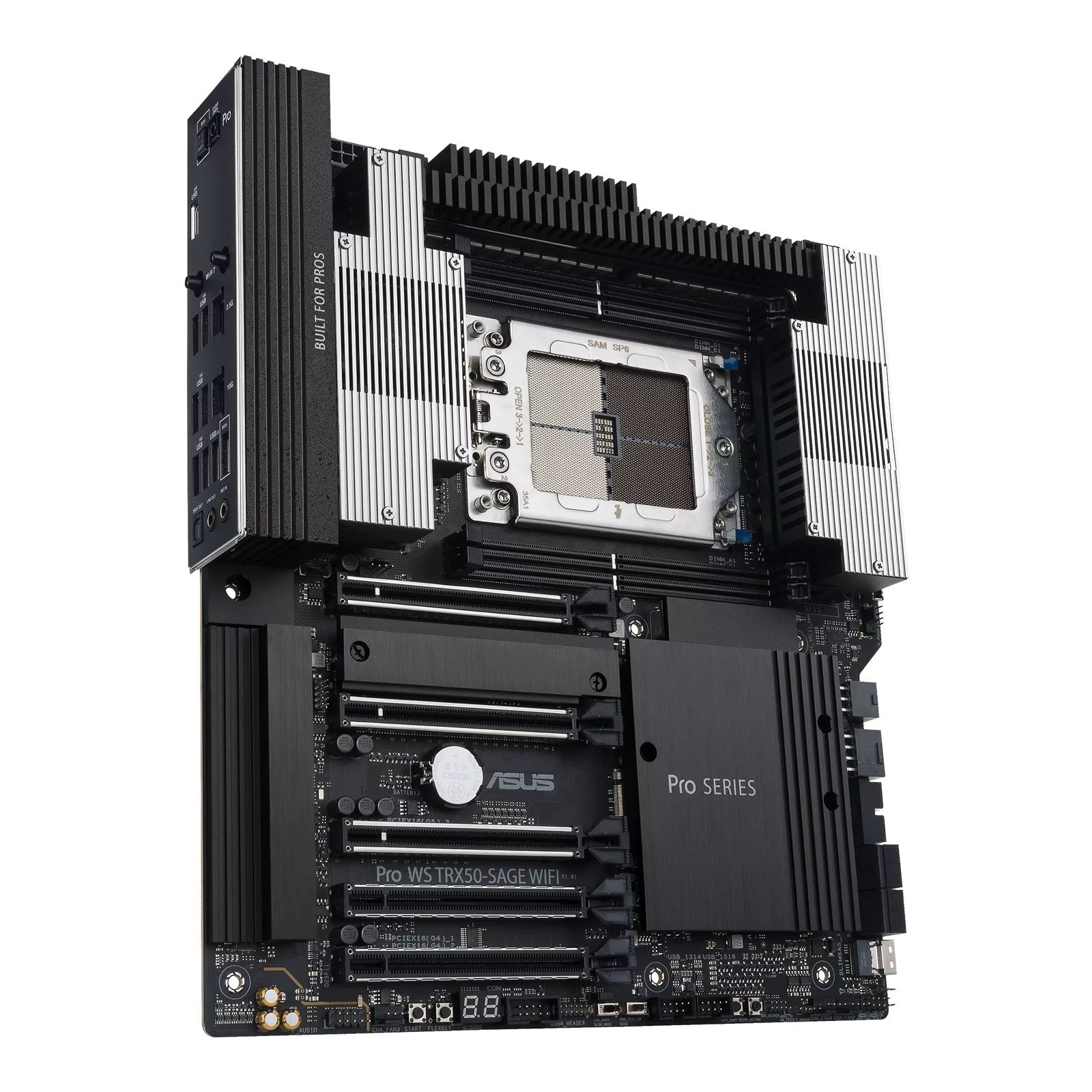

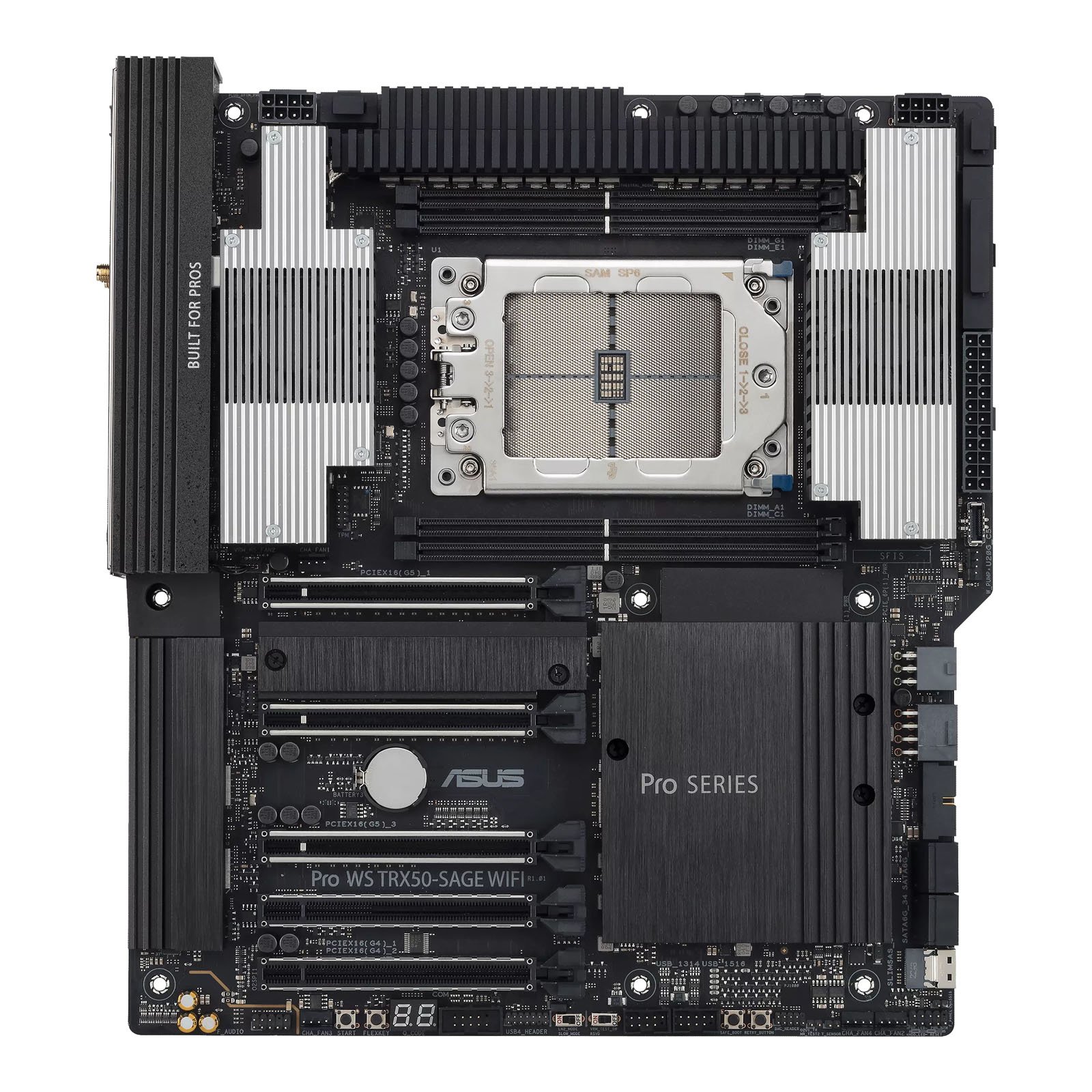

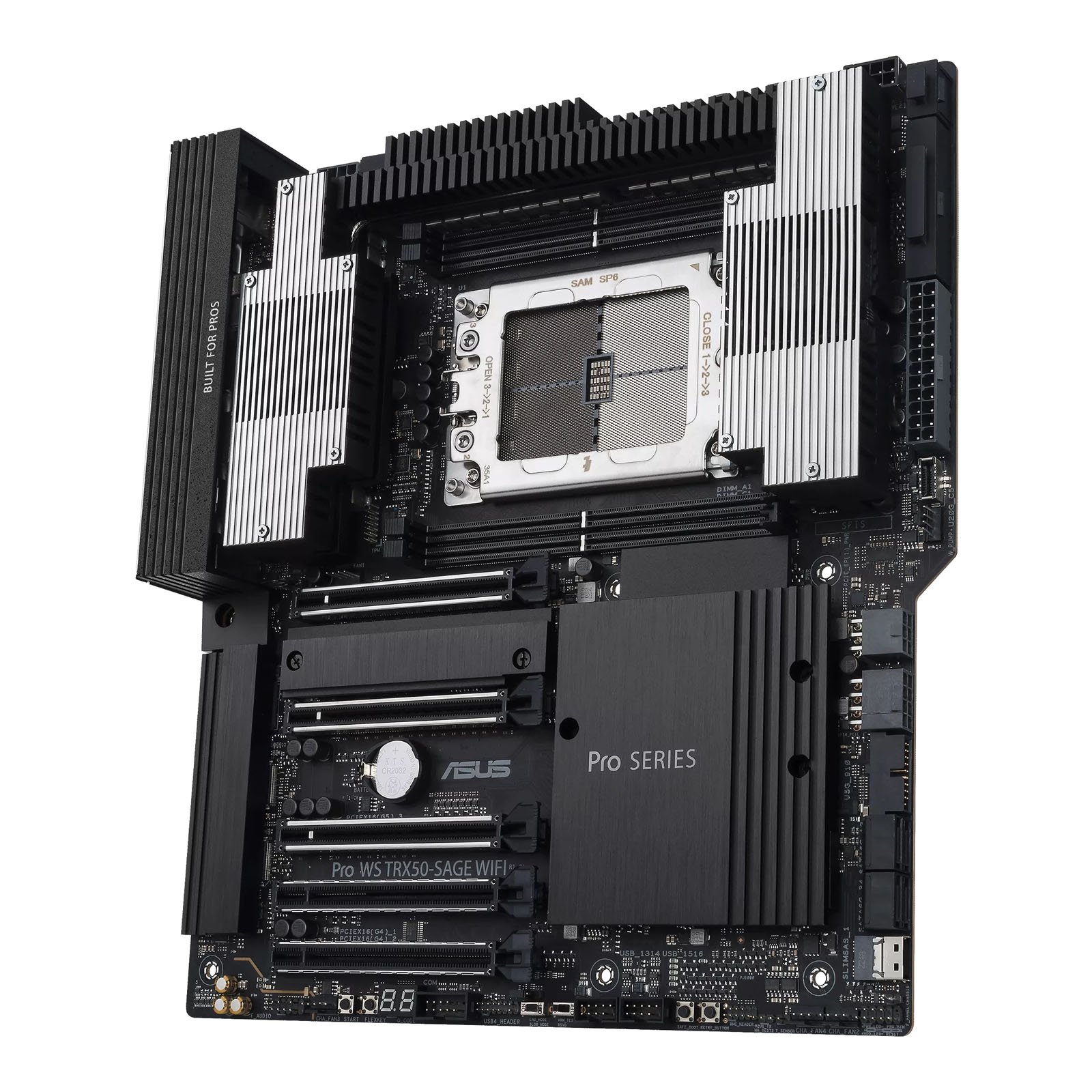

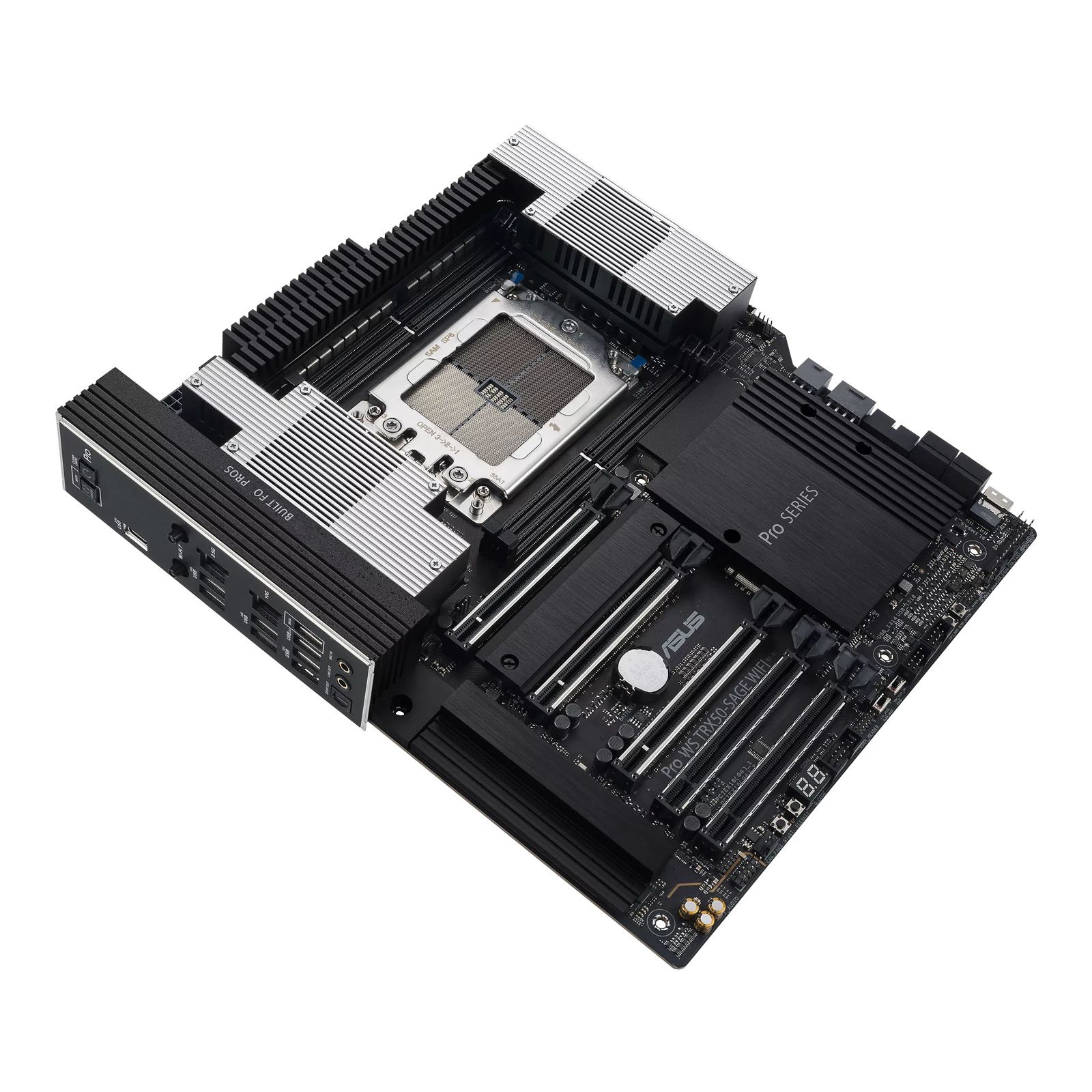

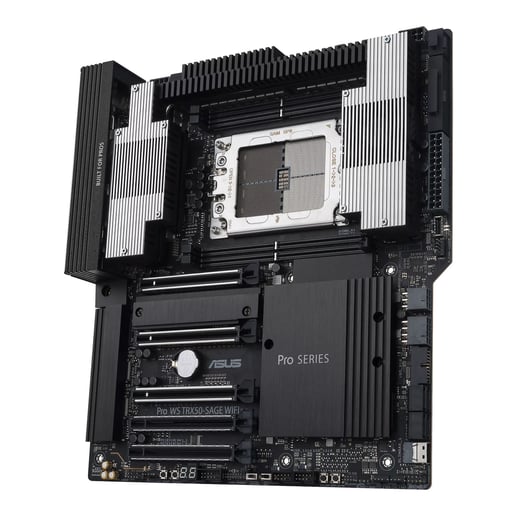

ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs

ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs

CCL Code: MBD3559

Was £1,319.02

SAVE £529

Now only

£789.99 inc VAT

  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs
  • ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

ASUS Pro WS TRX50-SAGE WIFI EATX Motherboard for AMD sTR5 CPUs

PRO WS TRX50-SAGE WIFI

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

Was £1,319.02

SAVE £529

Now only

£789.99 inc VAT

Available for delivery from Tuesday 17th December

or Click & Collect from Tuesday 17th December

Buying in bulk? Contact our business team.

Key Features:

  • EATX Form Factor
  • AMD TRX50 Chipset
  • Socket sTR5
  • DDR5 (Max: 384GB / 4 slots)
  • 3 x M.2 & 9 x USB & 4 x SATA
CCL Code: MBD3559
Overview

AMD TR5 CEB workstation motherboard, CPU and memory overclocking ready, robust 36 power-stage design, PCIe 5.0 x 16, PCIe 5.0 M.2, 10 Gb and 2.5 Gb LAN, multi-GPU support

Main Features

  • AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors and AMD Ryzen Threadripper 7000 Series Processors.
  • CPU and memory overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
  • Robust power and thermal design: 36 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad.
  • Ultrafast connectivity: three PCIe 5.0 x16 slots, 10 Gb & 2.5 Gb LAN ports, three M.2 slots, front and rear USB 20Gbps Type-C and SlimSAS NVMe support.
  • Server-grade IPMI remote management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
  • Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation
Specifications

CPU

CPU Socket Socket sTR5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors
64-bit Support Yes
Socket sTR5

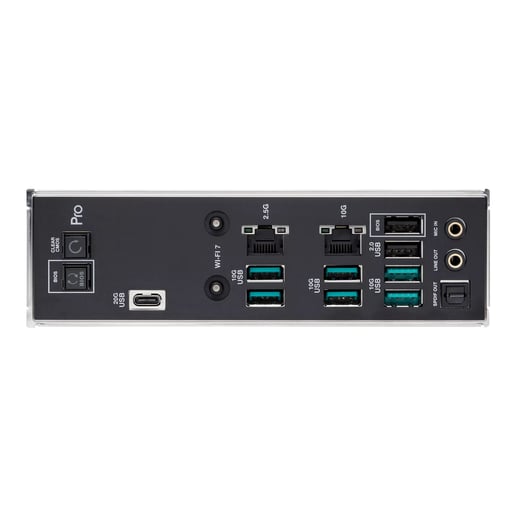

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.2
6 x USB 3.1
2 x USB 2.0
RJ-45 Ports 2 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU_OPT fan header
1 x W_PUMP+ header
4 x Chassis fan headers
2 x VRM fan header
USB Connector(s) 1 x USB4 header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 2 x 24-pin ATX
2 x 8-pin EPS
2 x 8-pin PCIe to EPS
1 x 8-pin PCIe
1 x 6-pin PCIe
Other Connectors 2 x M.2 slots, Key M, Type 2242/2260/2280 (PCIe Gen5)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen4)
1 x SlimSAS
1 x BMC header

Memory

Memory Type DDR5 (RDIMM, ECC)
Maximum RAM 384 GB
Memory Slot 4 x RDIMM

Motherboard

Northbridge AMD TRX50
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 3 x PCI Express 5.0 x16 slots (@ x16/x16/x8)
2 x PCI Express 4.0 x16 slots (@ x16/x4)

Graphics Device

Integrated Graphics Supported No

Sound

Integrated Sound Realtek ALC1220P

Warranty

Warranty Yes

Network

Integrated Network Marvell AQtion
Intel I226-LM
Network Speeds Supported Up to 10 Gbps (Marvell)
Up to 2.5 Gbps (Intel)
Wireless LAN Yes (Wi-Fi 7)
Wireless Network Speed Up to 2.8 Gbps
Bluetooth Yes
Bluetooth Version 5.4

System

BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor CEB

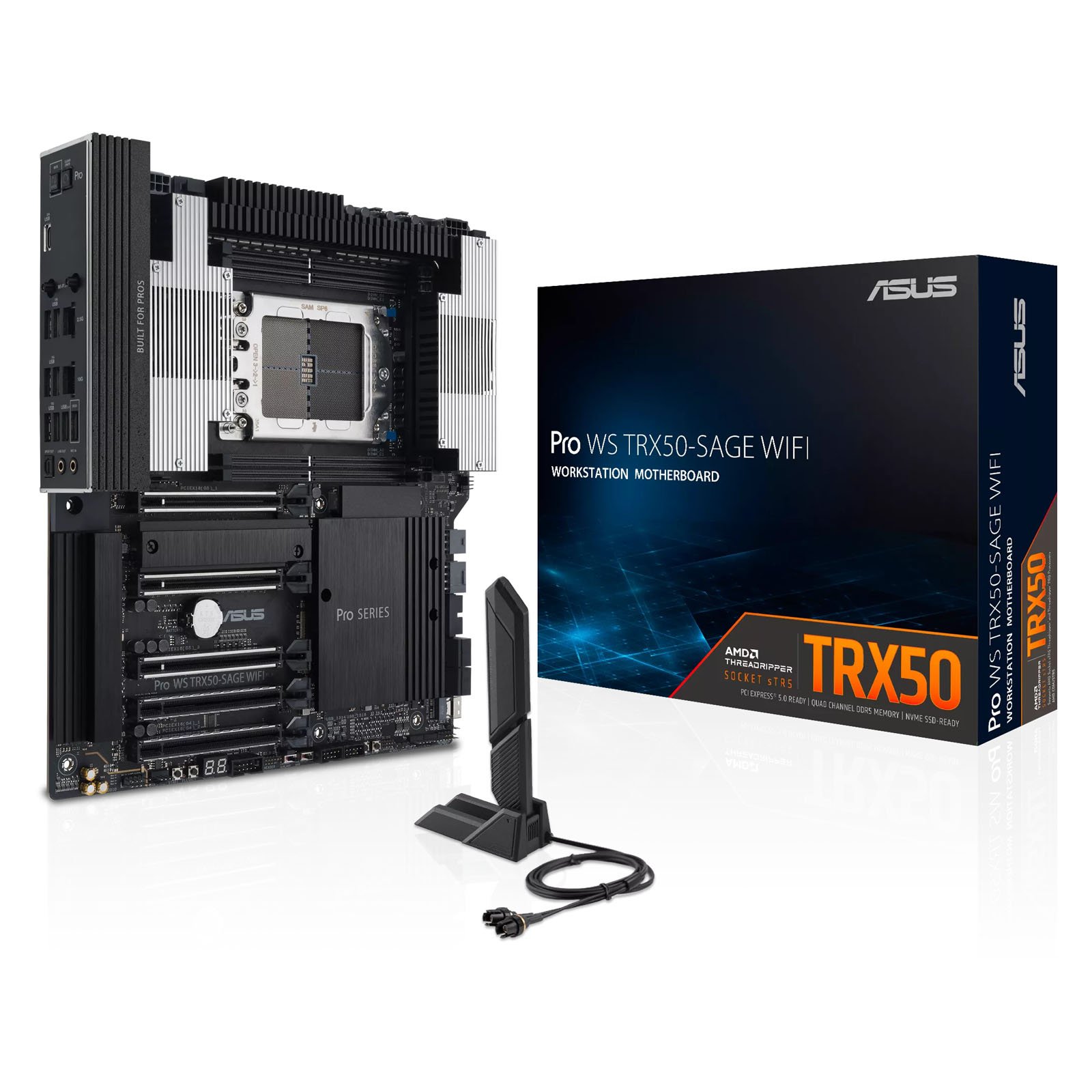

In The Box Motherboard
2 x SATA Cables
1 x CPU 8-pin to PCIe 8-pin Adapter Cable Package
Thermistor Cable Pack
ASUS 2x2 Dual Band Wi-Fi Moving Antennas
M.2 Q-Latch Package
2 x M.2 Rubber Packages
Q-Connector Documentation
ACC Express Activation Key Card
QSG
Width 280 mm
Length 305 mm

Key Features

On-board RGB Control None
RGB Header Type None
Addressable RGB No
Internal USB Type-C Header Yes
Power Requirement (auto) 100 W
CPU Power Pins (female) 16
PCI Express Power Pins (female) 32
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported Yes
RDIMM Memory Required Yes
Wireless Network Yes
Motherboard Width 280 mm
Motherboard Height 305 mm
Memory Channel Quad
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 9 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection No
DisplayPort Connection No
Motherboard Form Factor EATX
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset AMD TRX50
Thunderbolt No
Motherboard Model ASUS Pro WS TRX50-SAGE WIFI
WiFi Speed 2800 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes

Item Details

Manufacturer ASUS
Manufacturer Code PRO WS TRX50-SAGE WIFI
Alternative Part Numbers 90MB1FZ0-M0EAY0, 90MB1FZ0-M0ECY1
EAN 4711387402726
UPC 197105402720
Condition New
Warranty

Warranty Information

Warranty Yes

Manufacturer Information

Manufacturer ASUS
Manufacturer Code PRO WS TRX50-SAGE WIFI
