The PRO H810M-B motherboard supports Intel Core Ultra Processors (Series 2).
Form Factor: mATX
Socket Type: LGA 1851
Chipset: Intel H810

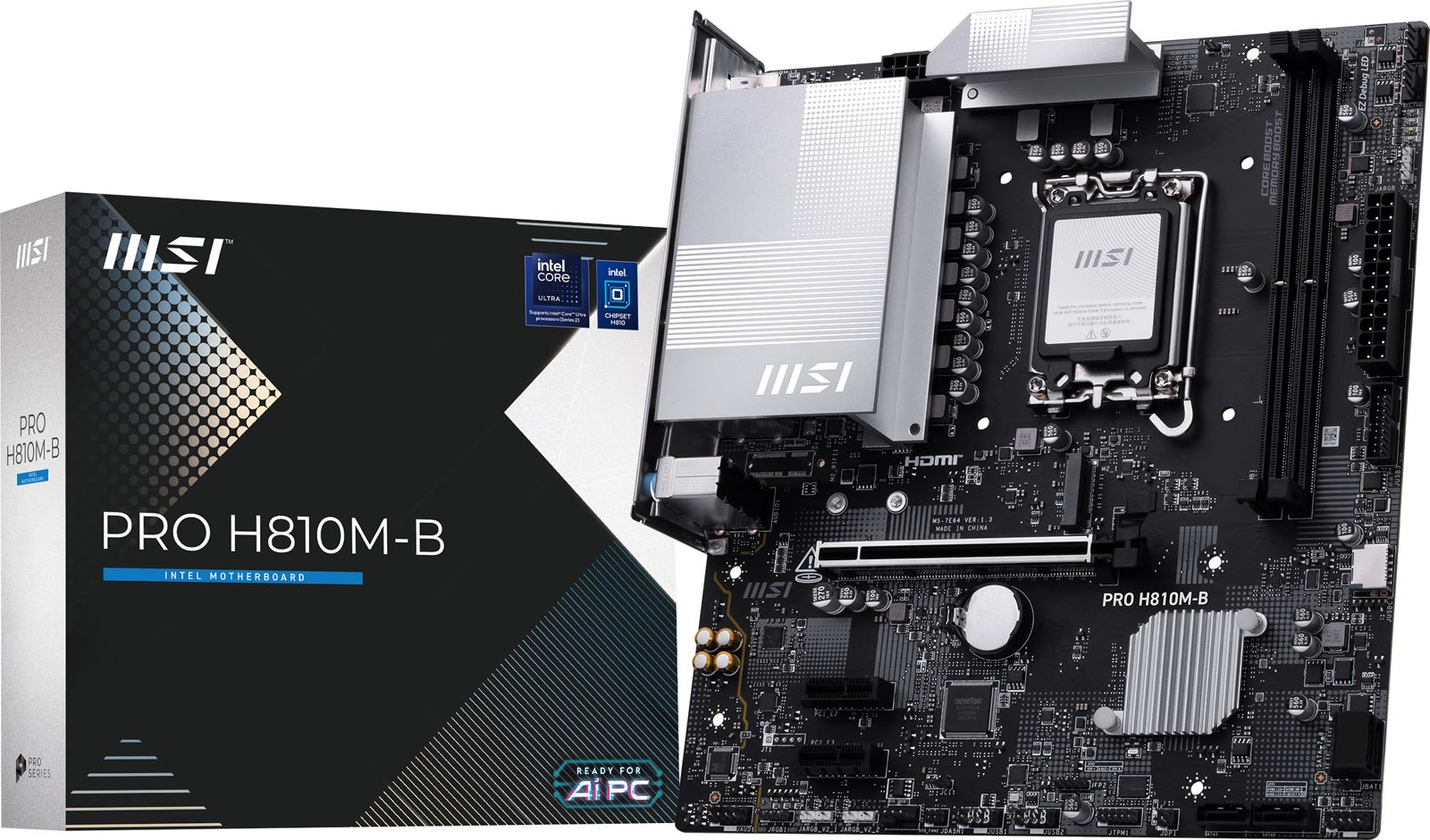

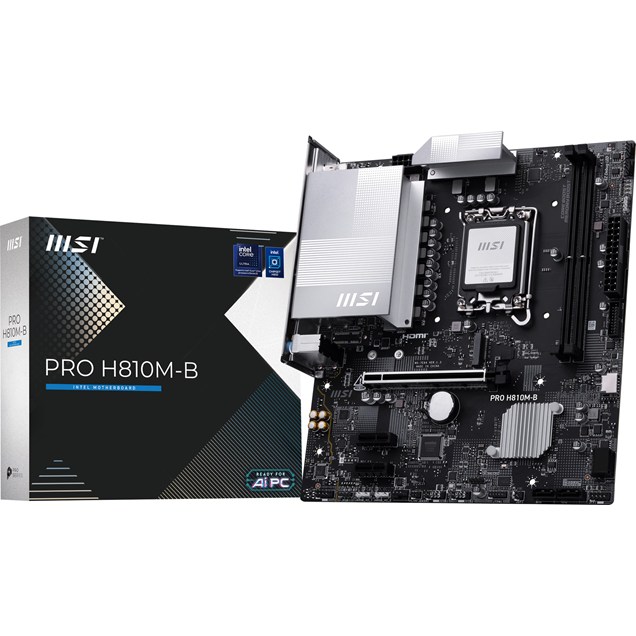

MSI PRO H810M-B mATX Motherboard for Intel LGA1851 CPUs
£93.99
Discontinued

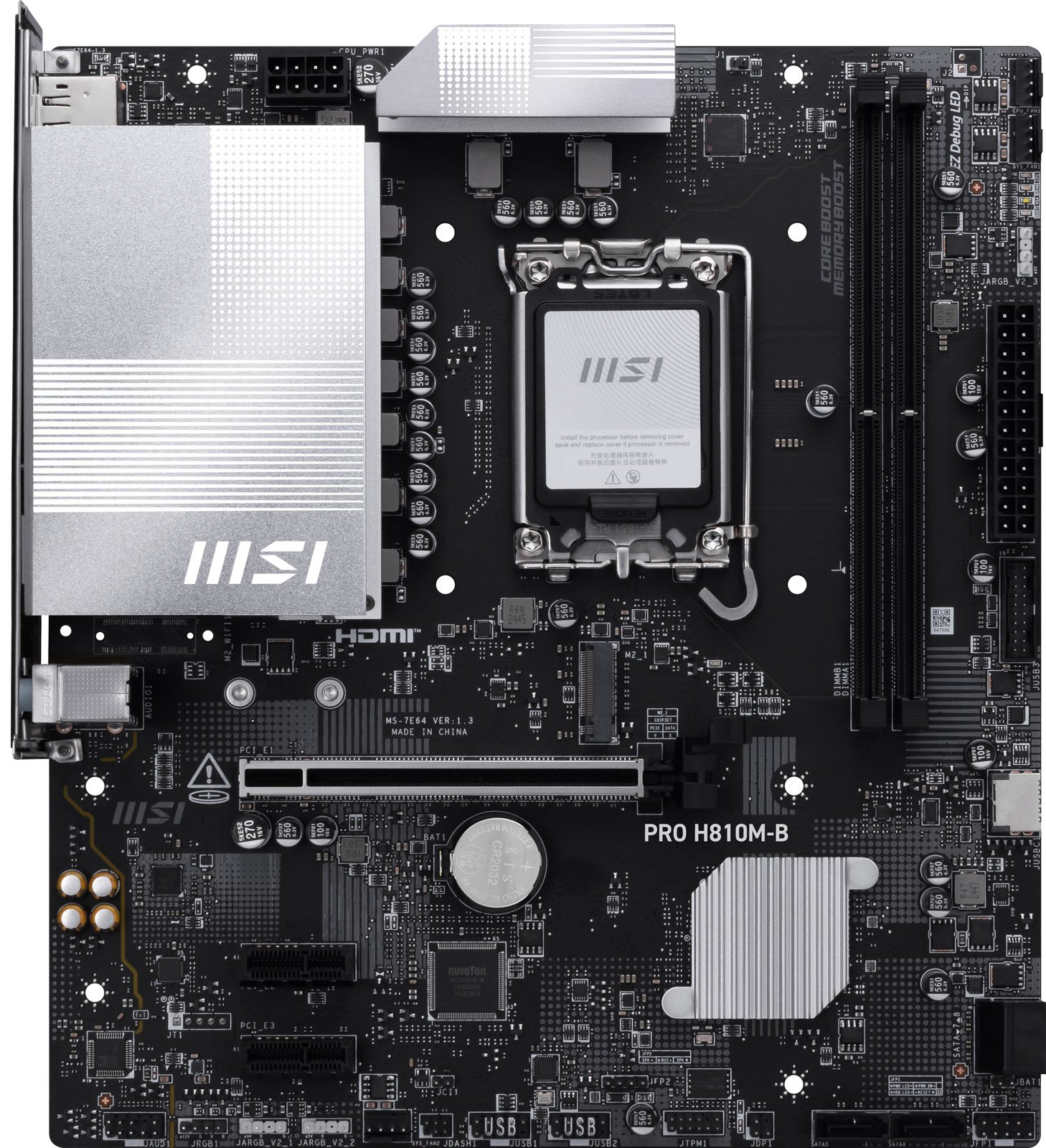

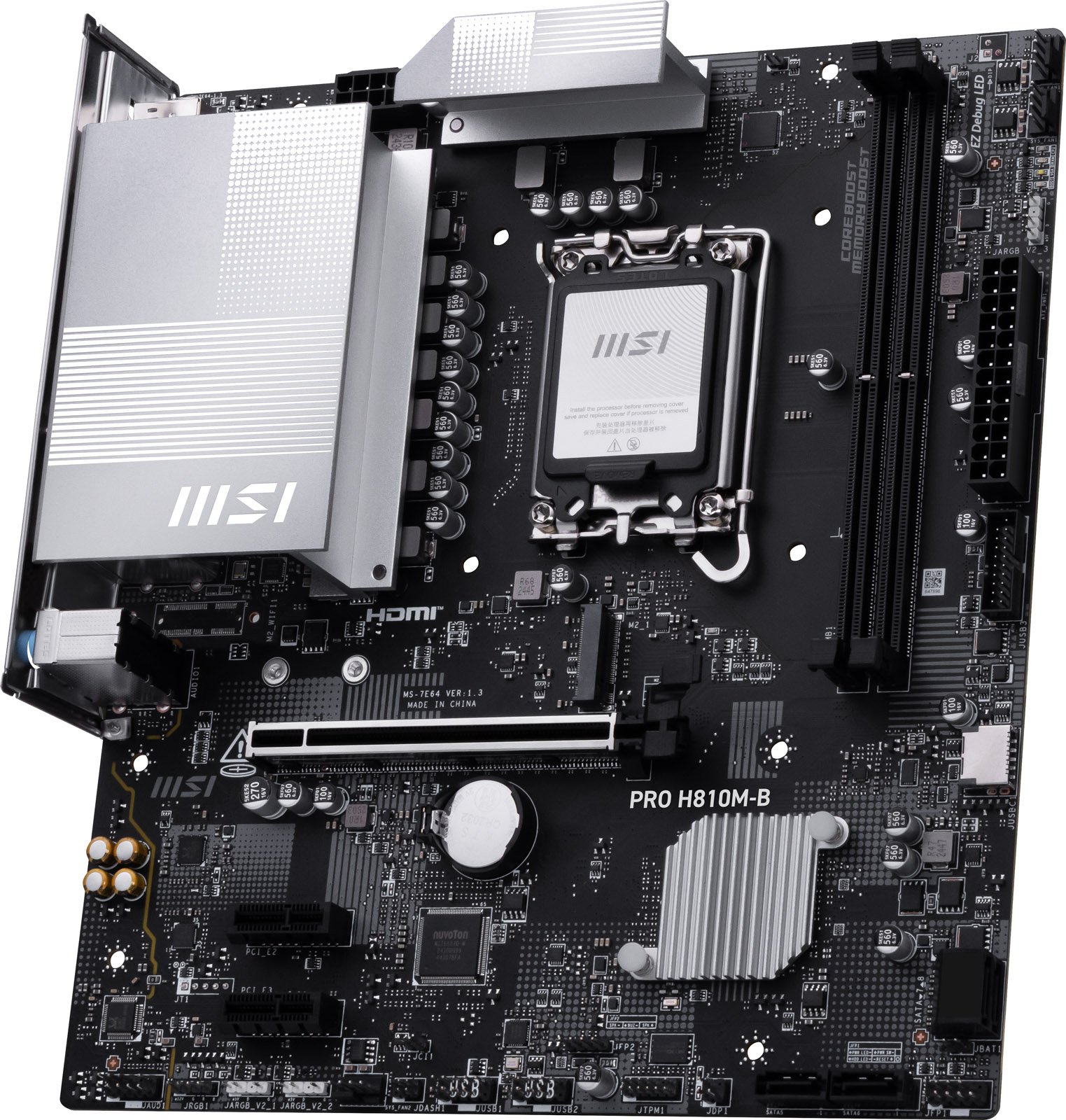

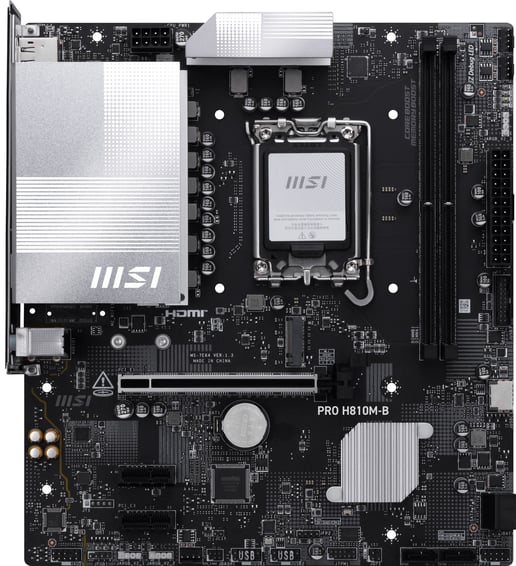

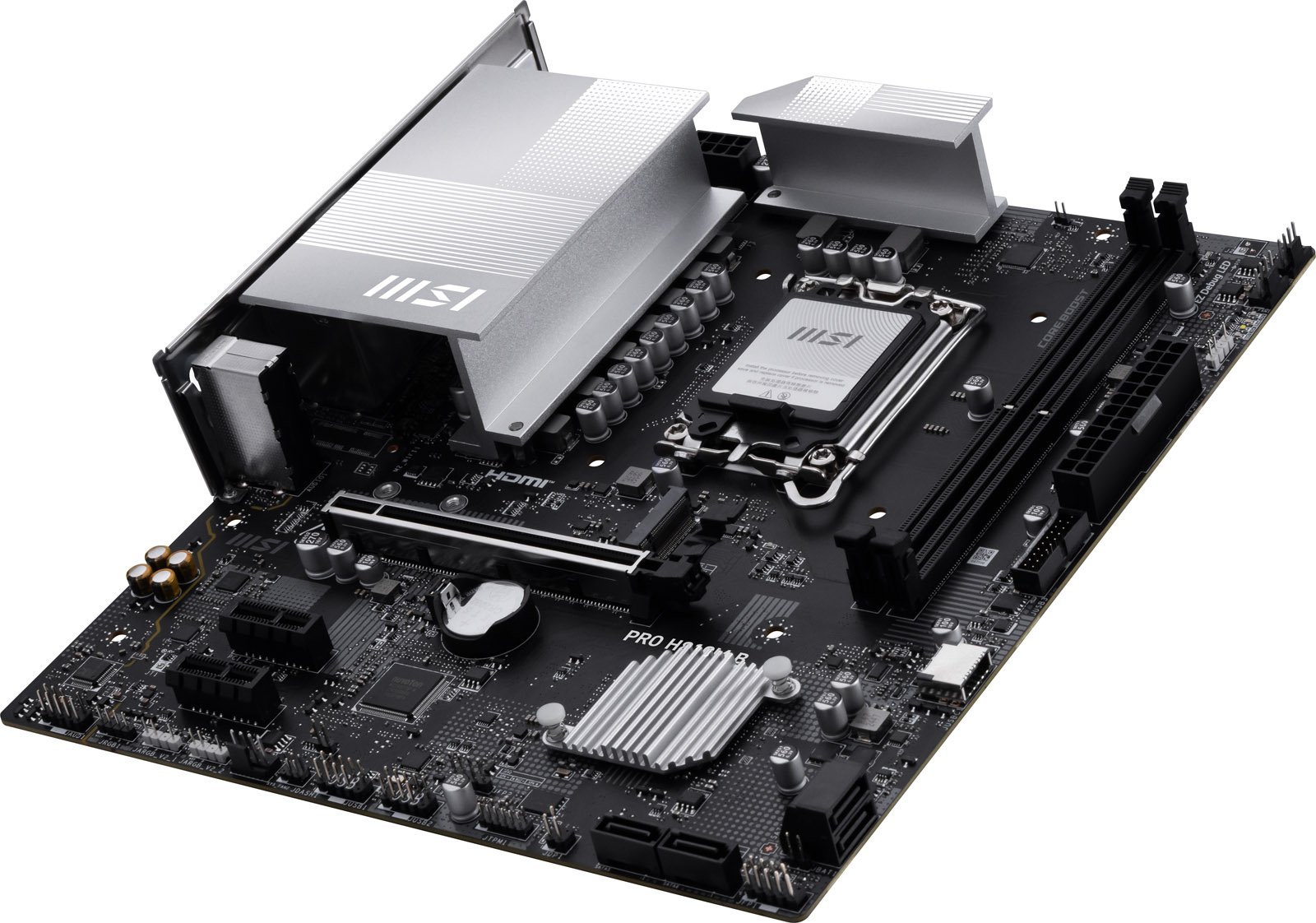

PRO H810M-B
MSI PRO H810M-B mATX Motherboard for Intel LGA1851 CPUs
FORM FACTOR: MATX
SOCKET: LGA1851
MEMORY: DDR5 (MAX: 128GB)
STORAGE: 1 X M.2, 4 X SATA
USB: 6 PORT(S)
Business Elegance
The PRO H810M-B is a business-oriented mATX motherboard constructed around the latest Intel H810 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.
Supports Intel Core Ultra Processors (Series 2)
Ultra Power - Direct 6 Phases with P-PAK
With exclusive Core Boost technology and EZ OC Tuning functions, the PRO H810M-B is able to sustain heavy CPU power loads to support system-demanding settings: Digital PWM IC
6-Phase direct CPU power (P-PAK)
1-Phase SA Power
1-Phase GT Power
1-Phase VNNAON Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, and extra choke thermal pads for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A) and system fans (1A).
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (6400 MT/s MAX)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal overclocking performance.
XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6400 MT/s, supports Intel XMP.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor and EZ PCIe Clip II)*
2 x PCIe 4.0/3.0 x1 slots
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connector
The PRO H810M-B motherboard features MSI's M.2 slot:
1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
High-speed Connectivity
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
PRO H810M-B offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with 2.5G LAN and PCIe 5.0, ready for the Intel® Core™ Ultra processors.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors (Series 2)
- 64-bit Support: Yes
- Socket: LGA1851

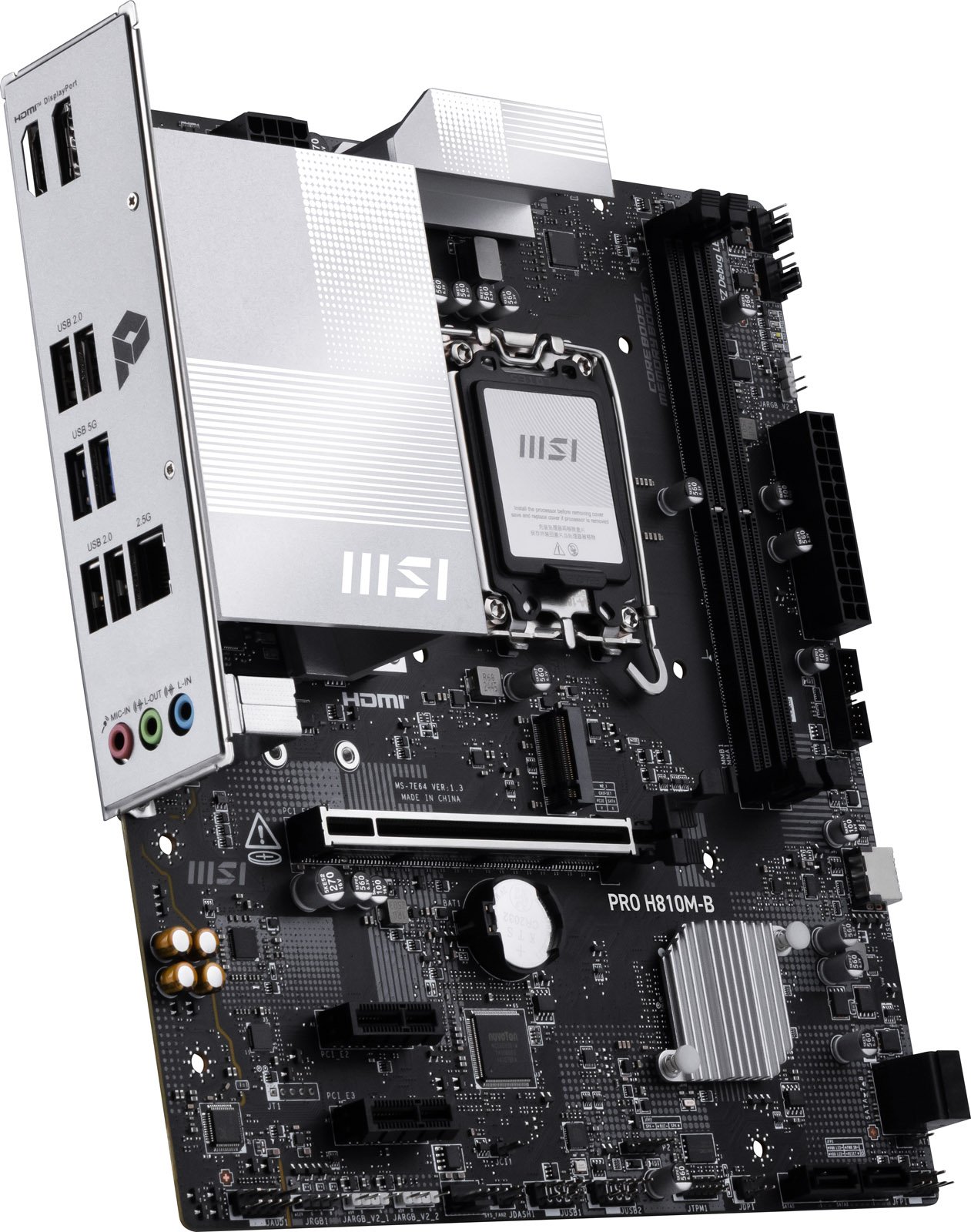

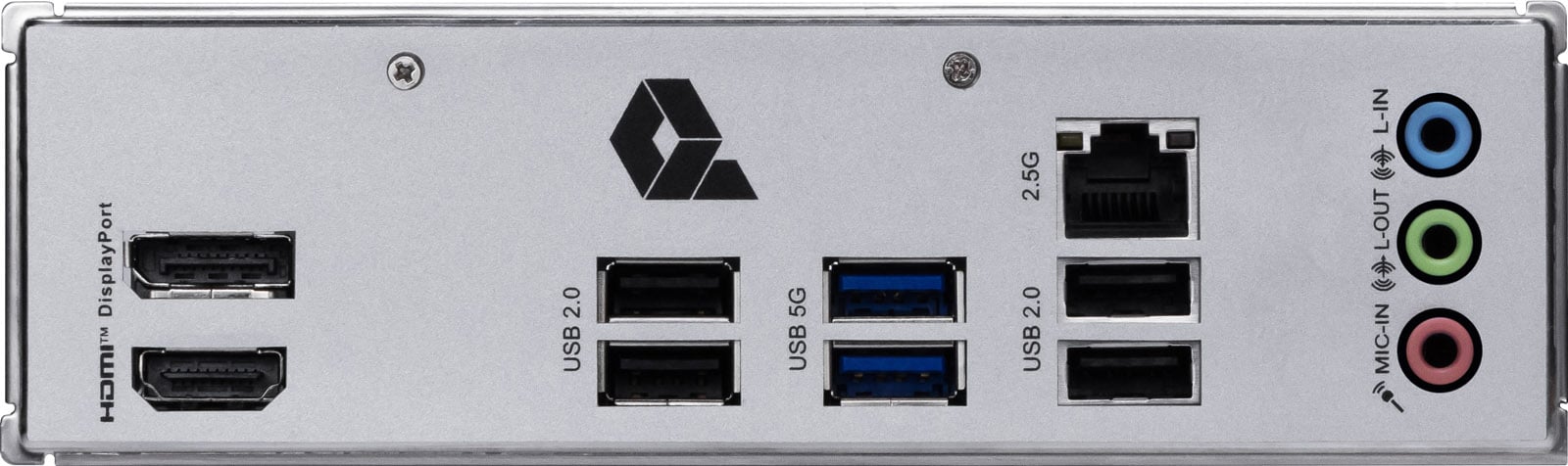

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 6400 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel H810
- RAID Supported: No
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2280/2260 (PCIe Gen4)
3 x 3-pin ARGB headers - 1 x 4-pin RGB header
- 1 x Tuning Controller header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 2 x PCI Express 4.0 x1 slots
Memory
- Maximum RAM: 128 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8125
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

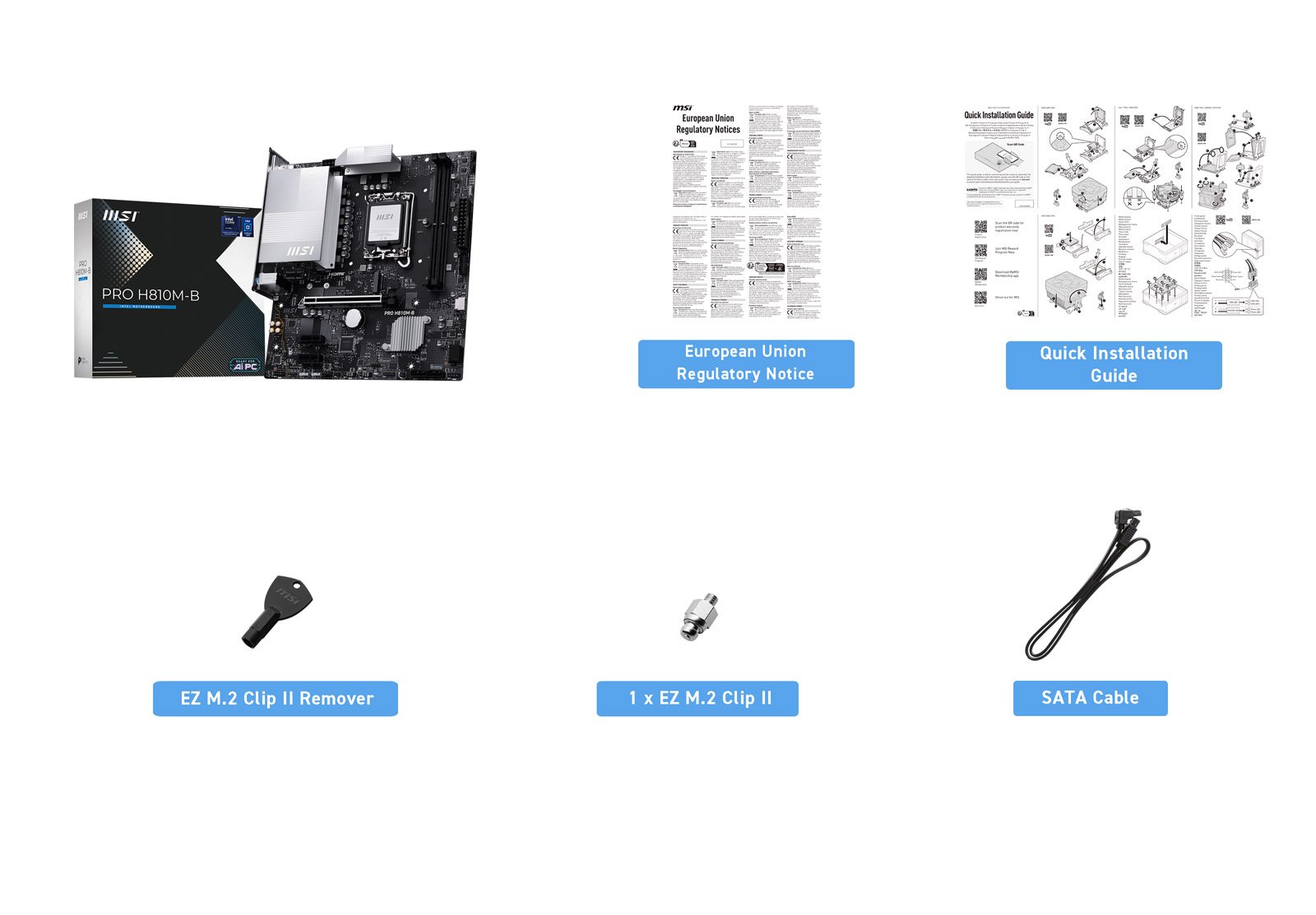

- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- EZ M.2 Clip II Remover
- EZ M.2 Clip II
- SATA Cable
- Width: 220 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3933
- Mfg Code: PRO H810M-B
Warranty
- Warranty: 3 Years
