Business Elegance
The PRO H610M-G WIFI DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel H610 chipset that includes legacy-friendly display connectivity.

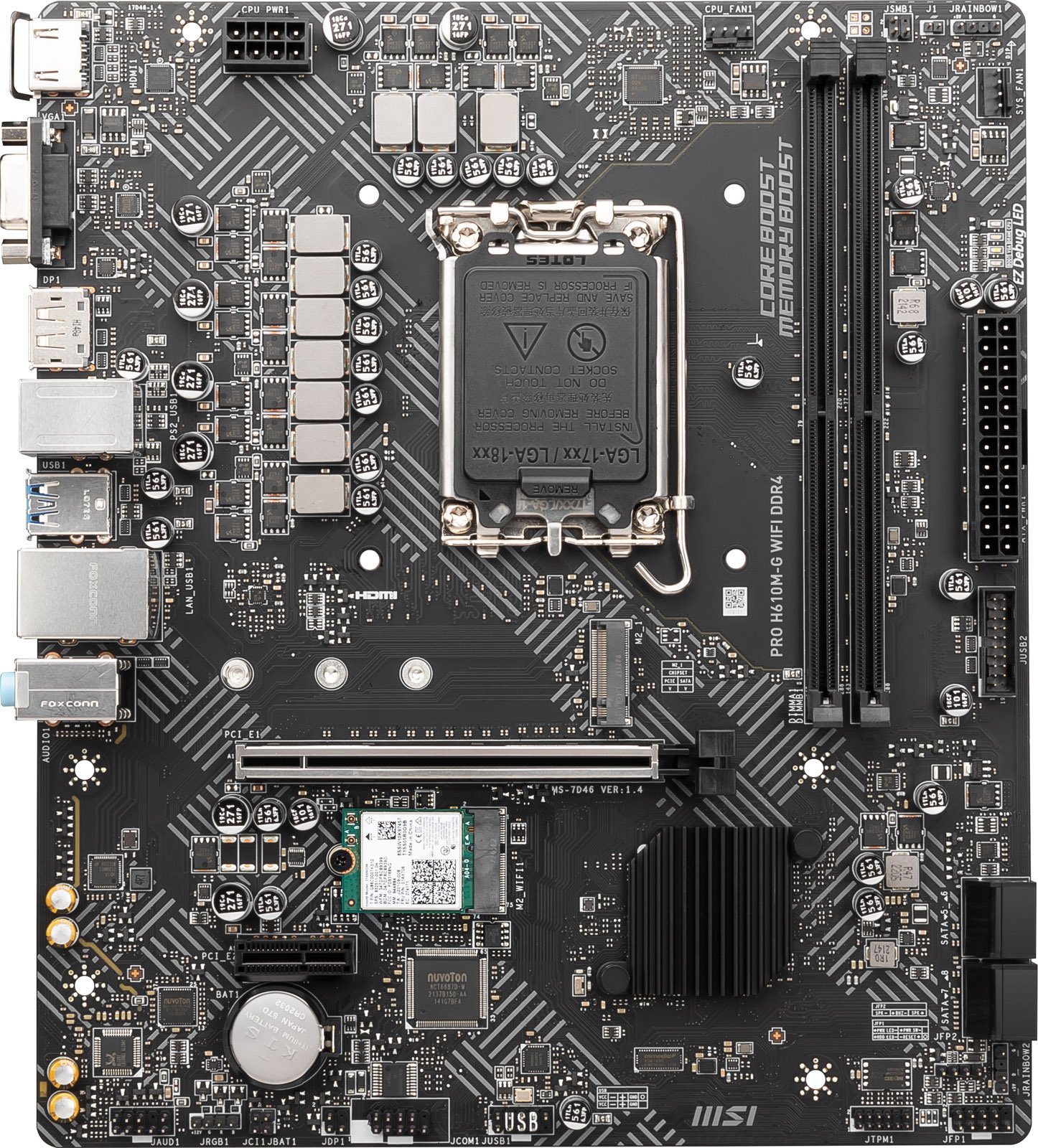

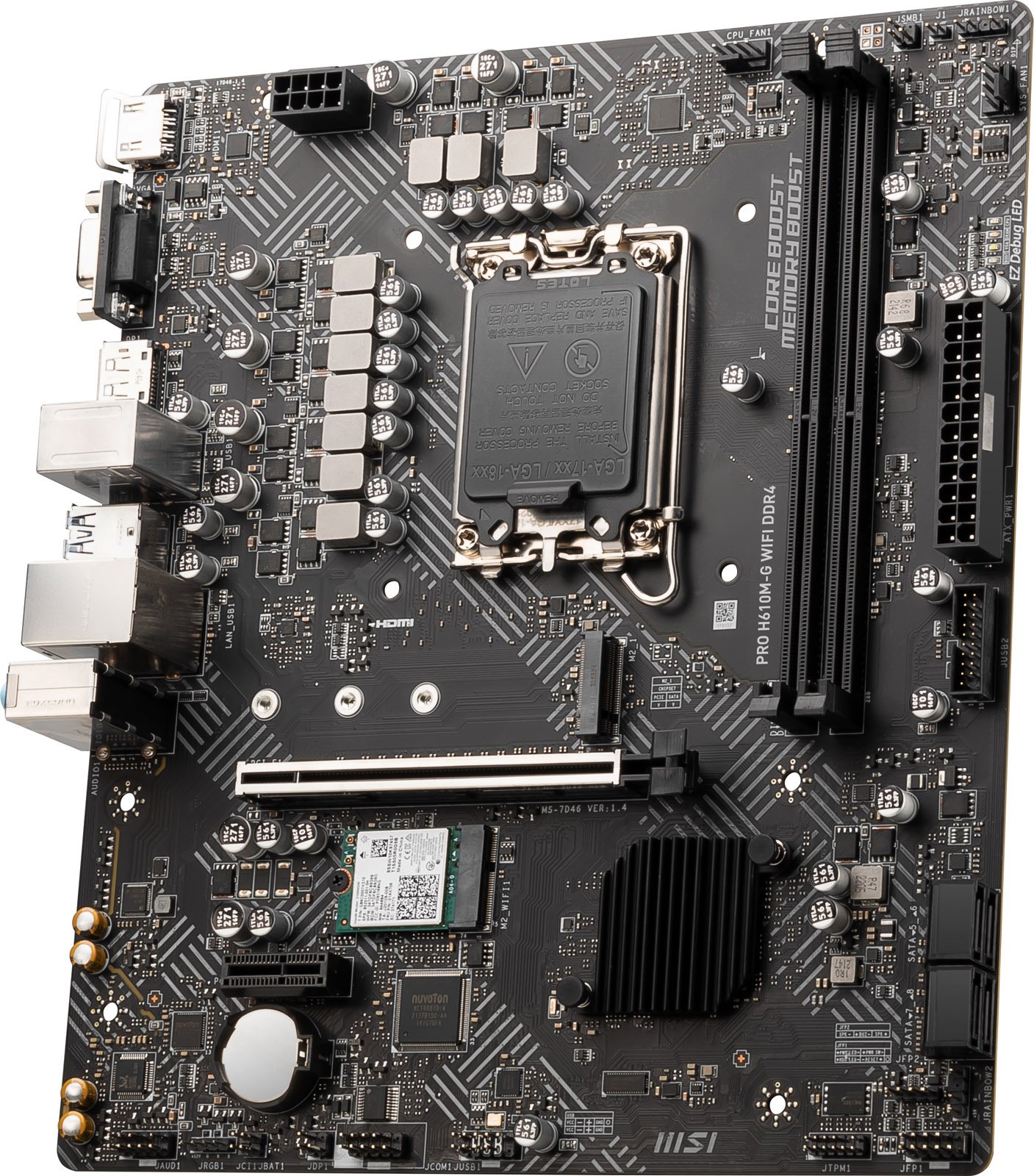

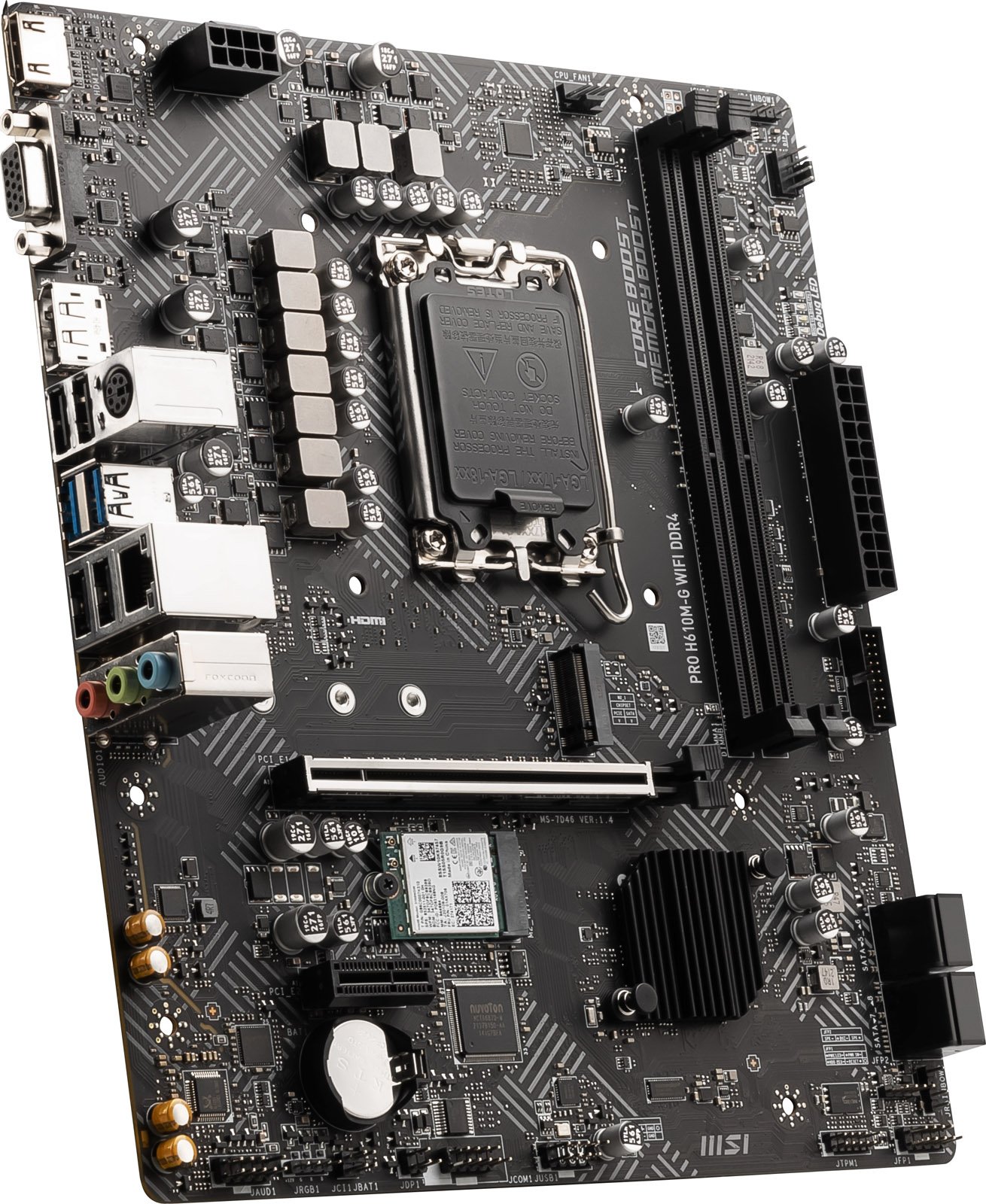

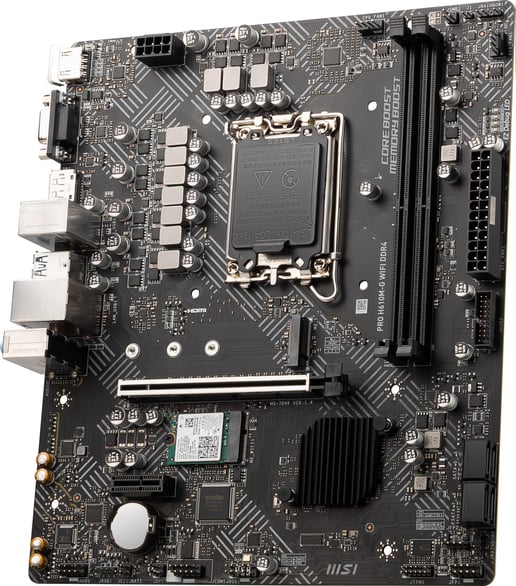

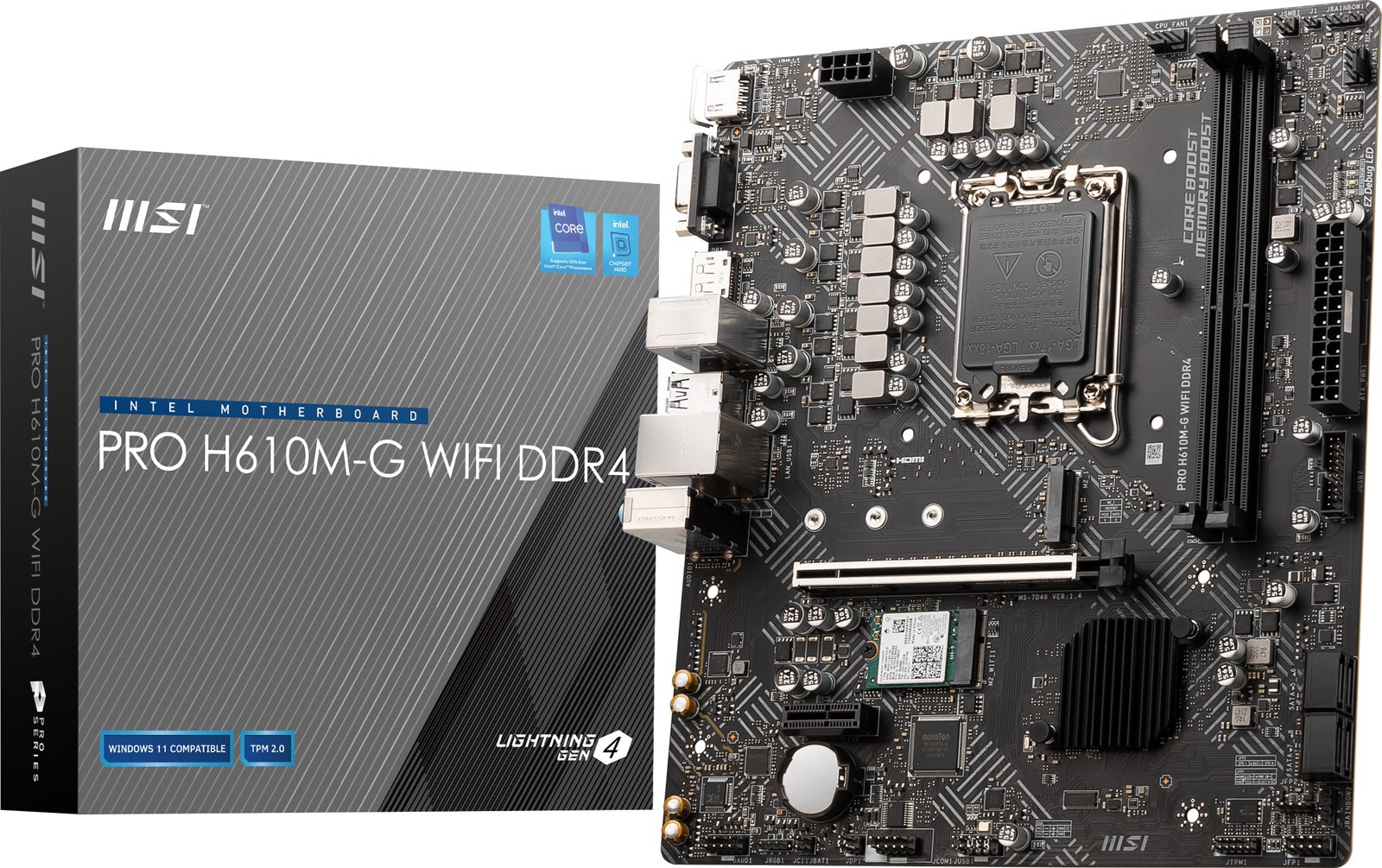

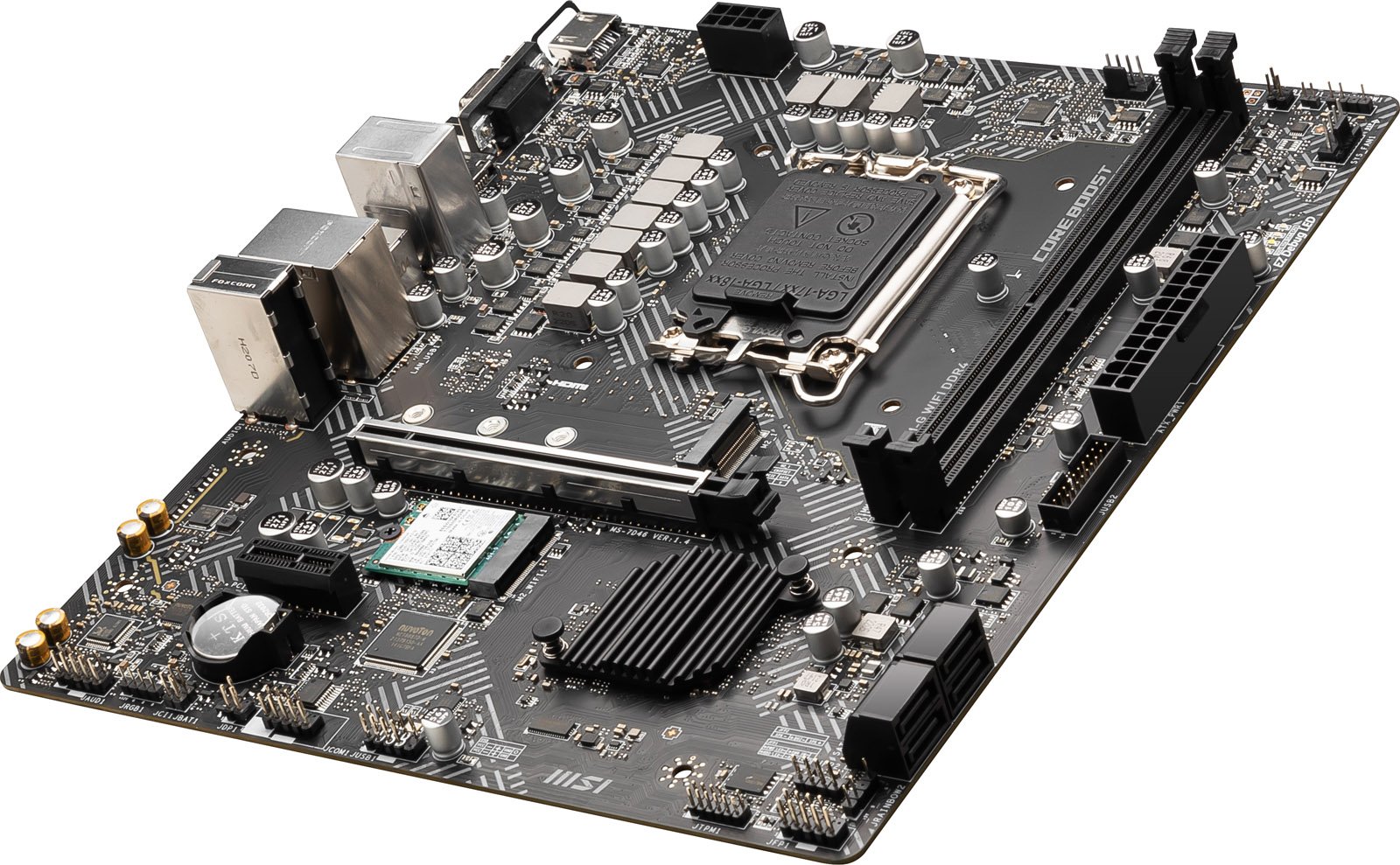

MSI PRO H610M-G WIFI DDR4 mATX Motherboard for Intel LGA1700 CPUs
£69.99
Discontinued
PRO H610M-G WIFI DDR4

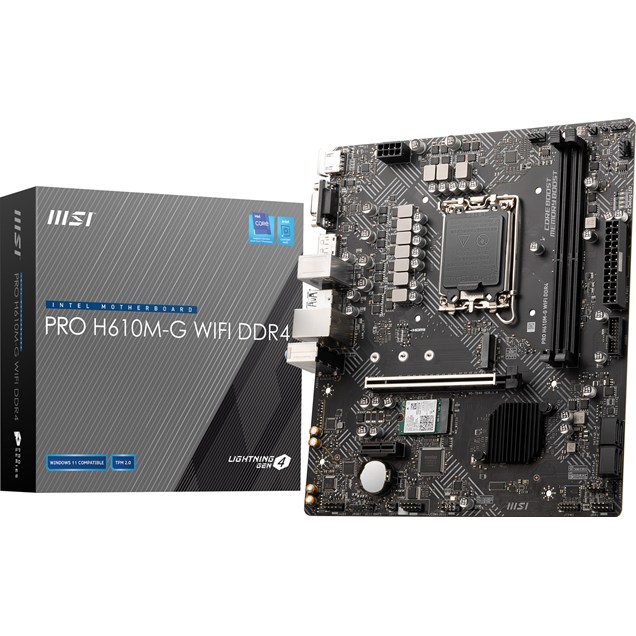

MSI PRO H610M-G WIFI DDR4 mATX Motherboard for Intel LGA1700 CPUs
FORM FACTOR: MATX
SOCKET: LGA1700
MEMORY: DDR4 (MAX: 64GB)
STORAGE: 1 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 6 PORT(S)
Supports Intel Core 12th Gen Processors
The PRO H610M-G WIFI DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
Form Factor: Micro-ATX
Socket Type: LGA 1700
Chipset: Intel H610
Integrated Cooling Features
Chipset Heatsink: Provides passive cooling.
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. Steel Armor also shields the point of contact from electromagnetic interference:
* 1 x PCI-e 4.0 x16 slot (with Steel Armor)
* 1 x PCI-e 3.0 x1 slot
Gen3 M.2 Connector
The PRO H610M-G WIFI DDR4 motherboard features MSI's Turbo Gen3 M.2 slot:
1 x Gen3 x4 32Gb/s slot
*Supports SATA 6Gb & 2242/ 2260/ 2280 storage devices
Optimized Layout Design
2 x DDR4 Dual Channel (3200 MHz)
8+1+1 Power Design with Core Boost: MSI's exclusive technology guarantees stable and strong current delivered to the core processor.
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for better stability.
Intel® Wi-Fi PCI-e Adapter
Intel® Dual Band Wireless-AC 3168: Up to 867 Mbps, Bluetooth 4.2
Stay Connected
1G LAN: A 1Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Ports: Include HDMI 2.1 & DP 1.4 ports (4K/60Hz) as well as legacy VGA.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

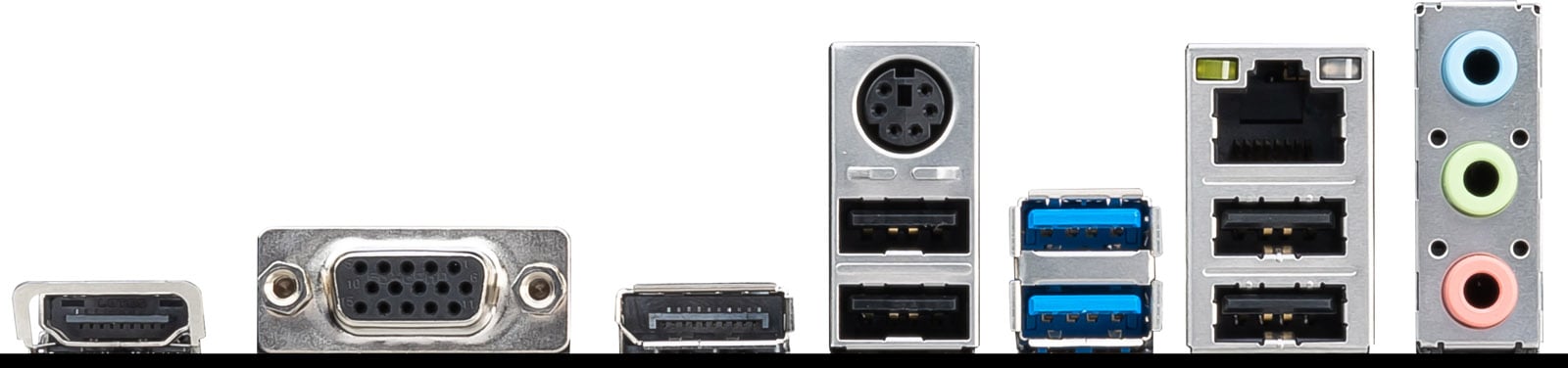

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
1 x USB 2.0 header (supports 2 ports)
Memory
- Memory Bus Speed: Up to 3200 MT/s
- Memory Type: DDR4
Motherboard
- Northbridge: Intel H610
- RAID Supported: No
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x System fan header
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen3 or SATA)
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 64 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Intel I219V
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes - Wi-Fi 5
- Wireless Network Speed: Up to 433 Mbps
- Bluetooth: Yes
- Bluetooth Version: 4.2
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

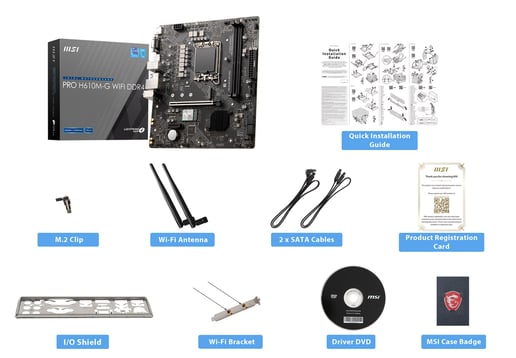

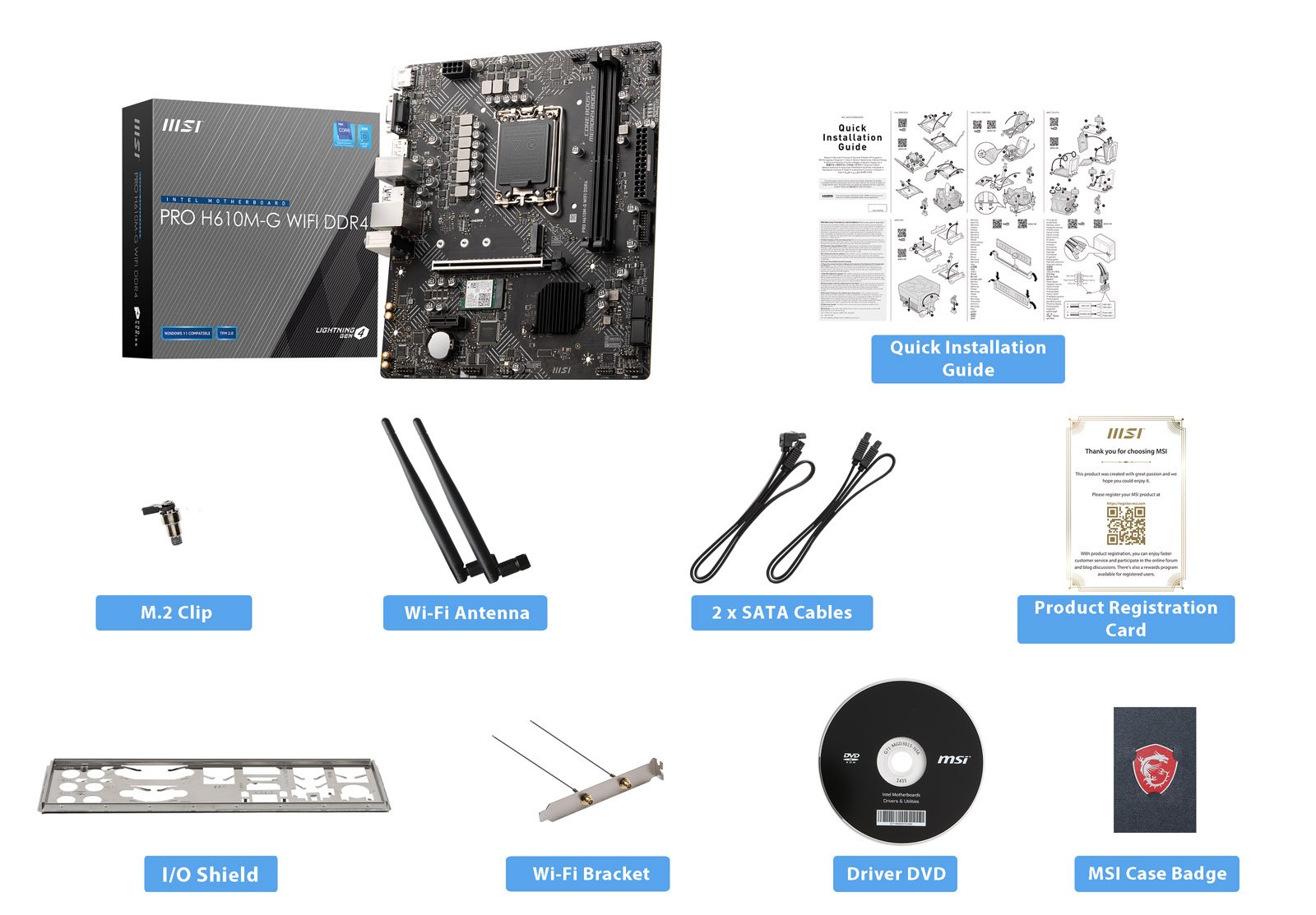

- In The Box: Motherboard
- Quick Installation Guide
- M.2 Clip
- Wi-Fi Antenna
- 2 x SATA Cables
- Product Registration Card
- I/O Shield
- Wi-Fi Bracket
- Driver DVD
- Width: 211 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3932
- Mfg Code: PRO H610M-G WIFI DDR4
Warranty
- Warranty: 3 Years
