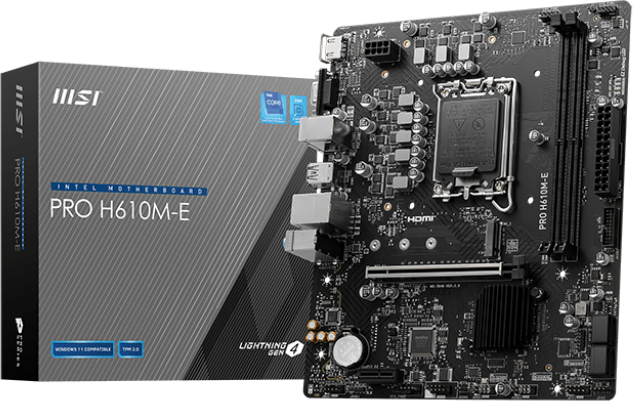

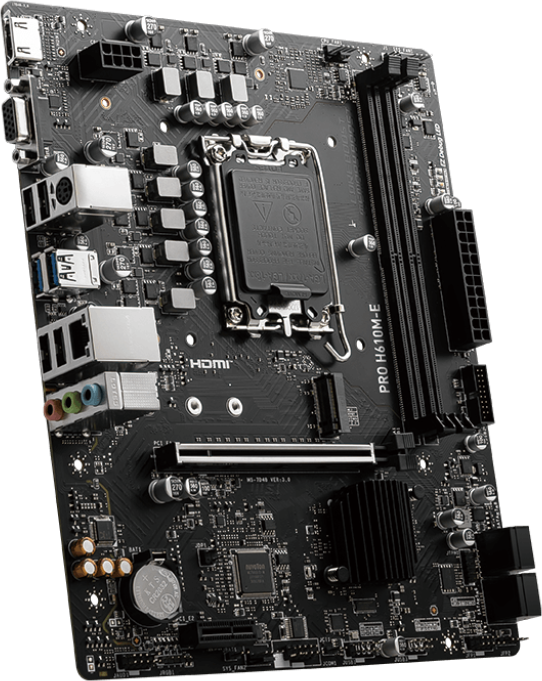

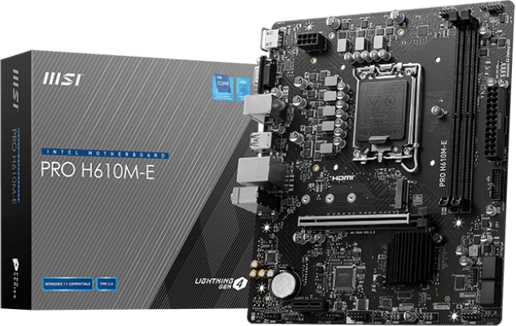

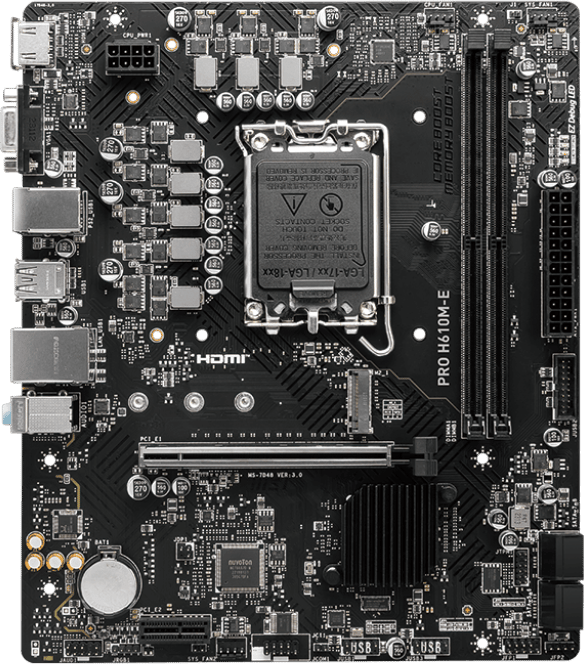

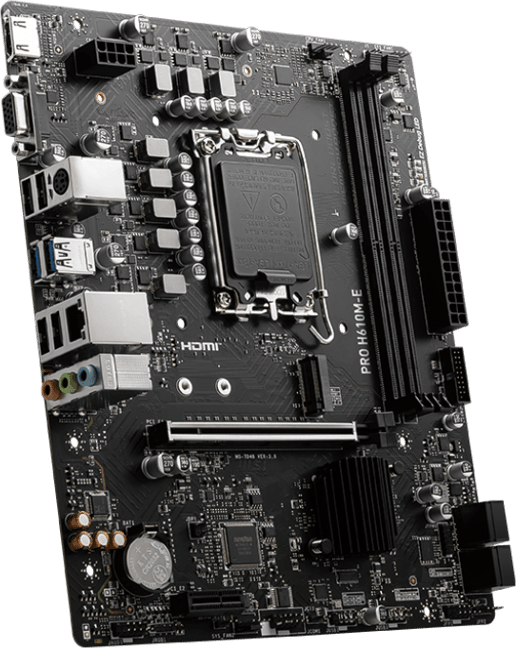

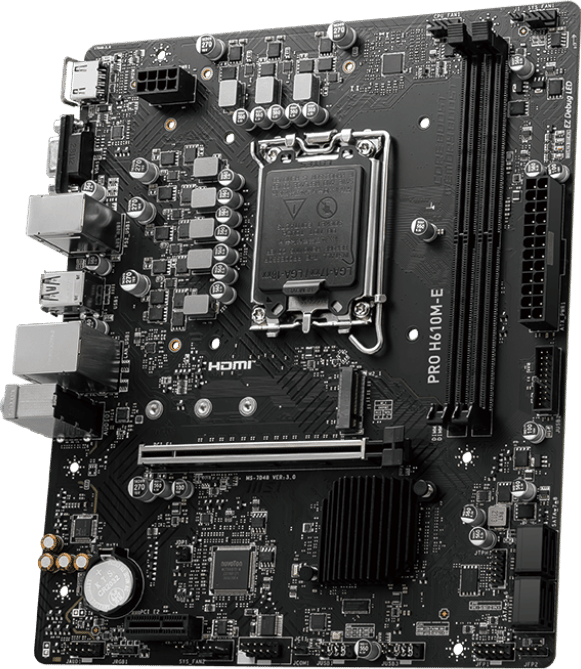

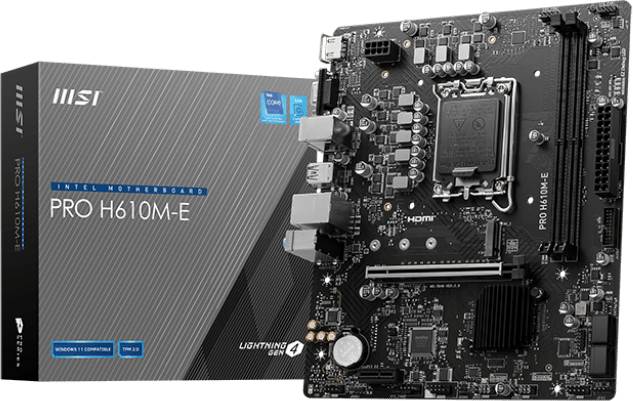

MSI PRO H610M-E mATX Motherboard for Intel LGA1700 CPUs
USER FRIENDLY DESIGN
MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.
CONNECTIVITY
The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.
EXPERIENCE MORE
MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core 14th/ 13th/ 12th Gen Processors, Intel Pentium Gold and Celeron Processors
- 64-bit Support: Yes
- Socket: LGA1700

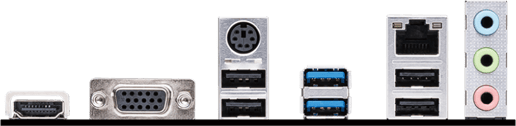

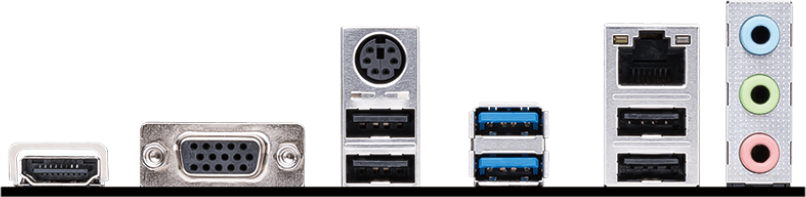

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.0
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 1.4
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 5600 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel H610
- RAID Supported: No
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen3 or SATA)
- 1 x 4-pin RGB LED header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 96 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8111H
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Windows 11
Physical
- Form Factor: mATX Motherboard
- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- M.2 Screw / Standoff Set
- SATA Cable
- I/O Shield
- Width: 200 mm
- Length: 236 mm
Identifiers
- Stock Code: MBD3687
- Mfg Code: PRO H610M-E
Warranty
- Warranty: 3 Years
