MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs

MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3429

Sold out

Notify Me
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs
  • MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs

PRO B760-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.

MSI PRO B760-P WIFI DDR4 ATX Motherboard for Intel LGA1700 CPUs

PRO B760-P WIFI DDR4

PRO B760-P WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR4 (Max: 128GB / 4 slots)
  • 2 x M.2 & 7 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3429

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

MSI PRO B760-P WIFI DDR4 ATX Motherboard

Main Features

  • Supports 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

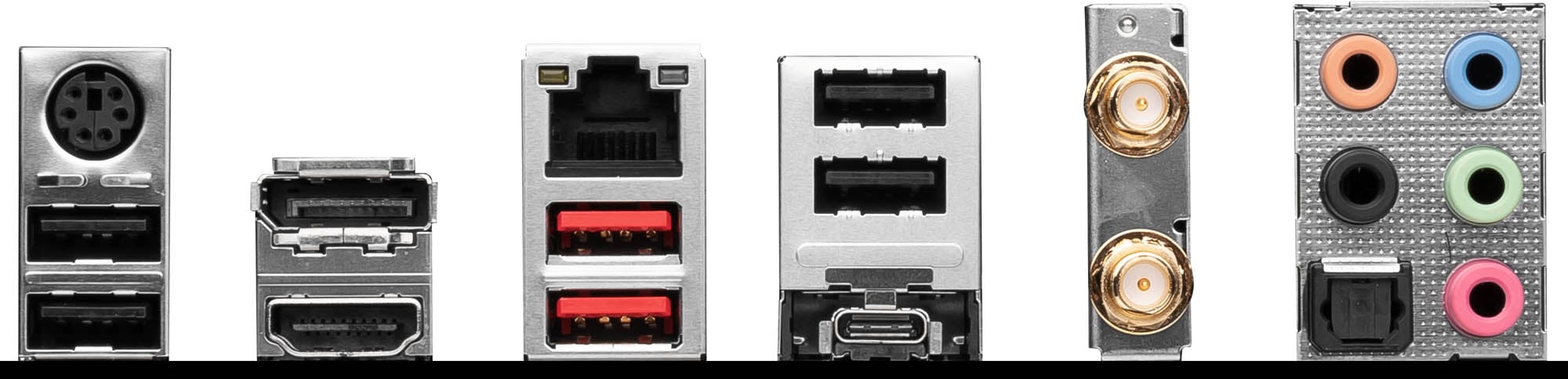

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen2
2x USB 3.2 Gen2
4x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 3 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
5 x System fan headers
Thunderbolt Port(s) 1 x TBT header (JTBT, supports RTD3)
Parallel Connectors 1 x LPT header
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
2 x 8-pin EPS
Other Connectors 1 x M.2 slot, Type 2242/2260/2280/22110 (PCIe Gen4)
1 x M.2 slot, Type 2242/2260/2280 (PCIe Gen4 or SATA)
2 x 3-pin ARGB LED header
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 5,333+ MHz
Memory Type DDR4
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)
3 x PCI Express 3.0 x16 slots (@ x1)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Realtek RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6E)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard

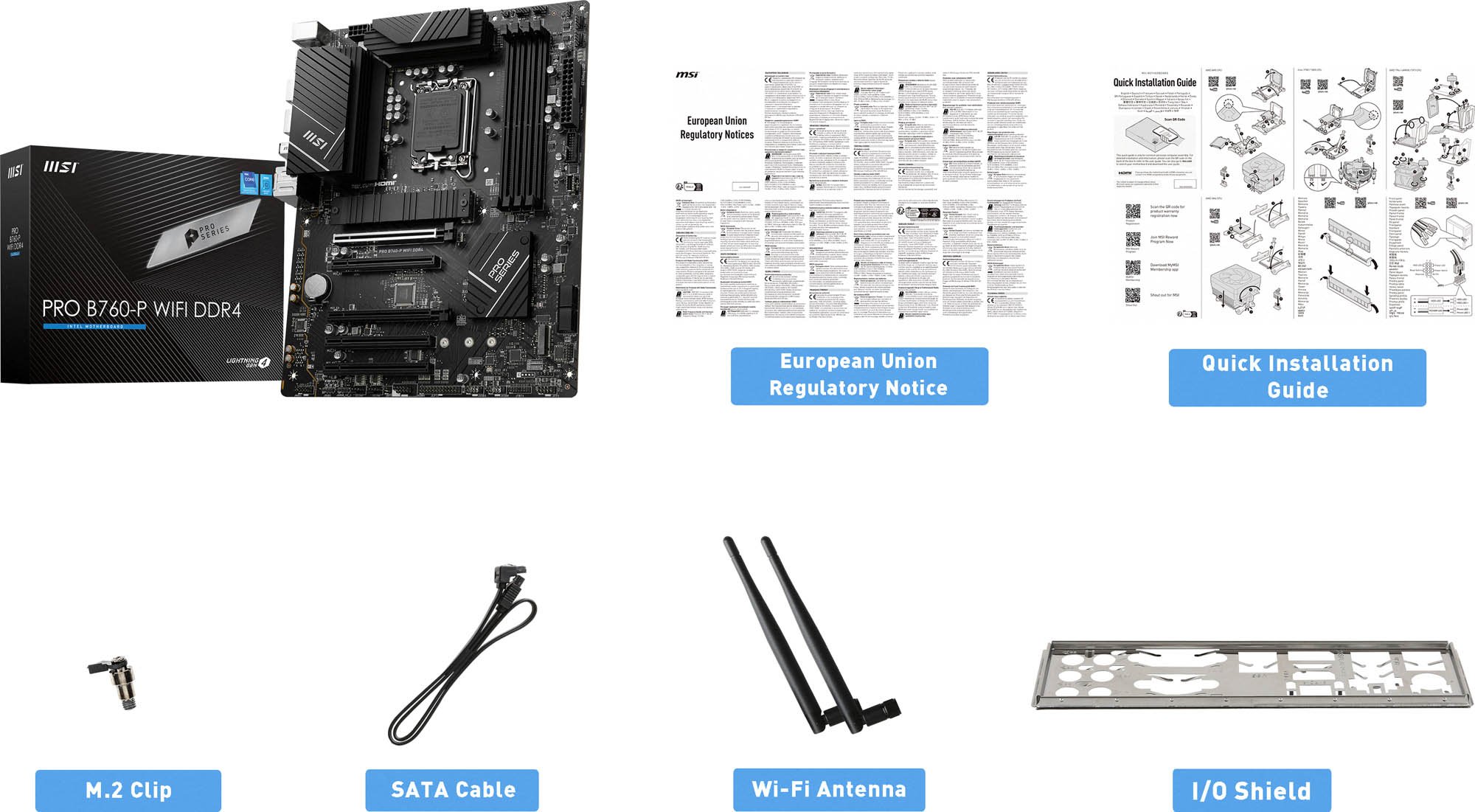

In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
EZ M.2 Clip
SATA Cable
Wi-Fi Antenna
I/O Shield
Width 243.84 mm
Length 304.8 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 7 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard (EPS) Power Connectors 2 x 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model MSI PRO B760-P WIFI DDR4
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
Memory Speed 5333 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Size mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 3200 MHz
Max Memory Speed Supported (overclocked) 5333 MHz
CPU Power Pins (female) 16
PCI Express Power Pins (female)
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
Maximum SATA M.2 ports 1
PCI-e slots 5
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Graphics

Graphics Chipset

Item Details

Manufacturer MSI
Manufacturer Code PRO B760-P WIFI DDR4
EAN 4711377028363
UPC 824142306864
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B760-P WIFI DDR4
Reviews
5.0 / 5 2 reviews

Lukas

10 months ago

good mid range motherboard and good price

Matthew

12 months ago

Best value for money on the market for a 12th/13th gen socket board
