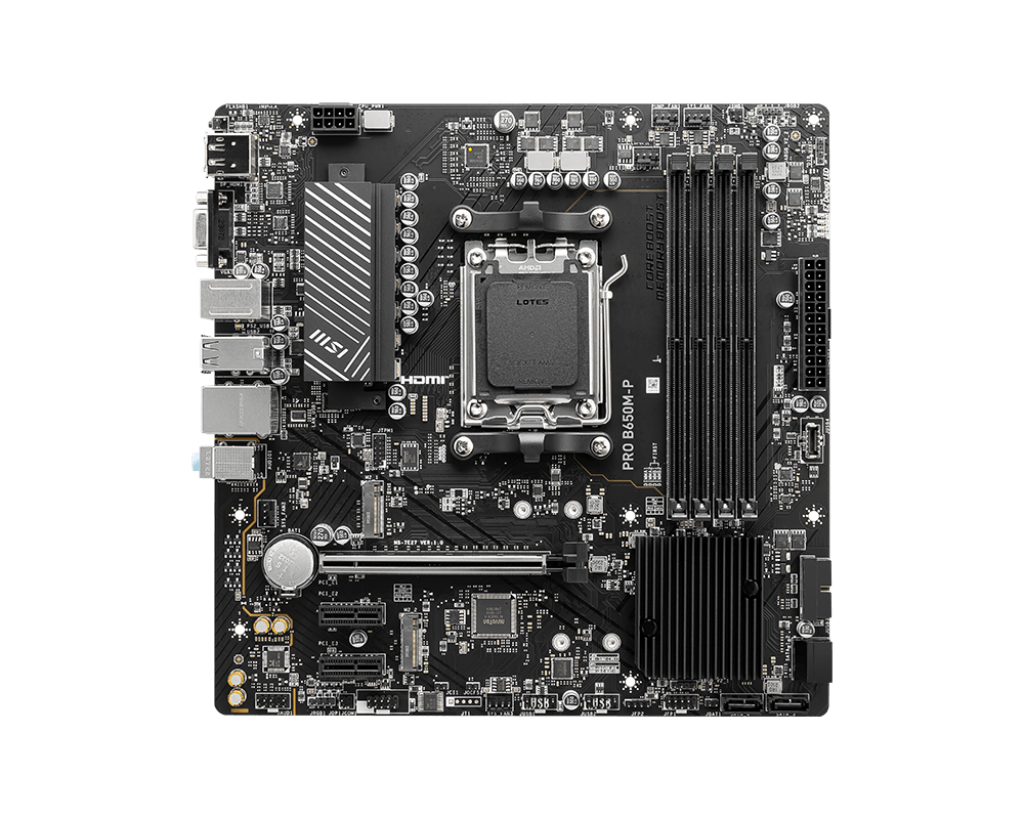

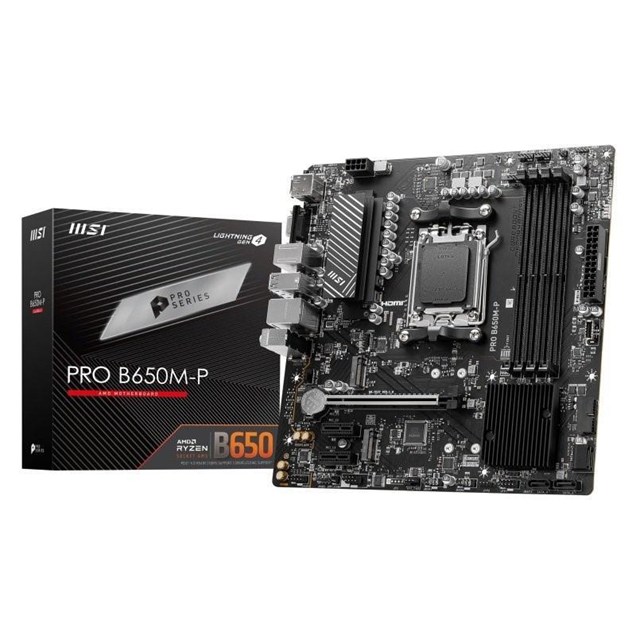

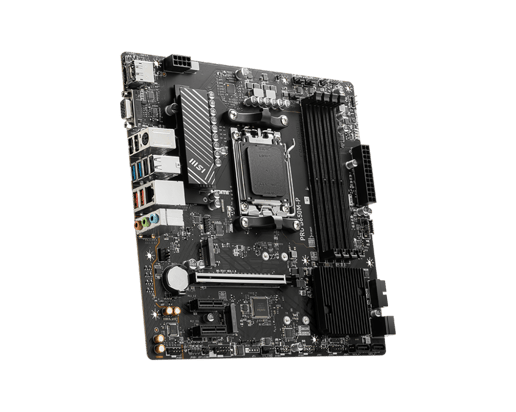

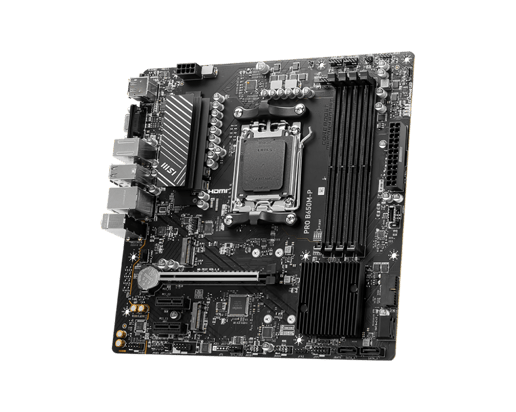

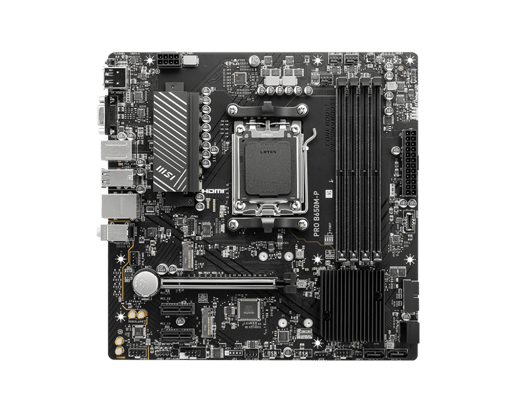

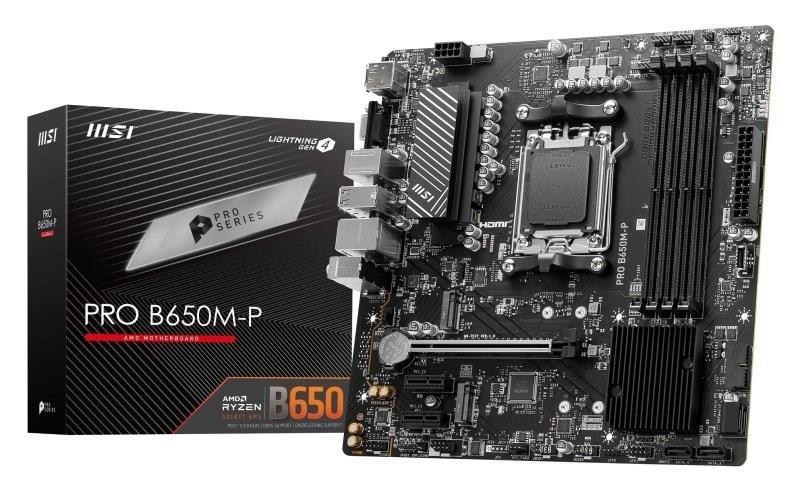

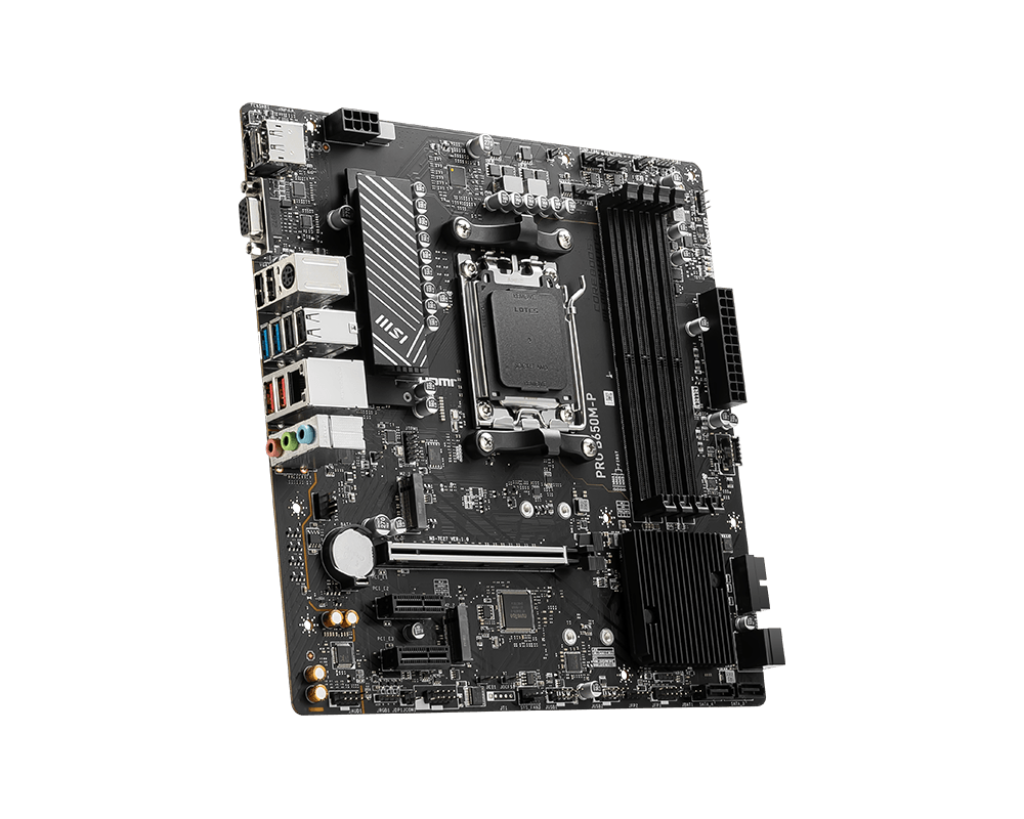

MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs

MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3536

Discontinued

  • MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs
  • MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs

PRO B650M-P is designed with tons of flexible tools with DDR5 memory version.

MSI PRO B650M-P mATX Motherboard for AMD AM5 CPUs

PRO B650M-P

PRO B650M-P is designed with tons of flexible tools with DDR5 memory version.

Key Features:

  • mATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 8 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3536

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.

Main Features

  • Supports AMD Ryzen 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2
  • 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 8000/ 7000 Series Desktop Processors
64-bit Support Yes
Socket AM5

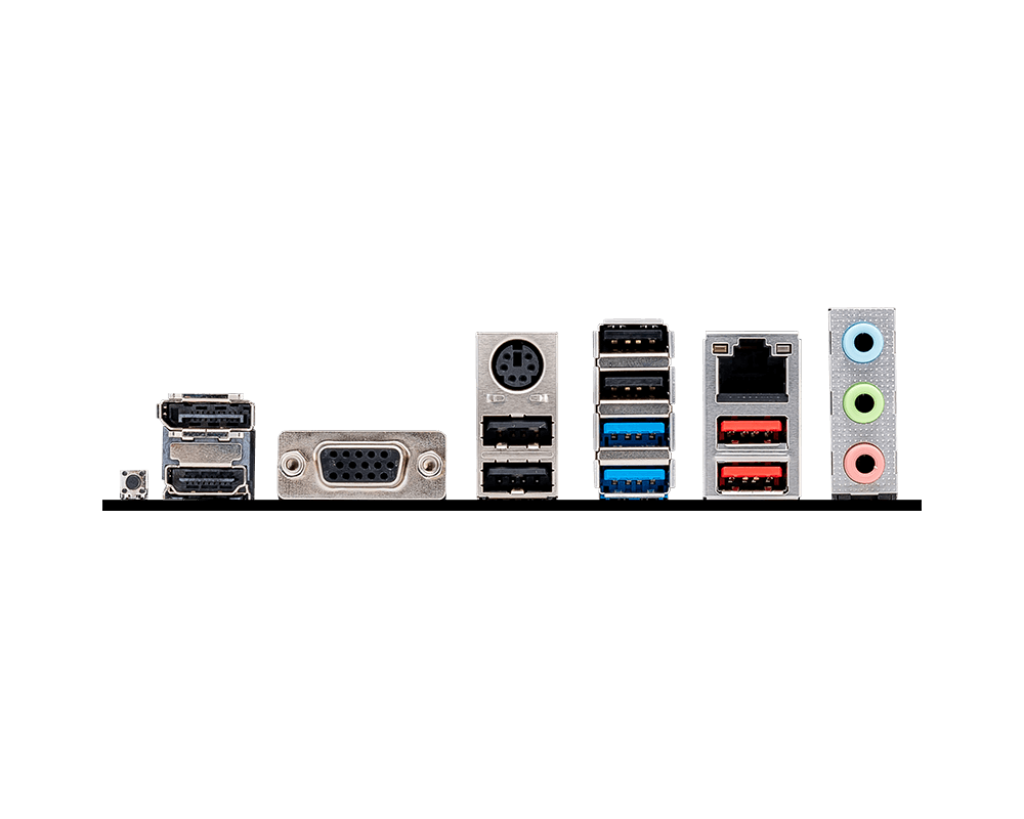

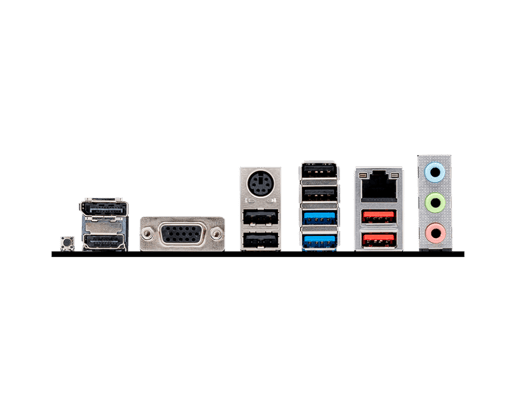

Rear Panel I/O Ports

USB Ports 2 x USB 3.1
2 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5 mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5 mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)3
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x Pump fan header
3 x System fan headers
Serial Connectors 1 x COM header
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 2 x M.2 slots, Type 2260/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Realtek 8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
In The Box Motherboard
EU Regulatory Notice
Quick Installation Guide
2 x M.2 Clips
SATA Cable
I/O Shield
Width 244 mm
Length 244 mm

Key Features

Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model MSI PRO B650M-P
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control MSI Mystic Sync
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 6000 MHz
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Item Details

Manufacturer MSI
Manufacturer Code PRO B650M-P
EAN 4711377100953
UPC 824142324837
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer MSI
Manufacturer Code PRO B650M-P
