The PRO A620M-B motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
Form Factor: mATX
Socket Type: AM5
Chipset: AMD A620

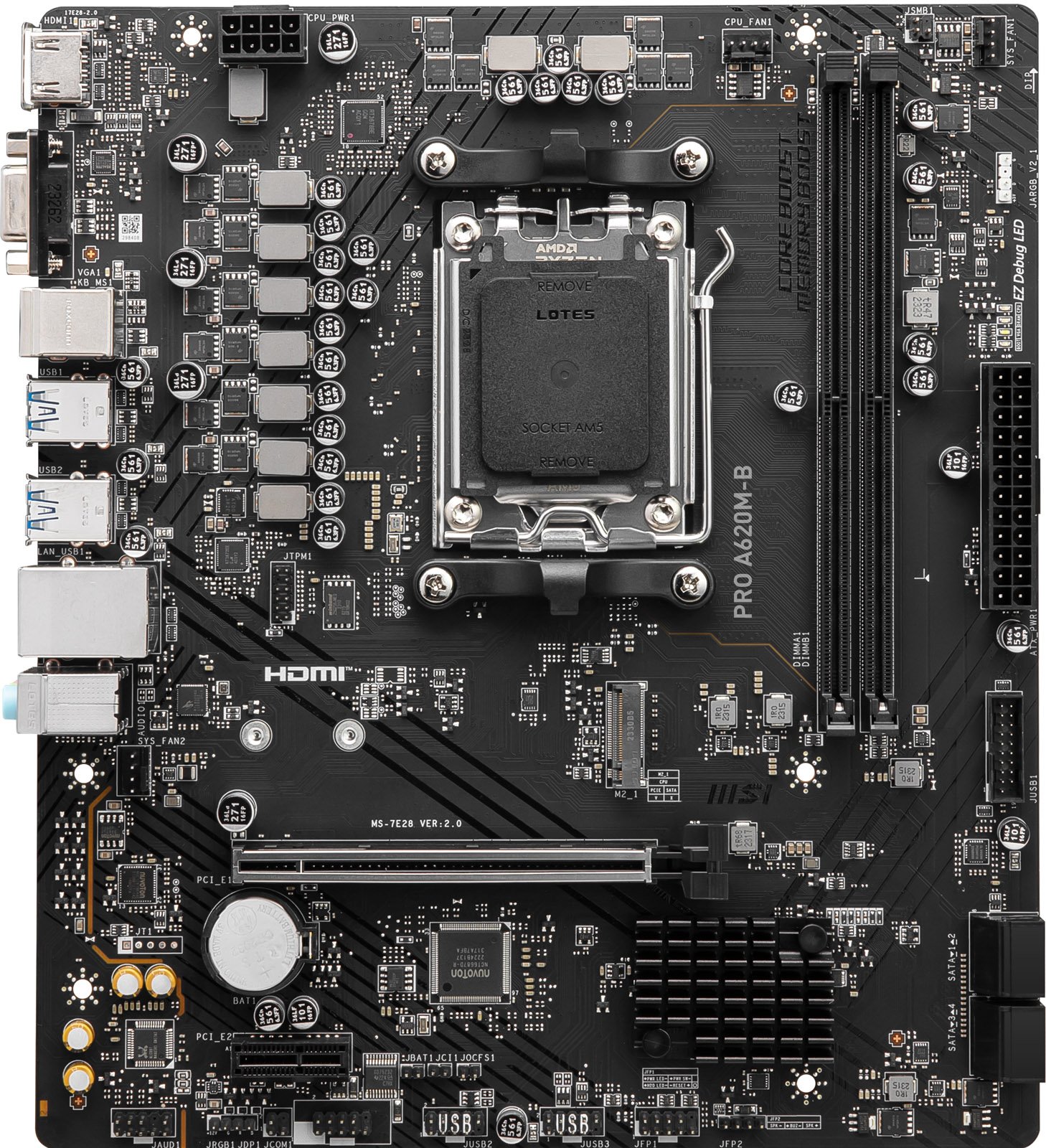

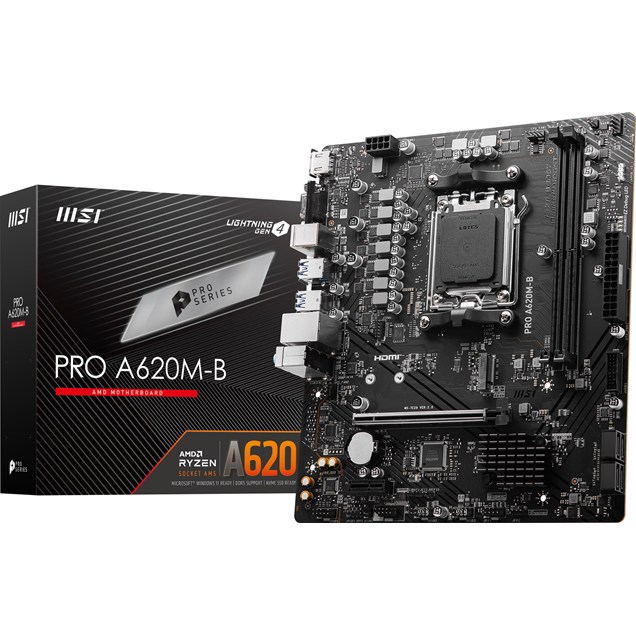

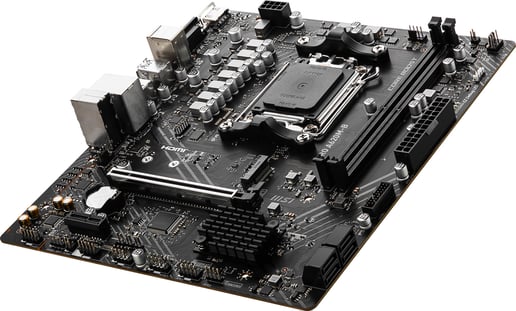

MSI PRO A620M-B mATX Motherboard for AMD AM5 CPUs
£76.99
Discontinued
PRO A620M-B
MSI PRO A620M-B mATX Motherboard for AMD AM5 CPUs
FORM FACTOR: MATX
SOCKET: AM5
MEMORY: DDR5 (MAX: 128GB)
STORAGE: 1 X M.2, 4 X SATA
USB: 6 PORT(S)
Business Elegance
The PRO A620M-B is a business-oriented mATX motherboard constructed around the AMD A620 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 4.0, 2.5G LAN, and DDR5 that fulfills business needs.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Integrated Cooling Features
Chipset Heatsink: Provides passive cooling
Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures
4 x DDR5 Dual Channel (6800+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
Memory OC profiles in MSI BIOS are checked by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 6800+ MT/s, supports AMD EXPO.
Fortified PCIe 4.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
1 x PCIe 4.0/3.0 x16 slot (with Steel Armor)
1 x PCIe 3.0 x1 slot
Gen4 M.2 Connector
The PRO A620M-B motherboard features MSI's M.2 slot:
1 x Gen4 x4 64Gbps slot
Connectivity
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network experience.
USB 5Gbps Type-A: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
Display Outputs: Include HDMI 2.1 (4K/60Hz) and legacy VGA
PRO A620M-B is designed with tons of flexible tools with DDR5 memory version.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

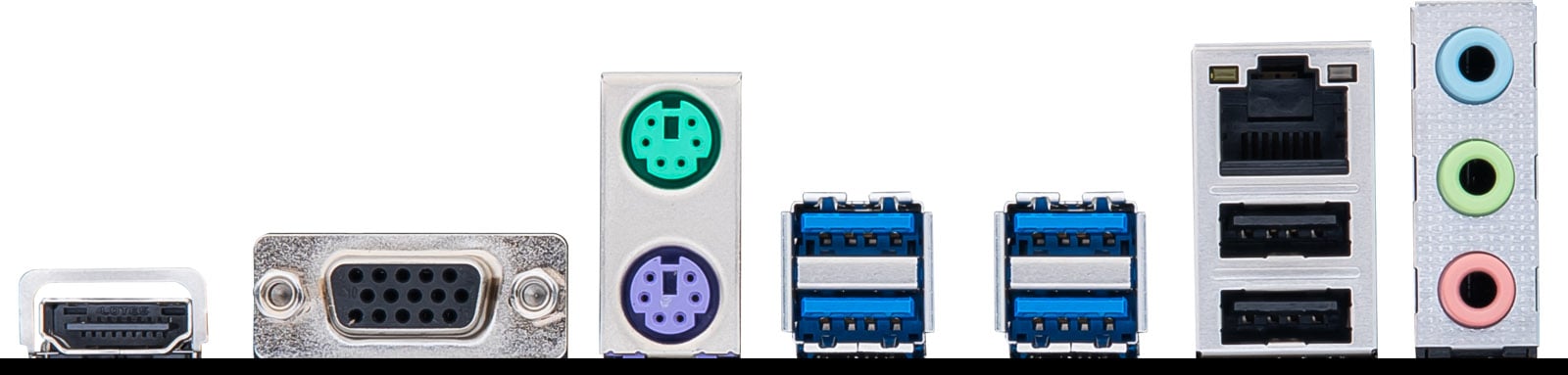

Rear Panel I/O Ports
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
- VGA Port: 1 x D-Sub
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 6800 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel A620
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard Port: 1 x PS/2
- Mouse Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 2 x System fan headers
- Serial Connectors: 1 x COM header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2280/2260 (PCIe Gen4)
1 x 3-pin ARGB header - 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 128 GB
- Memory Slot: 2 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard

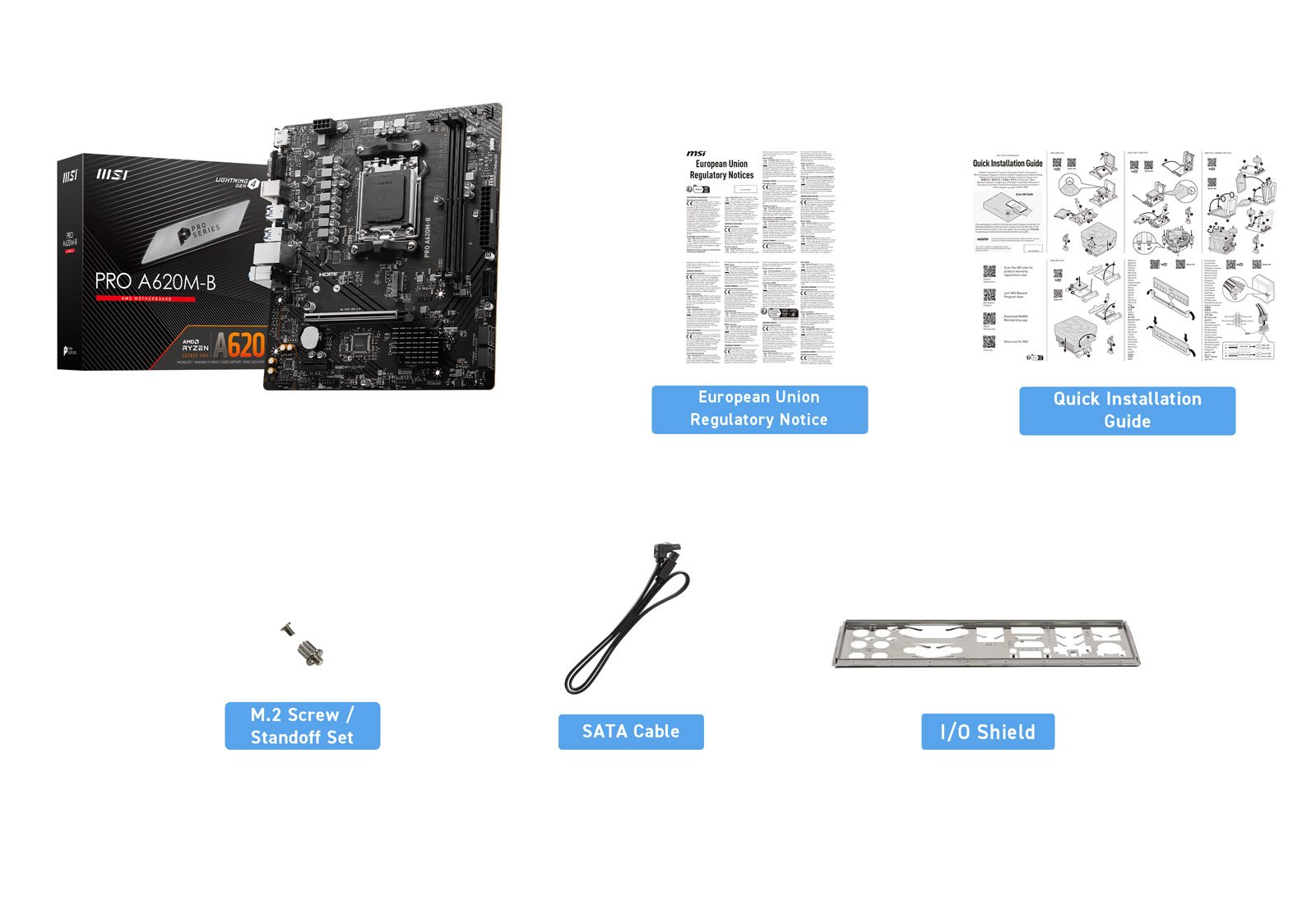

- In The Box: Motherboard
- EU Regulatory Notice
- Quick Installation Guide
- M.2 Screw / Standoff Set
- SATA Cable
- I/O Shield
- Width: 215 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3929
- Mfg Code: PRO A620M-B
Warranty
- Warranty: 3 Years
