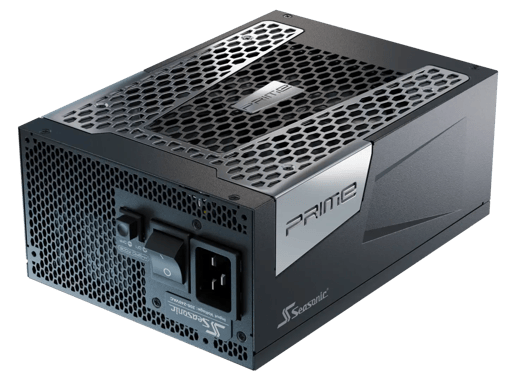

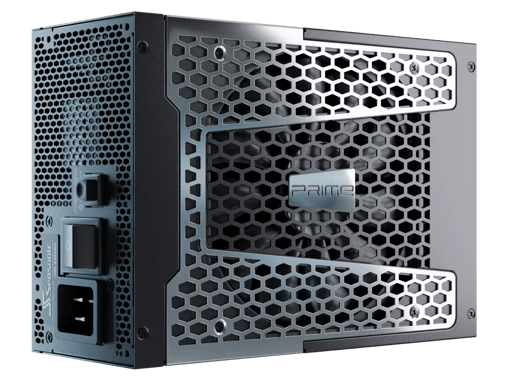

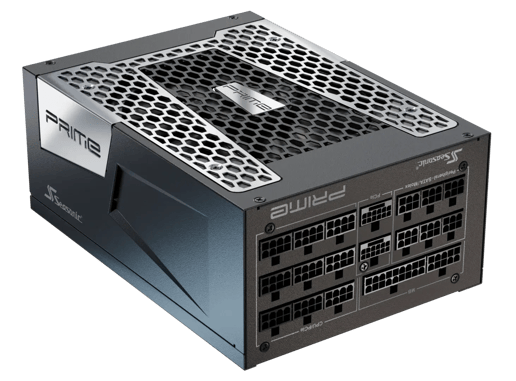

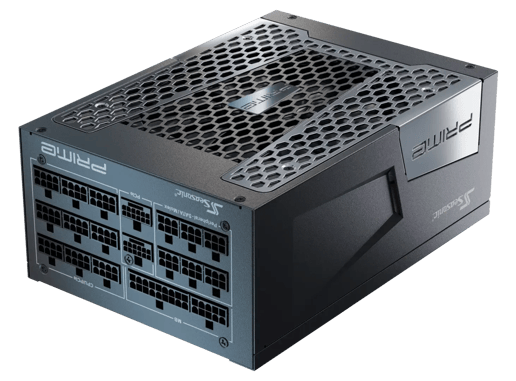

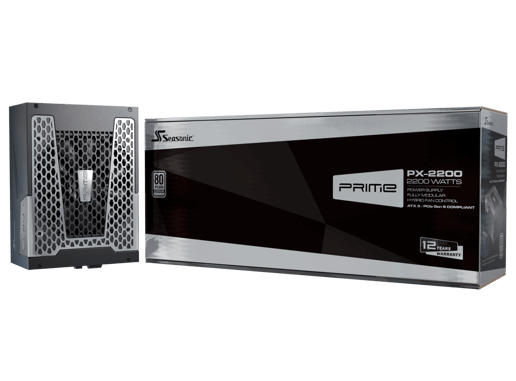

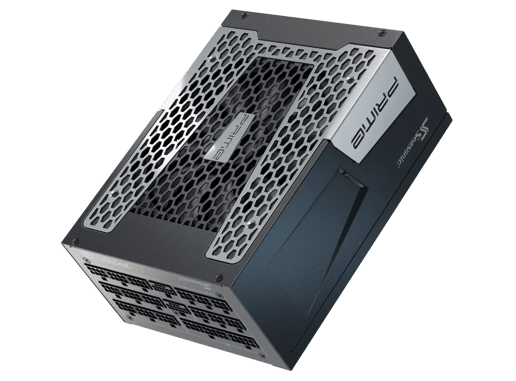

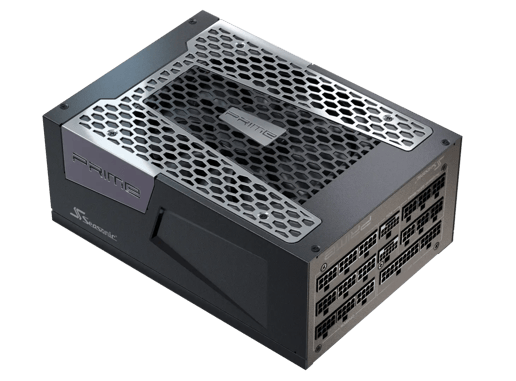

2200W Seasonic PRIME PX ATX 3.1 Modular 80 Plus Platinum PSU
SAVE £100
Available for delivery from Tomorrow
Click & Collect from Today
Low stock - don't miss out
Order within
You have 0 of these in your basket
ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

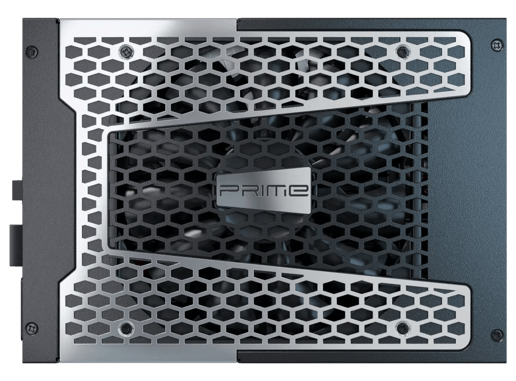

Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.

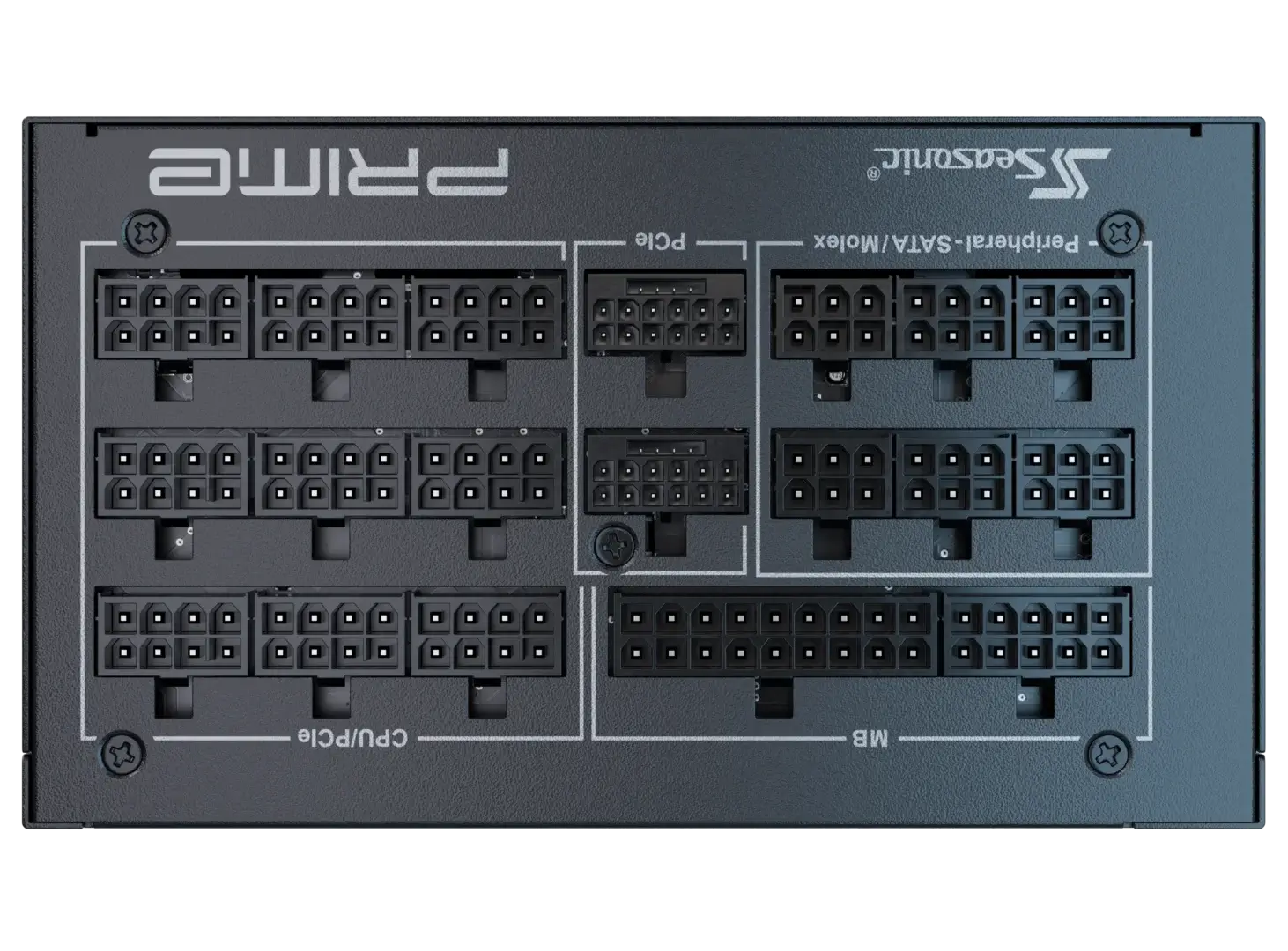

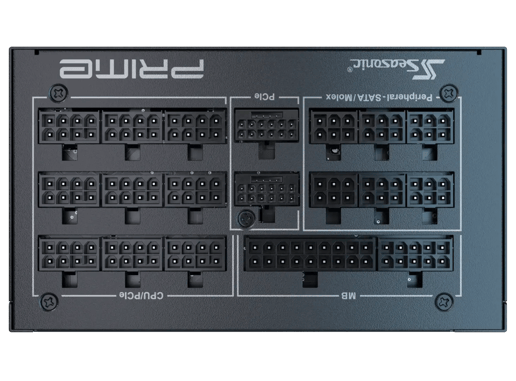

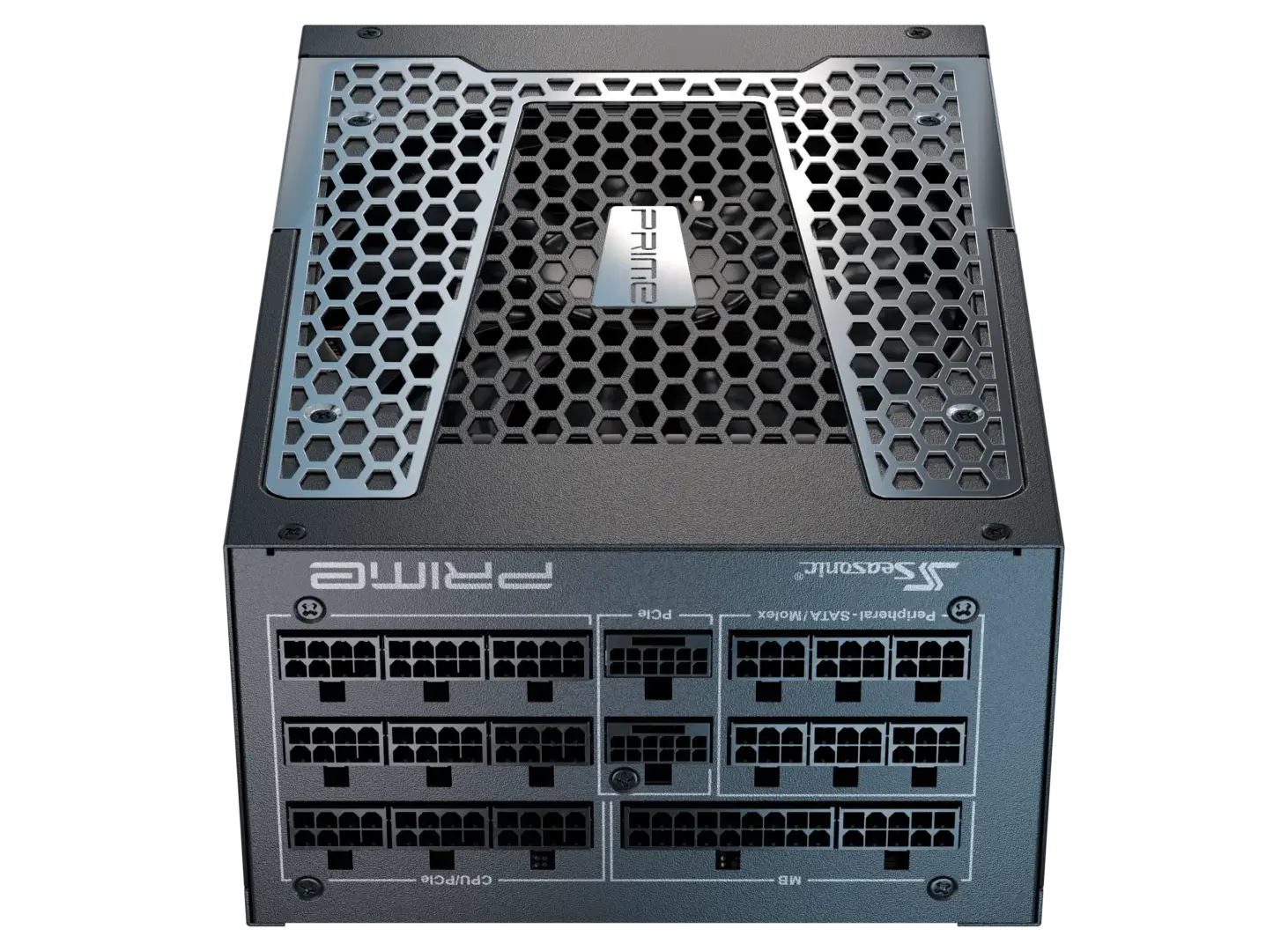

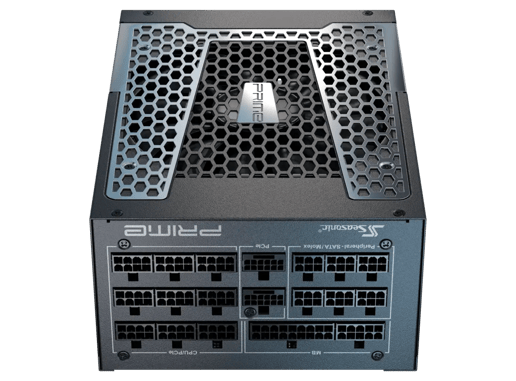

Interfaces/Ports
- SATA Connectors: 18 x SATA
- CPU Connectors: 3 x 4+4-pin EPS
- PCI Connectors: 4 x 6+2-pin PCIe
- Motherboard Connectors: 1 x 24-pin ATX
- Molex Connectors: 3 x Molex
- Other Connectors: 1 x 12V-2x6
- 1 x 12V-2x6 via 2 x 8-pin PCIe
Compliance
- Standards: 80 PLUS Platinum Certified
- Cybenetics Titanium Efficency Certified
- Cybenetics Standard ++ Noise Certified
- Safety: OPP, OVP, UVP, OCP, OTP, SCP
- cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Electrical
- Voltage: 230 V
- Power: 2,200 W
- Power Cord: Yes
Environmental
- Operating Temperature: 0 ~ 50 °C
Physical
- Form Factor: ATX Power Supply
- Case Colour: Black
- Width: 150 mm
- Depth: 210 mm
- Height: 86 mm
Warranty
- Warranty: 12 Years
Identifiers
- Stock Code: PSU2445
- Mfg Code: PRIME-PX-2200-ATX30
Warranty
- Warranty: 12 Years
