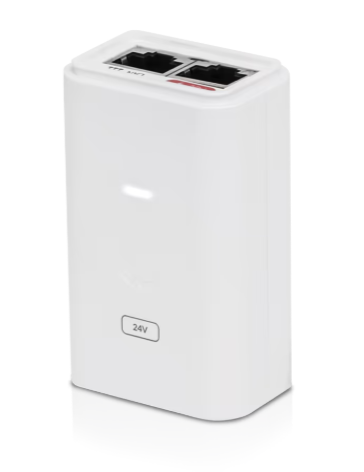

Ubiquiti POE-24-24W-G PoE Gigabit Injector White
£18.99
POE-24-24W-G-WH
Ubiquiti POE-24-24W-G PoE Gigabit Injector White
£18.99 INC VAT
SAVE 5%
Available for delivery from Thursday 2nd July
Click & Collect from Friday 3rd July
Order within
You have 0 of these in your basket
QTY
1
Need Help?
CCL Code: NET4826
| POE-24-7W-G-WH (Hi-Power) | |
|---|---|
| Dimensions | 88 x 57 x 33 mm (3.5 x 2.2 x 1.3") |
| Weight | 159 g (5.6 oz) |
| Output voltage | 24V DC @ 1.0A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | Yes |
| Reset button | Yes |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Inrush current | <60A peak @ 120V AC, <120A peak @ 230V AC |
| Efficiency | 80+% |
| Output ripple | 1% Max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and pins 7, 8 (-) |
| 4-pair powering | - |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 35 to 95% noncondensing |
| AC connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Certifications | CE, FCC, IC, UL |
Identifiers
- Stock Code: NET4826
- Mfg Code: POE-24-24W-G-WH
