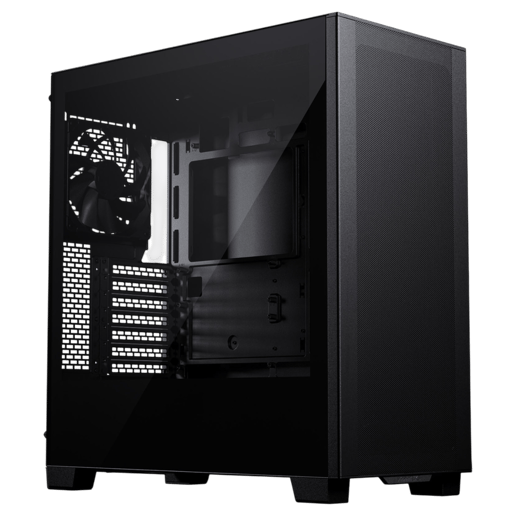

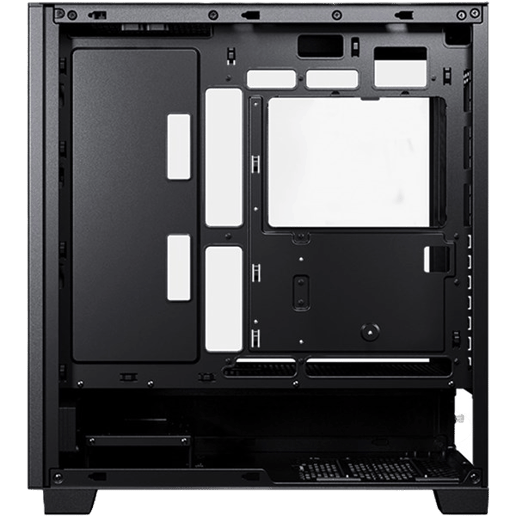

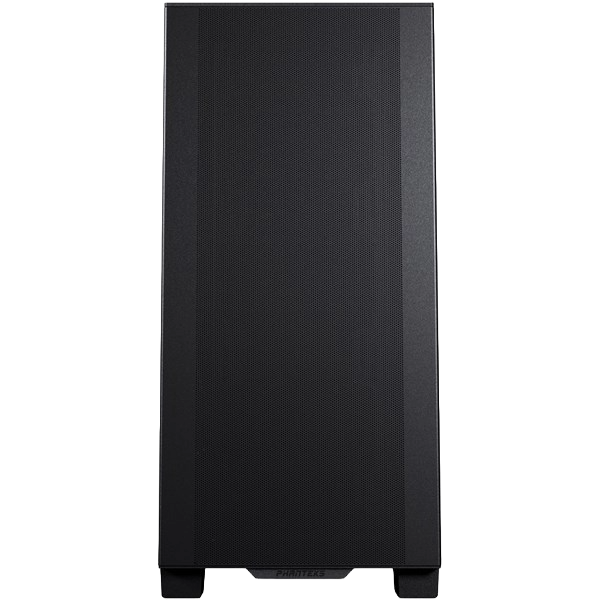

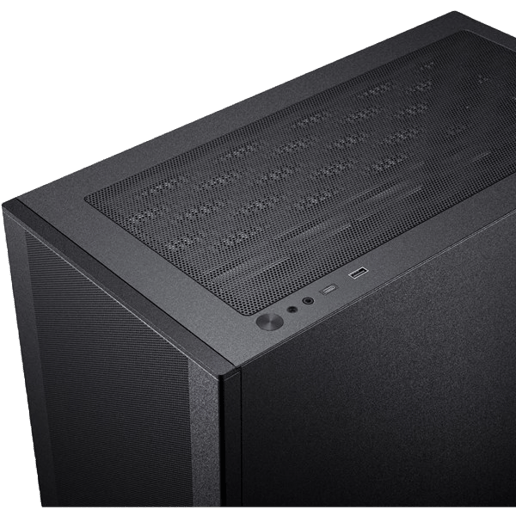

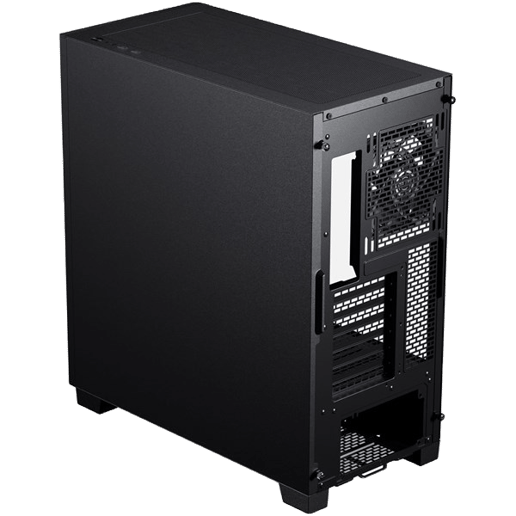

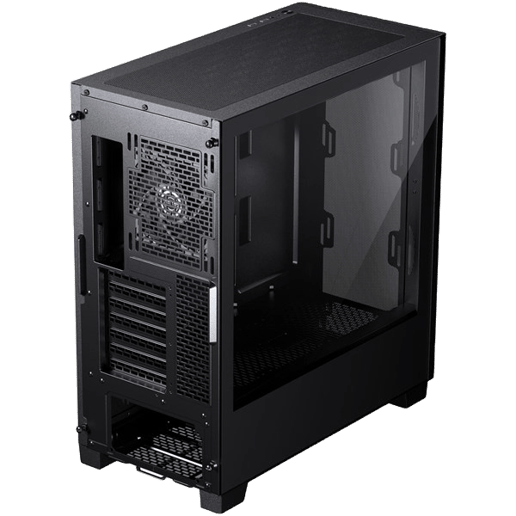

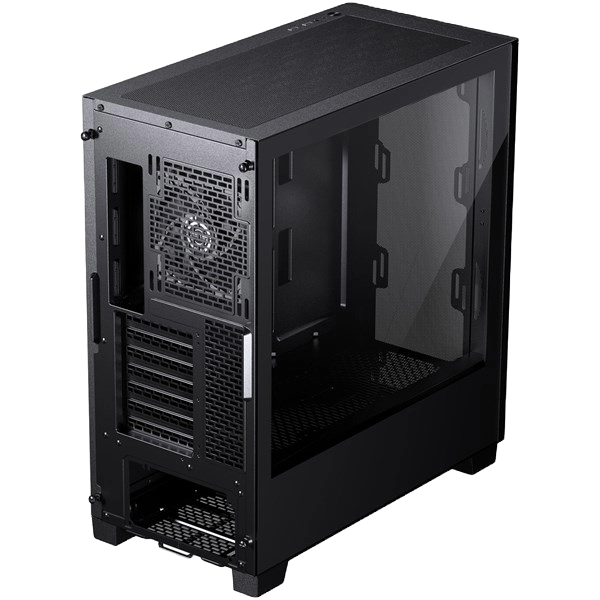

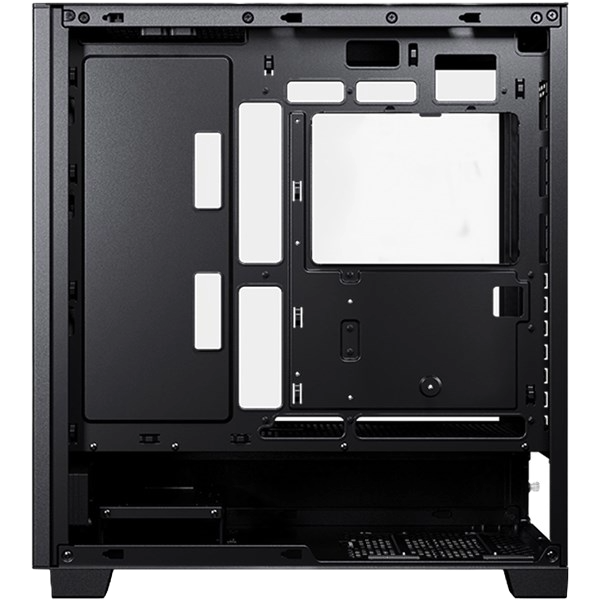

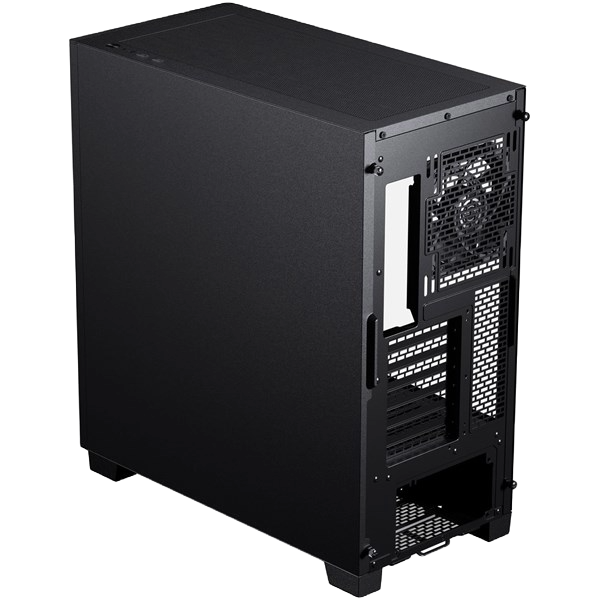

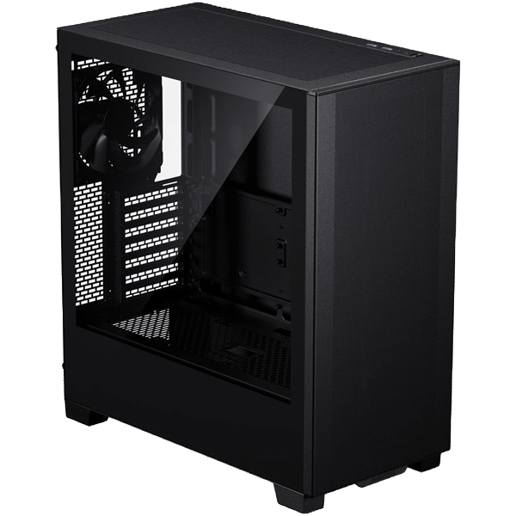

Phanteks XT Pro Mid Tower Case - Black

Phanteks XT Pro Mid Tower Case - Black

CCL Code: CAS4992

Discontinued

Phanteks XT Pro Mid Tower Case - Black

PH-XT523P1-BK01

Key Features:

  • Max Motherboard Size: E-ATX
  • Tempered Glass Side
  • Front USB Type-C Port
  • 2 x 2.5" / 2 x 3.5" Bay(s)
CCL Code: CAS4992

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

With new hardware releases demanding more cooling capacity and internal space, the XT-series are designed to deliver just that. And it delivers with extremely good value. The length and width of the chassis easily fit even the largest graphics cards with space to spare for cable management. Cooling has been optimized with up to 10x 120 mm fan locations, support for 140 mm fans and dedicated radiator space in the top of the chassis.

The XT-Series further innovates to bring support for the lastest mainboards that host hidden connectors at the rear to unlock that zero-cable setup. The graphics card also benefits from 3x 120 mm fan locations on the midplate that provides direct cooling.

Specifications

Storage

Internal Expansion Bays 2 x 2.5"
2 x 3.5"

Expansion

Expansion Slots 7 x Full Height

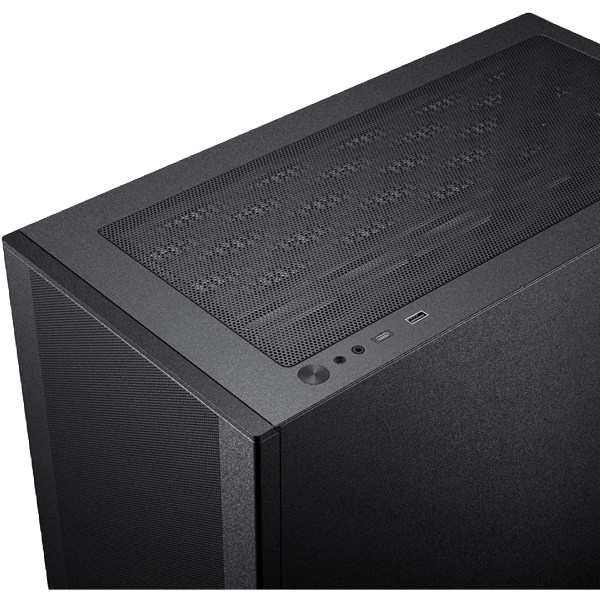

Interfaces/Ports

USB Ports 1 x USB-C 3.0
1 x USB 3.0
Headphone Ports 1 x 3.5mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

Cooling System Front: Supports 3 x 140mm or 120mm fans
Top: Supports 2 x 140mm or 3 x 120mm fans
Rear: Supports 1 x 140mm or 120mm fan (140mm fan included)
Midplate: Supports 3 x 120mm fans
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower Case
Case Colour Black
Material Steel
Tempered Glass
Motherboard Compatibility E-ATX (up to 280mm)
ATX
mATX
Mini-ITX
In The Box Case
Accessory Box
Width 230 mm
Depth 450 mm
Height 500 mm
Weight 7.55 kg

Warranty

Warranty 5 Years

Key Features

Max Motherboard Width 280 mm
Max Motherboard Height 305 mm
Supports AIO Cooler Yes
Main Colour Black
Case Type Tower
Case Form Factor Mid Tower
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Illuminated No
L.E.D Fan No LED
Max 3.5" Drives 2
Max 2.5" Drives 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
Cooler Height 184 mm
Built-in Card Reader No
USB Type-C Support Yes
Side Panel Type Tempered Glass
GPU Length 415 mm
PSU Depth 270 mm
Number of Fans 1 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 3
Power Requirement (auto) 3 W
USB3.0 ports 1
USB-C ports 1
Low profile expansion No
Max Supported Radiator Length 360 mm
Create Your Own Gaming PC (CCL) Yes
Back Connect Support No

Item Details

Manufacturer Phanteks
Manufacturer Code PH-XT523P1-BK01
EAN 0886523303091
UPC 886523303091
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Phanteks
Manufacturer Code PH-XT523P1-BK01
Reviews
No reviews have been received for this product yet
