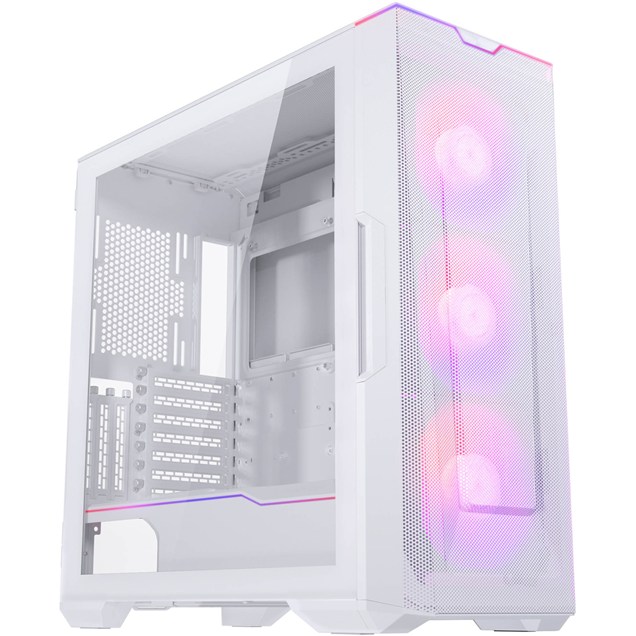

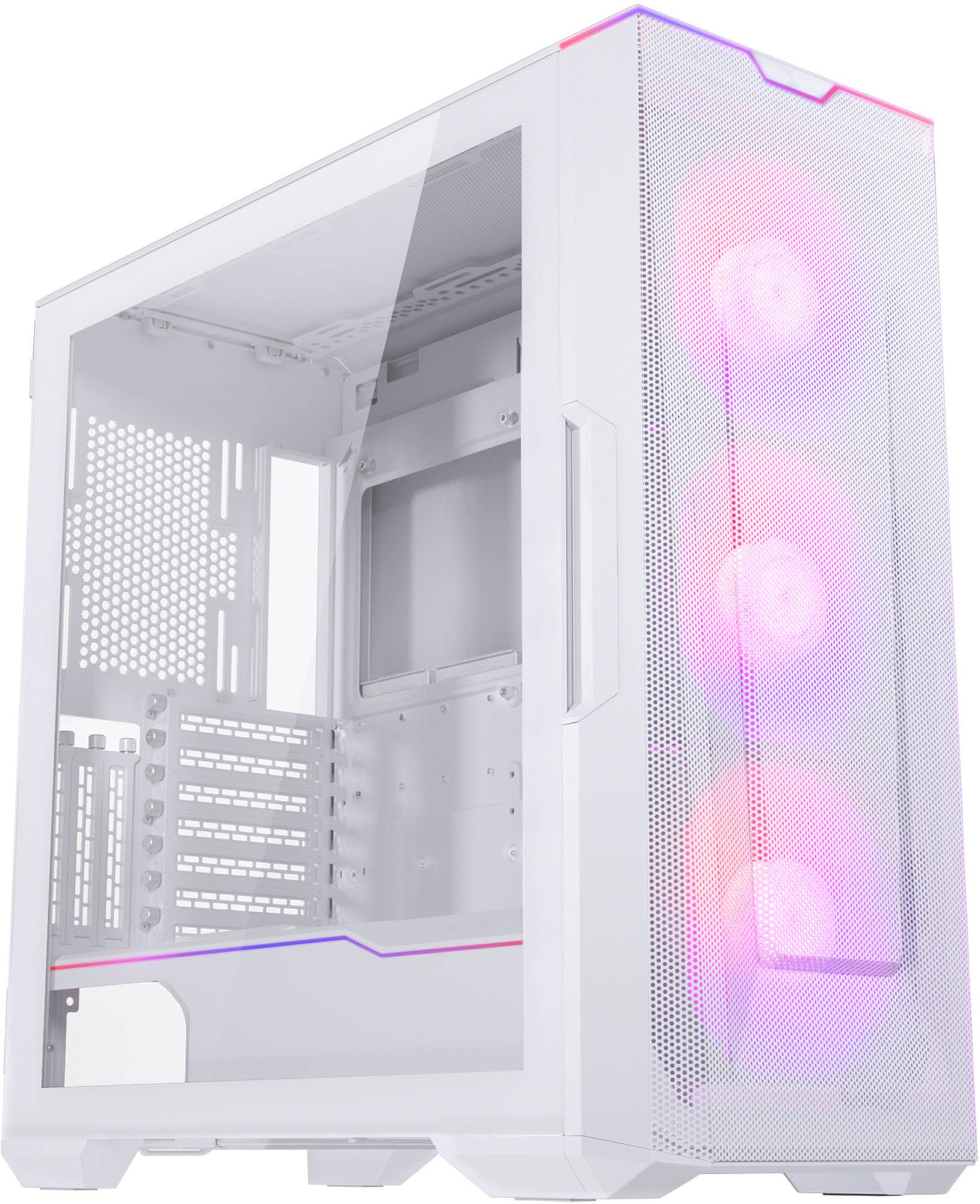

Phanteks Eclipse G500A Mid Tower Case - White

Phanteks Eclipse G500A Mid Tower Case - White

CCL Code: CAS4655

£148.99 inc VAT

Phanteks Eclipse G500A Mid Tower Case - White

PH-EC500GA_DMW01A

£148.99 inc VAT

Available for delivery from Tuesday 20th May

or Click & Collect from Tuesday 20th May

Buying in bulk? Contact our business team.

Key Features:

  • Max Motherboard Size: E-ATX
  • Tempered Glass Side with ARGB
  • Front USB Type-C Port
  • 9 x 2.5" / 2 x 3.5" Bay(s)
CCL Code: CAS4655
Overview

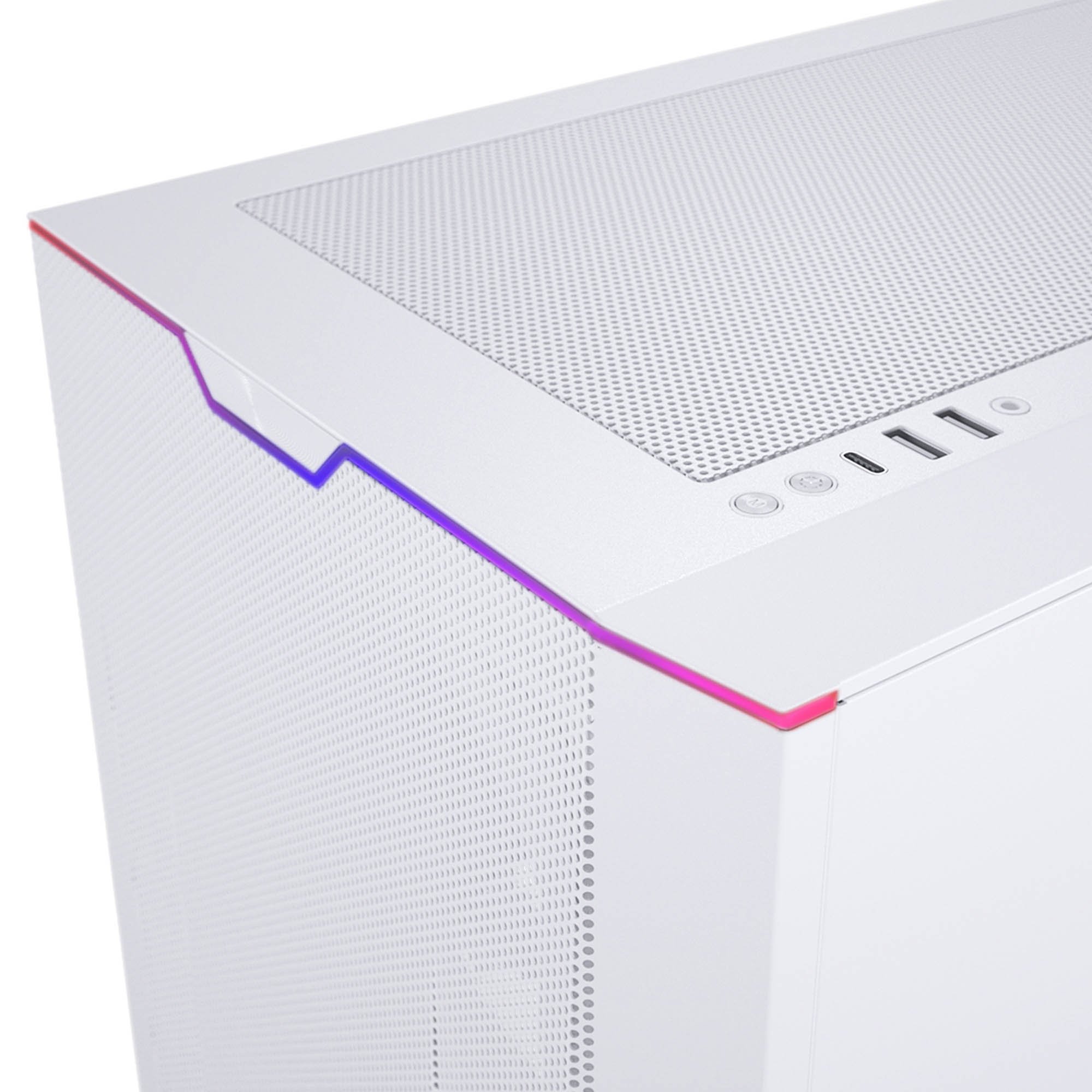

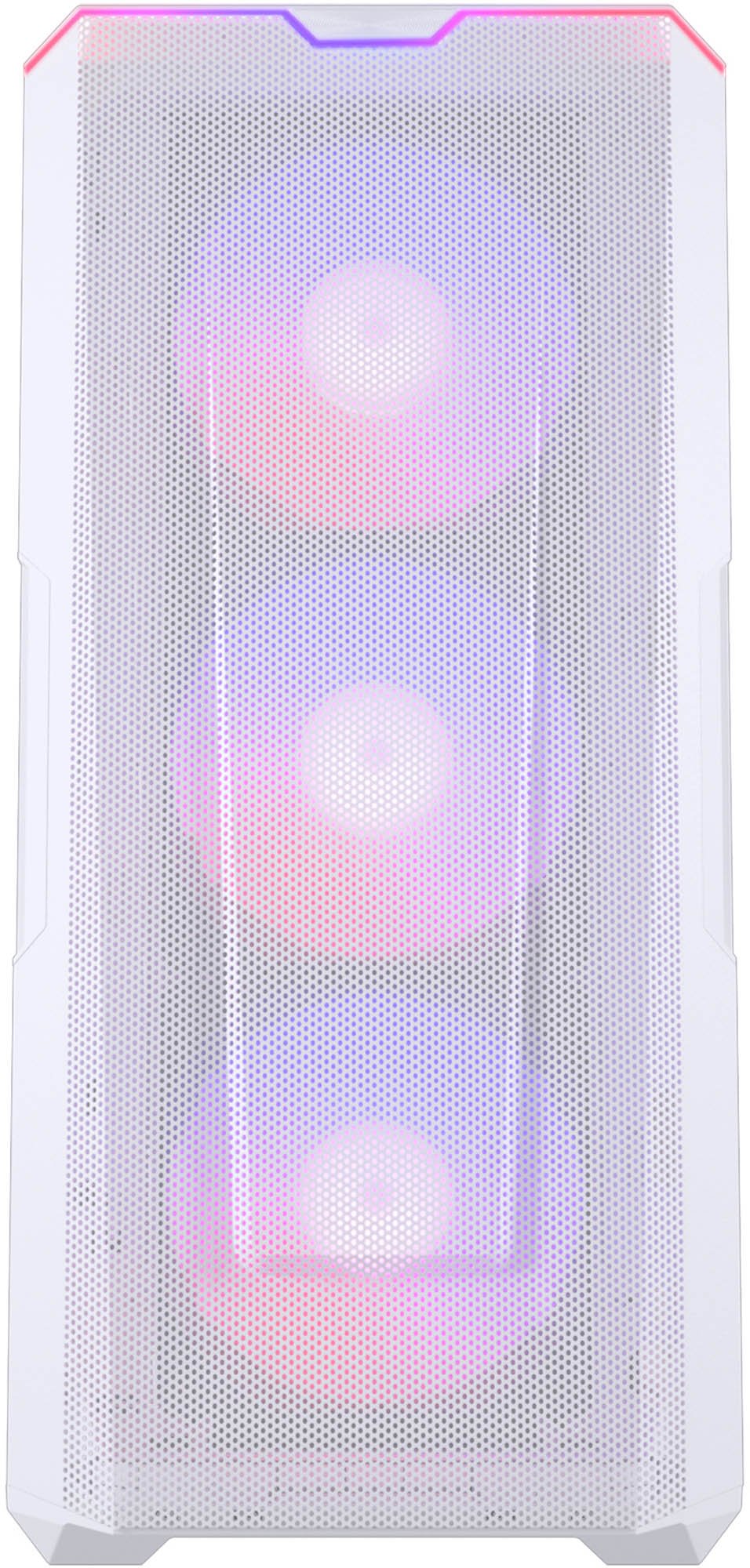

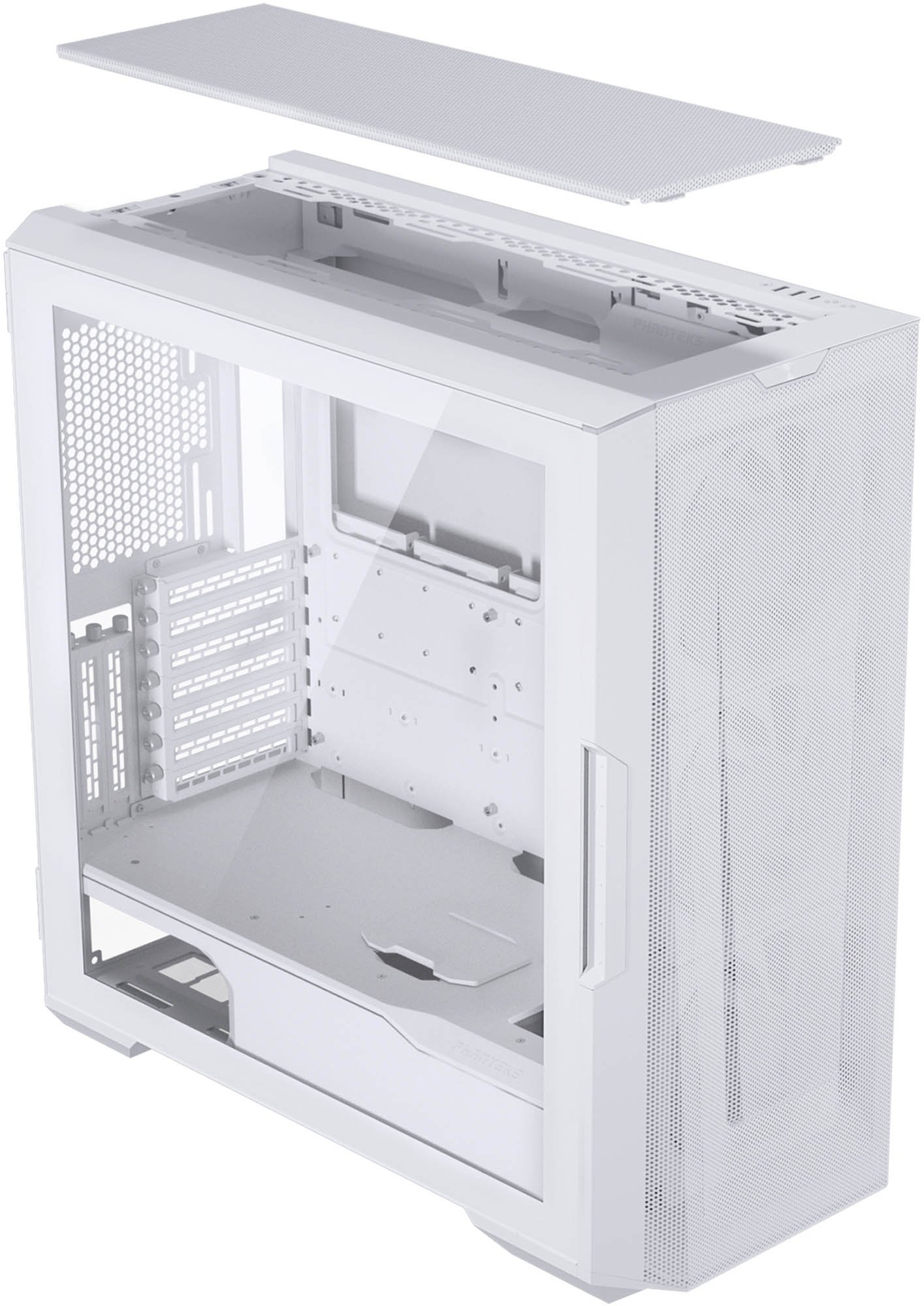

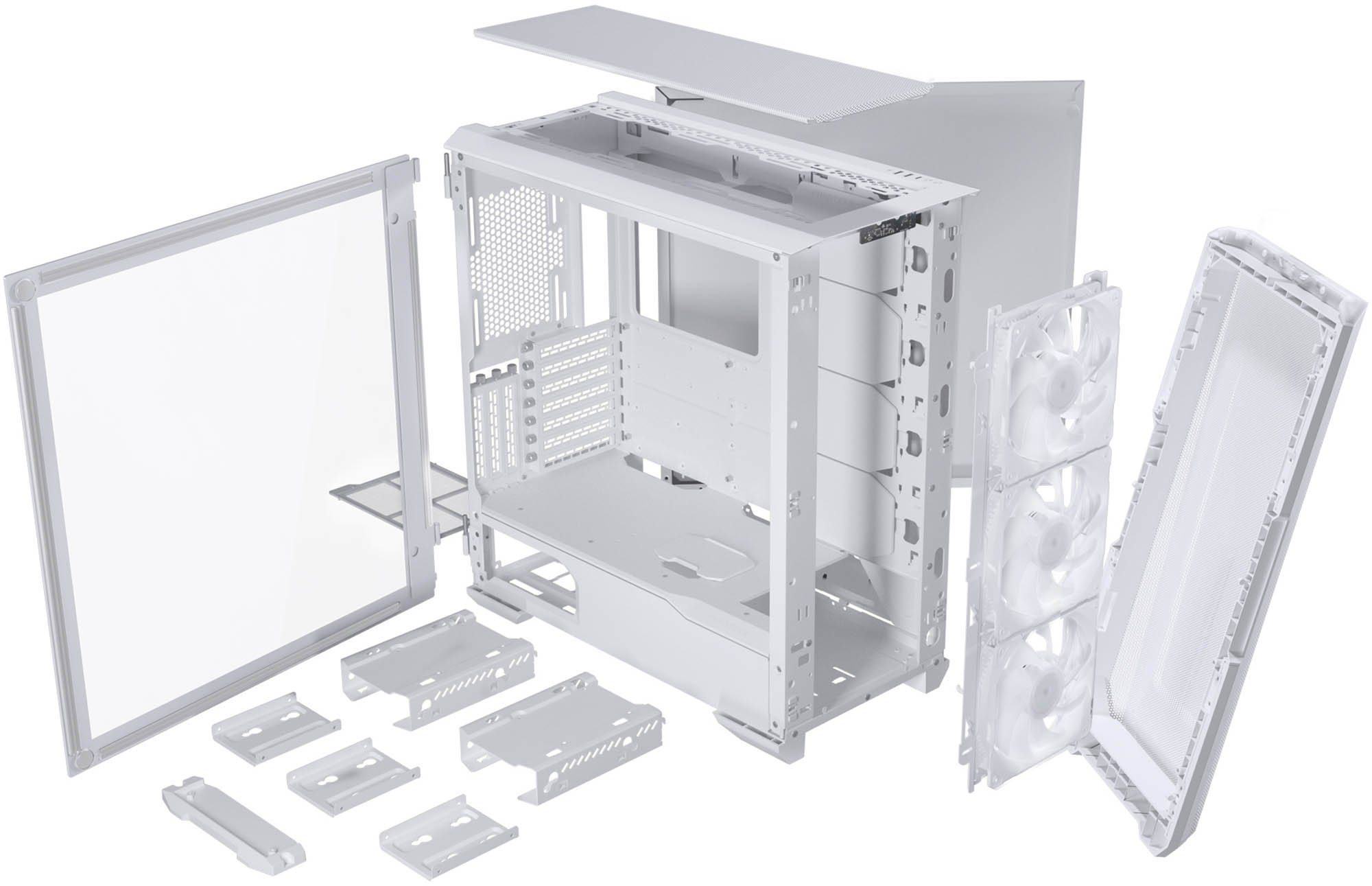

The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks' Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.

The integrated D-RGB lighting can be easily connected to a A/D-RGB equipped motherboards and expanded with more D-RGB products. The G500A Base comes with 2 LED strips built into the front and side pre-installed.

Specifications

User Controls

User Controls Power
D-RGB Colour
D-RGB Mode

Storage

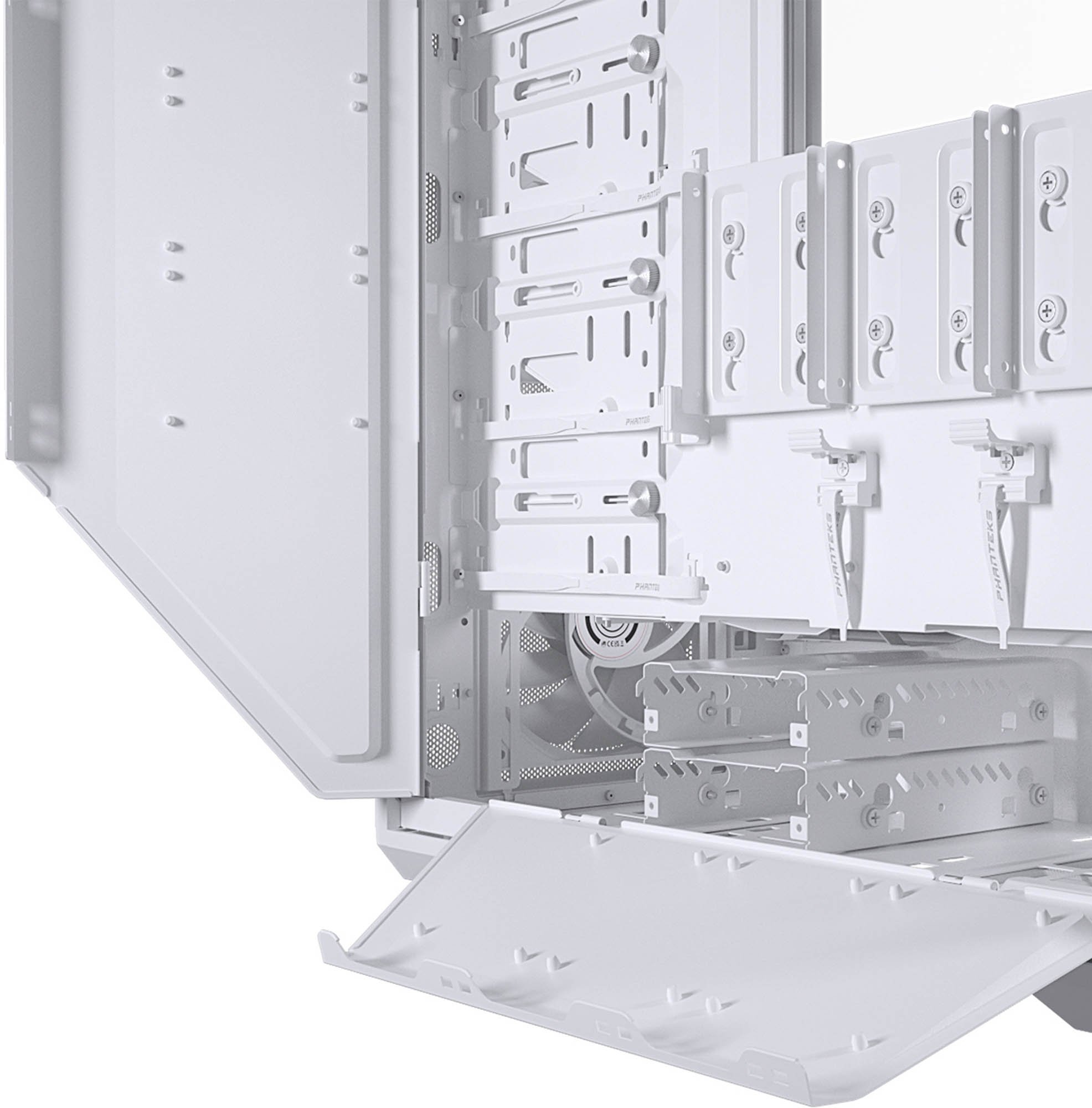

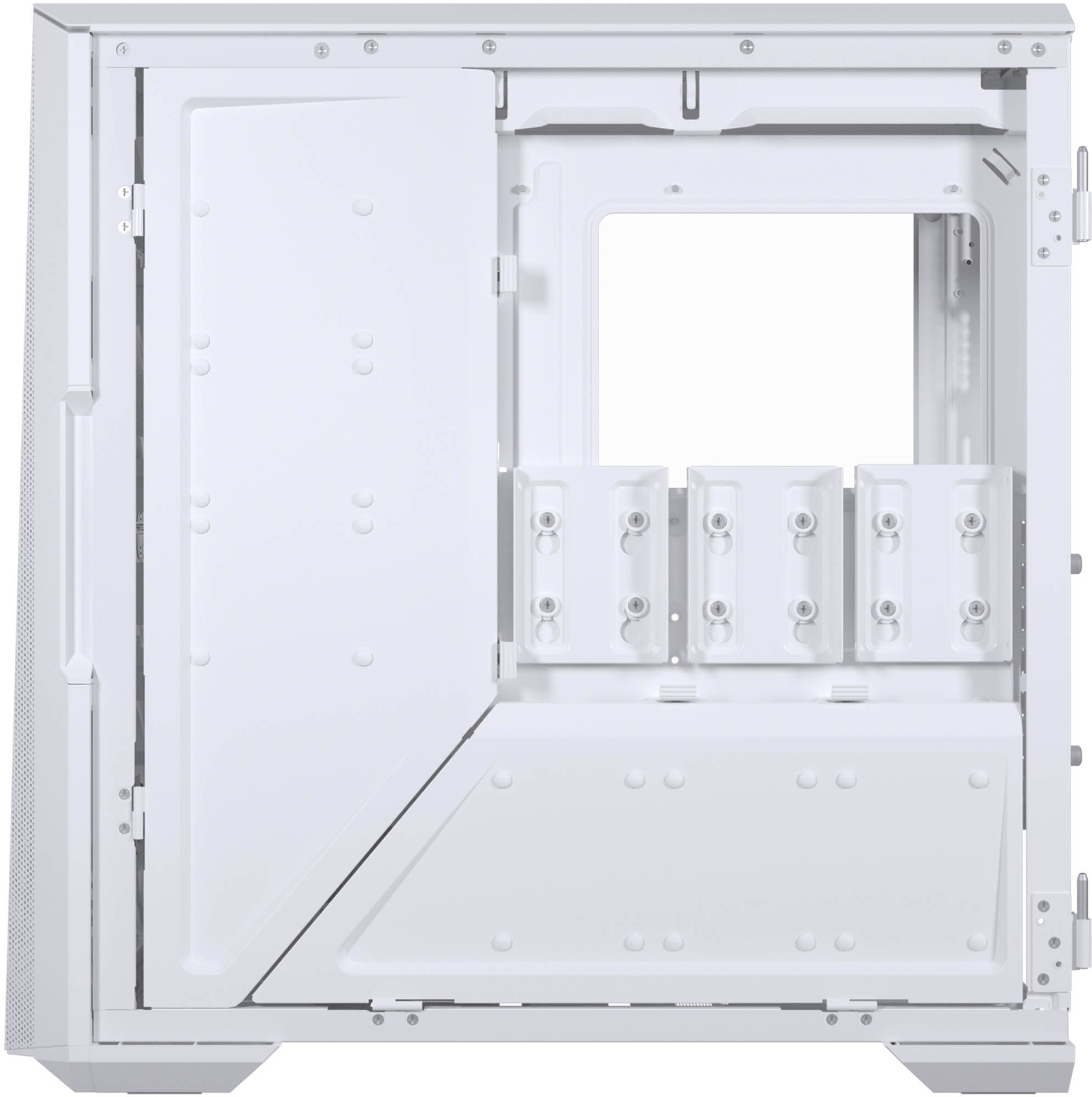

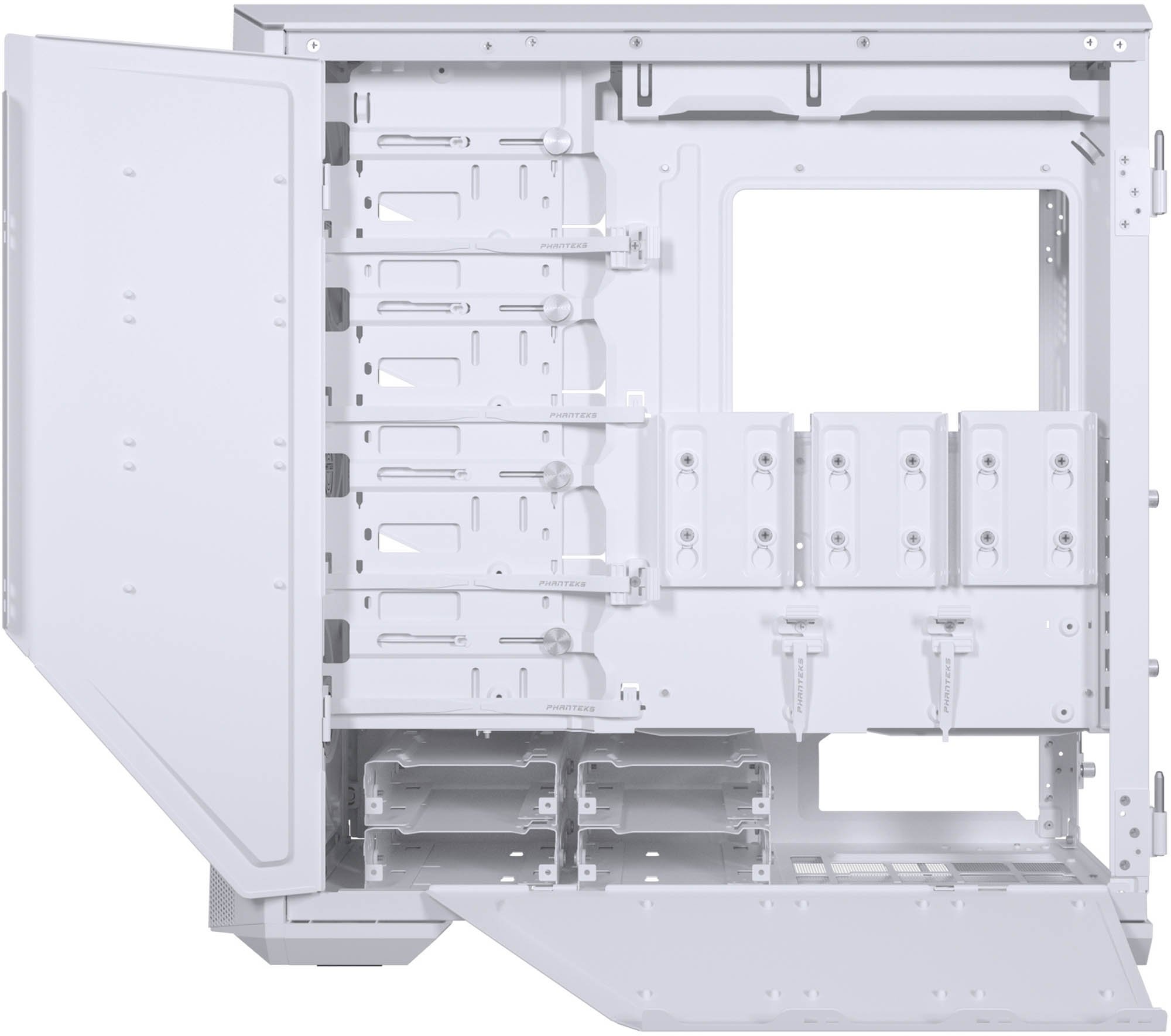

Internal Expansion Bays 9 x 2.5"
2 x 3.5"

Expansion

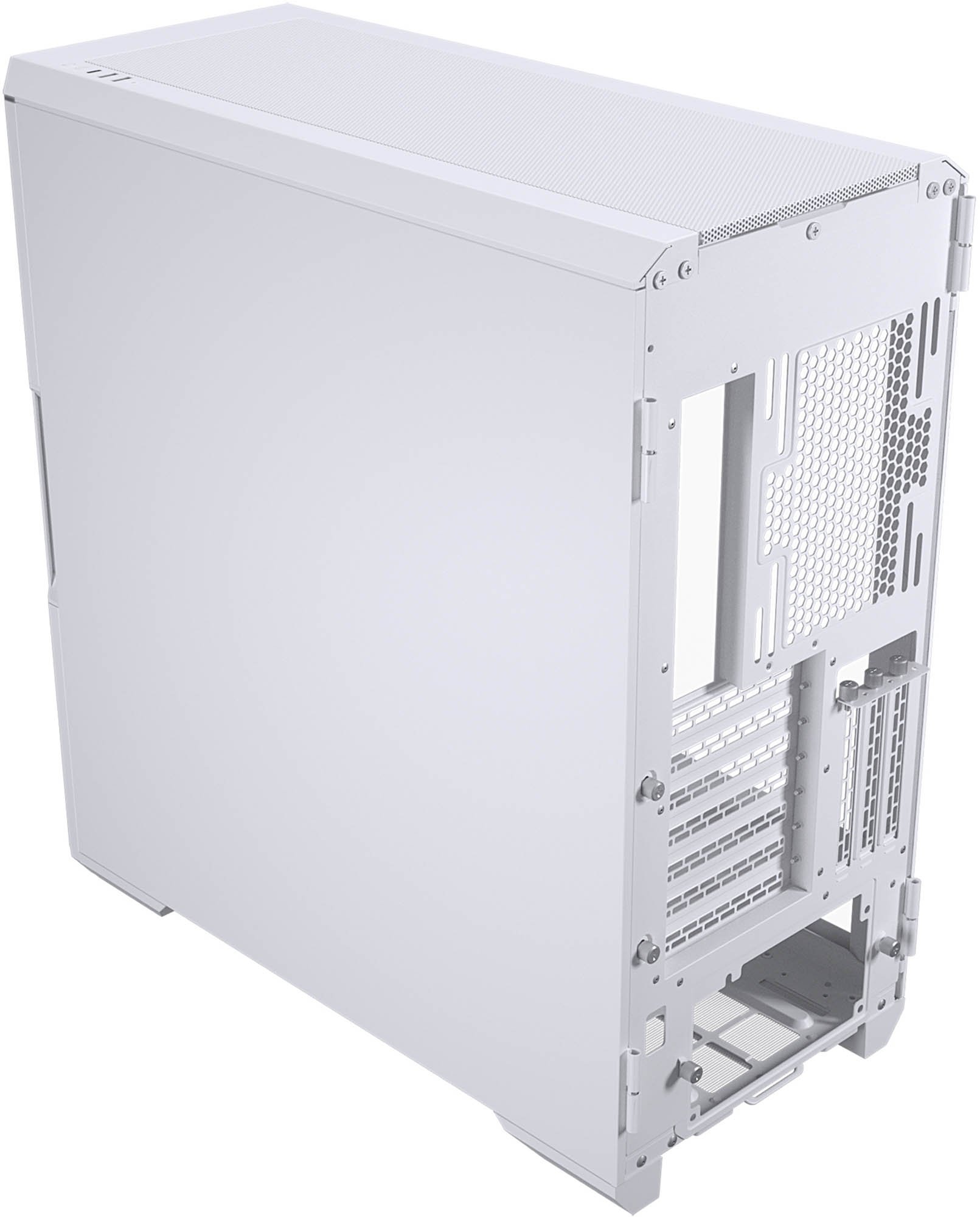

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.0
Headphone Ports 1 x 3.5.mm COMBO Jack
Microphone In Port Shared with Headphone

Electrical

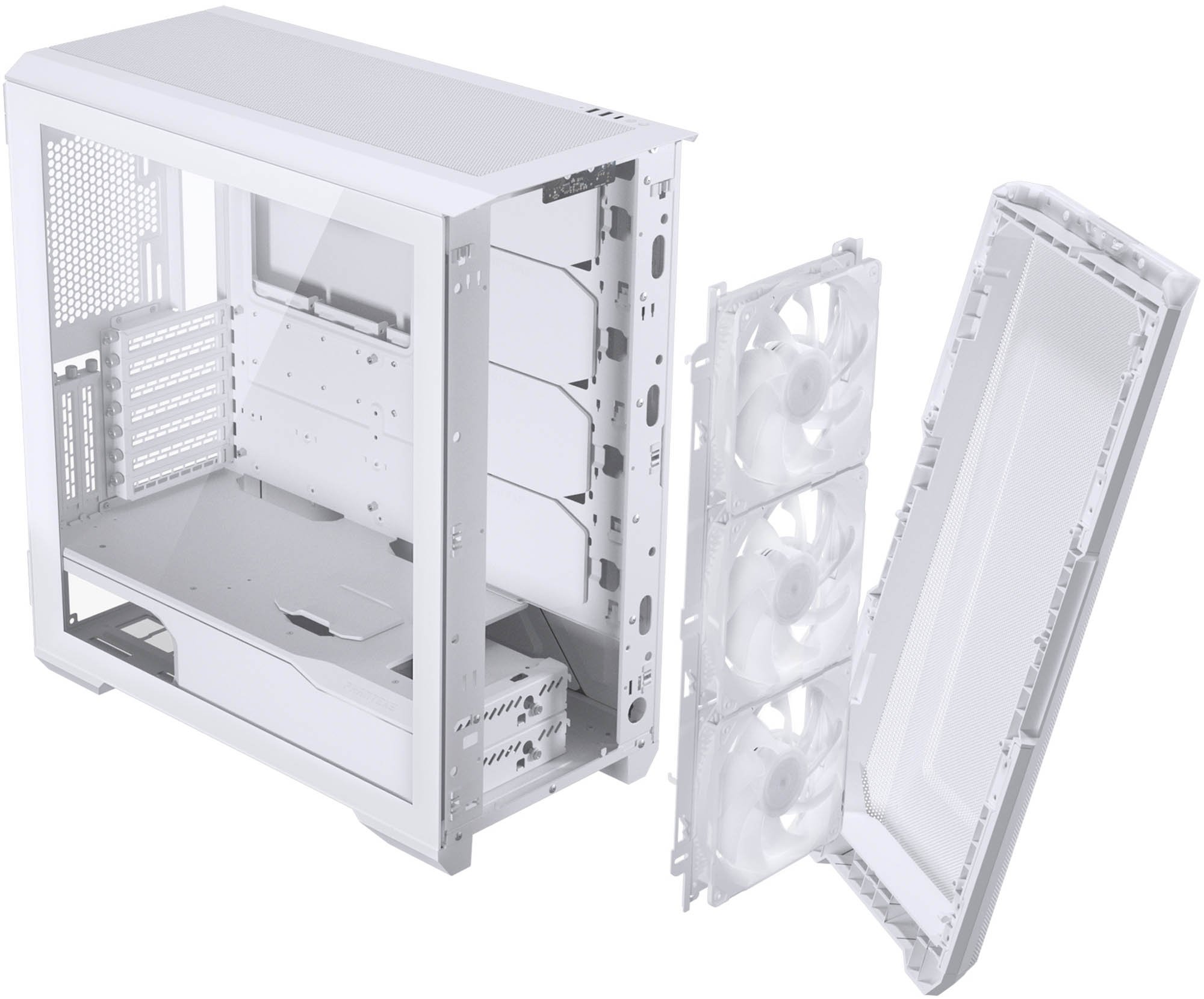

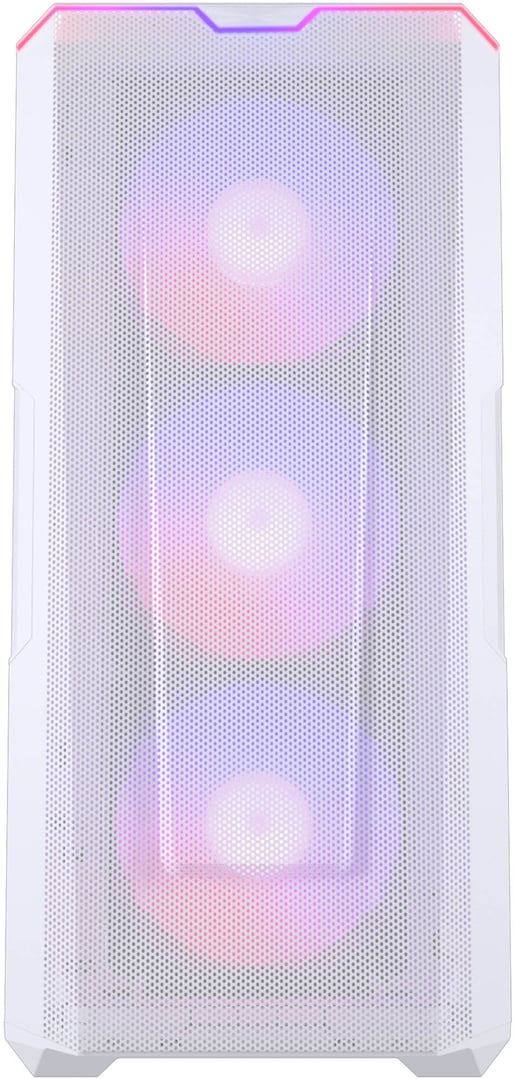

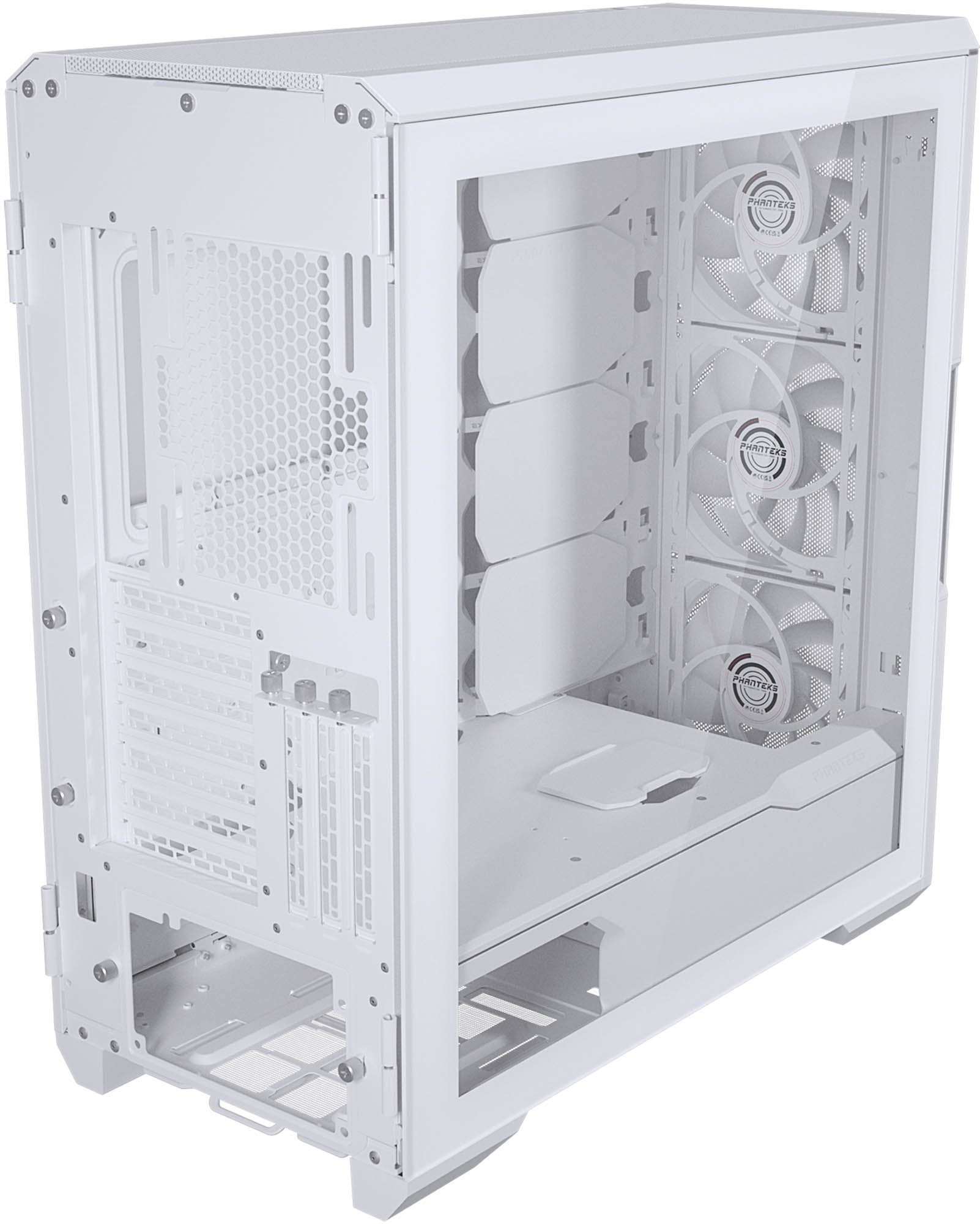

Cooling System Front: Supports 3 x 140mm or 120mm fans (3 x 140mm ARGB LED fans included)
Top: Supports 3 x 140mm or 120mm fans
Rear: Supports 1 x 140mm or 120mm fan
Power Supply ATX Power Supply supported

Warranty

Warranty 5 Years

Physical

Form Factor Mid Tower Case
Case Colour Matte White
Material Steel
Tempered Glass
Motherboard Compatibility E-ATX (up to 280mm wide)
ATX
MicroATX
Mini-ITX
In The Box Case
Accessory Box
Width 240 mm
Depth 500 mm
Height 515 mm
Weight 10.53 kg

Key Features

Firewire
Max Motherboard Width 330 mm
Max Motherboard Height 305 mm
Power W
Laptop Size Range ins
Main Colour White
External Expansion Bays
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for
Modular Cables
80Plus Rated No
Bag Size
PSU Form Factor ATX
Display Model in Showroom
Illuminated Yes
e-SATA
L.E.D Fan ARGB
Laptop Size
Max 3.5" Drives 2
Max 2.5" Drives 9
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX Yes
XL-ATX
Mini PC
Cooler Height 185 mm
Built-in Card Reader
USB Type-C Support Yes
Front HDMI
Side Panel Type Tempered Glass
GPU Length 435 mm
PSU Depth 195 mm
Memory Speed MT/s
Card Reader Type
Front Audio Type Combined
Number of Fans 3 fan(s)
RGB LED Controller Included Yes
LED Strip(s) Included
Maximum Motherboard Size Supported E-ATX
RGB Software Type
Total 2.5" + 3.5" drive bays 11
Power Requirement (auto) 9 W
USB3.0 ports 2
USB-C ports 1
Low profile expansion No

Item Details

Manufacturer Phanteks
Manufacturer Code PH-EC500GA_DMW01A
EAN 0886523302629
UPC 886523302629
Condition New
Warranty

Warranty Information

Warranty 5 Years

Manufacturer Information

Manufacturer Phanteks
Manufacturer Code PH-EC500GA_DMW01A
Reviews
No reviews have been received for this product yet
