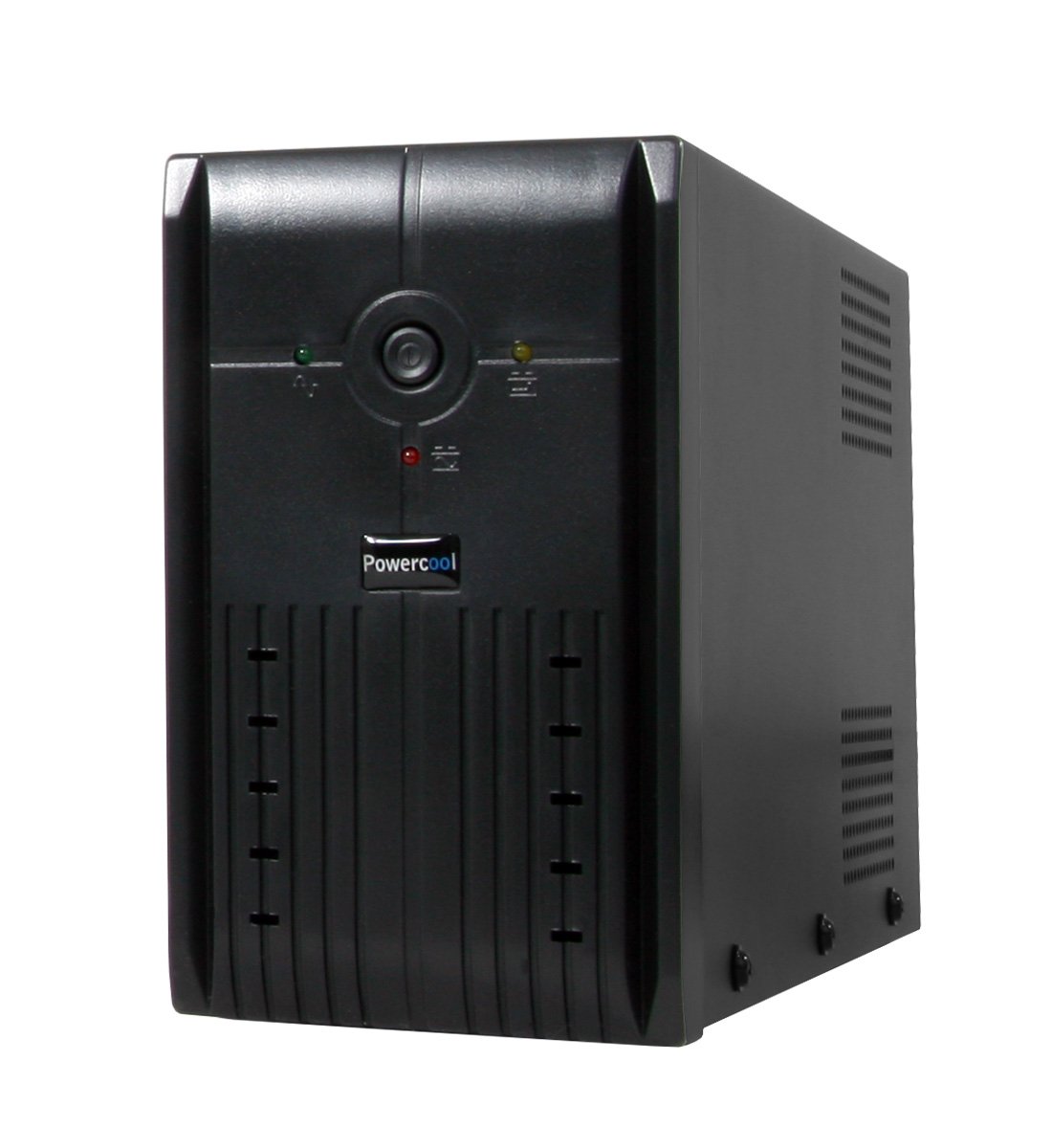

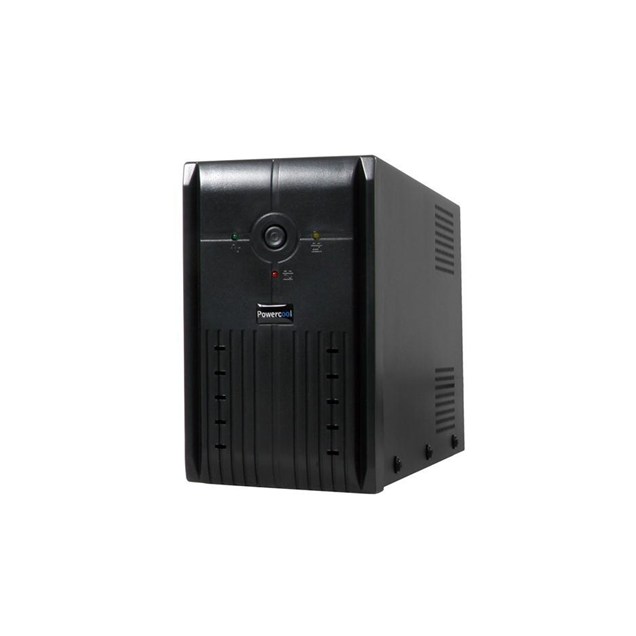

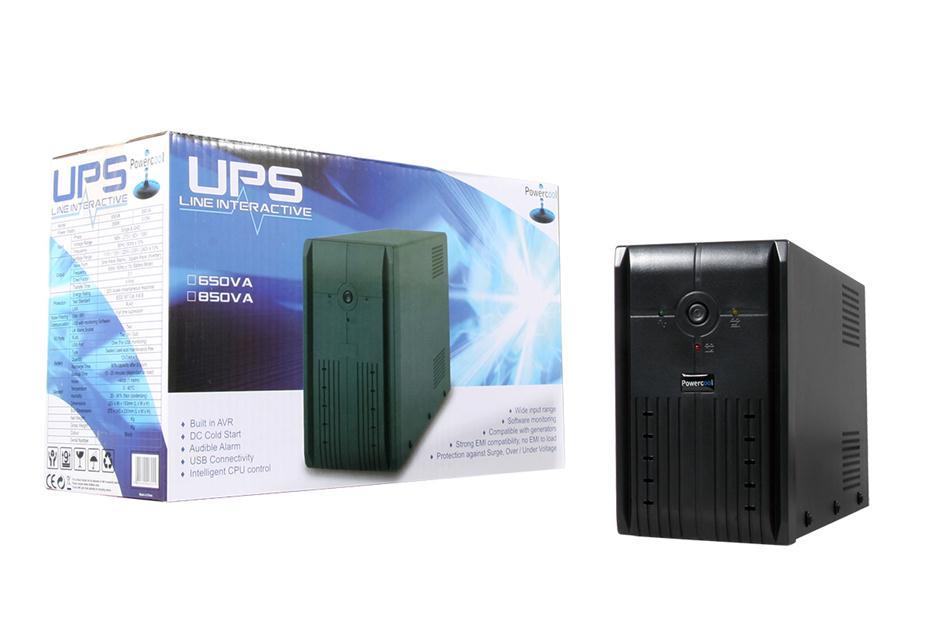

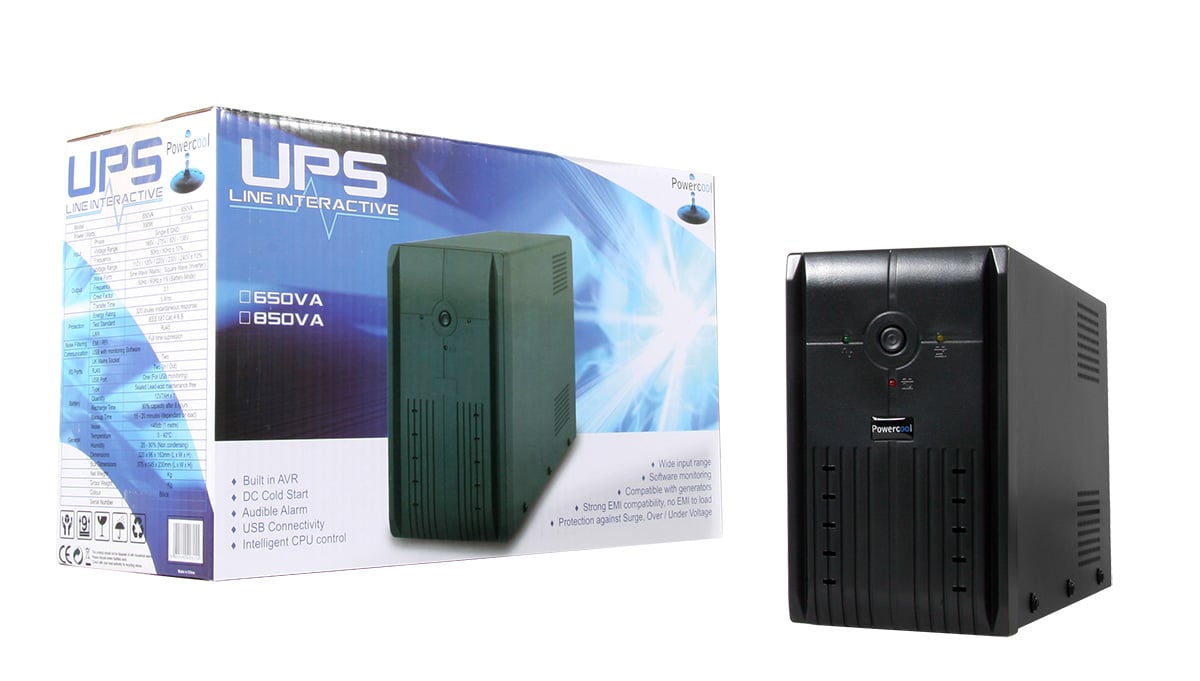

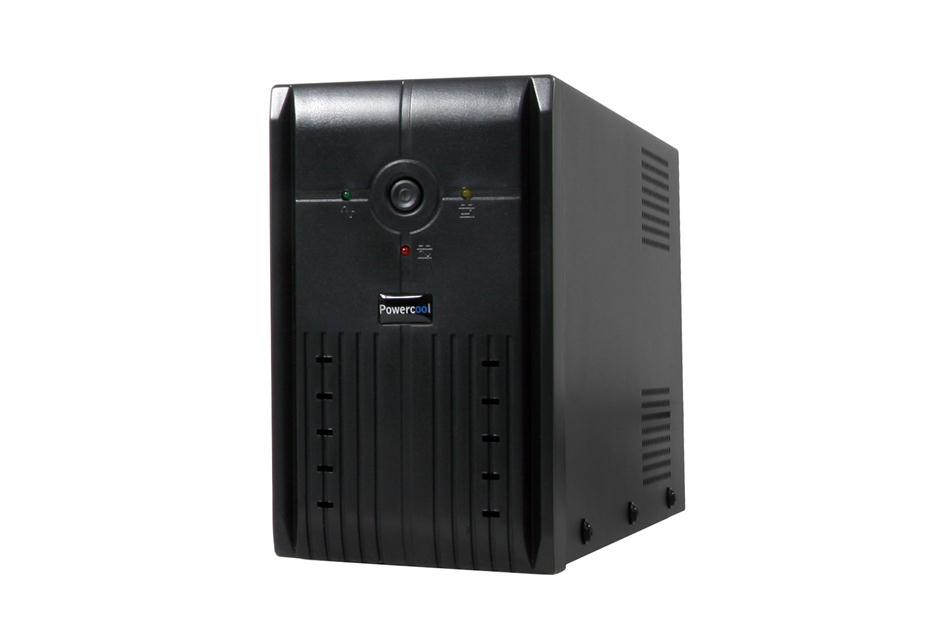

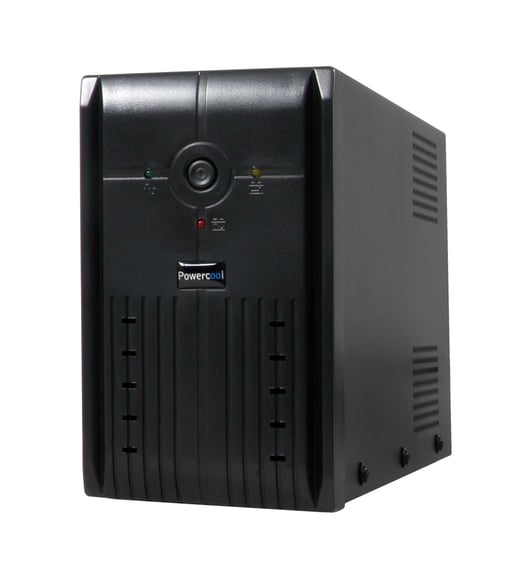

Powercool Smart UPS 850VA 2 x UK Plug, RJ45 x 2, USB LED Display
£54.99
Discontinued
PC 850VA
Powercool Smart UPS 850VA 2 x UK Plug, RJ45 x 2, USB LED Display
Key Features
- Built in AVR
- DC Cold Start
- Audible Alarm
- USB Connectivity
- Intelligent CPU Control
- Wide Input Range
- Software Monitoring
- Compatible with generators
- Strong EMI compatibility, no EMI to load
- Protection against Surge, Over / Under Voltage
Specifications
Model : | 850VA |
Power (Watts) : | 510W |
Input | |
Phase : | Single & GND |
Voltage Range : | 165V - 275V / 82V - 138V |
Frequency : | 50Hz / 60Hz ± 10% |
Output | |
Voltage Range : | 110V / 120V / 220V / 230V / 240V ± 10% |
Wave Form : | Sine Wave (Mains) ; Square Wave (Inverter) |
Frequency : | 50Hz / 60Hz ± 1% (Battery Mode) |
Crest Factor : | 3:1 |
Transfer Time : | <= 6ms |
Protection | |
Energy Rating : | 320 Joules instantaneous response |
Test Standard : | IEEE 587 Cat. A & B |
LAN : | RJ45 |
Noise Filtering | |
EMI / RFI : | Full time suppression |
| |
I/O Ports | |
UK Mains Socket : | Two |
RJ45 : | Two (In/Out) |
USB Port : | One (For USB Monitoring) |
Battery | |
Type : | Sealed Lead-acid maintenance free |
Quantity : | 12V7AH x 1 |
Recharge Time : | 90% capacity after 8 hours |
Backup Time : | 15-20 Minutes (dependant on load) |
General | |
Noise : | < 45db (1 metre) |
Temperature : | 0 - 40°C |
Humidity : | 20% - 90% (Non-Condensing) |
Dimensions : | 320 x 96 x 163mm (L x W x H) |
Packaging Dimensions : | 375 x 145 x 230mm (L x W x H) |
Colour : | Black |
Input
- Frequency Range (Input): 50 to 60Hz
Output
- Crest Factor: 3:1
- Frequency Range (Output): 50 to 60 Hz
Filtering
- Filtering: Noise Filtering: EMI / RFI: Full time suppression
Battery
- Typical Recharge Time: 8 Hours
- Battery Type: Sealed Lead Acid Battery
- Number of Batteries: 1
- Battery Voltage: 12 V
- Battery Capacity: 7 AH
Interfaces/Ports
- RJ-45 Ports: 2 x RJ-45
- USB Ports: 1 x USB
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 20 to 90 %
- Noise Level: 45 dbA
Physical
- Form Factor: Uninterruptible Power Supply
- Case Colour: Black
- In The Box: 1 x Uninterruptible Power Supply Unit
- Width: 9.6 cm
- Depth: 32.0 cm
- Height: 16.3 cm
Identifiers
- Stock Code: UPS0168
- Mfg Code: PC 850VA
