CCL now stock a wide range of spare parts for PCs and laptops. They were originally bought in for repairs, but were either never used, or were briefly tried in a system and then removed. For your peace of mind all parts come with a 90 day warranty.

Please check the high resolution photo and manufacturer part number to verify that this component is a suitable replacement for your PC.

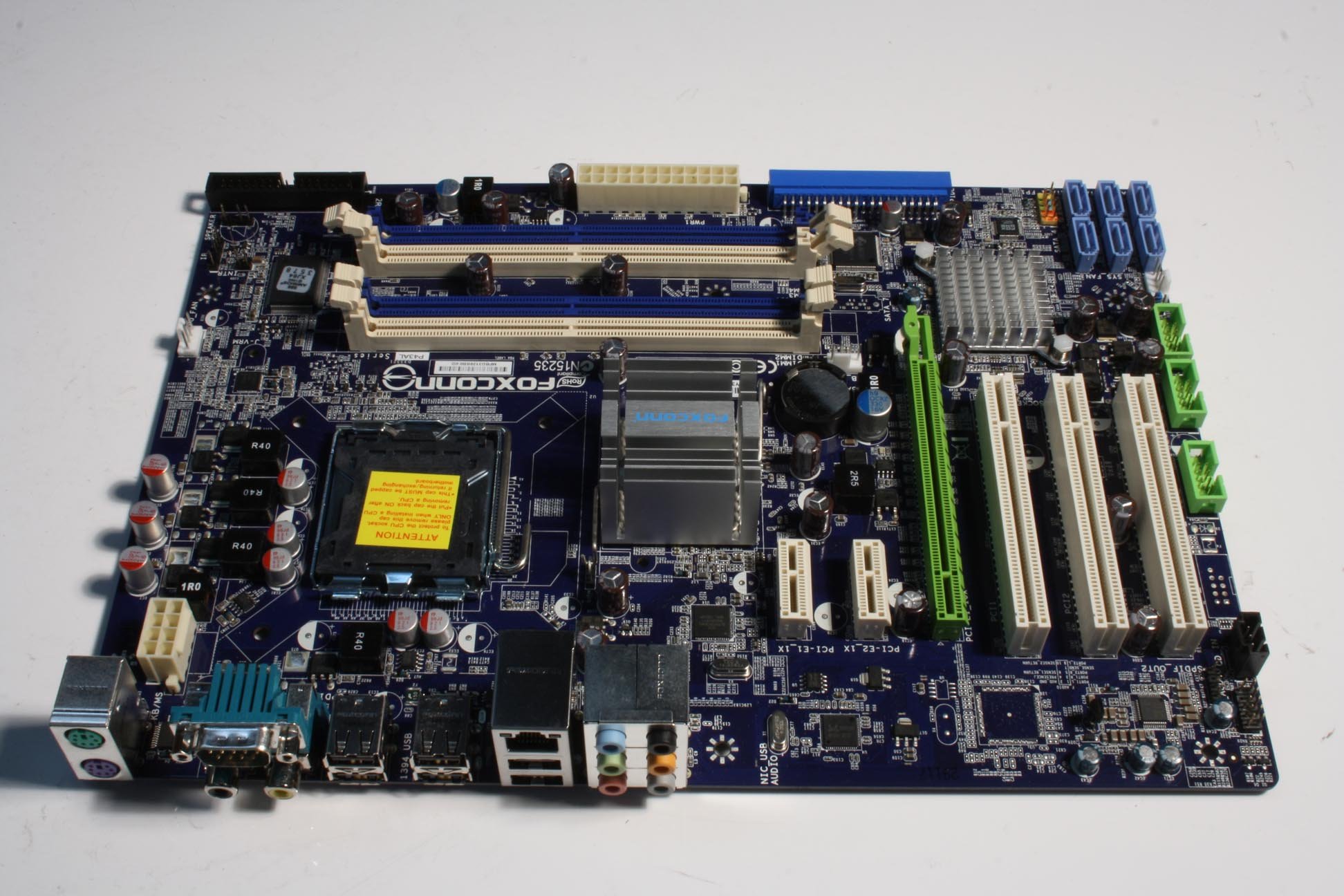

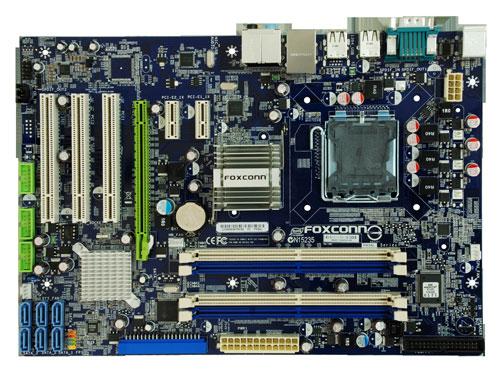

Based on the Intel® P43 chipset and supporting the latest 1600MHz (via overclocking)FSB Intel® Core™2 Quad, Core™2 Duo and 45nm processors, the P43AL allows you to build powerful PCs on a budget. Supporting up to 16GB of Dual Channel DDR2 memory at 1066MHz(via overclocking ) and including FoxOne™ - Foxconn’s proprietary system control and monitoring solution - the  P43AL  delivers performance and affordability in one package. Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista™ certified motherboard.

Support Intel® Core™ 2 multi-core and 45nm processors
Supports LGA 775 for Intel® Core™2 Extreme, Core™2 Quad ,Core™2 Duo, Pentium® Dual-Core, Celeron® processors. It's the ideal engine for highly threaded entertainment applications and highly productive multitasking.

Intel® P43 & ICH10 Chipset
The Intel® P43 Express Chipsets support the latest multi-core processors with FSB 1600MHz (overclocking), with its powerful performance and greater energy efficiency. Intel® P43 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel® P43 chipset also offers scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization

Dual Channel DDR2 1066
Supports Dual Channel DDR2 1066(oc**)/800/667MHz, 8GB Max. memory which unlocks more performance when overclocking CPU with memory, by removing the bottleneck between memory and system bus.

PCIe Generation 2.0 support
PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe “Gen1” cards can be plugged into Gen2.0 slots. PCI Express Gen2.0 technology doubles the available aggregate bandwidth between PCIe Generation 2 cards and the motherboard. This means a Gen2.0 16-lane (x16) link can provide up to 16GB/s of bandwidth, 8GB/s in each direction. PCIe Gen2.0 is backwards compatible, and so existing PCIe “Gen1” cards can be plugged into Gen2.0 slots.

Specification

• Processor: Intel® Core™2 Extreme,Core™2 Quad, Core™2 Duo, Pentium® Dual-Core, Pentium® Dual-Core processors, Socket T (LGA775)
• Chipset: Intel P43 + ICH10
• Front Side Bus: 1600(oc**)1333/1066/800 MHz (FSB)
• Memory: Dual channel DDR2 1066(oc**)/800/667 x 4 DIMMs, Max. 16GB
• VGA on Die: Discreted
• Expansion Slots: 1* PCIe2.0 x16, 2* PCIe2.0 x1, 3* PCI
• IDE: 1* ATA133
• Serial ATA(SATA)/RAID: 6* SATAII
• Audio: 7.1 channel HDA by Realtek® ALC888S
• LAN: Gigabit LAN by Realtek® RTL8111B
• IEEE1394: N/A
• Back Panel I/O Ports:
  • 1 x PS/2 keyboard port
  • 1 x PS/2 mouse port
  • 1 x S/PDIF in coaxial connector
  • 1 x S/PDIF out coaxial connector
  • 1 x Audio jack supports 6 jacks
  • 6 x USB 2.0 ports
  • 1 x Serial port
  • 1 x RJ45 LAN port Internal
• I/O Connectors:
  • 1 x ATX 24-Pin power connector
  • 1 x 8-pin ATX 12V power connector
  • 3 x 4-pin CPU / System / NB FAN connectors
  • 1 x CD-in connector
  • 1 x Floppy connector
  • 1 x IDE connector
  • 1 x Speaker header
  • 3 x USB 2.0 connectors support additional 6 ports
  • 6 x Serial ATAII connectors
  • 1 x Intruder Alarm header
  • 1 x Front Audio Header
  • 1 x S/PDIF Out header
  • 1 x IrDA header
• BIOS Features: 8Mb flash EEPROM w/ LAN boot PnP, ACPI, WfM, DMI
• Support CD:
• Drivers, Adobe Reader, SuperUtilities, Norton Internet Security
• Standards/Manageability: PCI 2.3, USB2.0, DMI 2.5
• Special Features:
  ** Achieved by overclocking
  * S/PDIF Coaxial connectors on rear panel can Split 2 different sound sources independently
• Form Factor: ATX (12" x 8.4")

Based on the Intel P43 chipset and supporting the latest 1600MHz (via overclocking)FSB Intel Core 2 Quad, Core 2 Duo and 45nm processors, the P43AL allows you to build powerful PCs on a budget. Supporting up to 16GB of Dual Channel DDR2 memory at 1066MHz(via overclocking ) and including FoxOne - Foxconn’s proprietary system control and monitoring solution - the P43AL delivers performance and affordability in one package. Gigabit LAN and 8-channel HD audio are also included on this Microsoft Vista certified motherboard.
