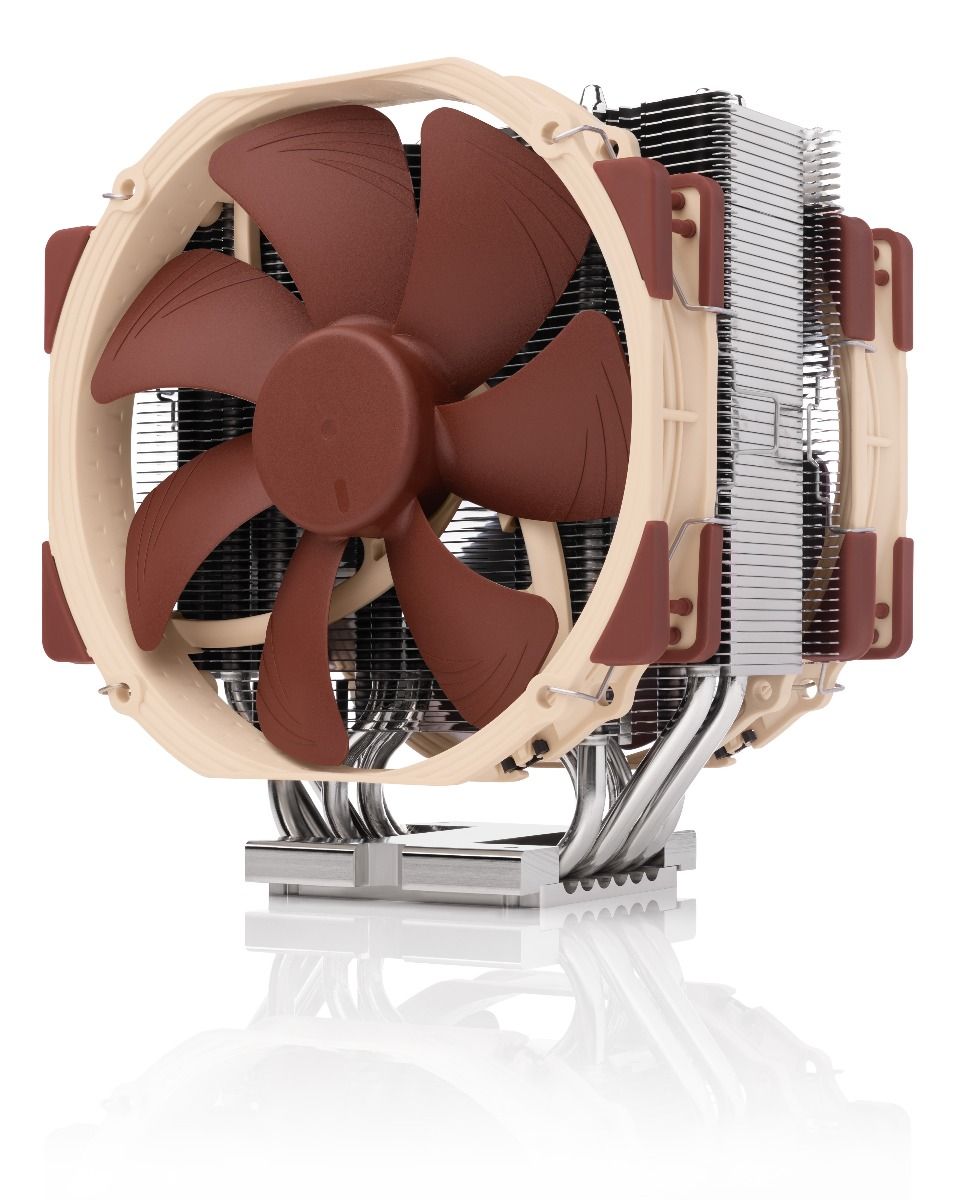

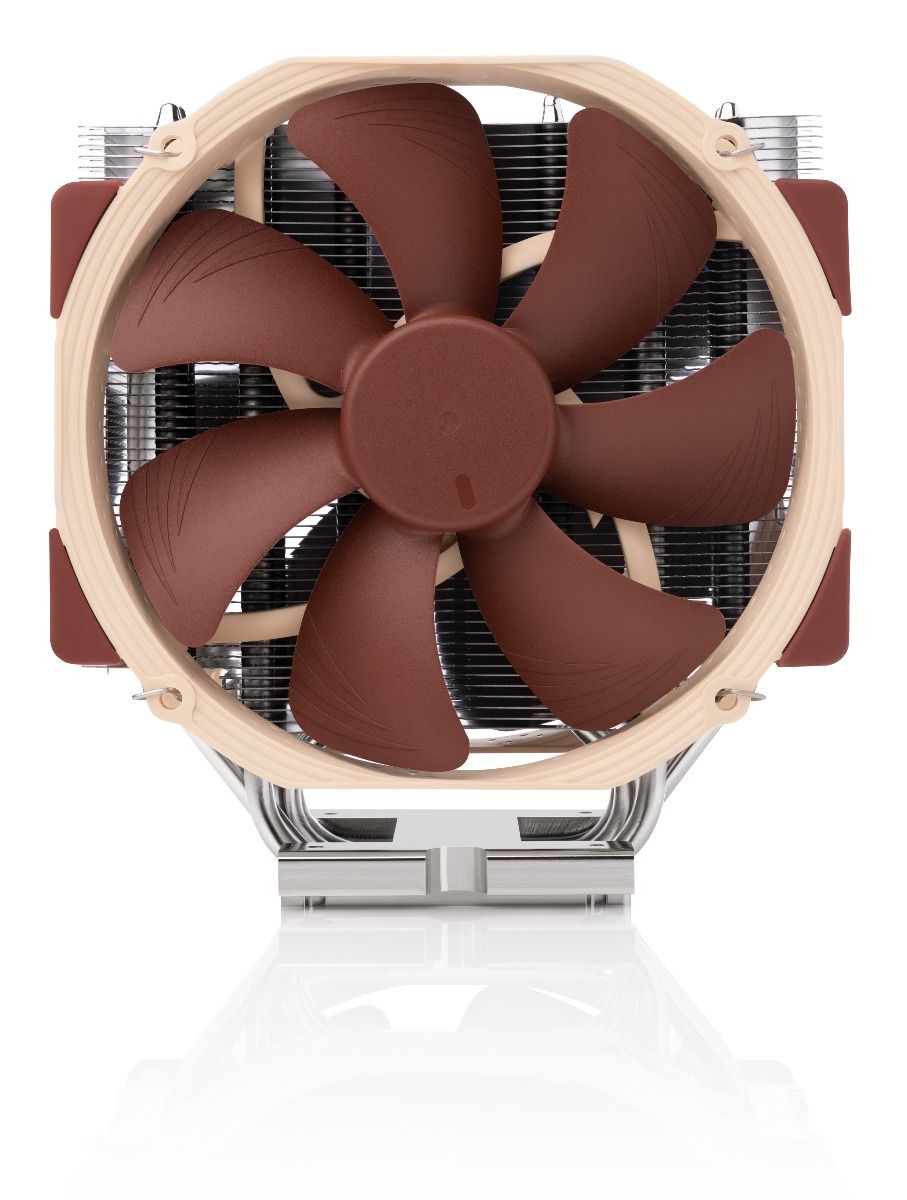

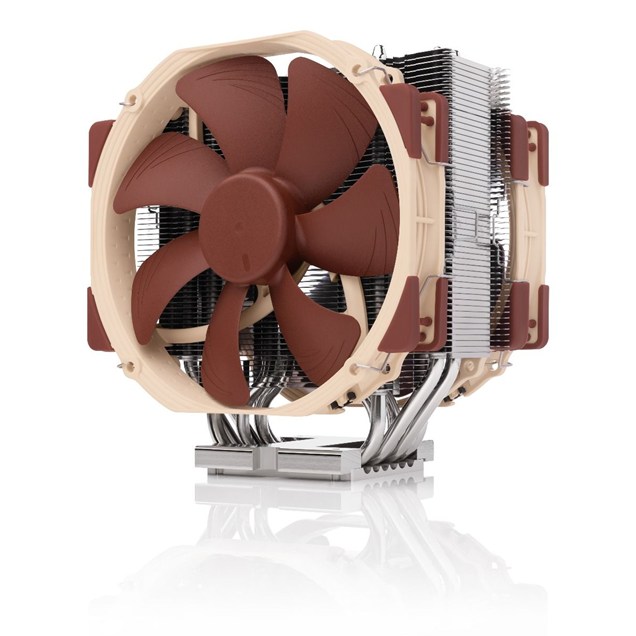

Noctua NH-U14S DX-4677 CPU Cooler
Noctua’s DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U14S DX-4677 features a larger, custom-designed contact surface for LGA4677 platforms. Based on the proven, 140mm size NH-U14S heatsink and equipped with two of Noctua’s award-winning, PWM controlled NF-A15 140mm fans, it combines maximum performance and superb acoustics. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-U14S DX-4677 forms a complete premium quality package for quietly cooling LGA4677 based Xeon workstations and servers.
Please note that the NH-U14S DX-4677 is a dedicated version for the Intel LGA4677 socket. Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets.
Please also note that installing an LGA4677 processor and heatsink requires a plastic CPU carrier frame. These carrier frames are included with boxed retail CPUs and available separately via Intel sales partners for tray type CPUs. As different CPUs require different carrier frame types (E1A, E1B or E1C), please make sure to purchase the correct carrier frame for tray type CPUs.
CPU Types
- Socket: LGA4677
Fan
- Fan Bearing Type: SSO2
- Fan Speed: 300 ~ 1500 RPM
- Fan Noise Level: 24.6 dB(A)
- Lifetime: > 150,000 hours
- Airflow: 140.2 m3/h
Fan Speed Controller
- Connector: 4-pin PWM
- Allowable Power: 1.56 W
- Voltage: 12 V
Physical
- Form Factor: CPU Cooler
- Case Colour: Beige/Brown
- Base Material: Copper
- Heatsink Material: Aluminum

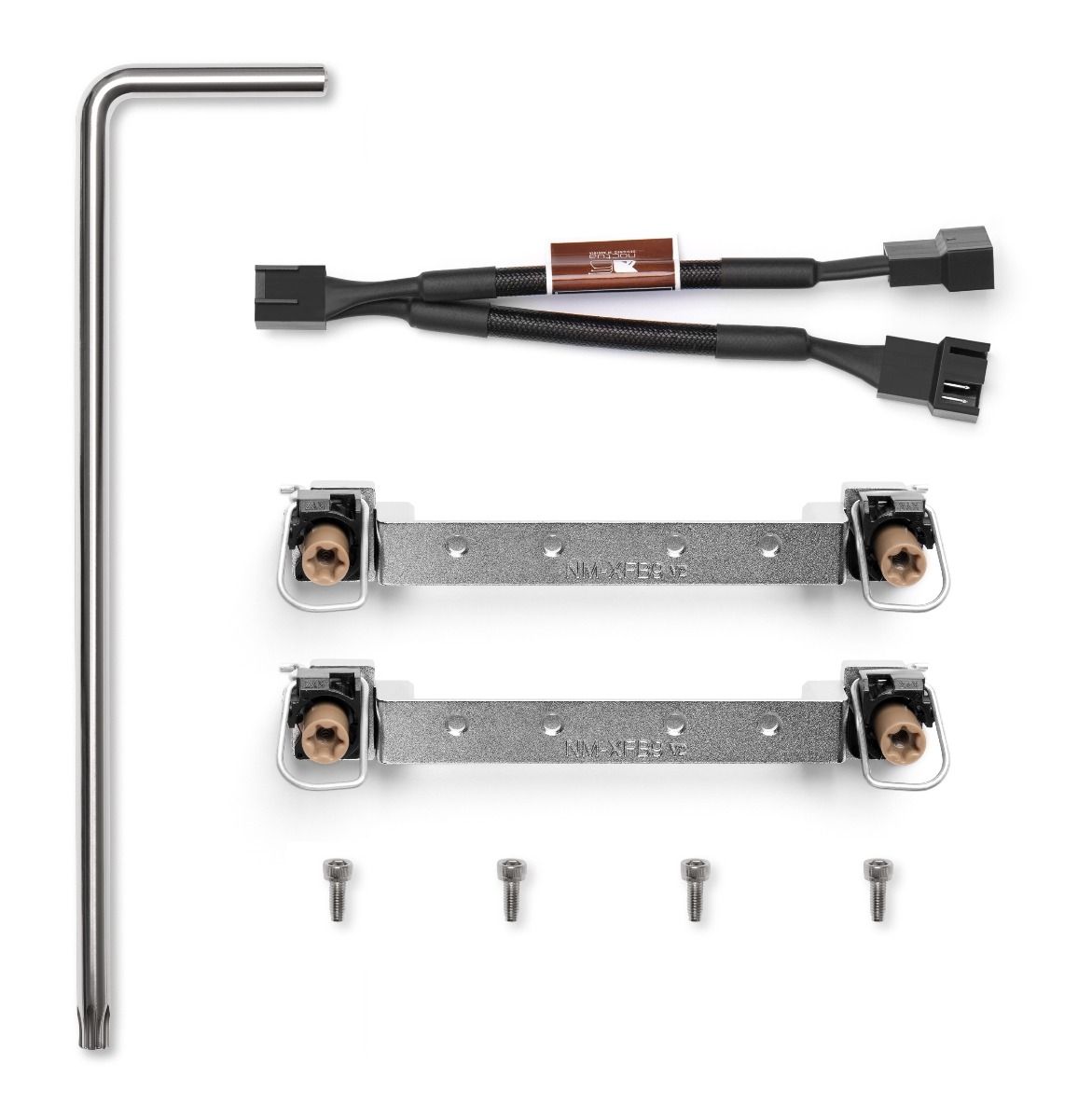

- In The Box: Cooler with 2x Fans
- NA-YC1 4-pin PWM y-cable
- NT-H1 high-grade thermal compund (pre-applied)
- SecuFirm mounting kit for LGA4677
- NM-SMT5 Torx T30 mounting tool
- Width: 150 mm
- Depth: 111 mm
- Height: 165 mm
- Weight: 1.136 kg
- Heatsink Width: 150 mm
- Heatsink Height: 165 mm
- Heatsink Depth: 52 mm
Warranty
- Warranty: 6 Years
Identifiers
- Stock Code: CLR2938
- Mfg Code: NH-U14S DX-4677
Warranty
- Warranty: 6 Years
