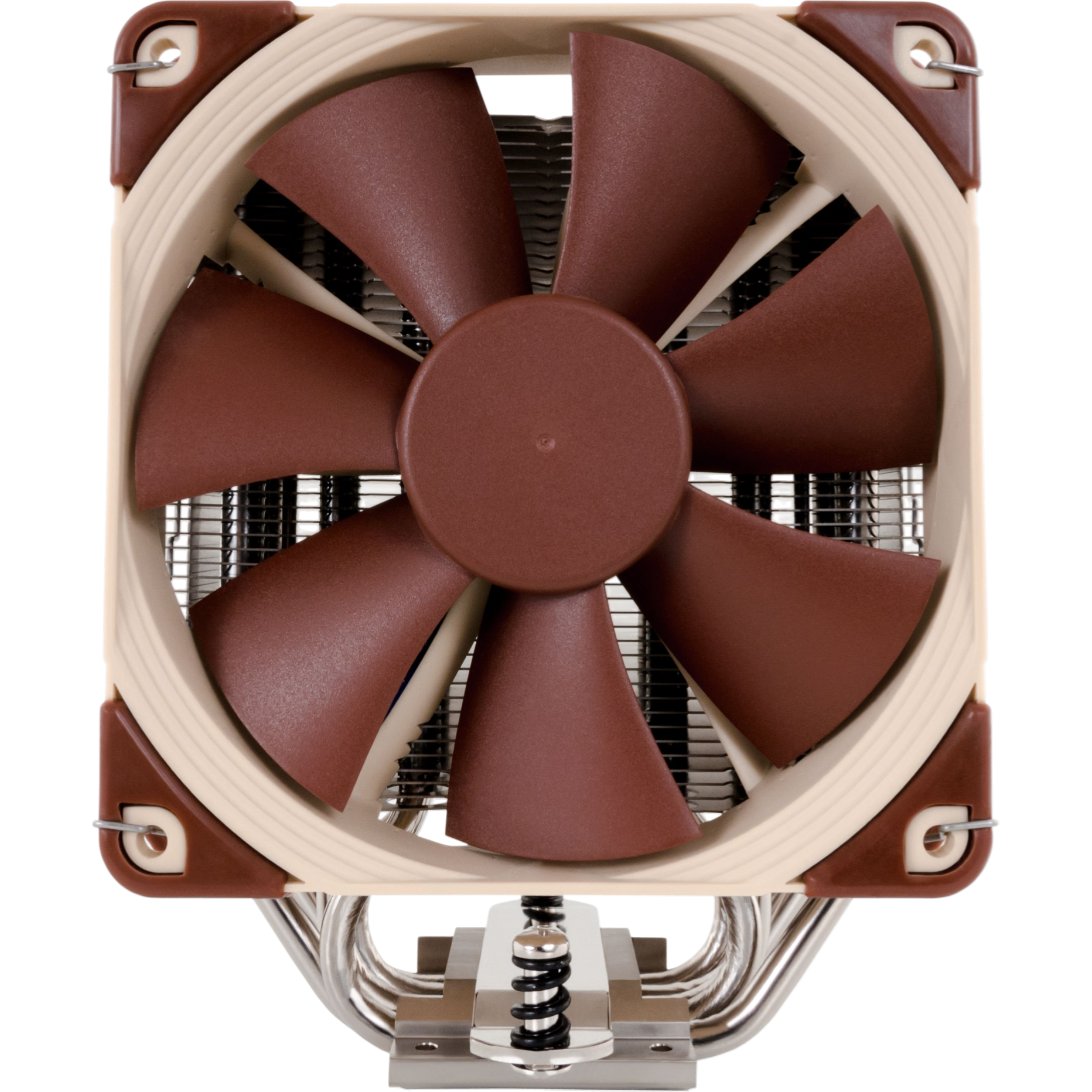

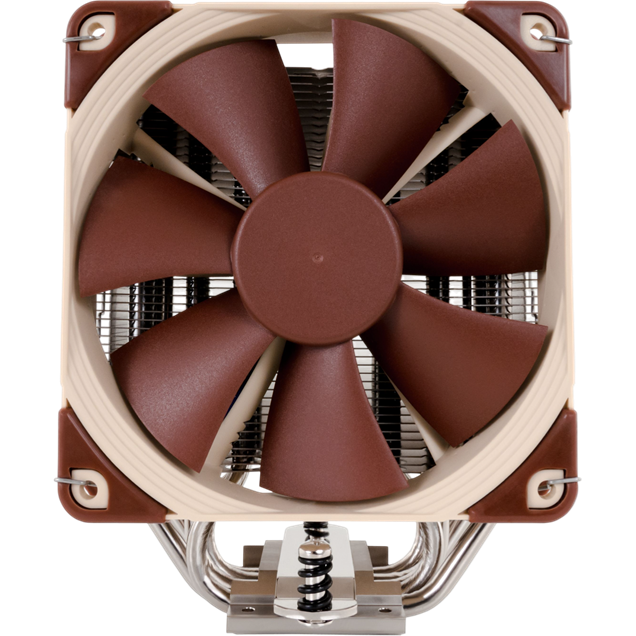

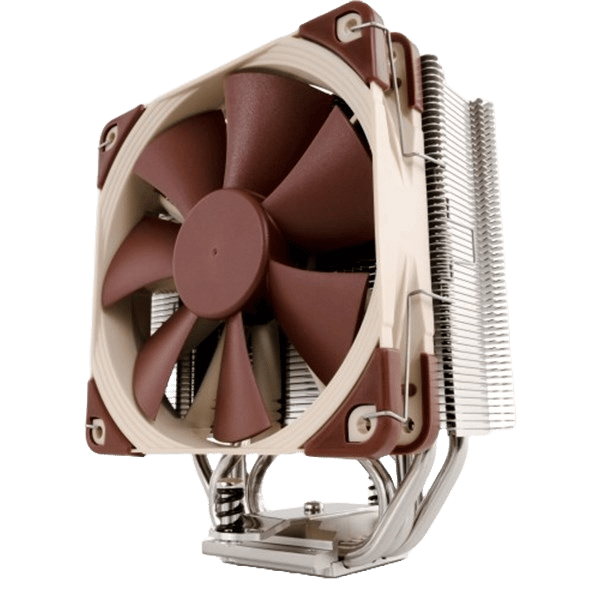

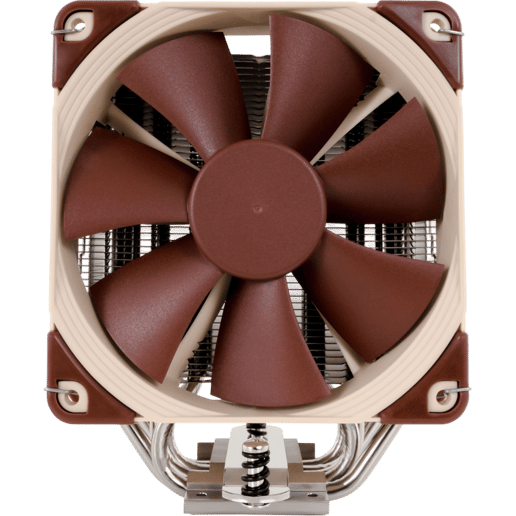

Noctua NH-U12S CPU Cooler

Noctua NH-U12S CPU Cooler

CCL Code: CLR0565

Sold out

Notify Me

Noctua NH-U12S CPU Cooler


CCL Code: CLR0565

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Noctua's latest coolers feature their classic U-series single tower CPU coolers which have received more than 400 awards and recommendations from the international press. The S-version's 45mm slim shape guarantees 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading fans with PWM support provide fully automatic speed control allowing it to further improve its predecessor's renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound and a six years manufacturer's warranty, these slim tower coolers are a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.


  • Socket compatibility Intel LGA2011 (Square ILM), LGA1156, LGA1155, LGA1150 & AMD AM2, AM2+, AM3, AM3+, AM4, FM1, FM2 (backplate required)
  • Height (without fan) 158 mm
  • Width (without fan) 125 mm
  • Depth (without fan) 42 mm
  • Height (with fan) 158 mm
  • Width (with fan) 125 mm
  • Depth (with fan) 71 mm
  • Weight (without fan) 580 g
  • Weight (with fan) 755 g
  • Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
  • Scope of Delivery Low-Noise Adaptor (L.N.A.), NT-H1 high-grade thermal compound, SecuFirm2 Mounting Kit, Anti-vibration pads and fan-clips for second fan (optional), Noctua Metal Case-Badge
  • Fan specifications - Noctua NF-F12 PWM
  • Bearing SSO2
  • Max. Rotational Speed (±10%) 1500 RPM
  • Max. Rotational Speed with L.N.A. (±10%) 1200 RPM
  • Min. Rotational Speed (PWM) 300 RPM
  • Max. Airflow 54.9 CFM
  • Max. Airflow with L.N.A. 43.7 CFM
  • Max. Acoustical Noise 22.4 dB(A)
  • Max. Acoustical Noise with L.N.A. 18.6 dB(A)
  • Input Power 1.56 W  0.6 W
  • Voltage Range 12 V
  • MTBF > 150,000 hours
  • Warranty 72 months

CPU Types

Socket Intel LGA1851, LGA1700, LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 and AMD AM5, AM4


Fan Diameter 120 mm
Fan Bearing Type SSO2
Fan Speed 300 ~ 1500 RPM
Fan Noise Level 22.4 dB(A)
Cooling Capacity 129 NSPR
Airflow 93.4 m3/h

Fan Speed Controller

Connector 4-pin PWM
Voltage 12 V


Heatsink Material Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Width 125 mm
Depth 71 mm
Height 158 mm
Weight 755 g
Cable length 20 cm
Fan Width 12 cm
Fan Depth 25 mm
Fan Height 120 mm
Heatsink Width 125 mm
Heatsink Height 158 mm
Heatsink Depth 45 mm


Warranty 6 years

Key Features

Compatible with Socket AM3 Yes
Compatible with Socket AM2+ Yes
Compatible with Socket AM2 Yes
Compatible with Socket 939 No
Compatible with Socket 940 No
Compatible with Socket 754 No
Compatible with Socket A No
Compatible with Socket 1366 No
Compatible with Socket 1156 Yes
Compatible with Socket 775 No
Compatible with Socket 771 No
Compatible with Socket 478 No
Compatible with Socket 423 No
Compatible with Socket 370 No
Heatpipe Technology Yes
Includes Fan Yes
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) Yes
Compatible with Socket FM1 Yes
Display Model in Showroom No
L.E.D Fan No LED
Socket FM2/FM1 Yes
Liquid Cooler No
Compatible with Socket 1150 Yes
Compatible with Socket AM1 No
Watercooler No
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height 158 mm
Socket SP3/TR4/sTRX4/sWRX80 No
Compatible with Socket 2066 Yes
Socket 3647 No
Number of Fans 1 fan(s)
Radiator Length N/A mm
Compatible with Socket 1200 Yes
Socket 1200 Yes
RGB Software Type None
Socket 1700 Yes
Power Requirement (auto) 5 W
Cooler count 1
Our Cooling Rating (TDP) 190 W
Socket SP6/sTR5 No

Item Details

Manufacturer Noctua
Manufacturer Code NH-U12S
EAN 4716123314943
UPC 842431014306
Condition New

Warranty Information

Warranty 6 years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NH-U12S

Do you have you a question about the Noctua NH-U12S CPU Cooler?

Q: Hi, does this come with a mounting bracket for LGA1700 socket?
Answer by Website User on 29th January 2022
No no intel lga1700 brackets
0 customers found this answer helpful.
Post Answer
Q: Does this now come with the AM4 mounting bracket?
Answer by Website User on 20th April 2020
Yes, these now include AM4 brackets. -MR
0 customers found this answer helpful.
Post Answer
Q: Hi, I have just purchased this cooler. Does it come with a mounting bracket? Currently on the official Noctua website it says: NH-U12S (AM4 mounting included since 2019, only older coolers require upgrade kit) So do you ship the mounting kit as well for AM4 boards?
Answer by Website User on 2nd August 2019
Yes, this should come with it as our stock is not that old.
0 customers found this answer helpful.
Post Answer
Q: Noctua now say that these are now compatible with AM4 boards - only the 2018 and before need the special kit. Can you confirm this and, if true, that you do not have 'old stock' which will require the add-on kits?
Answer by Website User on 1st April 2019
I can confirm out stock will not have the AM4 bracket so it will need to be requested from the manufacture after you receive your product.
0 customers found this answer helpful.
Post Answer
Q: Does it have everything in the box to fit an FM2+ socket (other adds sugest you need to get an extra backplate)?
Answer by Website User on 8th February 2019
The backplate comes with the motherboard, you can find more information to this by following the below link.
0 customers found this answer helpful.
Post Answer
Q: Does this include the backplate ?
Answer by Website User on 21st August 2017
NO, the backplate would come with your motherboard.
0 customers found this answer helpful.
Post Answer
Q: Will this fit on a B350 Tomahawk Arctic AM4 with a Ryzen 1600x and if not can you provide a bracket so it will fit? Thank you
Answer by Website User on 20th June 2017
It does not come with the AM4 bracket in the box, however you can get one from Noctua by filling out the form on their website:
0 customers found this answer helpful.
Post Answer
Q: Does this will fit right on Msi z170a gaming 5 motherbord which is 1151 socket ? thanks for reading hope to hear soon.
Answer by Dan on 23rd September 2015
Yes, this should be fine on that motherboard. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Will it be too chancy installing this in the Xigmatek Shockwave case?
Answer by Website User on 29th May 2015
That case supports coolers up to 160mm so it will be very close but should fit. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: have a question about that CPU cooler - can i put one more fan from another side for push - pull configuration - is the in package spears fan mounting brackets?
Answer by shaban on 13th February 2015
The cooler does support a second fan, however it does not come with the extra mounting brackets.
1 customer found this answer helpful.
Post Answer
4.9 / 5 10 reviews


10 months ago

Cool and quiet

Paul Goodway

January 2022

I've had people tell me that this is the best aircooler around and they're not wrong. There are parts in the box for many different sockets and it's really incredibly easy to install. The instructions are super clear to understand even for someone like me who has only ever built one PC before. Everything just clicked and screwed together the way that it should. I was a little bit worried about how much thermal paste to use, but the amounts suggested by the instructions worked perfectly for my CPU. The fan comes with a low noise adaptor that will limit the rpm and make it even quieter - but honestly at the moment it's not needed. It's so quiet under normal operations that I don't notice it at all. The thermals on my new PC are brilliant and even under heavy load it doesn't get very hot at all. A friend is going to build a PC soon and I've told him to get a NH-U12 for his rig - honestly can't praise it enough.


May 2021

Obviously a major upgrade from the stock cooler. The fans are very quiet at idle as expected for this brand. The second fan to use this as a push-pull configuration is a good upgrade, a package including this would be nice.

Simon Mills

March 2021

I haven't installed a CPU cooler in a number of years but this was very easy to do. Great build quality and instructions were clear to understand.


February 2021

Great price and the fan is perfect for my new PC build; I can barely hear the fan going even when gaming, massive improvement on my previous CPU fan that sounded like a jet engine!

Marian T.

January 2021

Solid, well made, amd and intel adaptor kits, thermal paste and clear instructions included. Honestly I can't find any faults. My gaming cpu is chilling at 40 50 degrees Celsius so Noctua well done. Top quality!


November 2020

Great product, would have liked it if it was a little cheaper.

Mr Karl Edwards

April 2020

This cooler works very well: it's easy to install, it's very quiet, and the temperatures are very good.


February 2020

Cpu has been running extremely cool (ryzen 5 3600)


October 2018

Just silent and cool as ALWAYS
