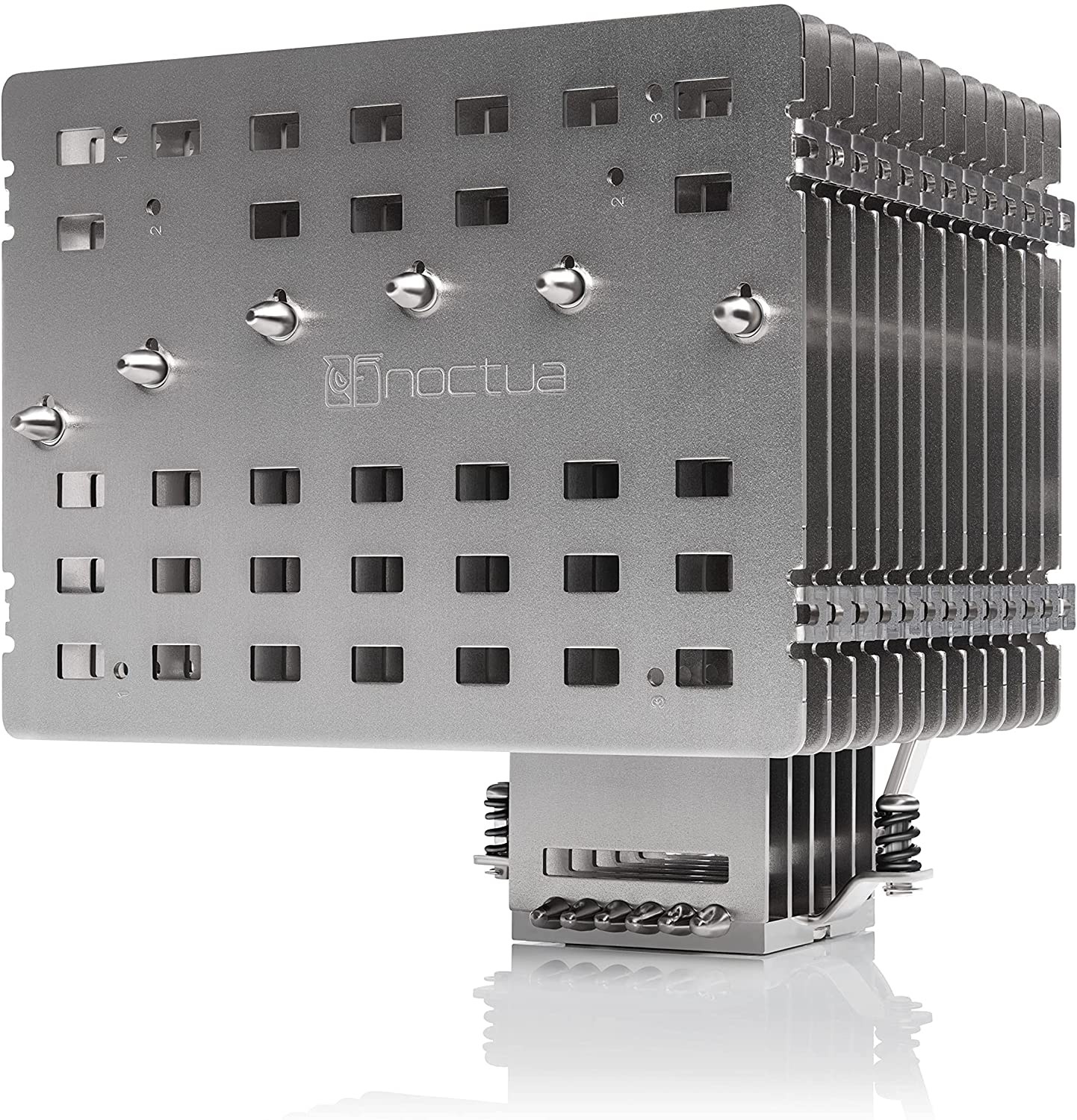

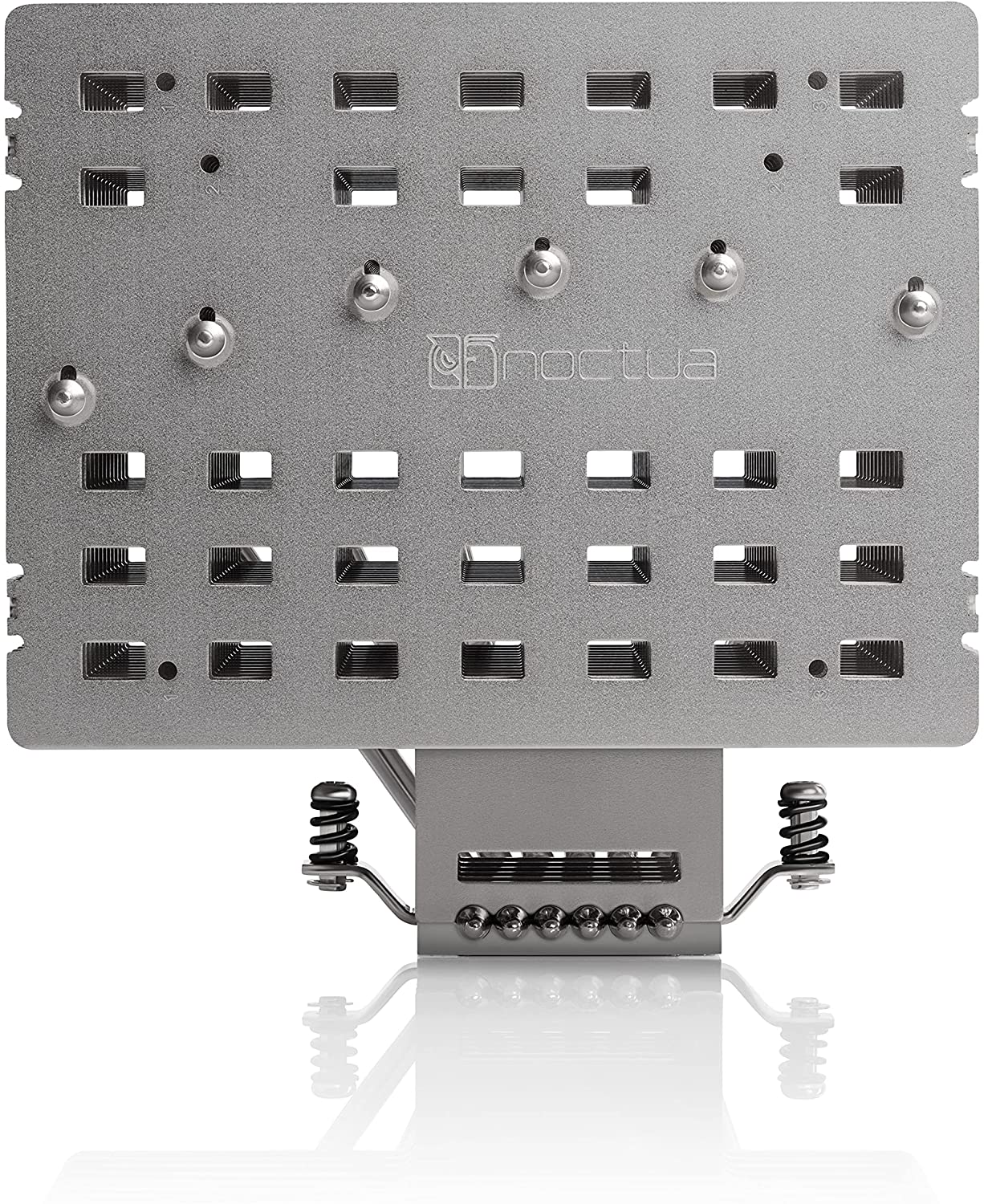

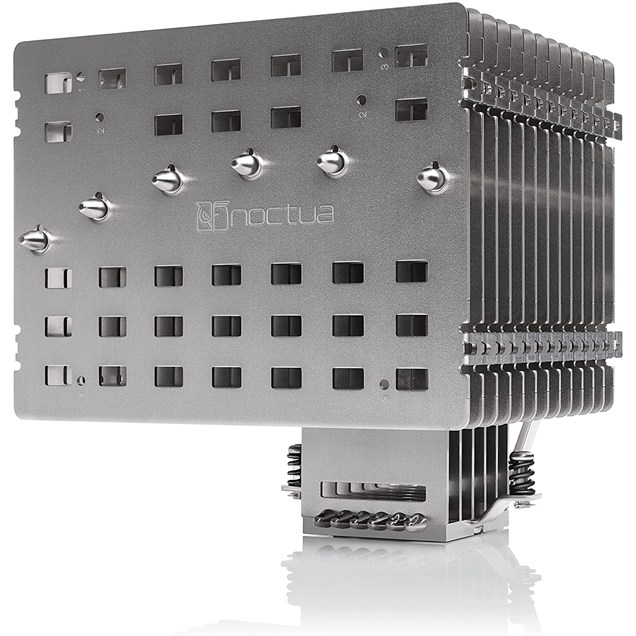

Noctua NH-P1 Passive CPU Cooler

Noctua NH-P1 Passive CPU Cooler

CCL Code: CLR2290

Discontinued

Noctua NH-P1 Passive CPU Cooler

NH-P1

CCL Code: CLR2290

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The NH-P1 is Noctua’s first passive CPU cooler and has been custom-designed for fanless operation from the ground up: in enclosures with good natural convection, its six heatpipes and thick, widely spaced heatsink fins enable it to cool modern high-end CPUs with low to moderate heat dissipation completely passively (see setup guidelines and list of recommended cases). For further enhanced performance or semi-passive setups that only spin up their fans when necessary, the NH-P1 can be outfitted with a low-speed, ultra-quiet 120mm fan such as the NF-A12x25 LS-PWM. Topped off with the professional Torx-based SecuFirm2+ mounting system, Noctua’s award-winning NT-H2 thermal compound and a 6-year manufacturer’s warranty, the NH-P1 is the ideal cornerstone for premium-grade fanless or semi-passive builds.

Caution: while the NH-P1 provides first-rate performance for a passive cooler, it is not suitable for overclocking or CPUs that create high heat loads.

Please note that the TDP (Thermal Design Power) rating or amount of heat dissipation that the cooler can handle not only depends on the chassis and various other factors such as ambient temperature or other components inside the system, but also generally varies from CPU model to CPU model. For this reason, we specify cooling performance using the Noctua Standardised Performance Rating (NSPR) instead of giving a general TDP specification. In addition, we refer to our CPU compatibility list where we indicate how well the cooler can be expected to work on a particular CPU in a fully optimised setup (see our setup guidelines).

Please also note that the NH-P1 strictly requires either a fanless PC case with good natural convection, an open benchtable-type setup or a PC case with fans in order to achieve its full performance. We offer a list of recommended cases for completely fanless systems using the NH-P1. If necessary, Noctua recommends adding a near-inaudible 120mm fan like the NF-A12x25 LS-PWM to the heatsink for improved performance headroom.

Main Features

  • Designed for passive cooling from the ground up - The NH-P1 isn't just a regular heatsink without a fan: it has been designed for fanless operation from the ground up, featuring much thicker, much more widely spaced fins in order to achieve both the mass and the minimal airflow resistance that are required in order to excel in natural convection cooling.
  • Fanless cooling for high-end CPUs - In fully optimised fanless systems, the NH-P1 is capable of cooling high-end CPUs with low to moderate heat dissipation using natural convection only (see setup guidelines and CPU compatibility list). This makes it ideal for powerful builds that have no moving parts and run absolutely silent.
  • Increased performance headroom with extra fan - The NH-P1 can be fitted with an extra 120mm fan such as the near inaudible NF-A12x25 LS-PWM in order to increase its maximum dissipation capacity significantly (see setup guidelines and CPU compatibility list): ideal for short spikes of higher heat loads or semi-passive systems that only start their fans when necessary!
  • No noise, less dust, 100% fail-proof - Fanless cooling doesn't only have the advantage of being completely silent: if you're relying on natural convection only and don't have case fans pushing air through a case, less dust will accumulate in filters or inside the system. Last but not least, with no moving parts such as fans or pumps that could possibly fail, the NH-P1 is as fail-proof as it can be.
  • Asymmetrical layout for optimal PCIe compatibility - As many current motherboards have the top PCIe x16 slot sitting close to the socket, bigger heatsinks tend to block it. Due to its asymmetrical layout, the fin-stack of the NH-P1 is offset towards the upper edge of the motherboard when installed in standard orientation. This allows it to clear the top PCIe x16 slot on most current æATX and ATX motherboards (see motherboards compatibility list).
  • 100% RAM clearance on LGA1200 and AM4 - Due to its asymmetric design, the NH-P1 does not overhang the RAM slots on Intel LGA1200, LGA115x and AMD AM4 based motherboards, which ensures easy access to the modules and 100% compatibility with tall heat-spreaders. On LGA2066, it overhangs the RAM slots on the left-hand side of the socket, so RAM modules should not exceed 45mm in height.
  • SecuFirm2+ Torx-based multi-socket mounting system - Noctua's SecuFirm2 mounting systems have become synonymous with quality, safety and easy installation. Torx-based, the professional SecuFirm2+ version with its included screwdriver provides even better handling and durability. Socket support includes Intel LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) and LGA20xx (LGA2066, LGA2011-0, LGA2011-3), as well as AMD AM4, AM3(+), AM2(+), FM2(+) and FM1.
  • Compatibility with past and future sockets - Thanks to Noctua's SecuFirm ecosystem, the NH-P1 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NH-P1 a safe long-term investment.
  • NT-H2 next-gen thermal compound - In high-end passive cooling, every degree counts. This is why the NH-P1 includes a tube of Noctua's next-generation NT-H2 thermal compound that provides even better performance than the award-winning NT-H1, allowing you to achieve the best possible passive cooling results.

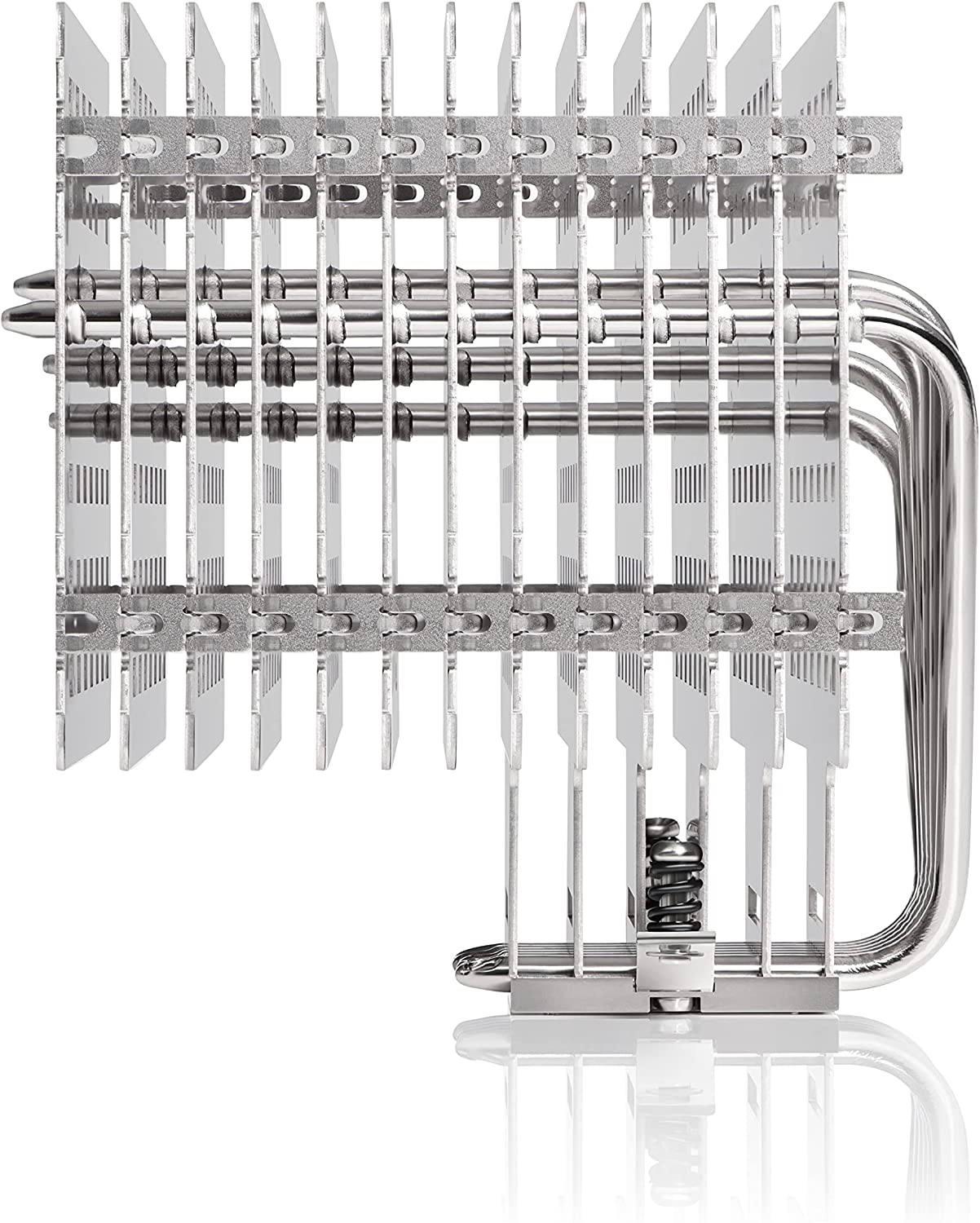

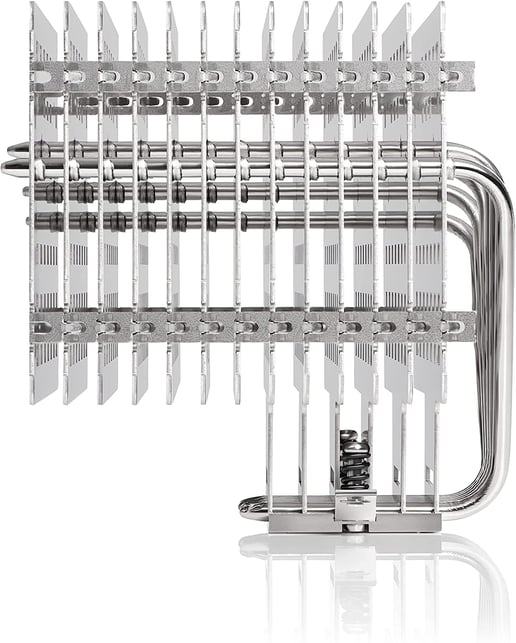

  • Soldered interface between heatpipes and fins - With many heatsinks, the fins are press-fitted to the heatpipes. Due to the different thermal expansion coefficients of copper and aluminium, this fit can loosen over years of thermal cycling, which may lead to reduced performance. By contrast, the NH-P1's fins are soldered to the heatpipes in order to guarantee a superior thermal interface that doesn't deteriorate even after many years of usage.
  • 6-year manufacturer's warranty - Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua CPU coolers, the NH-P1 is built to the highest standards and comes with a full 6-year manufacturer's warranty.
Videos

Introducing the NH-P1 Passive CPU Cooler

Introducing the NH-P1 CPU cooler: Custom-designed for fanless operation from the ground up. Capable of cooling modern high-end CPUs with low to moderate heat dissipation completely passively in enclosures with good natural convection, or ideal for semi-passive setups with low-speed, ultra-quiet NF-A12x25 LS-PWM fan.

Specifications

CPU Types

Socket Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1200, LGA1156, LGA1155, LGA1151, LGA1150 & AMD AM2, AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4

Physical

Form Factor Passive CPU Cooler
Base Material Copper
Heatsink Material Aluminium

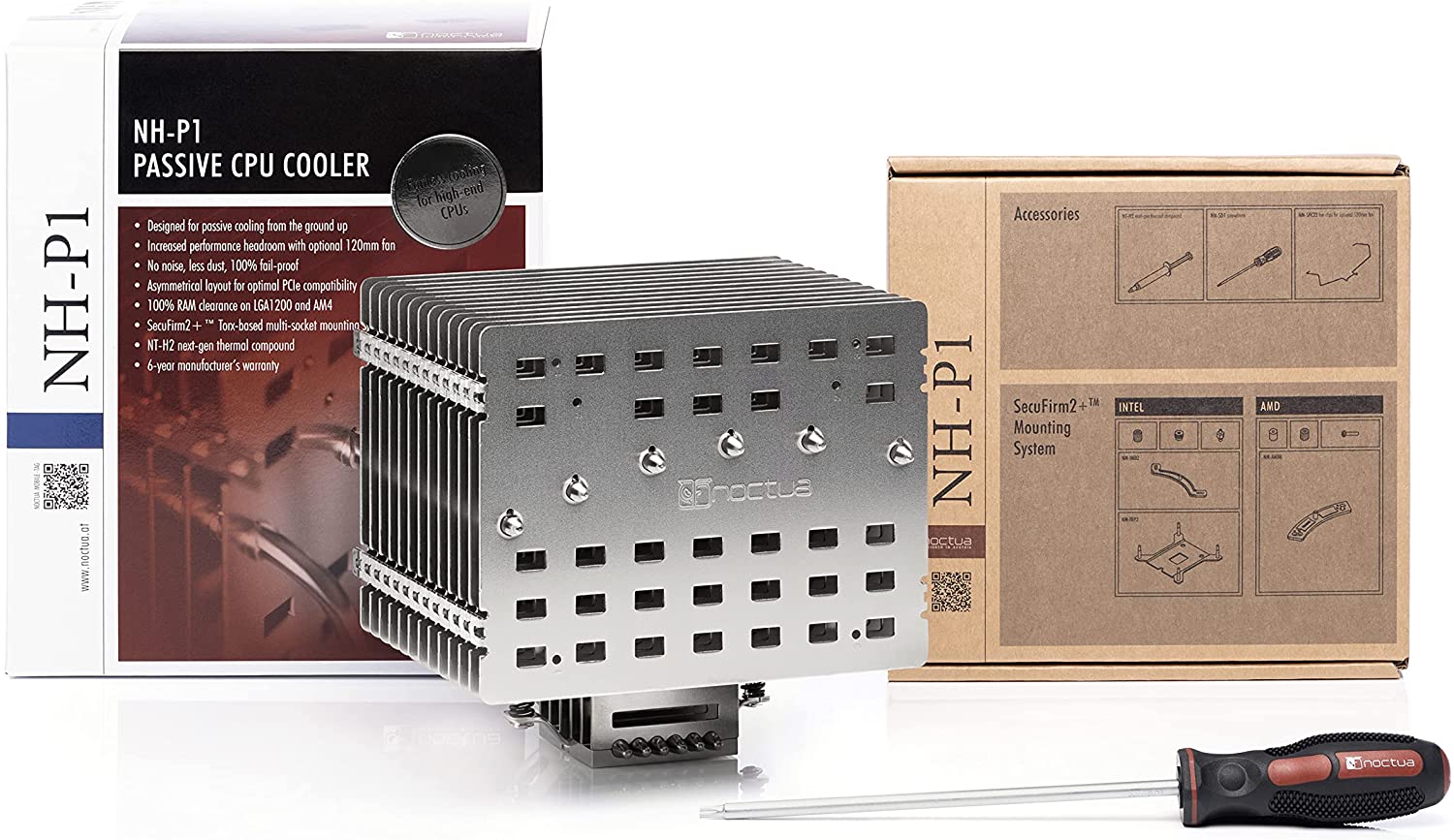

In The Box NH-P1 Heatsink
SecuFirm Multi-Socket Mounting System
NT-H2 High-Grade Thermal Compound
NA-CW1 Cleaning Wipe
NM-SD1 Screwdriver
Fan Clips for optional 120mm fan
Noctua Metal Case Badge
Width 154 mm
Depth 152 mm
Height 158 mm
Weight 1.18 kg

Warranty

Warranty 6 Years

Key Features

Fan Width cm
Firewire
IDE/EIDE Supported
Installed Processors (Max)
Integrated Graphics Supported
Maximum RAM GB
RAID Supported
SATA Supported
SCSI/SAS Supported
Memory Type
Wireless Network
Motherboard Width 999 mm
Motherboard Height 999 mm
Chipset Manufacturer
Supported Processor Manufacturer
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Number of PCI Express Slots slot(s)
Main Colour
Internal/External Use
Fan Diameter
Socket(s)
Memory Channel
On-board Audio Type
Number of SATA Ports port(s)
Number of USB Ports port(s)
SATA III Support
USB 3.0 Support
Multi GPU Support
Compatible with Socket AM3 Yes
Compatible with Socket AM2+ Yes
Compatible with Socket AM2 Yes
Compatible with Socket 939
Compatible with Socket 940
Compatible with Socket 754
Compatible with Socket A
Compatible with Socket 1366
Compatible with Socket 1156 Yes
Compatible with Socket 775
Compatible with Socket 771
Compatible with Socket 478
Compatible with Socket 423
Compatible with Socket 370
Heatpipe Technology Yes
Includes Fan No
VGA Connection
DVI Connection
HDMI Connection
DisplayPort Connection
Memory Type
Fan Size mm
Motherboard Form Factor
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) Yes
Compatible with Socket FM1 Yes
Display Model in Showroom No
Wake on LAN
L.E.D Fan No LED
Socket FM2/FM1 Yes
Motherboard Power Connectors
Motherboard Chipset
Thunderbolt
Liquid Cooler No
Compatible with Socket 1150 Yes
Compatible with Socket AM1
Motherboard Model
WiFi Speed Mbps
Watercooler No
USB 3.1 Support
Internal USB3.0 Header
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height 158 mm
Socket SP3/TR4/sTRX4/sWRX80 No
M.2 Support
Compatible with Socket 2066 Yes
On-board RGB Control
Memory Speed MHz
Skip Audio Test
Compatible with Socket 3647
RGB Header Type
Addressable RGB
Internal USB Type-C Header
Radiator Length N/A mm
Compatible with Socket 1200
Socket 1200 Yes
RGB Software Type
Microsoft Processor List
Socket 1700 Yes
Power Requirement (auto) 5 W
Cooler count 1
Max Memory Speed Supported (Non-overclocked) MHz
Max Memory Speed Supported (overclocked) MHz
CPU Power Pins (female)
PCI Express Power Pins (female)
Total M.2 Slots
Maximum NVMe M.2 ports
Maximum SATA M.2 ports
PCI-e slots
SATA ports
No. of front USB2.0 ports supported
No. of front USB3.0 ports supported
No. of front USB-C ports supported
Create Your Own PC Yes

Wireless Communications

Bluetooth

CPU

CPU Socket
CPU Brand

Graphics

Graphics Chipset

Item Details

Manufacturer Noctua
Manufacturer Code NH-P1
EAN 9010018000269
UPC 841501100260
Condition New
Warranty

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NH-P1
Q&A

Do you have you a question about the Noctua NH-P1 Passive CPU Cooler?

Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
Installation Manual pdf
Information Sheet pdf
