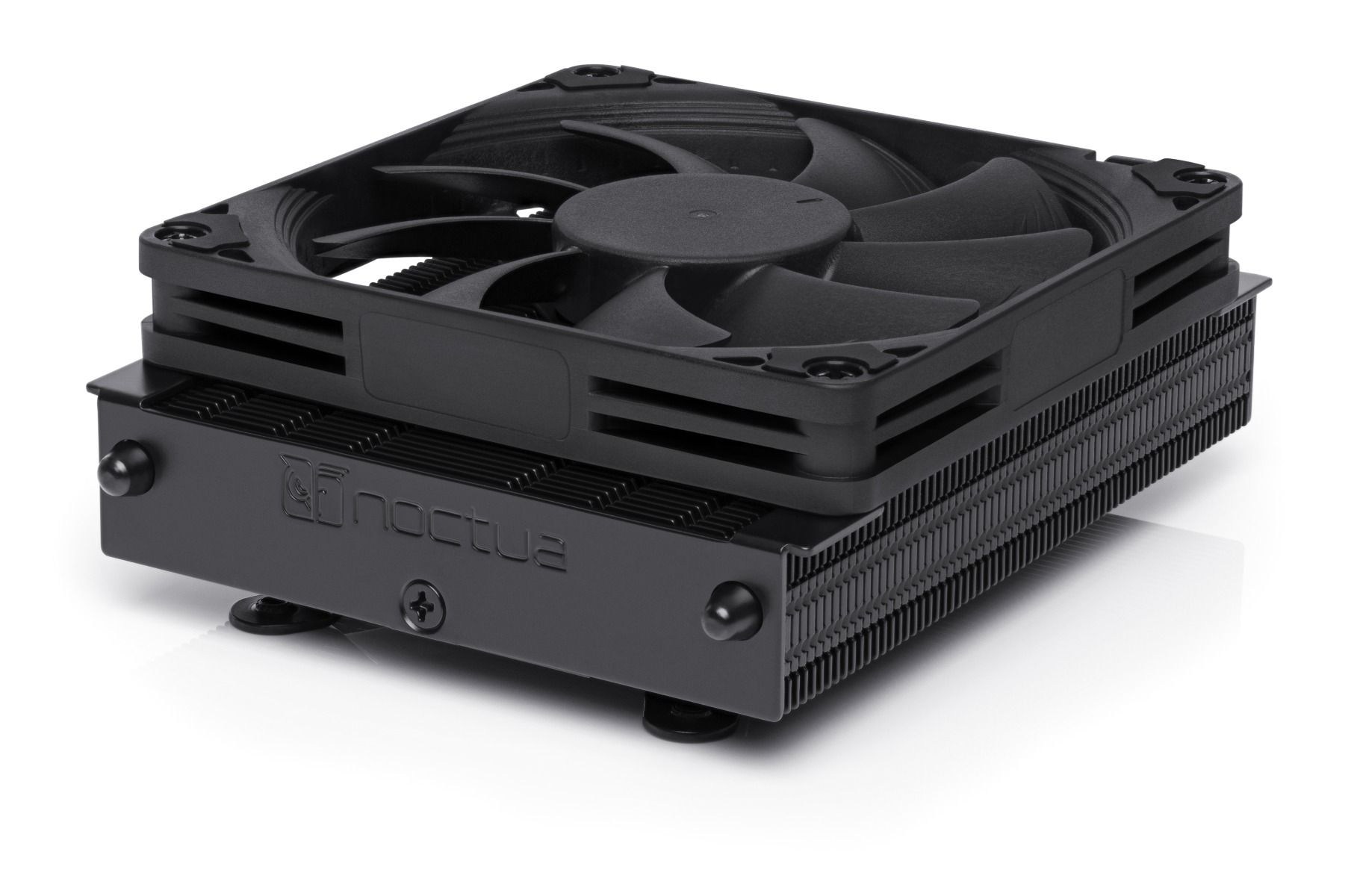

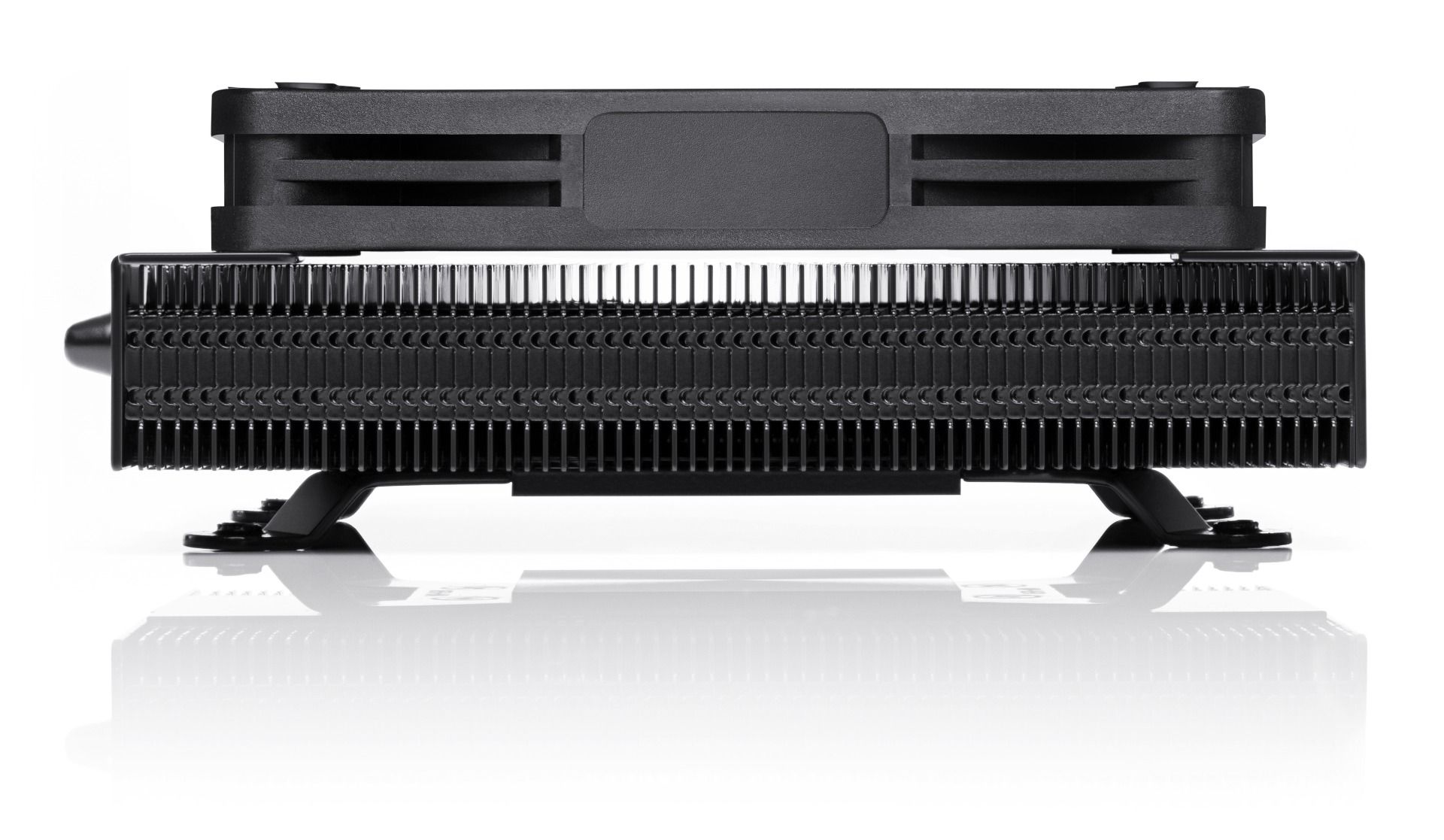

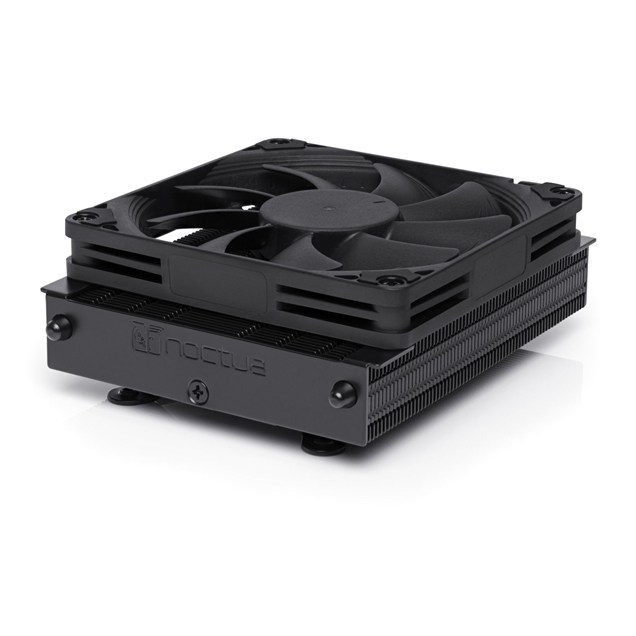

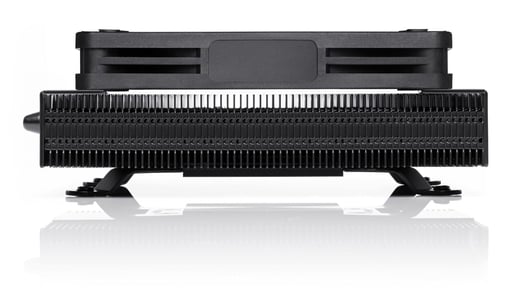

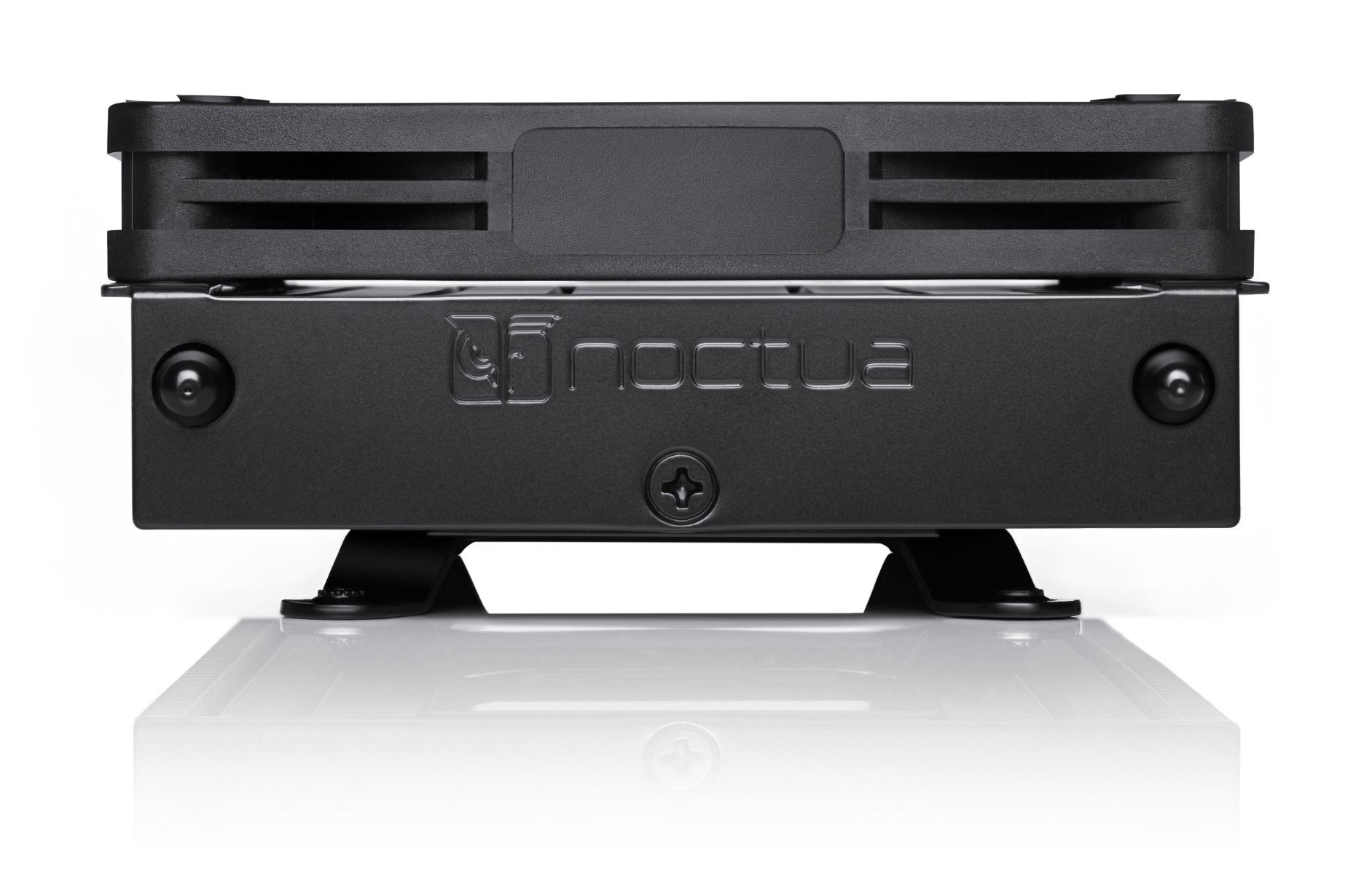

Noctua NH-L9a-AM5 chromax.black CPU Cooler

Noctua NH-L9a-AM5 chromax.black CPU Cooler

CCL Code: CLR2861

Sold out

Notify Me

Noctua NH-L9a-AM5 chromax.black CPU Cooler

NH-L9a-AM5 chromax.black

Key Features:

  • Air Cooler
  • 1 x 9.2cm Fan(s)
  • 600 ~ 2500RPM
  • Intel
  • AMD AM4 AM5
CCL Code: CLR2861

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

The NH-L9a-AM5 chromax.black is an all-black version of Noctua’s award-winning NH-L9a-AM5 low-profile quiet CPU cooler for AMD AM5 based HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9a-AM5’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2™ low-profile mounting system for AMD AM5, Noctua’s enthusiast-grade NT-H1 thermal compound and a full 6-year manufacturer’s warranty, the NH-L9a-AM5 chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

The NH-L9a-AM5 is a highly compact, quiet low-profile cooler designed for use in small form factor cases and HTPC environments. While it provides first-rate performance in its class, it is not suitable for overclocking and or CPUs that create high heat loads.

Specifications

CPU Types

Socket AMD AM5

Fan

Fan Bearing Type SSO2
Fan Speed 600 ~ 2500 RPM
Fan Noise Level 14.8 ~ 23.6 dB(A)
Lifetime > 150,000 hours
Airflow 40.8 ~ 57.5 m3/h

Fan Speed Controller

Connector 4-pin PWM
Allowable Power 2.52 W
Connector Type 12 V

Physical

Form Factor CPU Cooler
Case Colour Black
Base Material Copper
Heatsink Material Aluminium

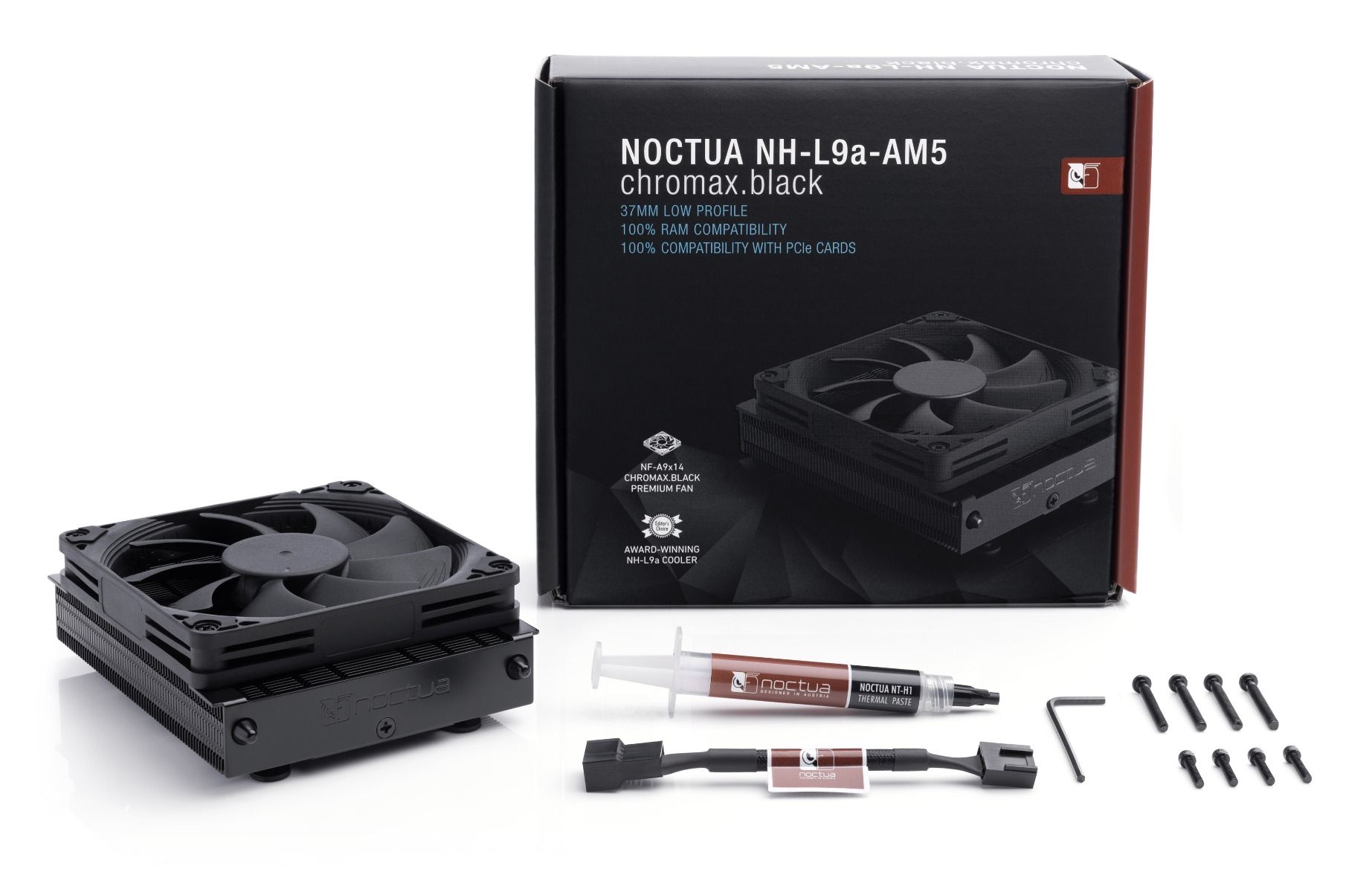

In The Box Cooler
LNA Adapter
Thermal Compound
Mounting Kit
Noctua Metal Case Badge
Width 114 mm
Depth 92 mm
Height 37 mm
Weight 465 g

Warranty

Warranty 6 Years

Key Features

Fan Width 9.2 cm
Includes Fan Yes
Socket 2066/2011 No
Socket 115x No
Socket AM2(+)/AM3(+) No
L.E.D Fan No LED
Socket FM2/FM1 No
Liquid Cooler No
Compatible with Socket 1150 No
Watercooler No
Socket AM5/AM4 Yes
Cooler Height 37 mm
Socket SP3/TR4/sTRX4/sWRX80 No
Number of Fans 1 fan(s)
Radiator Size N/A mm
Socket 1200 No
RGB Software Type None
Socket 1700 No
Power Requirement (auto) 5 W
Cooler count 1
Our Cooling Rating (TDP) 90 W
Socket SP6/sTR5 No
Create Your Own Gaming PC (CCL) Yes

Item Details

Manufacturer Noctua
Manufacturer Code NH-L9a-AM5 chromax.black
EAN 9010018000351
UPC 841501100352
Condition New
Warranty

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NH-L9a-AM5 chromax.black
