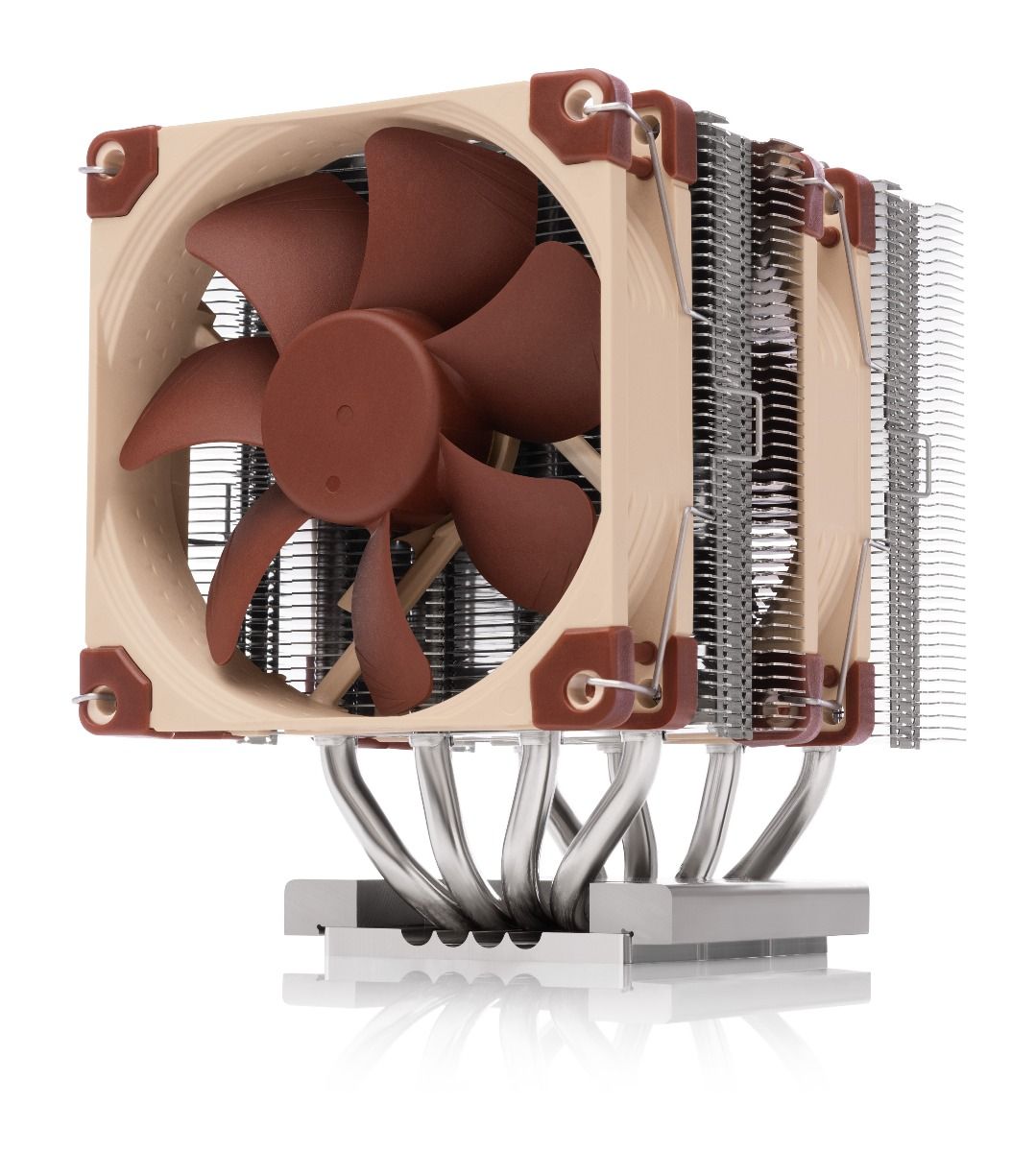

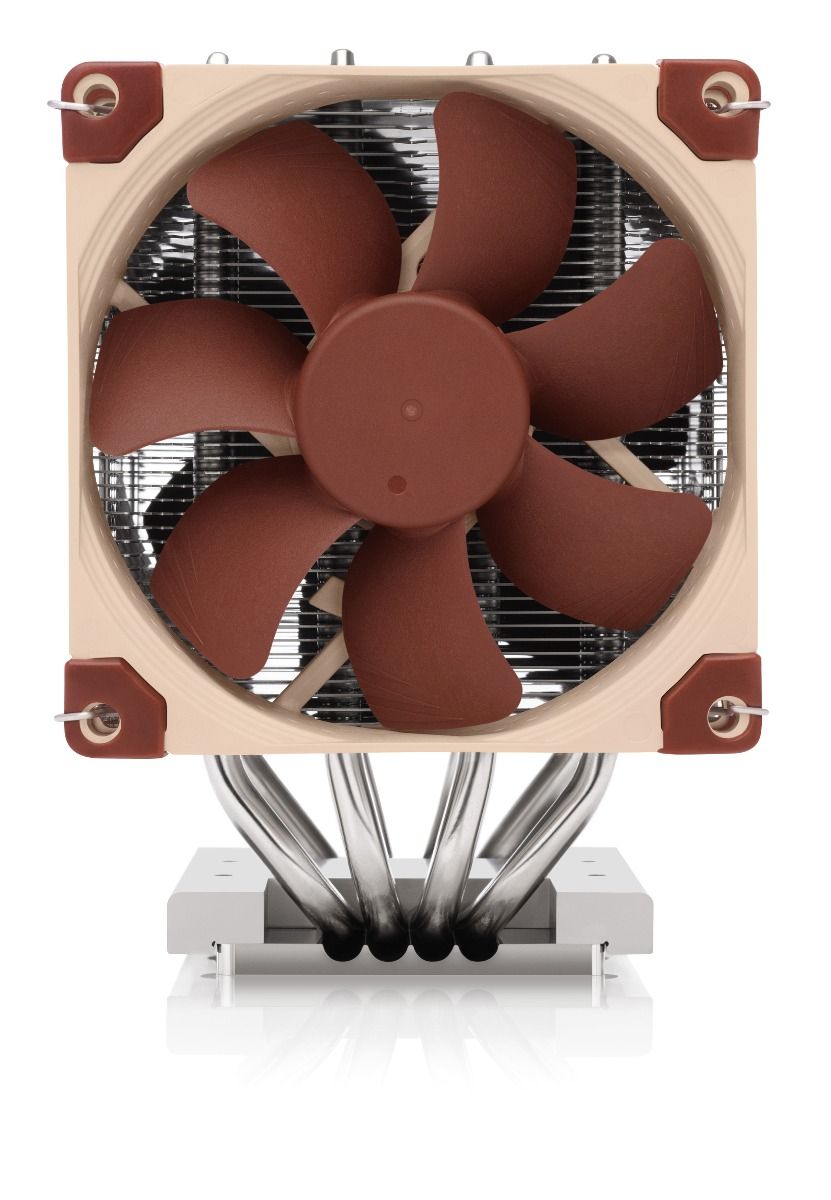

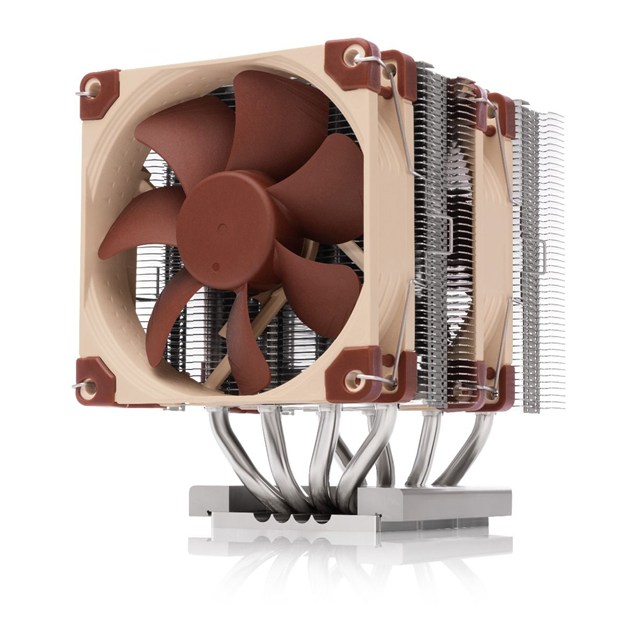

Noctua NH-D9 TR5-SP6 4U CPU Cooler

Noctua NH-D9 TR5-SP6 4U CPU Cooler

CCL Code: CLR2845

Coming soon

Notify Me
  • Noctua NH-D9 TR5-SP6 4U CPU Cooler
  • Noctua NH-D9 TR5-SP6 4U CPU Cooler
  • Noctua NH-D9 TR5-SP6 4U CPU Cooler

Get 5% off when you buy 5 or more different components using code: BUY5GET5

Noctua NH-D9 TR5-SP6 4U CPU Cooler

NH-D9 TR5-SP6 4U

CCL Code: CLR2845

Coming soon

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

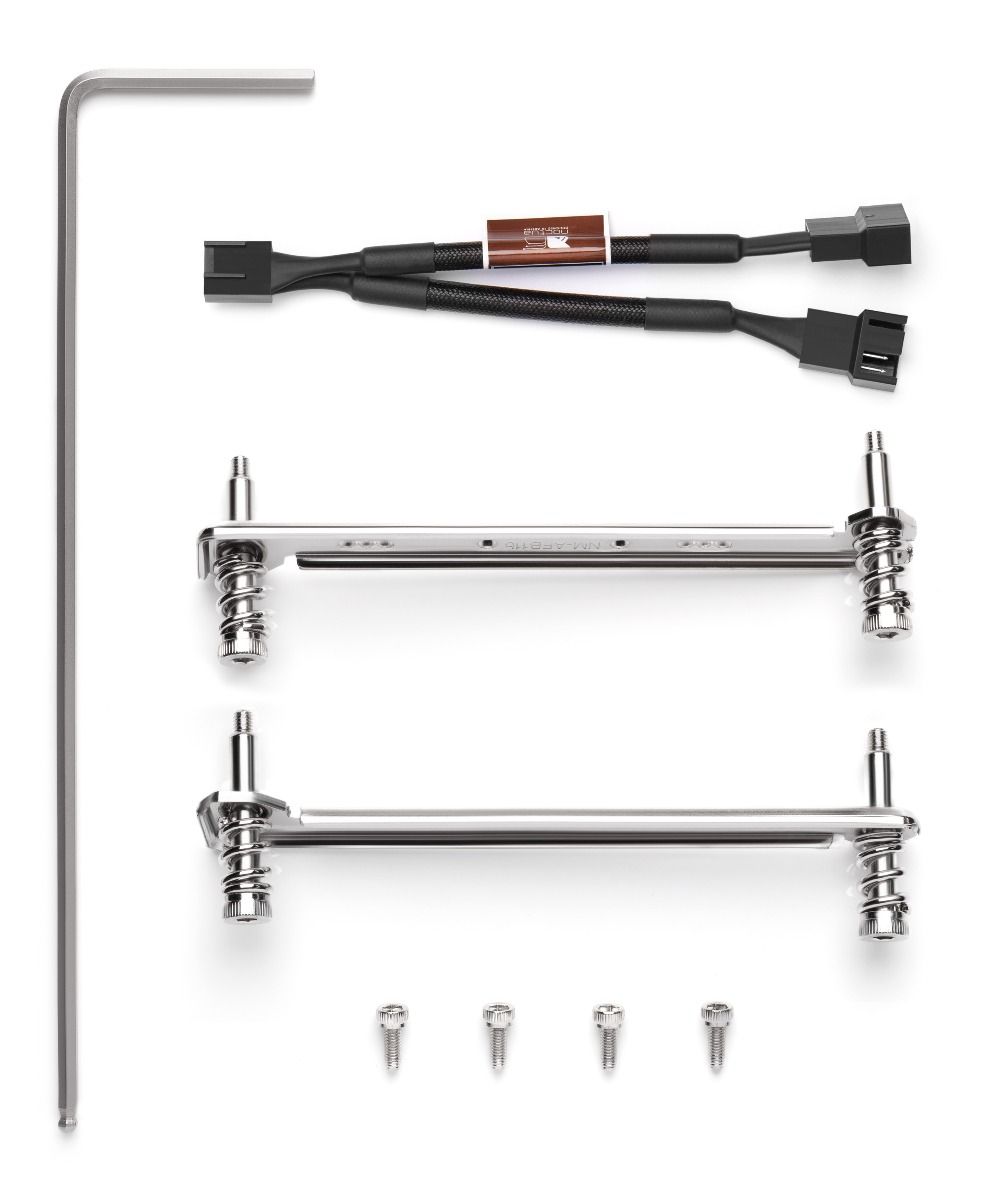

The NH-D9 TR5-SP6 4U is a 92mm size premium quality quiet CPU cooler for workstations and servers based on AMD Threadripper and Epyc processors that utilise TR5/SP6 sockets (sTRX5/sWRX9). Built on the proven basis of the DX model with its dual tower heatsink and full-cover contact surface, the TR5-SP6 revision employs two of Noctua’s award-winning, PWM controlled NF-A9 PWM 92mm fans in their higher speed variant in order to achieve strong performance and superb acoustics. The NH-D9’s direction of airflow is parallel to the long axis of the socket, so it is ideal for builds where the hot air is exhausted this way. Topped off with the pre-applied NT-H2 thermal compound as well as the professional SecuFirm2™ mounting system for TR5/SP6 that has been updated to meet the platform’s increased pressure specifications, the NH-D9 TR5-SP6 4U forms a complete premium quality package for quietly cooling TR5-based Threadripper workstations and SP6-based Epyc servers in 4U cases.

Please note that the NH-D9 TR5-SP6 4U is a dedicated version for AMD TR5/SP6 sockets (sTRX5/sWRX9). Due to its customised larger base, it cannot be used on smaller sockets and is incompatible with Noctua’s mounting kits for these sockets



Get 5% off components when you buy 5 or more*

For a limited time, buy at least 5 different components from different qualifying categories and get 5% off those items at checkout.

 *Terms & Conditions apply.




Promotional Period: From 2023-09-25 till stocks last.

Terms and Conditions

It can't be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to five or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. If will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the five or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: From 25th of September, 2023 till 9th of October, 2023.


CPU Types

Socket TR5/SP6


Fan Speed 400 ~ 2500 RPM
Bearing Type SSO2
Fan Noise Level 30.6 dBA Max
Lifetime > 150,000 hours
Airflow 96.3 m3/h

Fan Speed Controller

Connector 4-pin PWM
Voltage 12 V


Form Factor CPU Cooler
Case Colour Beige/Brown
Base Material Copper
Heatsink Material Aluminium
Width 95 mm
Depth 120 mm
Height 134 mm
Weight 769 g


Warranty 6 Years

Key Features

Includes Fan Yes
Socket 2066/2011 No
Socket 115x No
Socket AM2(+)/AM3(+) No
L.E.D Fan No LED
Socket FM2/FM1 No
Liquid Cooler No
Compatible with Socket 1150 No
Watercooler No
Socket AM5/AM4 No
Cooler Height 134 mm
Socket SP3/TR4/sTRX4/sWRX80 No
Socket 1200 No
RGB Software Type None
Socket 1700 No
Power Requirement (auto) 5 W
Cooler count 1
Config Business (CB) Yes
Config Enterprise (CB) Yes
Config Professionals (CB) Yes
Config Server Rack (CB) Yes
Socket SP6/sTR5 Yes

Item Details

Manufacturer Noctua
Manufacturer Code NH-D9 TR5-SP6 4U
Condition New

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NH-D9 TR5-SP6 4U

Do you have you a question about the Noctua NH-D9 TR5-SP6 4U CPU Cooler?

No reviews have been received for this product yet
