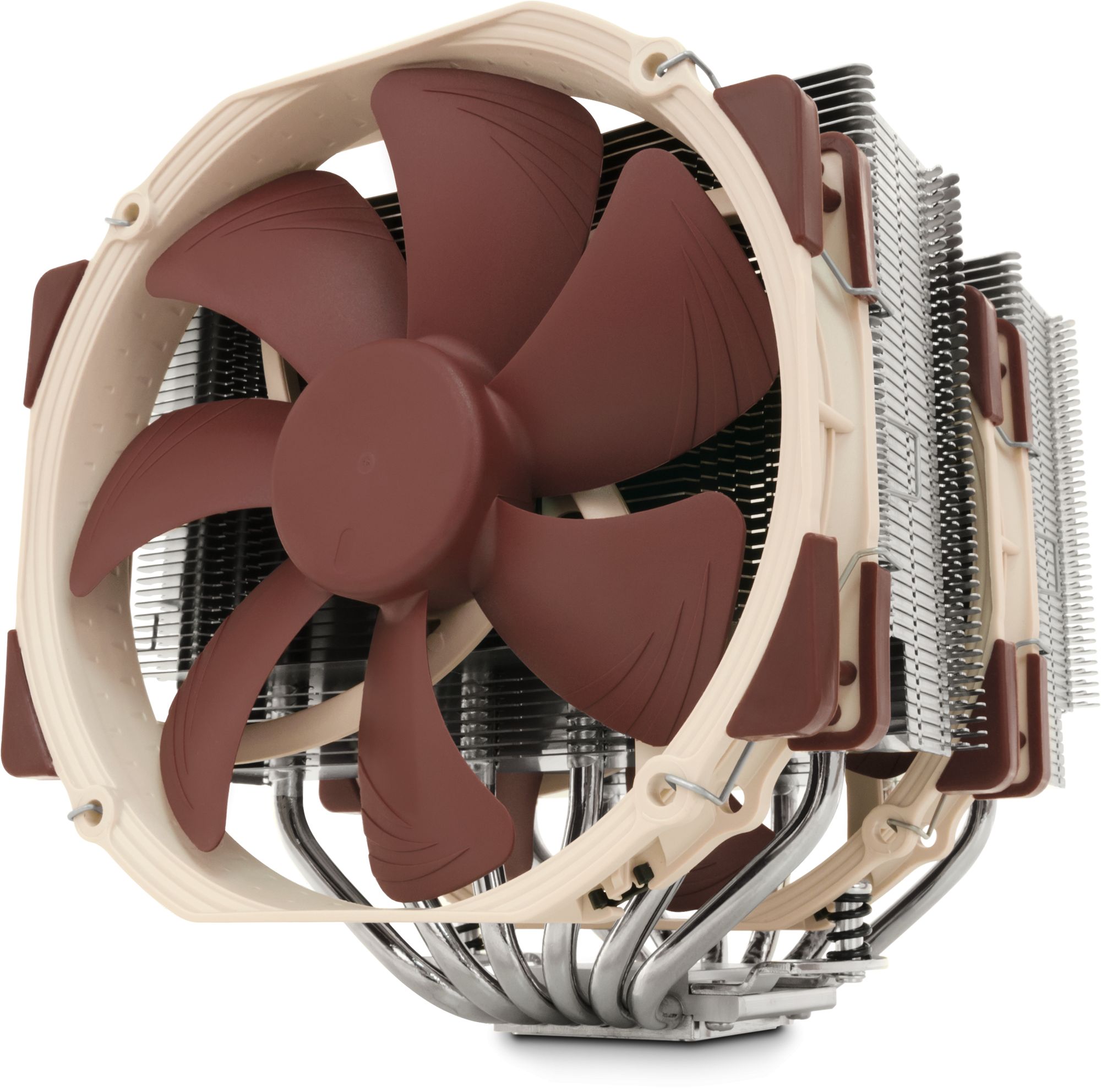

Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NF-A15 Fans

Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NF-A15 Fans

CCL Code: CLR0821

Sold out

Notify Me
  • Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NF-A15 Fans

Amazing Performance!!

Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NF-A15 Fans

NH-D15

Key Features:

Socket Compatibility: 775 / 1150 / 1155 / 1156 / 1366 / 2011 / AM2 / AM2+ / AM3 / AM4 / FM1 / FM2

CCL Code: CLR0821

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Built on the basis of the legendary NH-D14 and carrying on its quest for ultimate quiet cooling performance, Noctua's flagship model NH-D15 is an elite-class dual tower cooler for the highest demands. Its expanded heatpipe layout and two premium grade NF-A15 140mm fans with PWM support for automatic speed control allow it to further improve the NH-D14's award-winning efficiency. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system, Noctua's proven NT-H1 thermal compound and full six years manufacturer's warranty, the NH-D15 forms a complete premium quality solution that represents a deluxe choice for overclockers and silent-enthusiasts alike.

Compatibility with past and future sockets
Complying with the open SecuFirm™ standard, the NH-D15 can be made compatible with the older LGA1366 and LGA775 sockets using the optional NM-I3 mounting kit, which is provided by Noctua free of charge. If technically possible, Noctua will also provide upgrade kits for future sockets.

Main Features

  • Based on the award-winning NH-D14
  • Widened fin stack and expanded heatpipe layout
  • Dual NF-A15 140mm fans
  • SecuFirm2 mounting system
  • Compatible with Intel LGA2011/1155/1156/1150 and AMD FM1/FM2/AM3+/AM3/AM2+/AM2
Specifications

CPU Types

Socket Intel LGA2066, LGA2011-0 & LGA2011-3 (Square ILM), LGA1156, LGA1155, LGA1151, LGA1150
AM2+, AM3, AM3+, FM1, FM2, FM2+ (backplate required), AM4 (since 2019)

Fan

Fan Bearing Type SSO2
Fan Speed 300 ± 20% ~ 1500 ± 10% RPM
Noise Level 19.2 ~ 24.6 dBA
Lifetime > 150,000 hours
Cooling Capacity 165 W
Airflow 115.5 ~ 140.2 m3/h

Fan Speed Controller

Connector 4 pin
Voltage 12 V

Physical

Form Factor
In The Box NH-D15 Cooler
2 x NF-A15 PWM Fans
2 x Low-Noise Adapters
Y-Cable
NT-H1 Thermal Compound
SecuFirm2™ Mounting Kit
Noctua Metal Case-Badge
Width 150 mm
Depth 161 mm
Height 165 mm
Weight 1.32 kg
Fan Width 15 cm
Fan Depth 140 mm
Fan Height 25 mm

Warranty

Warranty 6 Years

Wireless Communications

Bluetooth

Key Features

Firewire
IDE/EIDE Supported
Installed Processors (Max)
Integrated Graphics Supported
Maximum RAM GB
RAID Supported
SATA Supported
SCSI/SAS Supported
Memory Type
Wireless Network
Chipset Manufacturer
Supported Processor Manufacturer
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Number of PCI Express Slots slot(s)
Main Colour
Internal/External Use
Fan Diameter
Socket(s)
Memory Channel
On-board Audio Type
Number of SATA Ports port(s)
Number of USB Ports port(s)
SATA III Support
USB 3.0 Support
Multi GPU Support
Compatible with Socket AM3 Yes
Compatible with Socket AM2+ Yes
Compatible with Socket AM2 Yes
Compatible with Socket 939 No
Compatible with Socket 940 No
Compatible with Socket 754 No
Compatible with Socket A No
Compatible with Socket 1366 No
Compatible with Socket 1156 Yes
Compatible with Socket 775 No
Compatible with Socket 771 No
Compatible with Socket 478 No
Compatible with Socket 423 No
Compatible with Socket 370 No
Heatpipe Technology Yes
Includes Fan Yes
VGA Connection
DVI Connection
HDMI Connection
DisplayPort Connection
Memory Type
Fan Size mm
Motherboard Form Factor
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) No
Compatible with Socket FM1 Yes
Display Model in Showroom No
Wake on LAN
L.E.D Fan No LED
Socket FM2/FM1 No
Motherboard Power Connectors
Motherboard Chipset
Thunderbolt
Liquid Cooler No
Compatible with Socket 1150 Yes
Compatible with Socket AM1 No
Motherboard Model
WiFi Speed Mbps
Watercooler No
USB 3.1 Support
Internal USB3.0 Header
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height 165 mm
Socket SP3/TR4/sTRX4 No
M.2 Support
Compatible with Socket 2066 Yes
On-board RGB Control
Memory Speed MHz
Skip Audio Test
Compatible with Socket 3647
RGB Header Type
Addressable RGB
Internal USB Type-C Header
Radiator Length N/A mm
Compatible with Socket 1200 Yes
Socket 1200 Yes
RGB Software Type None
Microsoft Processor List
Socket 1700 Yes
Power Requirement (auto) 5 W
Cooler count 1
Max Memory Speed Supported (Non-overclocked) MHz
Max Memory Speed Supported (overclocked) MHz
CPU Power Pins (female)
PCI Express Power Pins (female)
Total M.2 Slots
Maximum NVMe M.2 ports
Maximum SATA M.2 ports
PCI-e slots
SATA ports
No. of front USB2.0 ports supported
No. of front USB3.0 ports supported
No. of front USB-C ports supported
Config Business Yes
Config Enterprise Yes
Config Gaming Yes
Config Home Office Yes
Config Lifestyle Yes
Config Professionals Yes
Config Quiet Yes
Config Students Yes

CPU

CPU Socket
CPU Brand

Graphics

Graphics Chipset

Item Details

Manufacturer Noctua
Manufacturer Code NH-D15
EAN 4716123315360
UPC 842431012456
Condition New
Warranty

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NH-D15
Q&A

Do you have you a question about the Noctua NH-D15 Dual Radiator Quiet CPU Cooler with two NF-A15 Fans?

Q: Hi, can you please confirm if your stock of the Noctua NH-D15 CPU cooler includes the LGA1700 mounting hardware yet? Noctua say it should be available as of December 2021. Thanks
Post Answer
Q: will it fit with the msi x570 motherboard and have enough ram clearence? and also can i still mount it without that extra thing that i have to buy seperatley?
Post Answer
Q: AM4 compatibility is not listed. Can you confirm whether this cooler now comes with the AM4 mounting kit, as per Noctua note: https://noctua.at/en/noctua-cpu-coolers-now-include-am4-mounting-at-no-extra-cost
Post Answer
Q: Are these old stock Noctua NHD-15's because Noctua states that from 2019 onwards, all of the NHD-15's come with AM4 compatability?
Answer by Matthew on 7th October 2019
Current stock should now support Socket AM4.
5 customers found this answer helpful.
Post Answer
Q: Does this CPU cooler come with an AM4 mount or if not how could I get one?
Answer by Website User on 18th July 2019
It will not come with it so you would need to purchase this also: https://www.cclonline.com/product/230746/NM-AM4/Advanced-Air-Cooling/Noctua-NM-AM4-Mounting-Kit/CLR1452/
0 customers found this answer helpful.
Post Answer
Q: Hi, I have an asus z97 pro gamer 1150 socket. I also have a nvidia 970 gtx, can this cooler fit into the board and the the tower. Also does it come with thermal paste??
Answer by Website User on 25th June 2019
Yes, this will fit and it will come with thermal paste.
0 customers found this answer helpful.
Post Answer
Q: Does it come with the brackets
Answer by Website User on 2nd July 2018
Yes this does come with both the Intel and AMD bracket.
0 customers found this answer helpful.
Post Answer
Q: There is no option to select this cpu cooler with the customised MBB-INT-ADV-E motherboard bundle on the website. Is there anyway around this please? Thank you.
Answer by Website User on 22nd March 2018
You will have to contact us directly via email on pcsales@cclonline.com - matthewt
0 customers found this answer helpful.
Post Answer
Q: Hi. Will this fit into the MBB-INT-ADV-E and MBB-AMD-RYZEN1 motherboard bundles? Also with the GTX 1060 gpu installed. Thank you.
Answer by Website User on 21st March 2018
This cooler is out of the box compatible with the MBB-INT-ADV-E motherboard bundle. However to be compatible with the Ryzen bundle it needs the AM4 backplate. - Matthewt.
0 customers found this answer helpful.
Post Answer
Q: Would this cooler fit inside a GameMax moonstone rgb case?
Answer by Website User on 5th July 2017
Yes, this cooler will fit into this case.
0 customers found this answer helpful.
Post Answer
Q: Hi, can you please confirm if this particular cpu cooler is compatible with socket 1151 - intel i7 7700k because i have compared the information on some other sites like scan and overclockers and it seems like it is. thanks
Answer by Website User on 31st May 2017
Yes I can confirm that this CPU Cooler will work on Socket 1151. -Ben
1 customer found this answer helpful.
Post Answer
Q: Will this cooler fit Corsair's Carbide Series Air 540 case?
Answer by Dan on 10th October 2016
That case lists as supporting coolers up to 170mm, while this cooler is 165mm so it will be tight but should fit. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Will this fit my motherboard and memory? Thanks. ASRock 970 Pro3 R2.0, HyperX Savage 8GB Memory Module 2133MHz DDR3
Answer by Website User on 24th May 2016
Yes both the memory and CPU cooler would be compatible with this board.
0 customers found this answer helpful.
Answer by Roland on 24th May 2016
Yes, this cooler is compatible with your hardware, although please be sure that it will fit inside your case as the cooler is quite tall.
0 customers found this answer helpful.
Post Answer
Q: Will this fit a AvP Venom Gaming Black Midi Tower Case please ? Mother board ASUS Z97-PRO, corsair vengeance pro DDR3 memory.Thank you.
Answer by Matthew on 28th October 2015
No, this product has a height of 165mm and the AvP Venom only supports coolers up to 160mm in height. -MR
0 customers found this answer helpful.
Post Answer
Q: I have a NZXT Source 210 Elite Mid Tower Case with a Gigabyte B85-HD3 Motherboard, will this Fan fit without hindering access to anything else inside my case???.
Answer by Website User on 15th June 2015
That case lists as supporting coolers up to 160mm while Noctua state that this cooler is 165mm with the fans attached so it would be too tall to fit. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Hi can I use Liquid Ultra with this cooler?
Answer by Website User on 13th April 2015
I'm not familiar with that thermal paste but it should work with any cooler so should be fine. -Danlevan
0 customers found this answer helpful.
Answer by Website User on 9th May 2015
Should be ok. better ask the manufacturer to be 100% sure, but it looks like the base is nickel plated copper. The fins, however, are aluminium. Gallium-based TIMs interdiffuse in aluminium, destroying it.
0 customers found this answer helpful.
Post Answer
Q: Does it come with mounting kit and if so how do i select the kit I want for my processor socket.
Answer by Website User on 16th March 2015
Yes, this comes with a mounting kit. The instructions will tell you what parts to select for your socket. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Hi probably gonna buy this! But got to ask, first I have the asus z97 pro motherboard with a define r4, will it fit, I know the case is wide but the cooler isnt exactly small! Also will it work with my heat synced corsair vengeance pro ram? Thanks - Tom
Answer by Website User on 16th March 2015
This cooler will be fine with your case and motherboard, it is a very large cooler though and will sit over the memory slots so you will want low profile memory. -Danlevan
0 customers found this answer helpful.
Post Answer
Q: How much of an upgrade is this compared to the NH-D14
Answer by Dan on 22nd December 2014
It's not drastic but judging by reviews it does cool a little better than the NH-D14: http://www.bit-tech.net/hardware/cooling/2014/05/01/noctua-nh-d15-review/2 -Danlevan
0 customers found this answer helpful.
Post Answer
Q: Can I use this cooler with Antec P280 Full tower ?
Answer by Website User on 8th December 2014
That case lists as being able to take CPU coolers up to 170mm in height, while this is 165mm so it should fit fine. -Danlevan
1 customer found this answer helpful.
Post Answer
Q: how much room does this take gotta zalman z11 case but it just looks huge
Answer by Dan on 27th November 2014
Reviews for the Z11 Plus indicate it can take a maximum height cooler of 16.1cm, this cooler is 16.5cm so it's close but I doubt it will fit. -Danlevan
0 customers found this answer helpful.
Post Answer
Reviews
4.7 / 5 18 reviews

Peter Dungey

2 months ago

Not cheap but great products

Callum

10 months ago

Best on the market.

a few more characters as it needs to be 10.

February 2021

Very quiet and easy to install. Temps are low on full load but I have not done any overlocking yet.

Stuart

February 2021

Make it sure it fits with your RAM as it may be too big so you only can use one fan. Comes well packaged and super easy to set up

Fraser

February 2021

Good fan though though

robert clay

December 2020

cracking bit of kit, but make sure you got the case space to handle this thing, i mean its approx a stick of ram cubed! you will likely want low profile ram sticks if you intend to stick both the fans onto this beast!

Thomas

August 2020

Works really well even without the additional fan

Roman

July 2020

1234657890

Mark

June 2020

Having not built a PC for many years I was clueless how the new socket types work. ZIF sockets were barely a thing last time I built a PC so you still had to crowbar the cooler onto the CPU. When I opened this cooler I was very surprised and more than a little intimidated by its size and the process of installing it, but the instructions were pretty good and I got it installed with a minimum of stress. I use this in a recording studio and the cooler is basically silent. The CPU fan very rarely kicks in and when it does you only know by looking at it. One thing to note is that you have to be careful of the orientation of the cooler if you want a GPU in the top PCI-e slot as the cooler is not square and will block the top slot if it is oriented so it is taller than it is wide. I was sceptical about the price of this cooler but I bought it because it was recommended. The cost is more than justified, this thing is a work of art.

Nicholas

June 2020

awesome, just awesome

scott

May 2020

One of the best coolers you can buy the only downside is colour.

Anthony

April 2020

Keeps my i7 cool and It is very quiet

John Chandler

December 2019

This is the second PC i've built with the NH-D15 Dual Fan, Dual Radiator arrangement. If you're thinking about getting this, you won't regret it. The Best Cooler around, and so easy to fit. Comes with excellent Heatsink Compound too. Just remember to check the Cooler will fit your case. Mine is the Corsair 450D Obsidian.

Acuvic

November 2019

This is arguably the best *air* CPU cooler you can buy. It is pretty big with the 140mm fans, but in return, you get a much quiet cooler. I easily overclocked my 3.3GHz spec cpu to 4.5GHz using this cooler without trying too hard.. Alright, my i5-2500k might have been a "good un" but the previous aftermarket Corsair only managed 4GHz overclock. People complained about the colour, but come-on guys, this is ridiculous fashion consciousness.Your fellow geeks might be aware of the latest in colour trends, but no-one else care sweet FA about the colour of your cooler fans!

James Howlett

October 2019

Simply the best air cooler you can buy, if it fits in your case. Superb cooling and quality, you get what you pay for.

Matt

August 2019

Super quiet, easy to understand instructions. Best air cooler around.

Customer

May 2019

Best air cooler on the market - I've got a 9900k running at 5.1GHz all cores, and under load it barely hits 70C. During normal use on my audio workstation, it's effectively silent. It is expensive for air cooling, but it matches/outperforms AIOs that cost more, so it's still decent value long term.

Filip

November 2018

It is a good, reliable fan. There are minor noises when starting up, but that might be just the case of a dodgy installation.

View more products like this

CPU Coolers compatible with Socket 2066 motherboards (62)

Copyright © 2023 CCL Computers Limited
