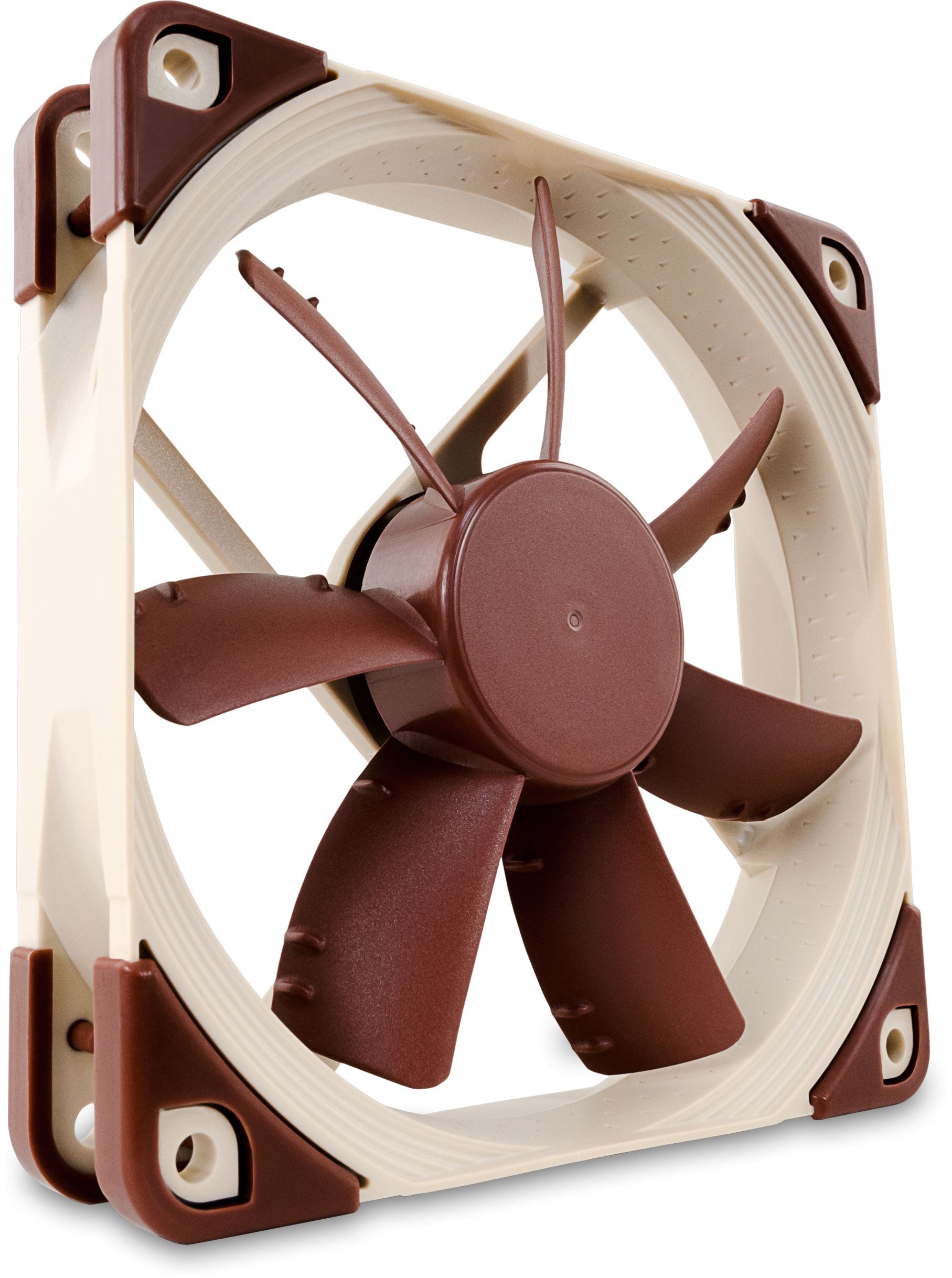

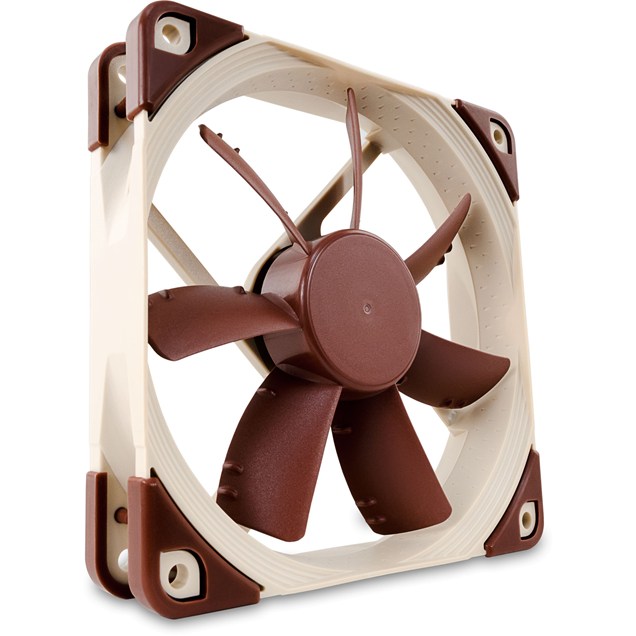

The NF-S12A marks the third generation of Noctua’s signature S12 series quiet case fans, which have received more than 250 awards and recommendations from the international press. Featuring a further refined blade design with Anti-Stall Knobs that works in tandem with the new AAO or Advanced Acoustic Optimisation frame. The NF-S12A improves the airflow/noise efficiency of its renowned predecessor by up to 8%. The FLX version provides 1200 / 900 / 700 rpm speed settings via the supplied Low-Noise Adaptors in order to give you full flexibility in fine-tuning the fan for maximum ventilation performance or near-silent operation. Its superb running smoothness, SSO2-Bearings and Noctua’s trusted premium quality make it an elite choice for quiet case cooling.

Specifications

• Size 120 x 120 x 25 mm

• Bearing SSO-Bearing

• Connector 3-Pin

• Blade Geometry S-Series with Anti-Stall Knobs

• Rotational Speed ±10% 1200 PRM

• Rotational Speed with L.N.A. ±10% 900 RPM

• Rotational Speed with U.L.N.A. ±10% 700 RPM

• Airflow 63.27 CFM

• Airflow with L.N.A. 48.96 CFM

• Airflow with U.L.N.A. 38.72 CFM

• Acoustical Noise 17.8 dB(A)

• Acoustical Noise with L.N.A. 10.7 dB(A)

• Acoustical Noise with U.L.N.A. 7.4 dB(A)

• Static Pressure 1.19 mm H2O

• Static Pressure with L.N.A. 0.73 mm H2O

• Static Pressure with U.L.N.A. 0.51 mm H2O

• Input Power 1.44 W

• Input Current 0.12 A

• Voltage Range 12 V

• MTBF > 150.000 h

• Warranty 72 months
