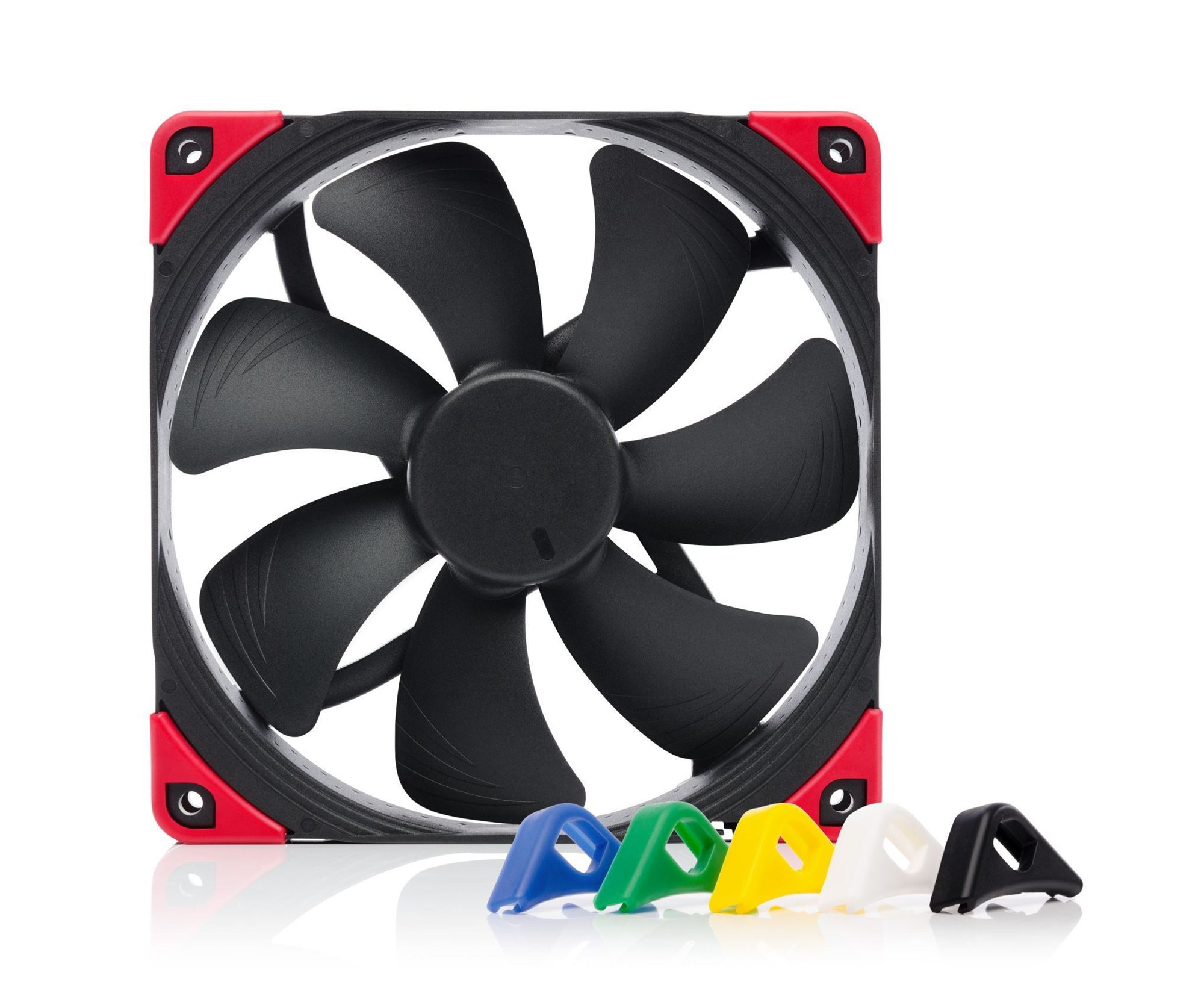

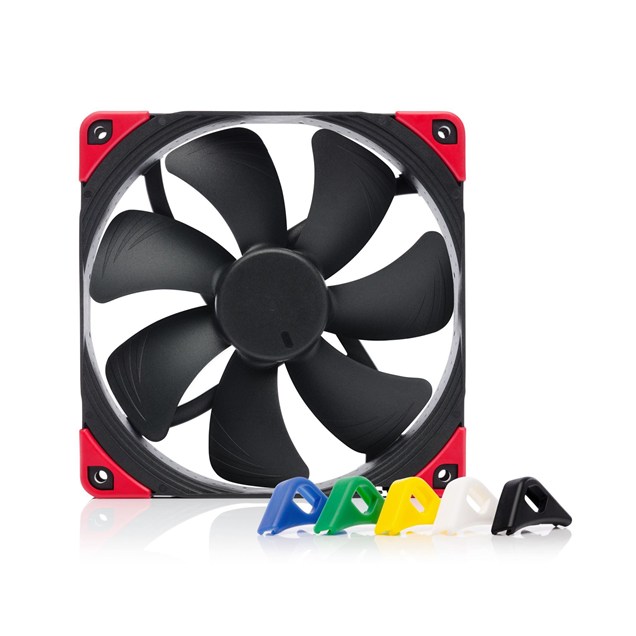

Noctua NF-A14 PWM chromax.black.swap 140mm Case Fan in Black

Noctua NF-A14 PWM chromax.black.swap 140mm Case Fan in Black

CCL Code: CLR2563

Discontinued

Noctua NF-A14 PWM chromax.black.swap 140mm Case Fan in Black

NF-A14 PWM CHROMAX.BLACK.SWAP

CCL Code: CLR2563

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Main Features

  • Award-winning NF-A14 design - Having received more than 100 awards and recommendations from the international press, Noctua's NF-A14 has become a proven premium choice for 140mm cooling needs. Its renowned efficiency has convinced tens of thousands of customers all over the world.
  • chromax.black.swap edition - Maximising colour choices, Noctua's chromax.black.swap edition fans can be colour-customised using the included swappable anti-vibration pads as well as optional anti-vibration mounts and cables. This makes them ideal for enthusiasts looking for true premium-grade fans that can be colour-coordinated with popular build themes such as all black, black & white or black & red.
  • Swappable anti-vibration pads in 6 colours - The NF-A14 PWM chromax.black.swap comes with 4 black, white, red, blue, green and yellow NA-AVP1 anti-vibration pads respectively. By combining the various colours with black or leaving off the pads on one side, the fan can be coordinated with most popular build colour schemes out of the box. Additional NA-SAVP1 sets for outfitting both sides in one colour can be purchased separately.
  • Optional coloured cables - Noctua's chromax line fans use a modular cabling system and come pre-fitted with a fully sleeved black NA-EC1 30cm cable. For refined colour coordination, white, red, blue, green and yellow 30cm NA-EC1 cables plus corresponding NA-YC1 y-cables are available separately.
  • Optional coloured anti-vibration mounts - To complement the coloured anti-vibration pads included with the fans, users can purchase chromax line NA-SAV2 anti-vibration mounts that enable the convenient, quick and vibration-free installation of fans in standard mounting holes for case fans.
  • Square 140mm frame - The NF-A14's square 140mm frame with 140mm mounting holes (124.5mm spacing) makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.
  • Flow Acceleration Channels - The NF-A14 impeller features suction side Flow Acceleration Channels. By speeding up the airflow at the crucial outer blade regions, this measure reduces suction side flow separation and thus leads to better efficiency and lower vortex noise.
  • AAO frame - Noctua's AAO (Advanced Acoustic Optimisation) frames feature integrated anti-vibration pads as well as Noctua's proprietary Stepped Inlet Design and Inner Surface Microstructures, both of which further refine the fan's performance/noise efficiency.
  • Stepped Inlet Design - Noctua's Stepped Inlet Design adds turbulence to the influx in order to facilitate the transition from laminar flow to turbulent flow, which reduces tonal intake noise, improves flow attachment and increases suction capacity, especially in space-restricted environments.
  • Inner Surface Microstructures - With the tips of the fan blades ploughing through the boundary layer created by the Inner Surface Microstructures, flow separation from the suction side of the blades is significantly suppressed, which results in reduced blade passing noise and improved airflow and pressure efficiency.
  • SSO2 bearing - The chromax line fans feature the further optimised second generation of Noctua's renowned, time-tested SSO bearing. With SSO2, the rear magnet is placed closer to the axis to provide even better stabilisation, precision and durability.
  • Metal bearing shell - In order to guarantee the highest possible degree of manufacturing precision, minimum tolerance and excellent long-term stability, the chromax edition fans sport a CNC milled bearing shell made entirely from brass.
  • Custom-designed PWM IC with SCD - Supporting fully automatic PWM speed control, the chromax edition fans use Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at low speeds.
  • Stops at 0% PWM - When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.
  • 6-year manufacturer's warranty - Noctua fans are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the chromax edition models feature an MTBF of more than 150,000 hours rating and come with a full 6-year manufacturer's warranty.
Specifications

Attributes

Fan Speed 300 ~ 1500 RPM
Air Flow 140.2 m3/h
Bearing Type SSO2
Connector 4-pin PWM
Static Pressure 2.08 mmH2O
Lifetime > 150,000 hours

Electrical

Voltage 12 V
Current 0.13 A

Environmental

Noise Level 24.6 dB(A)

Physical

Form Factor Chassis Fan
Case Colour Black

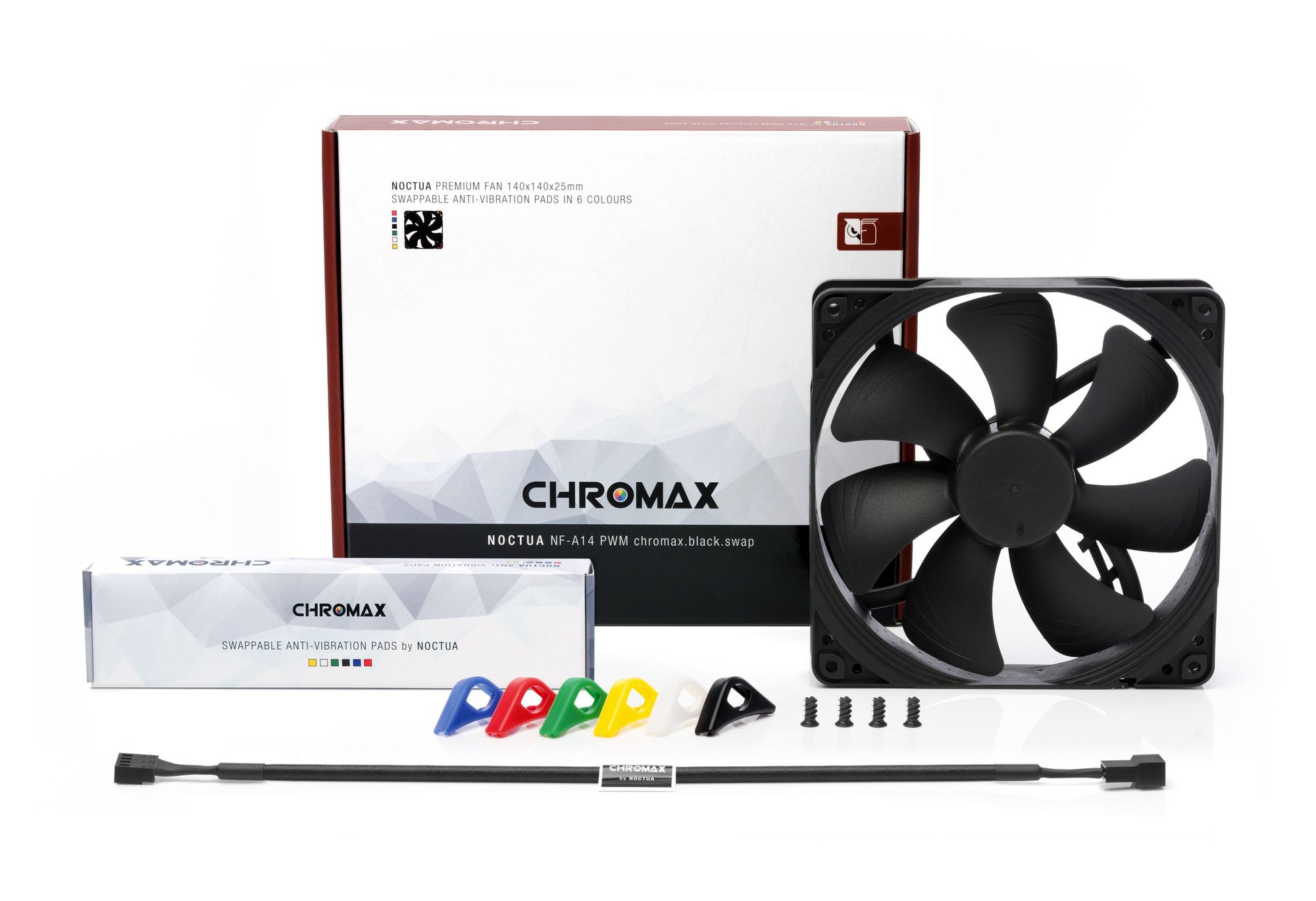

In The Box NF-A14 PWM chromax.black.swap Fan
4x NA-AVP1 chromax.black anti-vibration pads
4x NA-AVP1 chromax.blue anti-vibration pads
4x NA-AVP1 chromax.green anti-vibration pads
4x NA-AVP1 chromax.red anti-vibration pads
4x NA-AVP1 chromax.white anti-vibration pads
4x NA-AVP1 chromax.yellow anti-vibration pads
4x fan screws
Fan Width cm
Fan Depth 120 mm
Fan Height 25 mm

Warranty

Warranty 6 Years

Key Features

Main Colour Black
Internal/External Use
Number of Speeds
Fan Diameter
Fan Size 120 mm
Display Model in Showroom
L.E.D Fan No LED
Number of Fans 1 fan(s)
LED Controller Included No
LED Strip(s) Included
Fan Connector 4-pin PWM
Power Requirement (auto) 3 W

Item Details

Manufacturer Noctua
Manufacturer Code NF-A14 PWM CHROMAX.BLACK.SWAP
EAN 9010018100426
UPC 841501110429
Condition New
Warranty

Warranty Information

Warranty 6 Years

Manufacturer Information

Manufacturer Noctua
Manufacturer Code NF-A14 PWM CHROMAX.BLACK.SWAP
