Noctua NF-A12x25r PWM 120mm Chassis Fan
Available for delivery from Tuesday 23rd June
Click & Collect from Monday 22nd June
4 In Stock Now
Order within
You have 0 of these in your basket

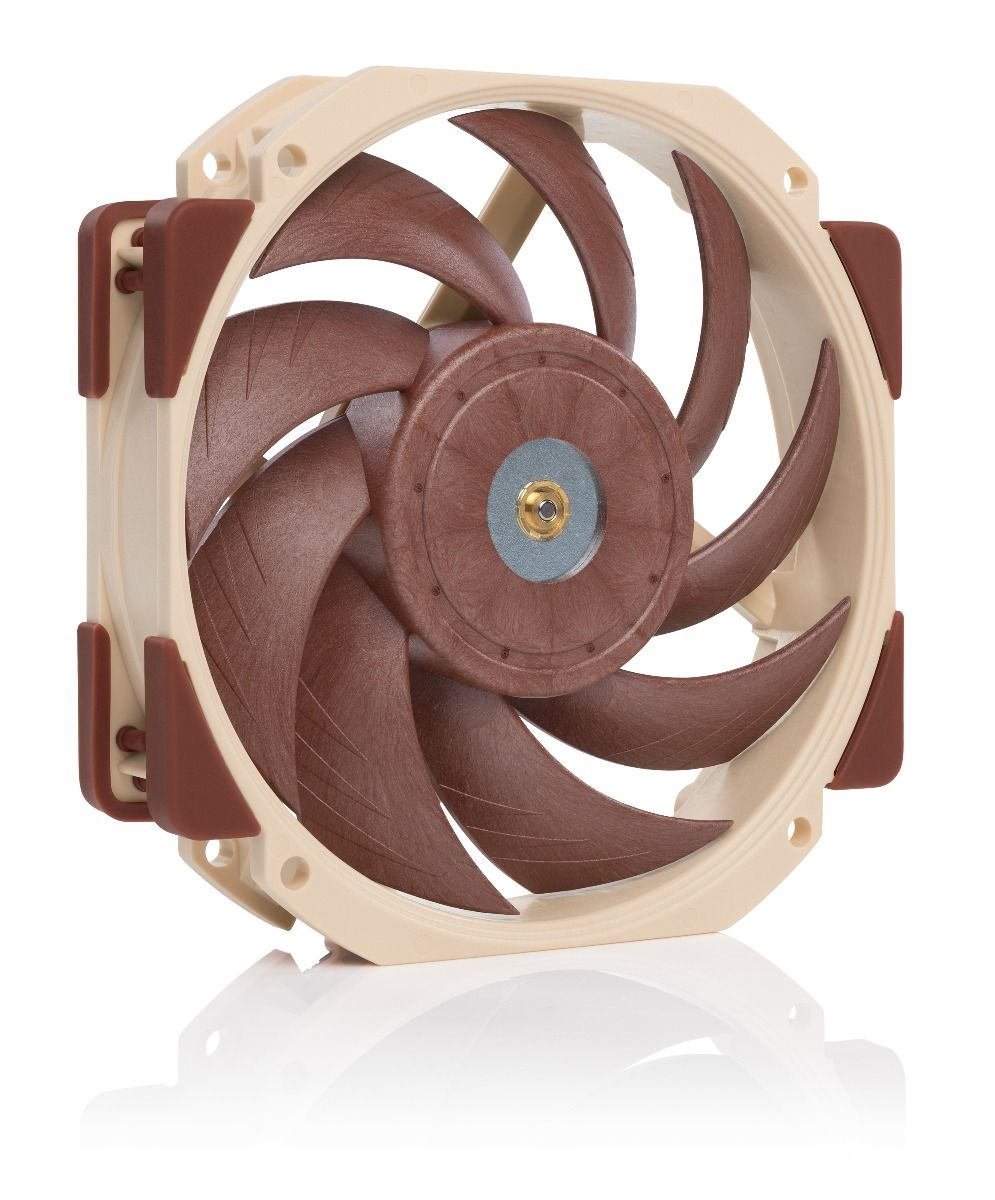

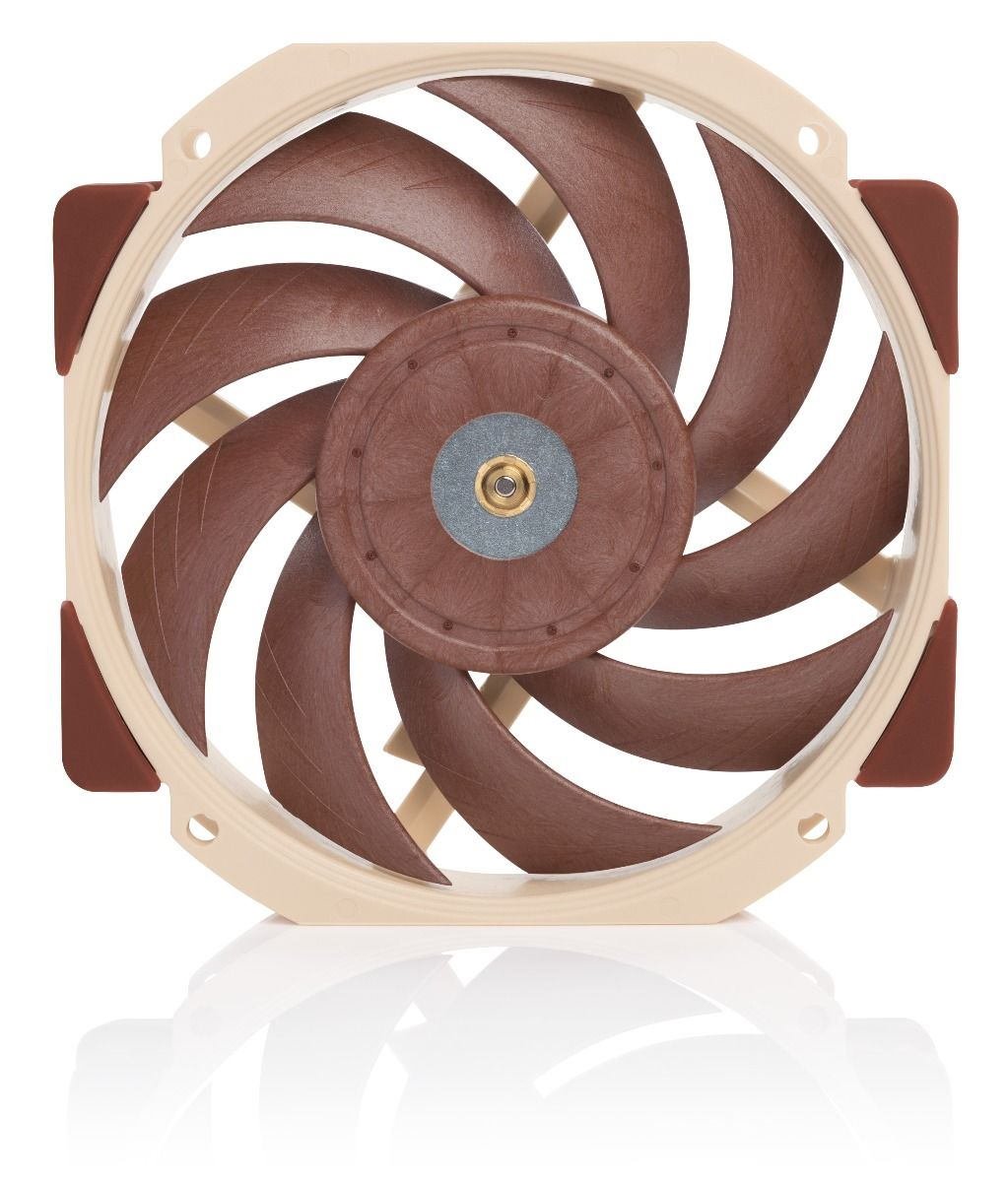

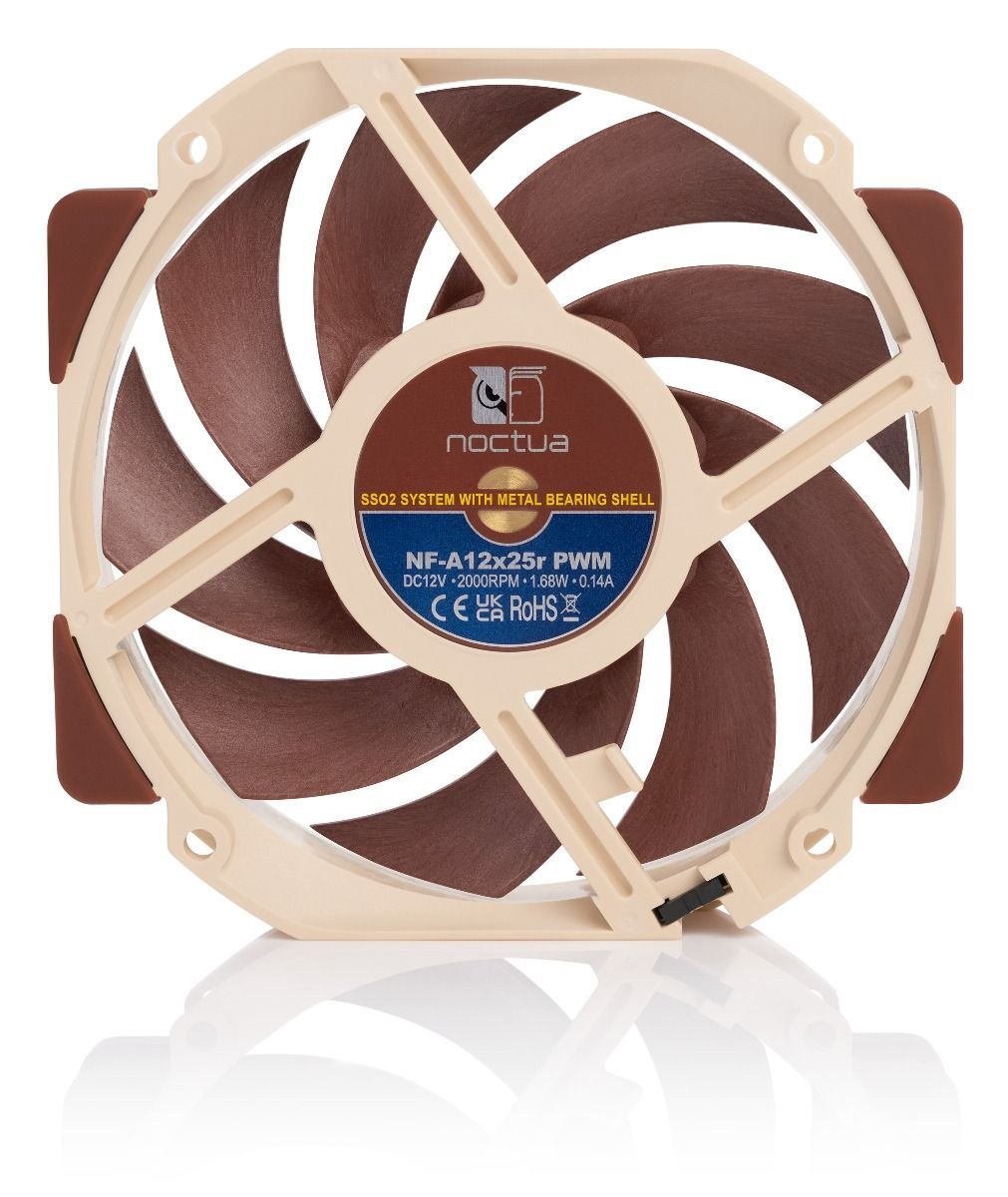

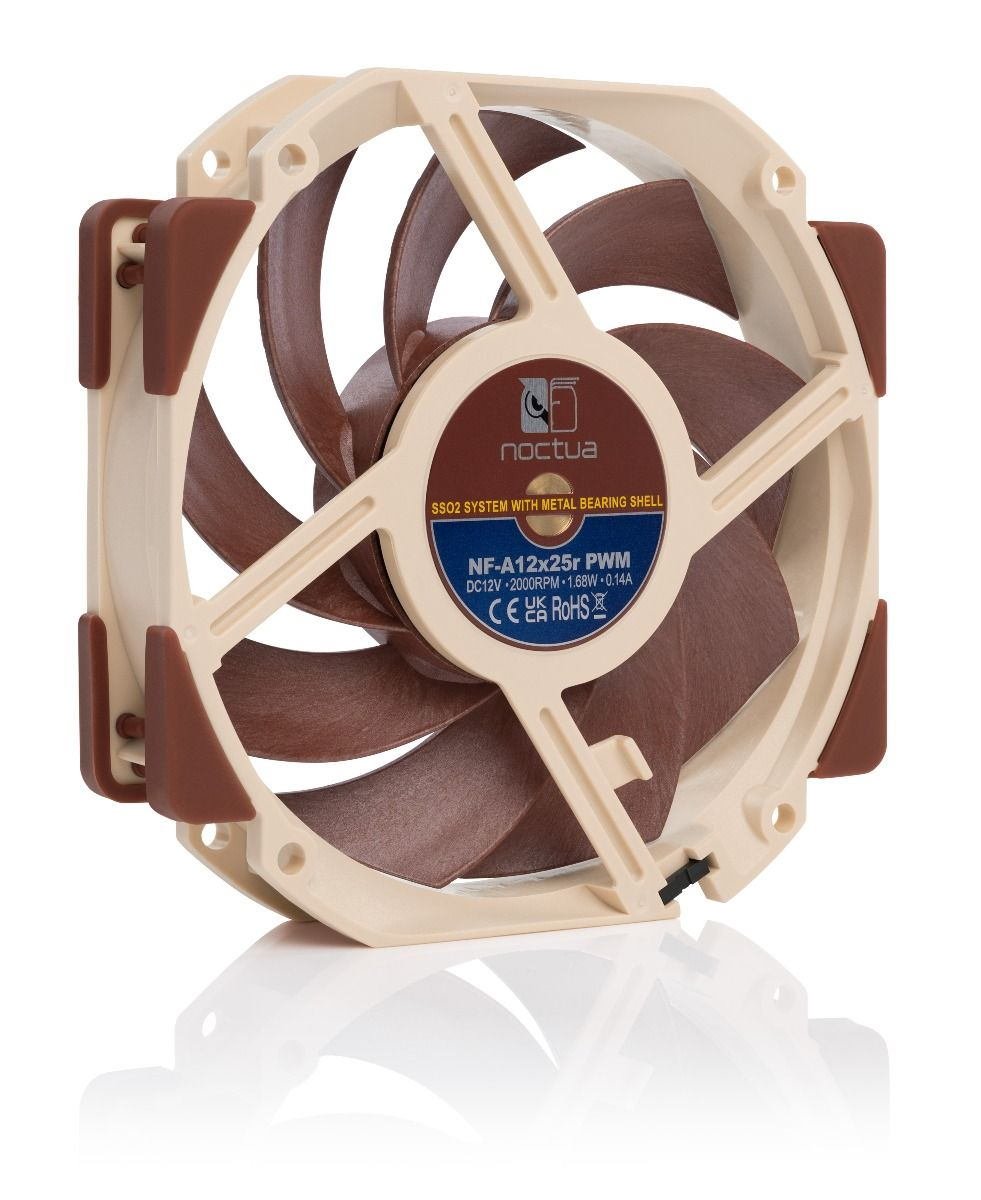

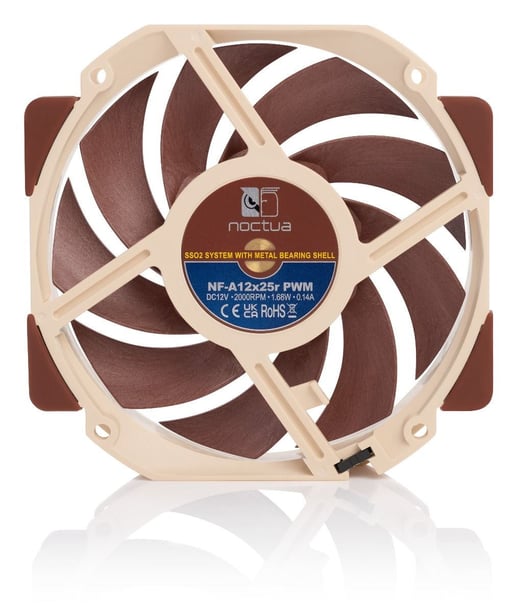

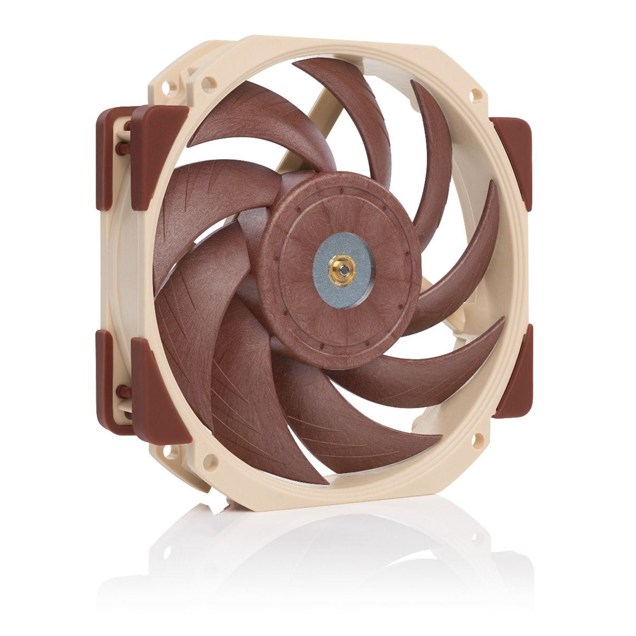

The NF-A12x25r is a round-frame version of Noctua’s award-winning flagship model 120mm NF-A12x25 fan. Its round shape makes it ideal for use on low-height dual-tower CPU coolers like the NH-D12L as well as other space-restricted applications that cannot accommodate square-frame 120mm fans. Just like the square NF-A12x25, the round NF-A12x25r uses a record-tight tip clearance of only 0.5mm, which is made possible by using the novel Sterrox® liquid-crystal polymer (LCP) compound as well as a metal-reinforced motor hub and axis for ultimate precision. Sharing the same state-of-the-art impeller design with Flow Acceleration Channels, the NF-A12x25r achieves the same class-leading quiet cooling performance as its square-frame sibling. It also supports fully automatic speed control via PWM fan headers and comes with a Low-Noise Adaptor to reduce the maximum speed from 2000 to 1700rpm. Topped off with exceptional running smoothness, Noctua’s reference-class SSO2 bearing, a rich bundle of accessories and 6-year manufacturer’s warranty, the NF-A12x25r is a premium-quality product through and through. Its superior efficiency, cutting-edge construction and pioneering materials make it an elite choice for all 120mm applications that require a round frame.
Attributes
- Fan Speed: 450 ~ 200 RPM
- Air Flow: 84.5 ~ 102.1 m3/h
- Bearing Type: SSO2
- Connector: 4-pin PWM
- Static Pressure: 1.65 ~ 2.34 mmH2O
- Lifetime: > 150,000 hours
Electrical
- Voltage: 12 V
- Current: 0.14 A
Environmental
- Noise Level: 18.8 ~ 22.6 dB(A)
Physical
- Form Factor: Chassis Fan
- Case Colour: Beige

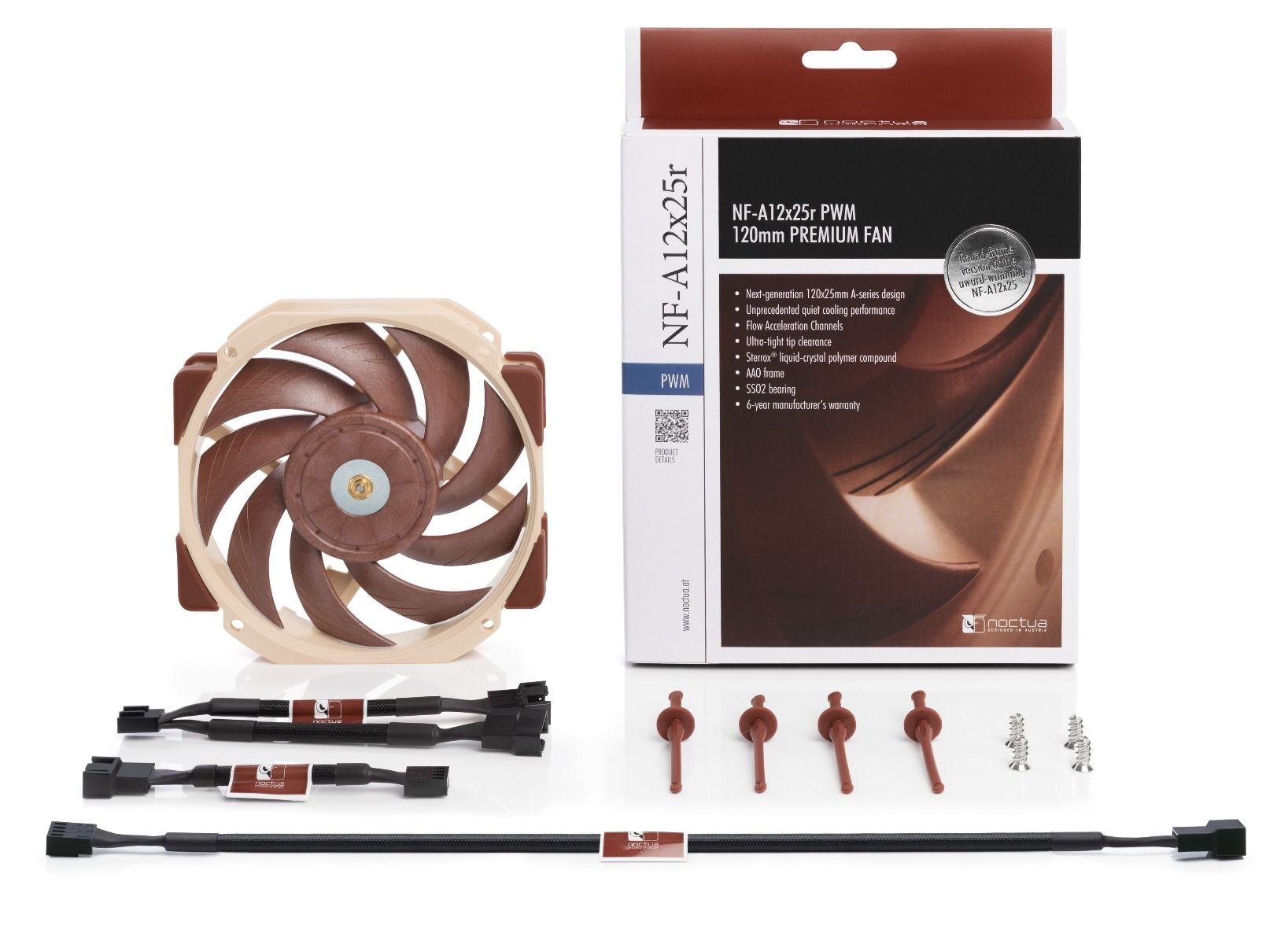

- In The Box: Fan
- NA-RC14 Low-Noise Adaptor (L.N.A)
- NA-YC1 4-pin PWM y-cable
- NA-EC1 30cm extension cable
- 4x NA-AV2 anti-vibration mounts
- Fan screws
- Fan Width: 120 mm
- Fan Depth: 120 mm
- Fan Height: 25 mm
Warranty
- Warranty: 6 Years
Identifiers
- Stock Code: CLR2574
- Mfg Code: NF-A12x25r PWM
Warranty
- Warranty: 6 Years
