GPU

• Chipset Manufacturer: NVIDIA
• Chipset Model Name: GeForce RTX
• Chipset Model Number: 5060 Ti
• Chipset Additional Information: Dual OC
• Base Chip Clock: 2407 MHz
• Boost Chip Clock: 2632 MHz
• Graphics Core: CUDA
• Number of Cores: 4608

Memory

• Memory Size: 8 GB
• Memory Clock: 28 Gbps
• Memory Type: GDDR7
• Memory Width: 128 bit
• Memory Bandwidth: 448 GB/s

Interfaces/Ports

• Video Card Bus Type: PCI Express
• Video Card Bus Version: 5.0 x8

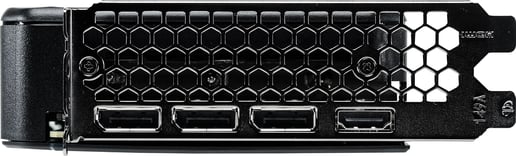

• HDMI Port: 1 x HDMI 2.1b
• DisplayPort: 3 x DisplayPort 2.1b

Resolution

• Multiple Monitor Support (Max): Yes (4)
• Maximum Resolution: 7680 x 4320

System Requirements

• System Requirements: 1 x PCI Express 5.0 x16 slot

Electrical

• Power Connector: 1 x 8-pin PCIe
• Power Consumption: 180 W
• Recomended Power Supply: 600 W

Physical

• Form Factor: Graphics Card
• In The Box: Graphics Card
• Width: 40.1 mm (Dual Slot)
• Depth: 262.1 mm
• Height: 126.3 mm

Warranty

• Warranty: 3 Years

Identifiers

• Stock Code: VGA7391
• Mfg Code: NE7506TT19P1-GB2062D
