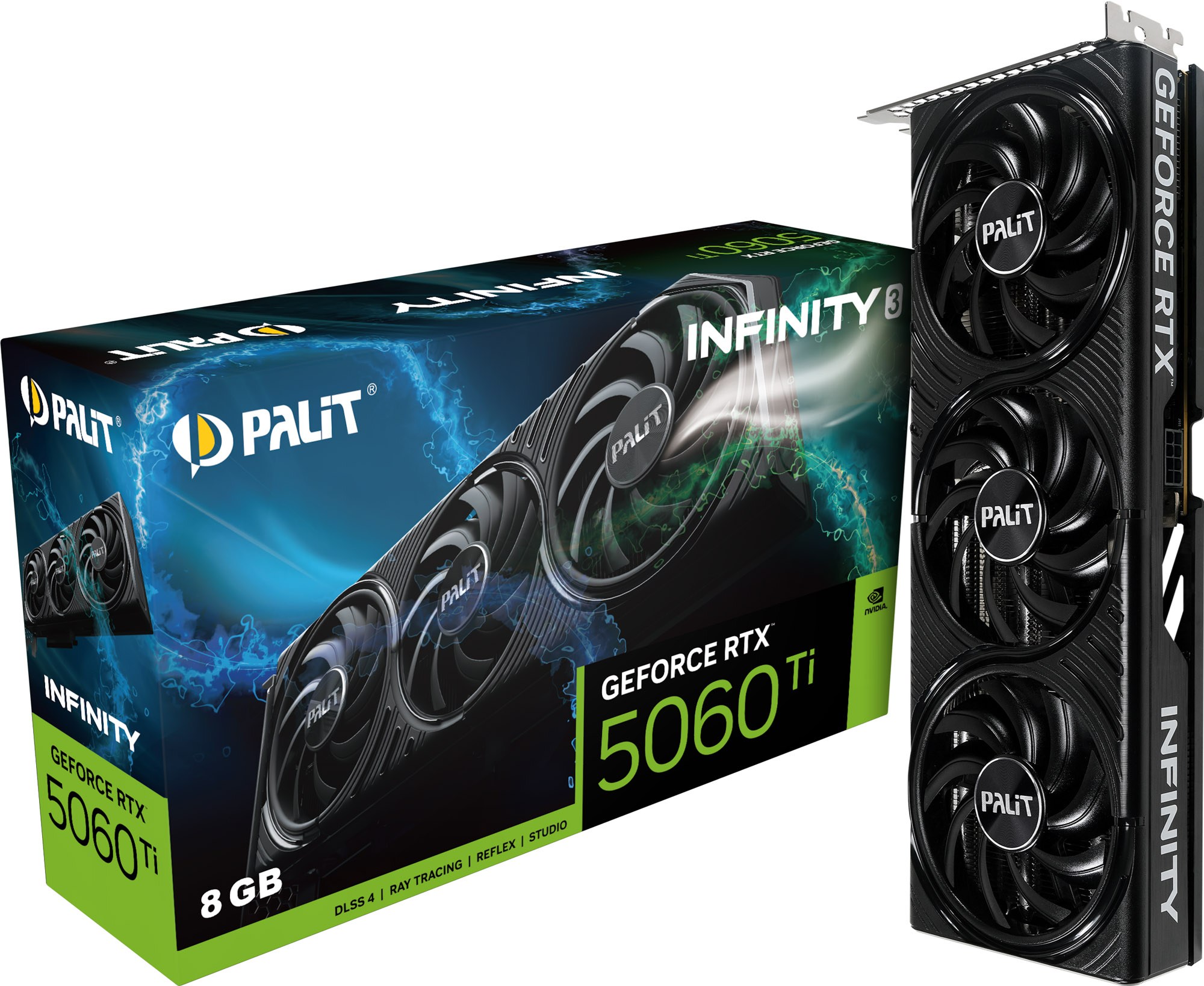

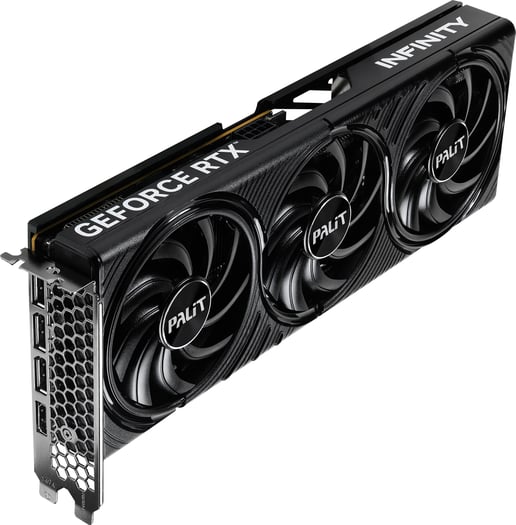

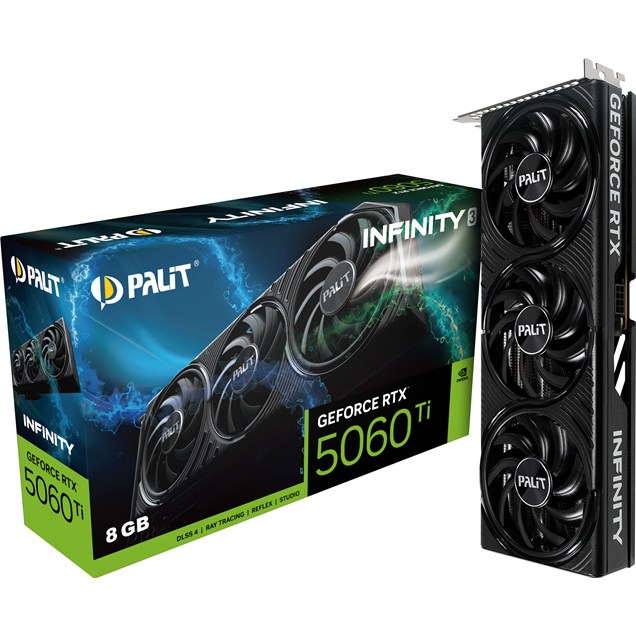

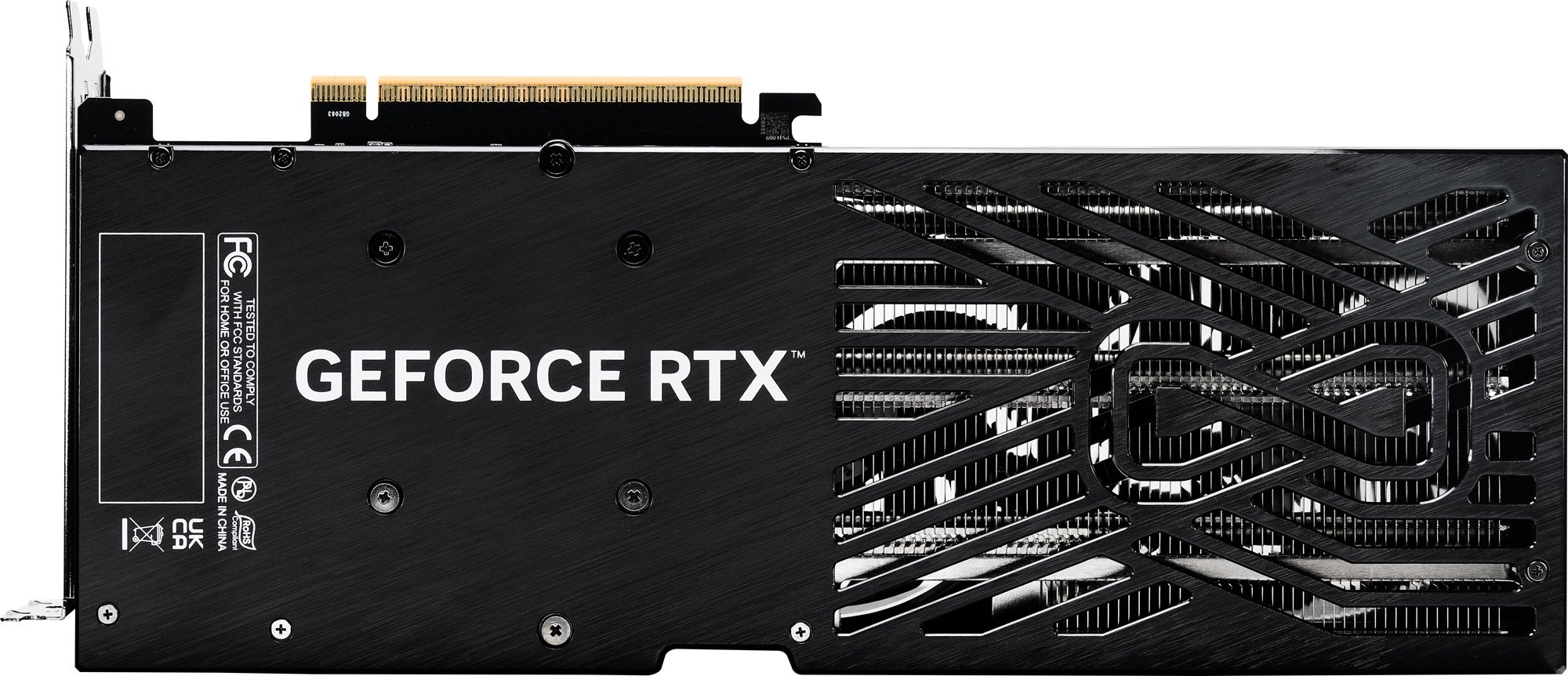

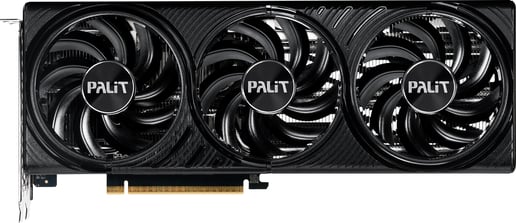

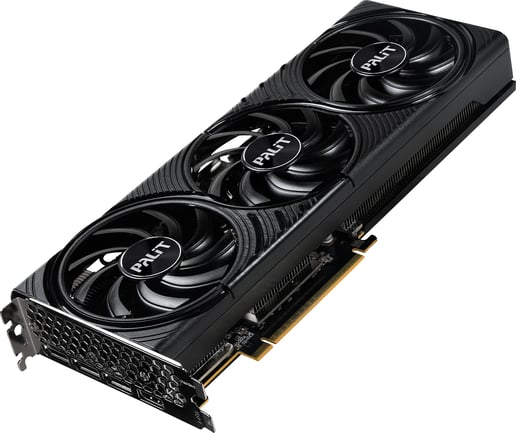

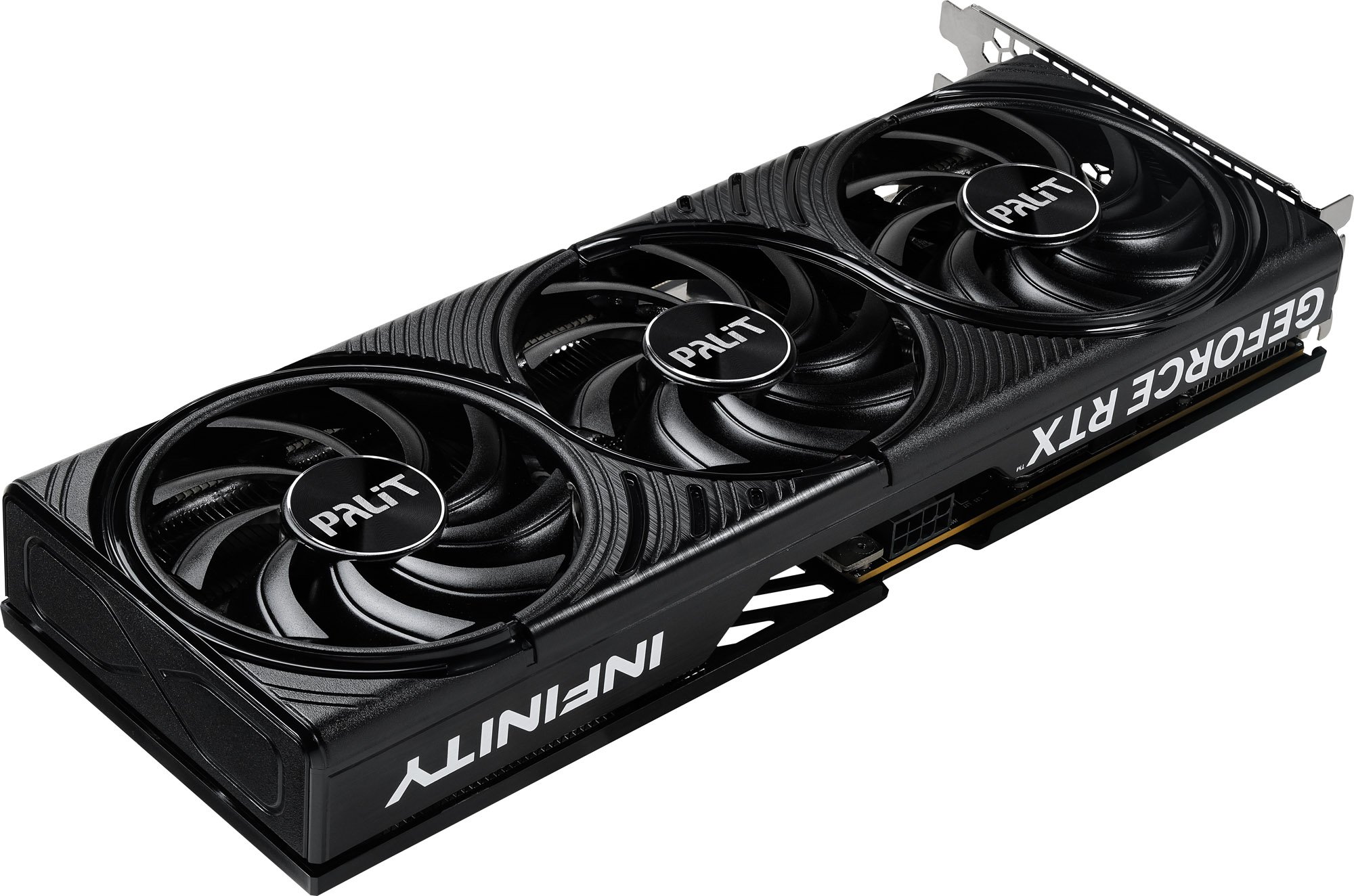

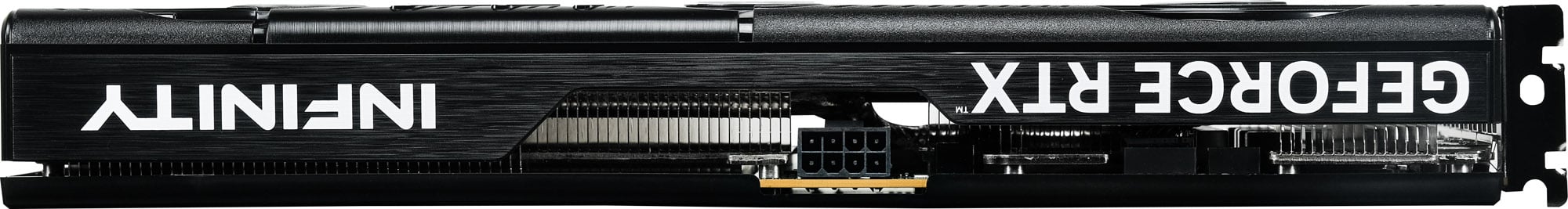

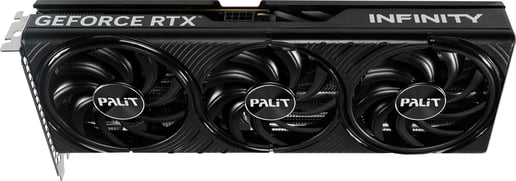

Palit GeForce RTX 5060 Ti Infinity 3 8GB GDDR7 Graphics Card

Palit GeForce RTX 5060 Ti Infinity 3 8GB GDDR7 Graphics Card

CCL Code: VGA7390

Sold out

Notify Me

Palit GeForce RTX 5060 Ti Infinity 3 8GB GDDR7 Graphics Card

NE7506T019P1-GB2062S

Key Features:

  • 8GB GDDR7 Graphics Memory
  • PCI Express 5.0 x8 Interface
  • Outputs - HDMI and Display Port
CCL Code: VGA7390

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Palit GeForce RTX 5060 Ti Infinity 3 8GB Graphics Card

Specifications

GPU

Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5060 Ti
Chipset Additional Information Infinity 3
Base Chip Clock 2407 MHz
Boost Chip Clock 2572 MHz
Graphics Core CUDA
Number of Cores 4608

Memory

Memory Size 8192 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 128 bit
Memory Bandwidth 448 GB/s

Interfaces/Ports

Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x8

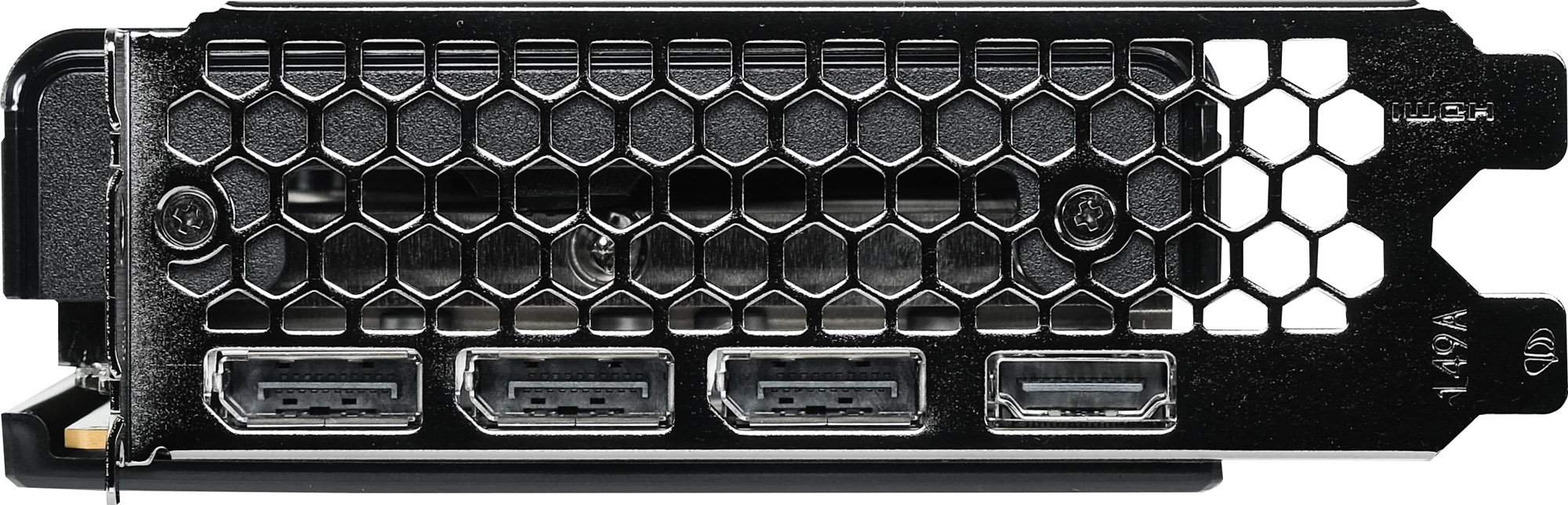

HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1b

Resolution

Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320

System Requirements

System Requirements 1 x PCI Express 5.0 x16 slot

Electrical

Power Connector 1 x 8-pin PCIe
Power Consumption 180 W
Recomended Power Supply 600 W

Physical

Form Factor Graphics Card
In The Box Graphics Card
Width 41.3 mm (Dual Slot)
Depth 291.9 mm
Height 116.6 mm

Warranty

Warranty 3 Years

Key Features

Interface Type PCI Express 5.0 x8
Config Gaming x8 (CB/CCL) Yes
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5060 Ti
PCIe Pin Type 6+2-Pin
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
GPU Length 292 mm
Card Width 2
Power Requirement (auto) 180 W
GPU Power (TDP) 180 W
Graphics card count 1
PCI Express Power Pins (female) 8
PCIe Physical Slot required 16
12VHPWR 16-pin Connector No
AI Ready Yes

Graphics

Graphics Chipset GeForce RTX 5060 Ti

Graphics Device

G-Sync Yes

Item Details

Manufacturer Palit
Manufacturer Code NE7506T019P1-GB2062S
EAN 4710562245226
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Palit
Manufacturer Code NE7506T019P1-GB2062S
